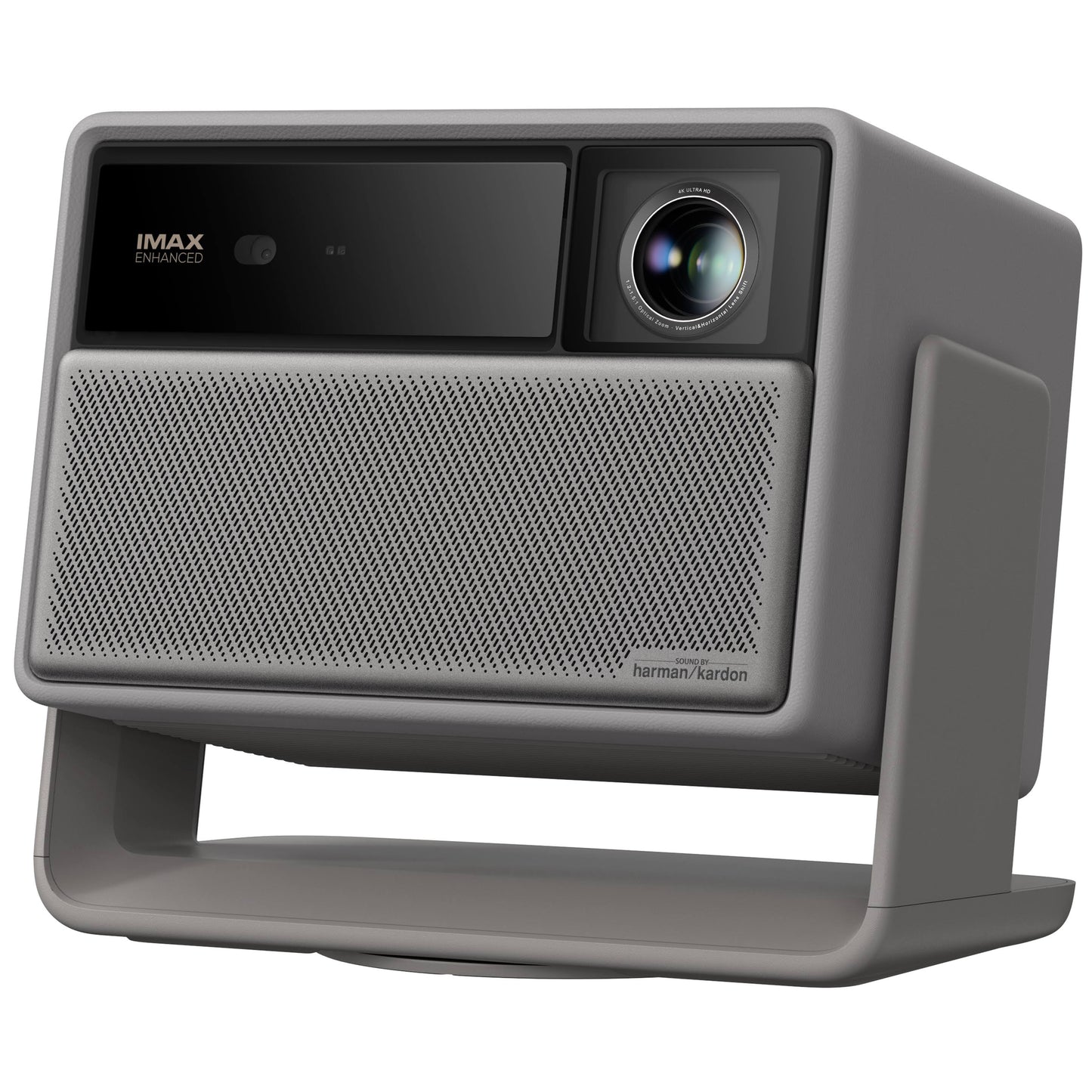

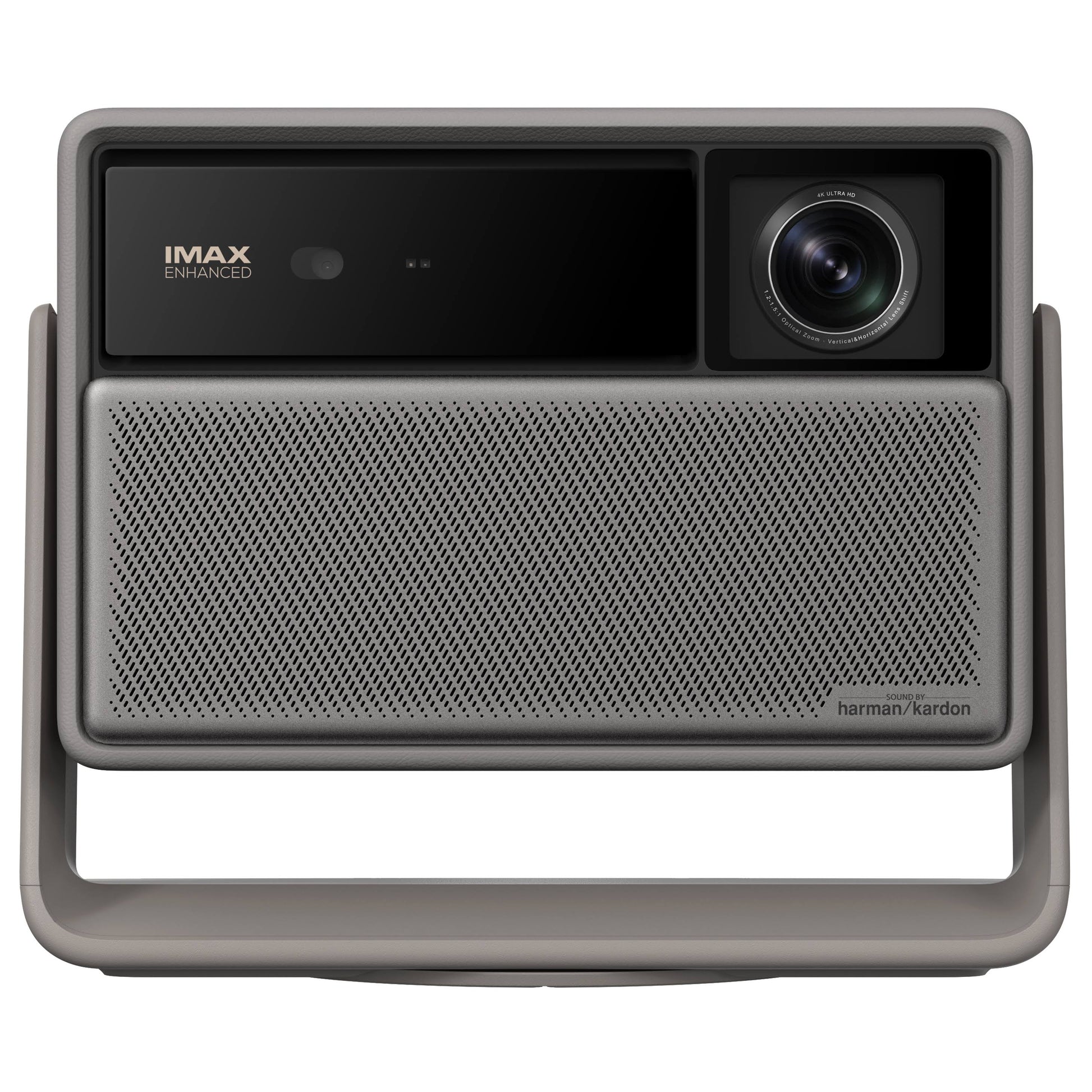

XGIMI Horizon 20 RGB Triple Laser Home Theatre Projector
The XGIMI Horizon 20 delivers cinema-grade performance through its triple laser engine, ensuring vibrant, fade-resistant colours and exceptional brightness for expansive displays. Optical zoom and lens shift capabilities provide flexible installation options while preserving full resolution—no compromise through digital zoom or keystone correction. Gamers benefit from a responsive 1ms input lag and dedicated gaming enhancements, making this projector equally adept at entertainment and competitive play. The integrated Google TV platform includes Netflix certification, granting seamless access to all major streaming services without requiring additional hardware.
Key Features & Specifications
- UHD 3840 x 2160 16:9
- 3200 ISO Lumens
- 4.8kg Weight
- 28db(eco) Fan Noise
- 2 Year Warranty
- 2 Year Laser Warranty
- Est. Laser Life up to 20,000hrs
- 1.25x Optical Zoom
- Lens Shift
- Auto V&H Keystone
- Instant Off
- Google TV Inbuilt
- Wireless Streaming
- Bluetooth Audio 5.1
- Google Cast Inbuilt
- 2x 12W Speakers
- 2x HDMI connections
Throw Distance Chart (Throw Ratio: 1.2-1.5:1)
| Image Size | Installation Distance |
|---|---|
| 92" (16:9) 2030x1140mm | From 2.5m to 3.1m |
| 100" (16:9) 2214x1245mm | From 2.7m to 3.3m |
| 110" (16:9) 2435x1370mm | From 3.0m to 3.6m |
| 120" (16:9) 2657x1494mm | From 3.2m to 3.9m |
| 135" (16:9) 2990x1681mm | From 3.6m to 4.4m |
| 150" (16:9) 3320x1867mm | From 4.0m to 4.9m |
Max Performance, Max Entertainment
- Powered by RGB Triple Laser: The X-Master RGB triple laser engine delivers 3200 ISO lumens and a 20,000:1 contrast ratio for vivid, accurate colors and exceptional image depth—perfect for immersive viewing anytime.
- Cinematic Certified: IMAX Enhanced, Dolby Vision, HDR10+, and Filmmaker Mode combine to deliver stunning visuals and true-to-intent playback—bringing the theater home.
- 4K Ultra HD Resolution: 3840 x 2160 pixels
- All-in-One Simplicity: From powerful Harman Kardon speakers to built-in Google TV and an integrated stand, everything you need is already inside—no extra setup, no compromises.
- Lossless Optics: Flexible lens shift and optical zoom give you more freedom in setup—without sacrificing clarity. Enjoy crisp, distortion-free visuals at any size, from any angle.
- Pro-Level Gaming Features: Play big with 300″ visuals, 1ms response, 240Hz fluidity—plus VRR and ALLM for seamless sync and ultra-low latency.
- Compact Size (H x W x D): 249 x 298 x 190 mm
- 2-Year Warranty: Double the coverage for greater peace of mind. Outstanding performance, now with support to match.

What's in the Box
- XGIMI Horizon 20 Triple Laser 4K Home Theatre Projector
- Remote Control
- Power Cord
What you may need
- Ceiling Mount
- Floor Stand
- HDMI Cable
- Projector Screen
| Display | |
| Product Classification | Home Projector |
| Display Technique | DLP |
| 3D | Yes |
| Latency (Game Mode, VRR on, AK off) | 1ms at 1080P@240Hz 2.2ms at 1080P@120Hz 3ms at 4K@60Hz |
| Brightness | 3200 ISO Lumens |
| Contrast Ratio | 20,000:1 (DBLE On) |
| Eye Protection | Yes |
| Light Source | RGB Triple Laser |
| Display Chip | 0.47” DMD |
| Supported Formats | HDR 10+, IMAX Enhanced, Dolby Vision |
| MEMC | Yes |
| Standard Resolution | 3840 x 2160 pixels |
| Color Gamut | BT.2020 110% |
| Lens | High Light Transmission Coated Lens |
| Setup | |
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Intelligent Screen Alignment | Yes |
| Lens Shift | V±120% / H±45% |
| Digital Zoom | Yes |
| Aspect Ratio | 16:9 |
| Image Size | 40″ - 300″ |
| Focus | Auto Focus |
| Intelligent Obstacle Avoidance | Yes |
| Optical Zoom | Yes |
| Throw Ratio | 1.2 - 1.5:1 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| System | |
| CPU | MT9679 |
| GPU | Mali-G52 |
| RAM | 4GB |
| Storage | 128GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | DLNA / GoogleCast |
| Audio & Connectivity | |
| Speaker | 2 x 12W Harman/Kardon |
| DTS-Virtual:X | Yes |
| DTS-HD | Yes |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
| Wi-Fi | Wi-Fi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

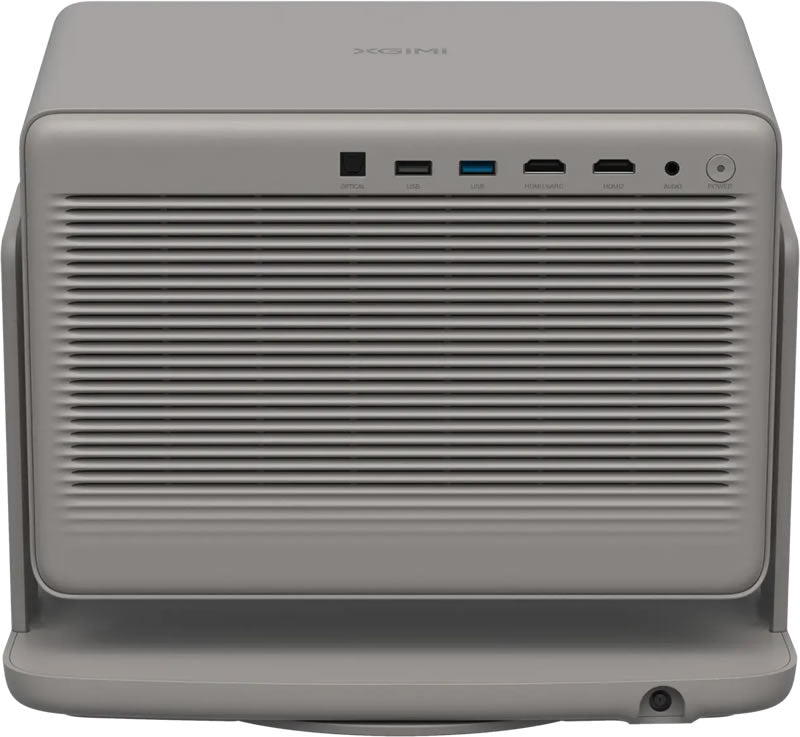

| Input Ports | DC x 1 HDMI x 2 (HDMI1 supports eARC) USB 3.0 x 1, USB 2.0 x 1 |
| Output Ports | Optical x 1, Audio x 1 |
| Noise Level | ≤28dB @ 1m |
| Power Dissipation | ≤180W |
| Power | AC100-240V, 50/60Hz |
| Electrical | |
| Noise Level | <28dB@1m 7 |
| Power Usage | 300W |
| Power | AC100-240V, 50/60Hz |
| Measurements | |
| Product Size (H x W x D) | 249 x 298 x 190 mm |
| Product Weight | 4.8kg |
1. Brightness (light output) will vary depending on usage conditions. White light output measured in accordance with ISO 21118. The nominal value represents the average value of mass production and is tested under ideal laboratory conditions in the performance mode/high power mode.
2. For the best viewing experience. we recommend using a projection size of 60-120 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.
3. Android TV is a trademark of Google LLC.
4. Router required.
5. 25,000 hours is the theoretical lifespan of the light source. The actual lifespan may vary due to differences in environmental conditions, product usage habits and the mode selected.
6. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.
7. Measured under an ambient temperature of 25°C with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.
8. The measured size may vary based on configuration, manufacturing, and measurement method.
9. The measured weight may vary based on configuration, manufacturing process, and measurement method.
* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.
* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations. software versions, application conditions, and environmental factors. All data is subject to actual usage.
* XGlMl makes every effort at the time of publication to ensure the accuracy of product information it provides. Due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGlMl to make changes and adjustments to text and images so that they match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
* Operating temperature: 0℃to 40℃.
* All parameters listed on this page are measured in an XGIMl internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGlMl website for detailed test standards and data.
* The product will be attached with a printed manual. However, the electronic manual will be updated on the XGlMl website.
* The typical value of ΔE≈1 for color accuracy in the factory production of XGIMI HORIZON Ultra is obtained from the XGIMI Optical Laboratory. The calibration parameters will take effect when the high color accuracy mode is correctly activated in the system. Color accuracy may vary slightly depending on factors such as projection usage time and lab testing equipment. Please refer to your actual experience for an accurate assessment.
* SGS Certification Number: PT/23/GEN/0063
* The Wall Color Adaption feature needs to be enabled in the system settings to take effect. Once activated, it can calibrate the picture based on wall colors with a color temperature ranging from 3000K to 15000K. However, the calibration effect may vary depending on the wall color. For optimal results, we recommend using it in dimly lit environments.
* All of XGIMI’s currently available floor stands and ceiling mounts are incompatible with HORIZON Ultra.
