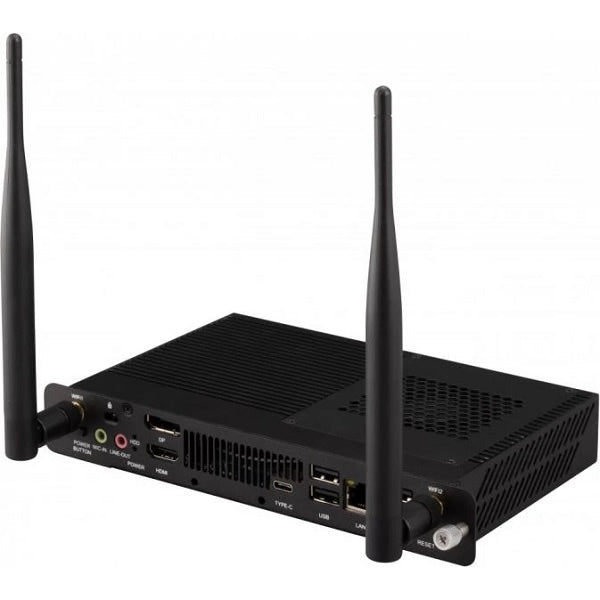

ViewSonic VPC27-W53-O1-1B Slot-In PC for ViewBoard Interactive and Commercial Displays.
Achieve maximum productivity by synchronizing your ViewBoard® interactive displays and wireless presentation display with the ViewSonic VPC27-W53-O1-1B slot-in PC. Equipped with Intel® 10th Gen Core™ processors, 16GB DDR4 memory, and up to 256GB of SSD storage, this PC offers exceptional performance for seamless usage in demanding classrooms and collaborations. Enjoy effortless computing with dual-band WiFi, Bluetooth 5.2, and a variety of ports, including 4K HDMI, DP1.2, USB 3.2, and Gigabit LAN RJ45 for improved workflows.
Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.
Stability in every lesson
Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC27-W53-O1-1B intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.
Stay cool and blaze through classes
Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.
Boot up with total security
Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.
Efficient content management
Synced with myViewBoard, an intuitive suite of software applications, the VPC27-W53-O1-1B offers remote content sharing and engaging lesson delivery for enhanced interactivity and maximized productivity.
Connections
Specifications
| Core | |
|---|---|
| CPU: | Intel Core i7-10700T 2.0GHz Turbo boost 4.5GHz |
| Graphics: | Integrated Intel® UHD graphic 630 Intel H510 chipset |
| Memory | |
| Capacity: | 16GB DDR4 |
| Software | |
| Operating System: | Windows 10 Pro 64 bit |
| Storage | |
| Dimension: | M.2 2280 (22 x 80 mm) |
| Capacity: | 256GB SSD |
| Interface: | M.2 2280 NVMe PCIe Gen3 SSD |
| INPUT | |
| MIC(Microphone): | x1 |
| OUTPUT | |
| DisplayPort: | x 1 (1.2, resolution 3840x2160@60Hz) |
| HDMI: | x 1 (1.4, resolution 3840x2160@60Hz) |
| Audio: | x 1 Line out |
| LAN | |
| RJ45 | GbE LAN Port |
| Wireless / Bluetooth | |
| Intel AX200 WiFi 6 + BT5.2 Module dual band | |
| USB | |
| Type A: | USB x 4 (USB 3.2 x 1, USB 2.0 x 3) |
| Type C: | x 1 (data only) |
| Software | |
| Bundled: | Adobe Reader, myViewBoard WhiteBoard, WatchDog, Winflash |
| Power | |
| Voltage: | DC in +12V~+19V @ 3.42A |
| Consumption: | 65 W (Typical) |
| Operating Conditions | |
| Temperature (º C): | -5~45°C |
| Humidity: | 20% ~ 80% R.H. Non-Condensing |
| Dimensions (W x H x D) | |
| Physical (inch / mm): | 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm |
| Packaging (inch / mm): | 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm |
| Weight | |
| Net (lb / kg): | 2.205 lb/1 kg |
| Gross (lb / kg): | 2.646 lb/1.2 kg |
| Regulations | |
| cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC | |
| Package Contends | |
| Included: | 1. VPC OPS 2. Quick Start Guide 3. Screw x 2 |
