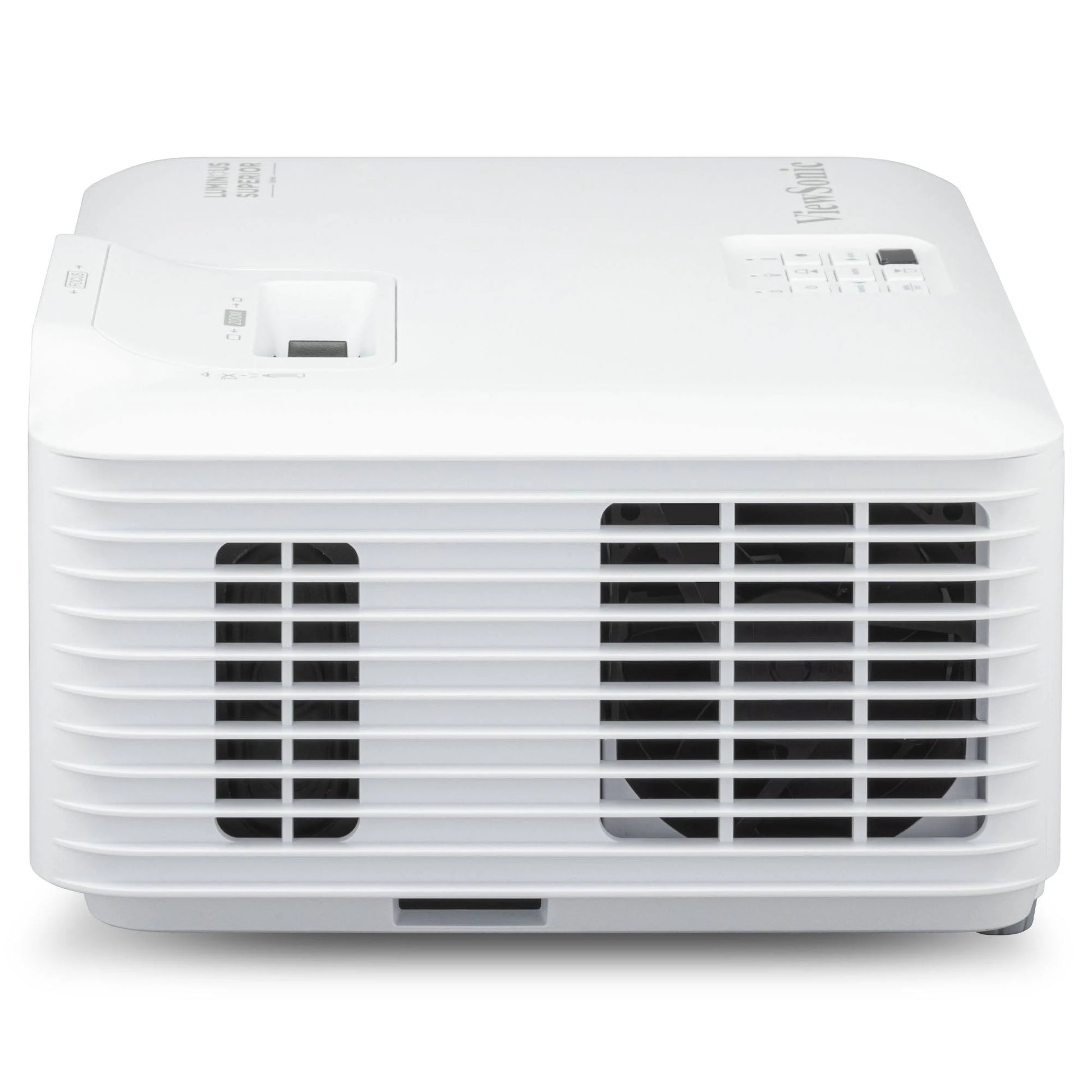

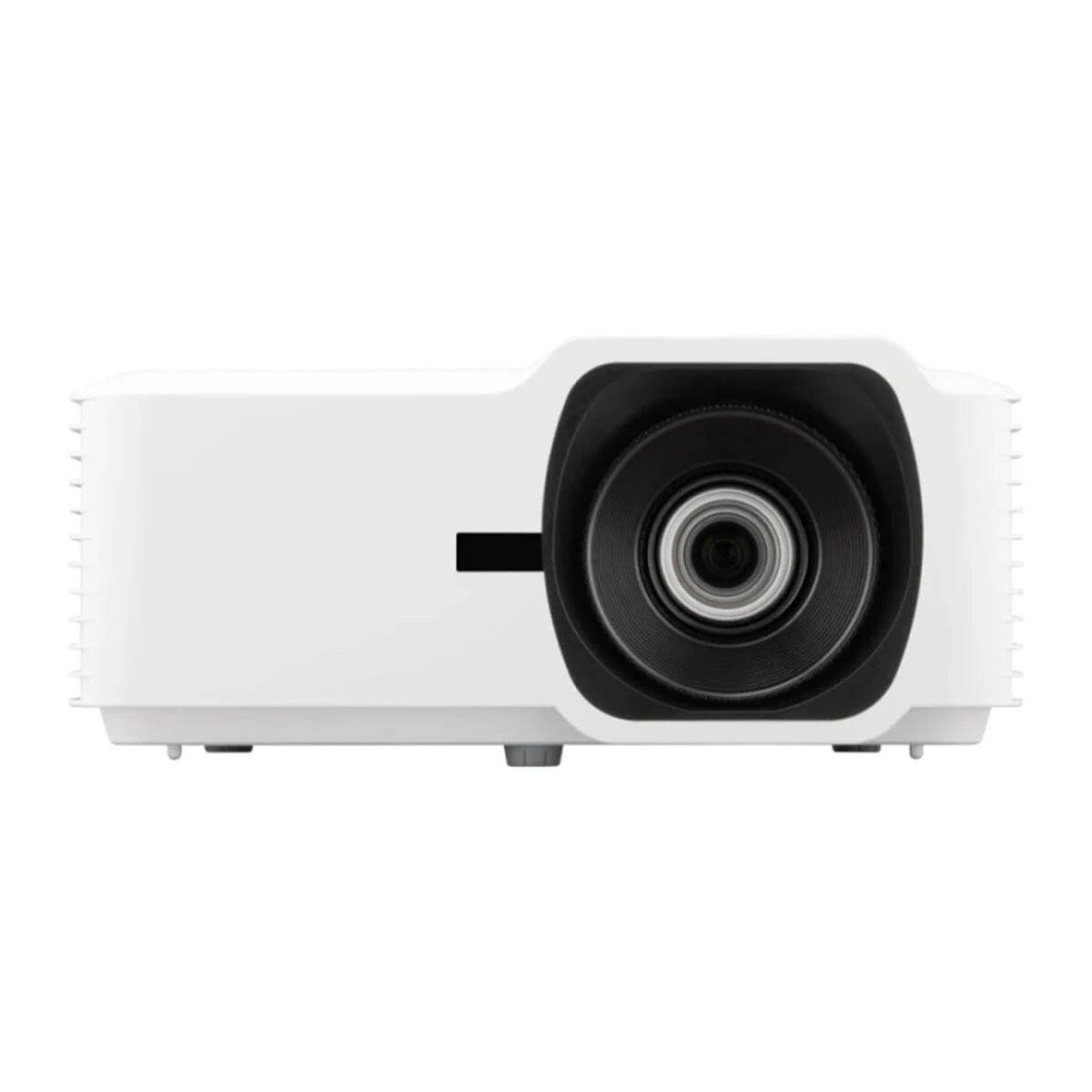

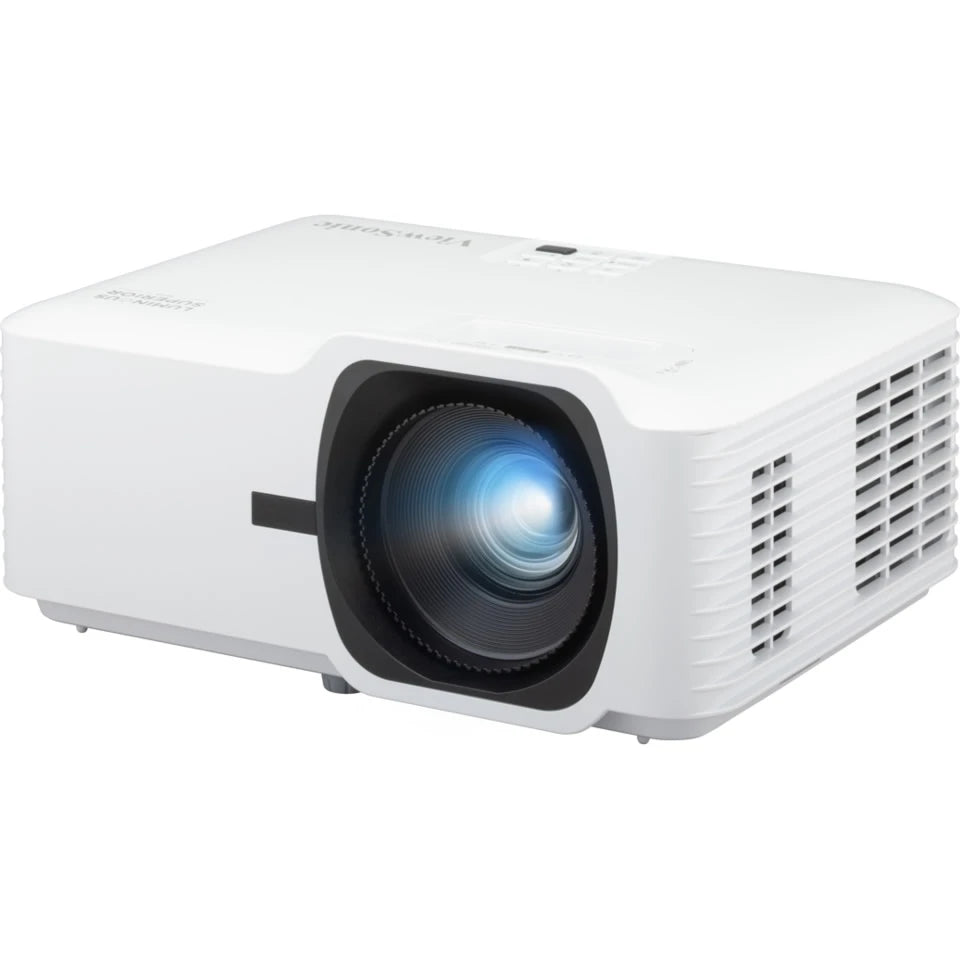

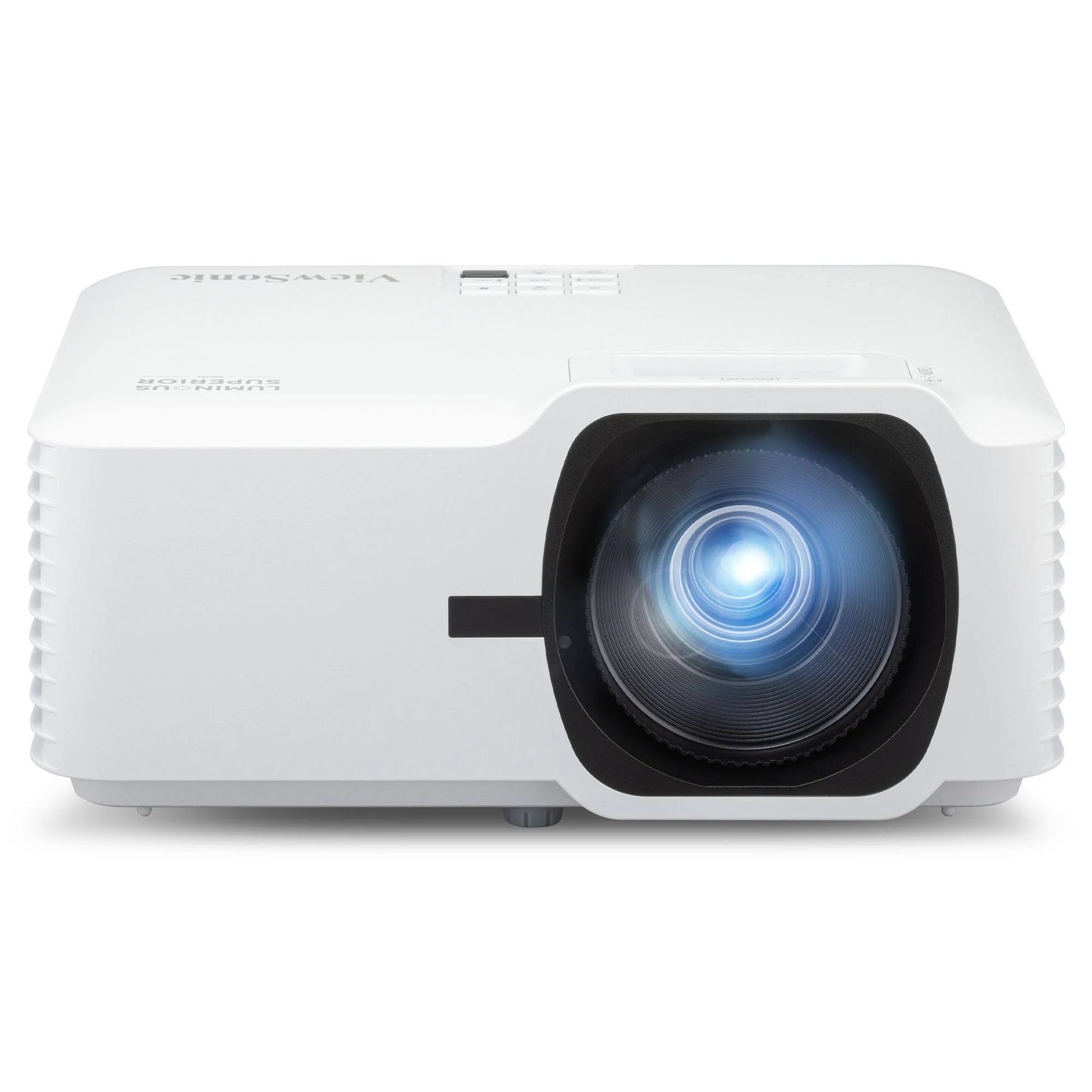

ViewSonic LSD500HD 5500 Lumens Full HD Laser Projector
Key Features & Specifications
- 1080p 1920 x 1080 16:9
- 5500 ANSI Lumens
- 3,000,000:1 Contrast
- 2.9kg Weight
- 32 / 27db(eco) Fan Noise
- 3 Year Warranty
- 3 Years/10,000hrs Laser Warranty
- Est. Laser Life up to 30,000hrs
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Powerful 15W Speaker
- 360° Installation
- Portrait Projection
- IP6X Dust Resistant Optical Engine
Throw Distance Chart
(Throw Ratio: 1.13-1.47:1)
| Image Size | Installation Distance |
|---|---|
| 92" (16:9) 2030x1140mm | From 2.3m to 2.9m |
| 100" (16:9) 2214x1245mm | From 2.5m to 3.2m |
| 110" (16:9) 2435x1370mm | From 2.8m to 3.5m |
| 120" (16:9) 2657x1494mm | From 3.0m to 3.9m |
| 135" (16:9) 2990x1681mm | From 3.4m to 4.3m |
| 150" (16:9) 3320x1867mm | From 3.8m to 4.8m |
Features
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
- 5,500 ANSI Lumens offering bright images in any environment
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Centralized LAN control for efficient management
- Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
OVERVIEW

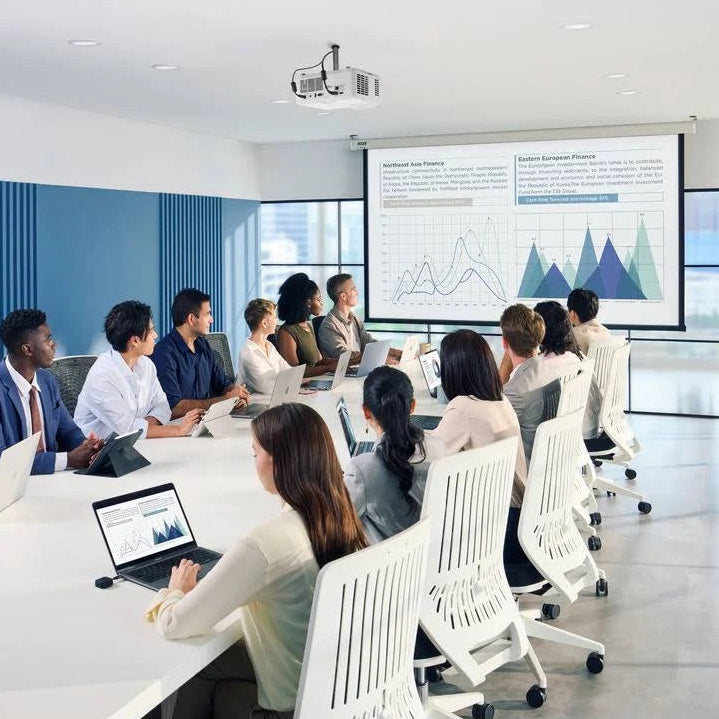

The LSD500HD is part of ViewSonic's Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its comprehensive LAN control enables centralized management, making it ideal for boardrooms, public, and sports simulation spaces. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. This projector offers flexible setup, equipped with features like a 1.3x optical zoom, H/V keystone, and 360° projection capabilities, possibilities.
Bright, Compact, Durable
The LSD500HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright Images for Large Venues

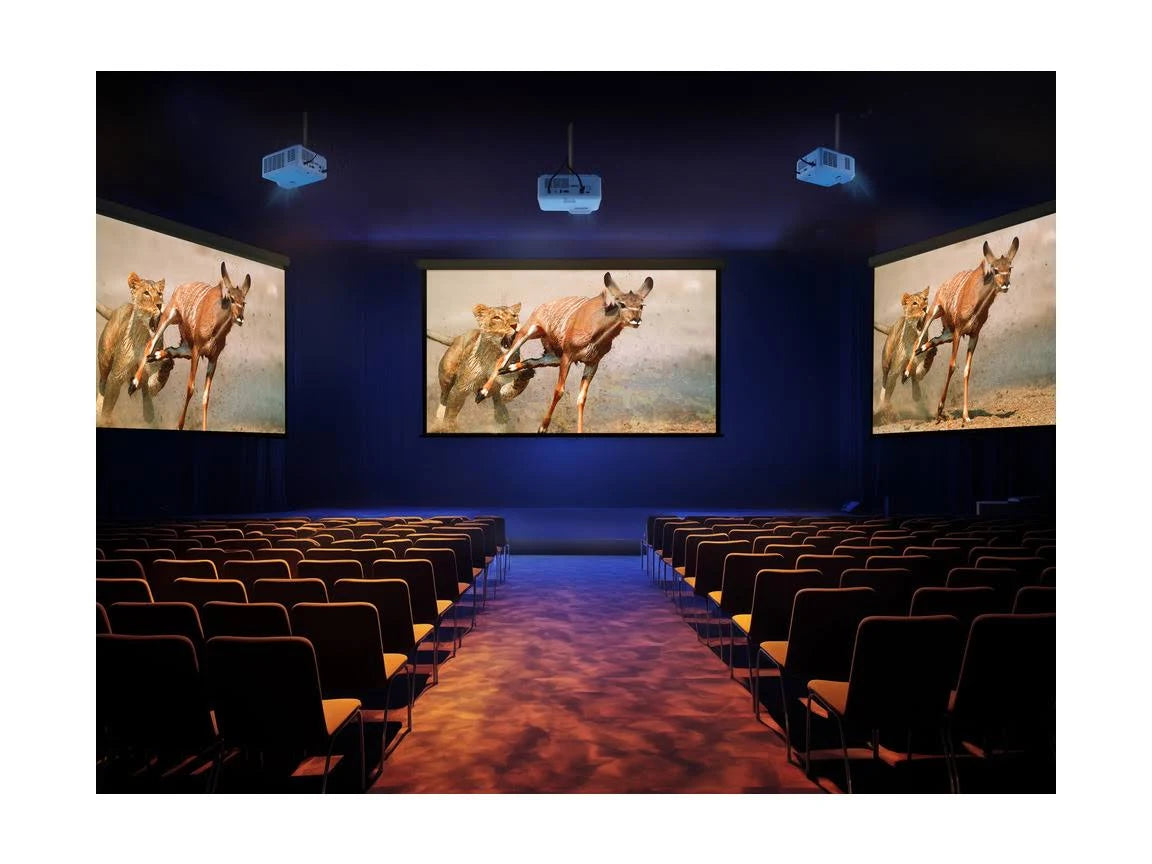

Delivering 5,500 ANSI Lumens, the LSD500HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.
5,500 ANSI Lumens
Unmatched Contrasts, Enhanced Visibility
The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
0.65” DMD Chip | High Native Contrast Ratio
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”
Save on Costs and Energy
With its advanced lamp-free light source, the LSD500HD offers a highly energy-efficient and cost-saving display solution by consuming up to 62% less power than competing projectors
Less Power Consumption
Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
1.3x Optical Zoom
Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction | 4-corner Adjustment
Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Non-stop 24/7 Operation

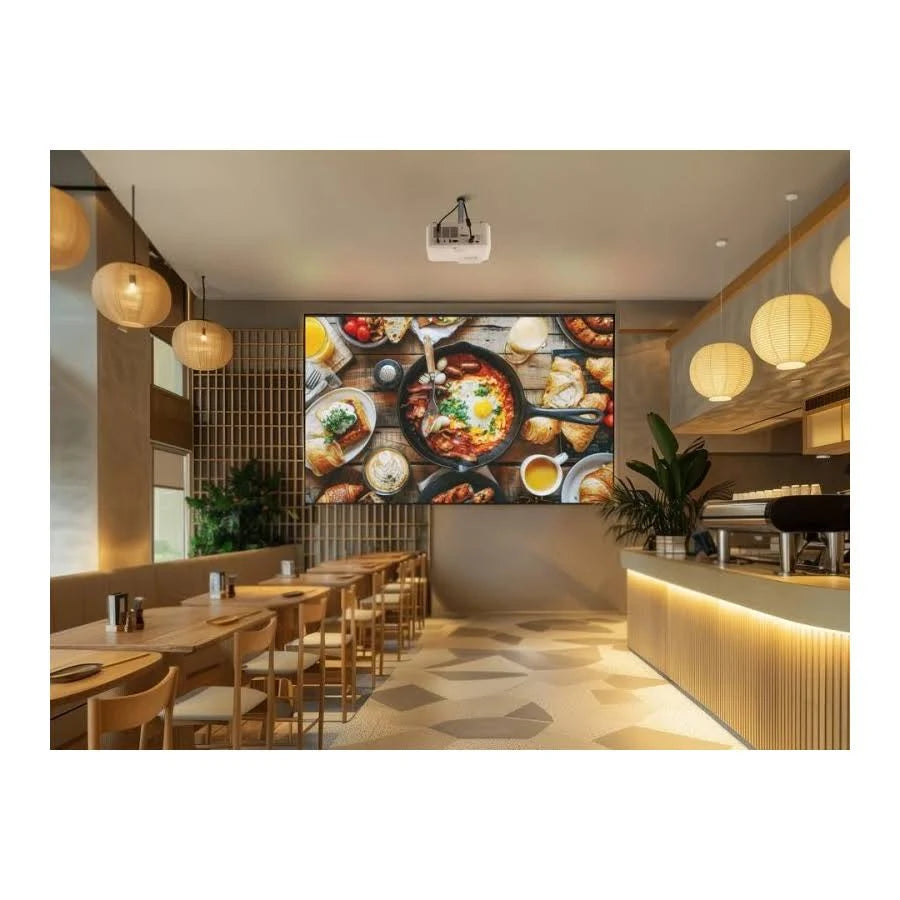

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.
Centralized Control for Management Efficiency
The LSD500HD is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible
Golf Color Mode
HDR / HLG / 4K UHD supported by HDMI 2.0b
The LSD500HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.
Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *Wifi Adapter sold separately
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle. The latest projector software update can be found in the download section at the bottom of the page when available.
What's in the Box
- ViewSonic LSD500HD Projector

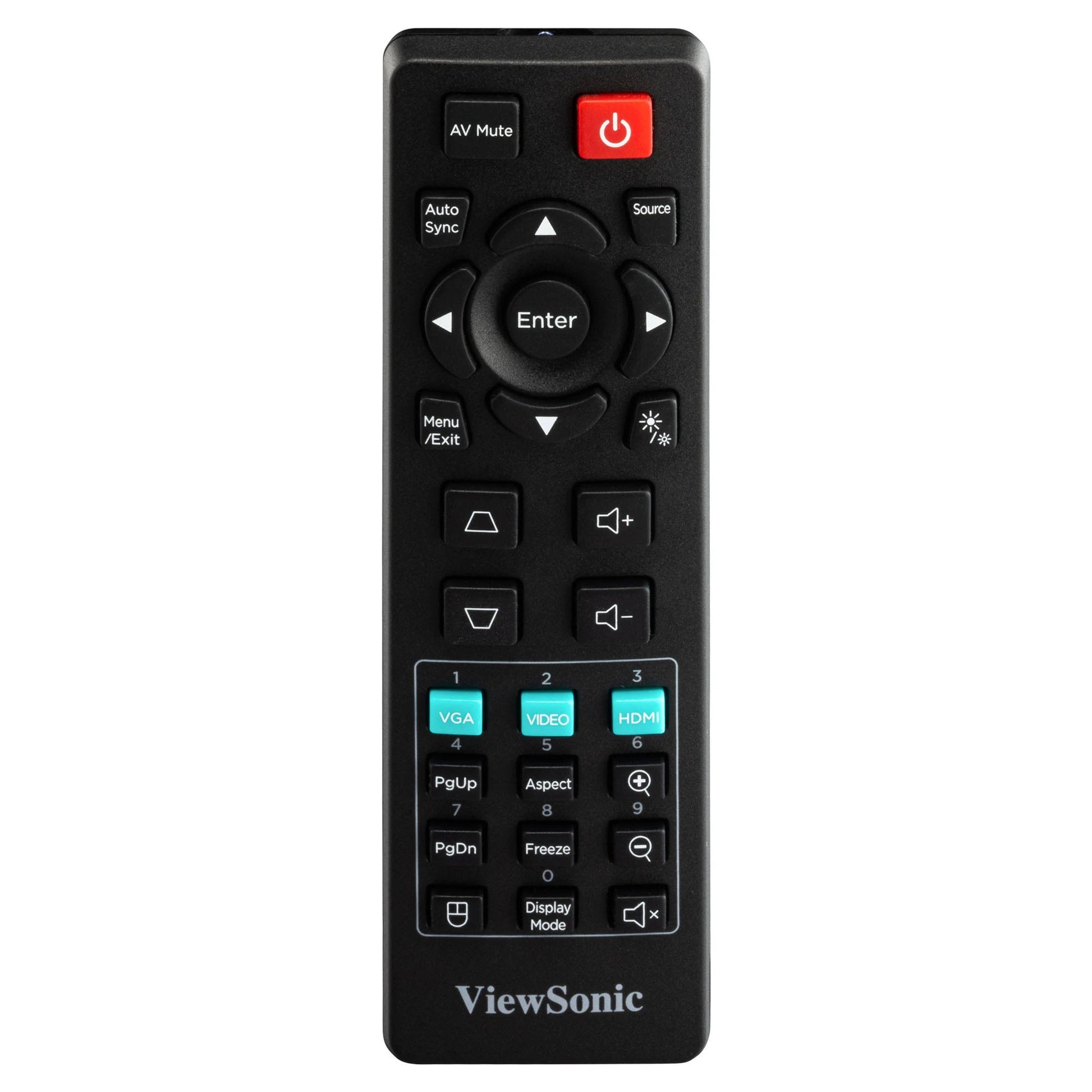

- Remote Control
- Power Cord
What you may need
- Projector Ceiling Mount
- HDMI Cable
- Projector Screen
| Native Resolution: | 1920x1080 |
|---|---|
| DMD Type: | DC3 |
| Brightness: | 5500 (ANSI Lumens) |
| Centre Brightness: | 6000 (ANSI Lumens) |
| Contrast Ratio: | 3000000:1 |
| Display Color: | 1.07 Billion Colors |
| Light Source Type: | Laser Phosphor system |
| Light Source Life (hours) | up to 20,000 (Normal Mode) |
| Light Source Life (hours) | up to 30,000 (SuperEco Mode) |
| Lens: | F=2.43-2.78, f=16.90-21.61mm |
| Projection Offset: | 132%+/-10% |
| Throw Ratio: | 1.13-1.47 |
| Optical Zoom: | 1.3X |
| Digital Zoom: | 0.8x-2.0x |
| Image Size: | 30-300" |
| Throw Distance: | 0.75-9.76m (100"@2.50m) |
| Keystone: | H:+/-30° , V:+/-30° |
| Audible Noise (Normal): | 32dB |
| Audible Noise (Eco): | 27dB |
| Input Lag: | 16.8ms |
| Resolution Support: | VGA(640 x 480) to 4K UHD(3840 x 2160) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency: | 15K-135KHz |
| Vertical Scan Rate: | 24-120Hz |

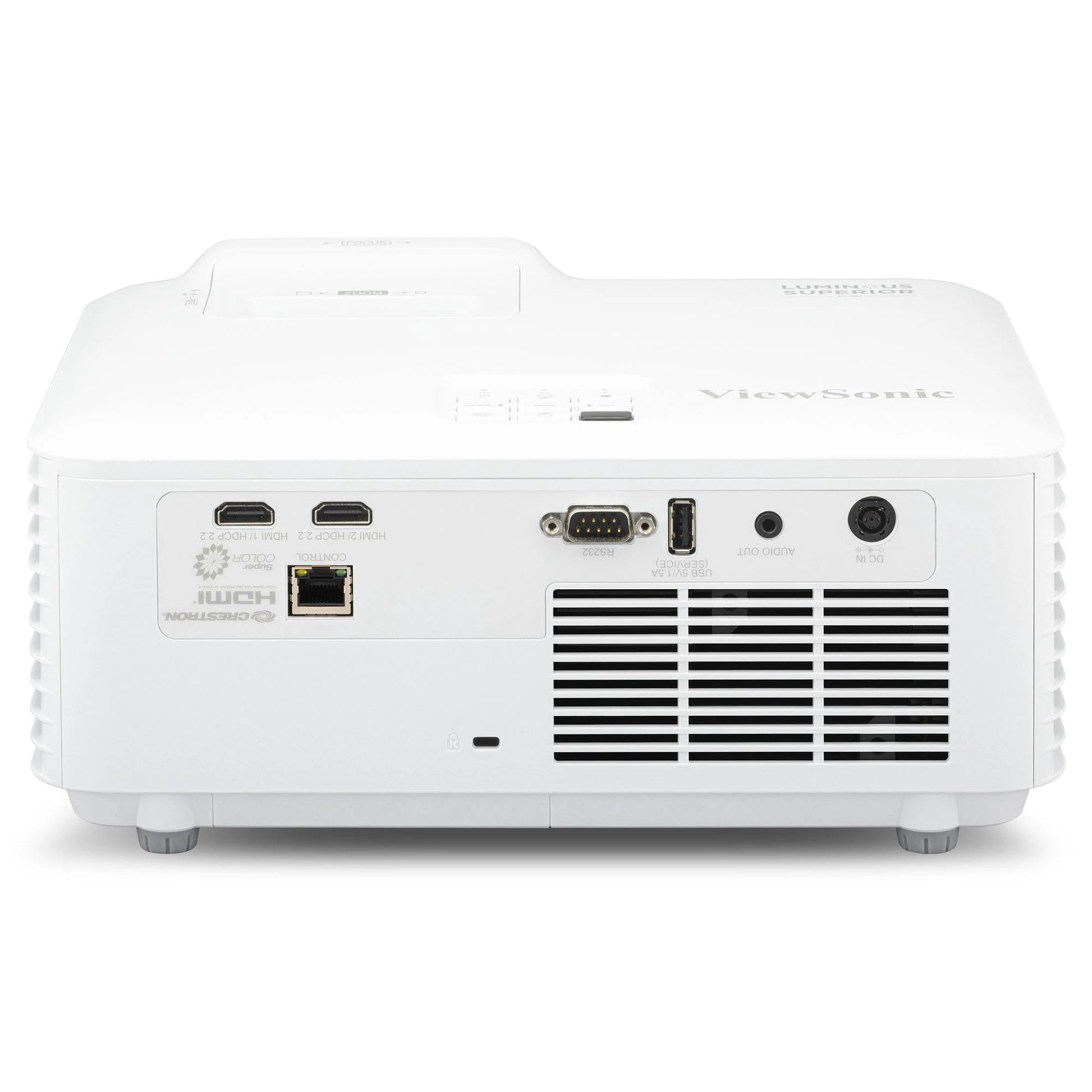

| Inputs | |
| HDMI: | HDMI: 2 (HDMI 2.0, HDCP 2.2) |
| Output | |
| Audio-out (3.5mm): | 1 |
| Speaker: | 15W |
| USB Type A (Power): | 1 (5V/ 1.5A) |
| Control | |
| RS232 (DB 9-pin male): | 1 |
| USB Type A | 1 (share with USB A Output) |
| Others | |
| Power Supply Voltage: | Input: 100~240V Output: 19.5VDC / 11.79A |
| Power Consumption: | Normal: 165W, Standby: <0.5W |
| Operating Temperature: | 0~40℃ |
| Net Weight: | 2.9 |
| Dimensions (WxDxH) with Adjustment Foot: | 286x216x129mm |
| OSD Language: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages |
| Standard Accessory | |
| Power Cord: | 1 |
| Remote Control: | 1 , (w/ laser pointer) |
| QSG: | Yes |
