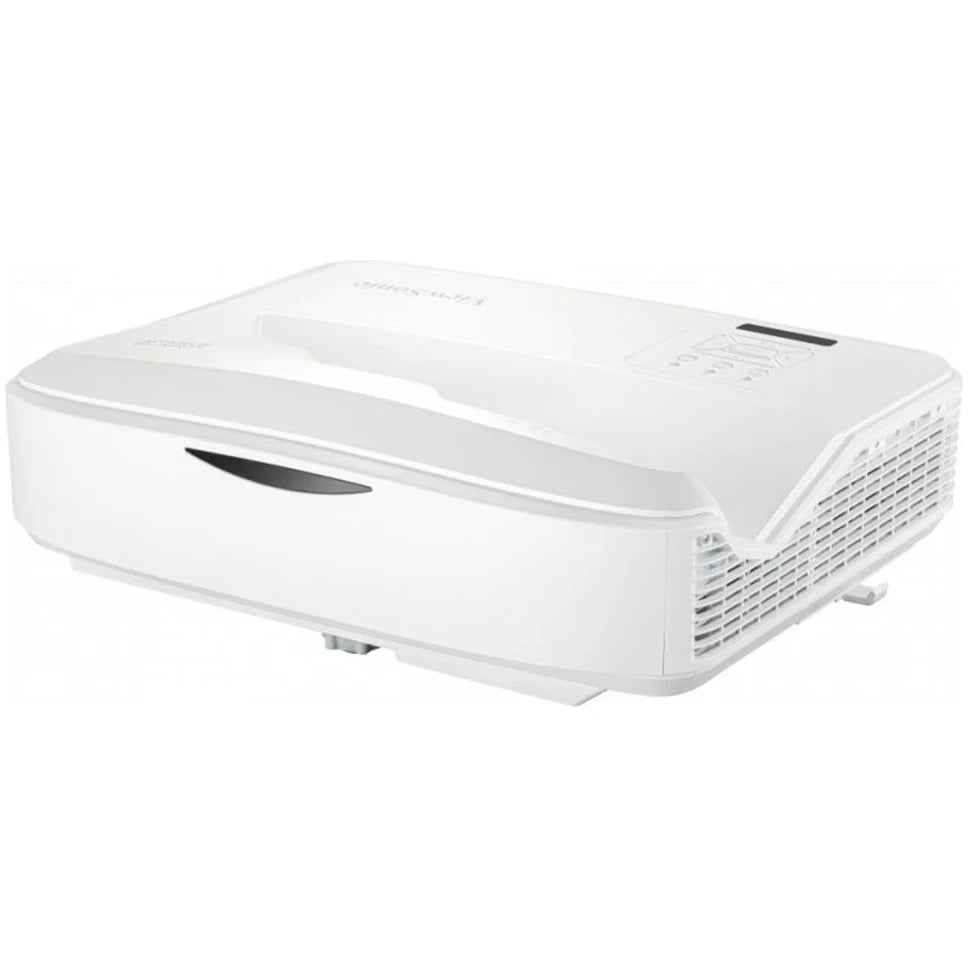

ViewSonic LS832WU 5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector
The ViewSonic LS832WU redefines large-scale projection with a potent 5,000 ANSI lumen laser engine and superior optics. While most ultra-short-throw projectors cap out at 100" or 120", the LS832WU remains sharp and focused up to a massive 170-inch image (3.7m x 2.3m). Remarkably, it achieves this scale from just 66cm away. Built for longevity, it features a 30,000-hour laser life and an IP5X-rated sealed optical engine to ensure dust-free, reliable performance in any environment.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 5000 ANSI Lumens
- 3,000,000:1 Contrast
- 5.8kg Weight
- 34/28db Fan Noise (eco)
- 3 Year Warranty
- 3 Years/10,000hrs Laser Warranty
- Est. Laser Life up to 30,000hrs
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Powerful 10W Speaker
- Up to huge 170" Projection Size
- IP5X Dust Resistant Optical Engine
Throw Distance Chart
(Throw Ratio: 0.253:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | Approx. 0.26m |
| 110" (16:10) 2370x1480mm | Approx. 0.33m |
| 120" (16:10) 2585x1615mm | Approx. 0.39m |
| 130" (16:10) 2800x1750mm | Approx. 0.44m |
| 140" (16:10) 3015x1885mm | Approx. 0.50m |
| 150" (16:10) 3230x2020mm | Approx. 0.55m |
Features
- 0.25 ultra short throw for space-saving installation
- 2nd generation Laser Phosphor technology with up to a 30,000-hour lifespan
- 5,000 ANSI Lumens offering bright images in any environment
- Up to 170" ultra-large screen with lower cost-per-inch
- H/V keystone and 4 corner adjustment for enhanced installation flexibility
- Comprehensive LAN control providing efficient device management
OVERVIEW
The LS832WU is part of ViewSonic’s Luminous Superior series, a lamp-free high brightness projector lineup designed for both commercial and educational spaces. This advanced 5,000 ANSI Lumens WUXGA ultra short throw laser projector is a go-to digital signage solution for public and commercial applications, such as museums, storefronts, shopping malls, and airports. The LS832WU's 0.25 ultra short throw ratio allows for a 100” screen from only 28 cm away, and the screen size can be further expanded up to 170”, offering a lower cost-per-inch compared to other types of commercial displays. Adopting the 2nd generation Laser Phosphor technology, it produces consistent high brightness for up to 30,000 hours lifespan. With H/V keystone and 4 corner image adjustment, the LS832WU also offers flexible installation options. Complete with comprehensive LAN control, it enables centralized management of multiple devices and is compatible with Crestron, AMX, Extron, and PJ Link AV control systems.
No Shadows, No Blinding Lights
Designed to provide installation flexibility even in reduced spaces, the LS832WU’s 0.25 ultra short throw ratio enables a 100” screen projection from only 28 cm away, offering immersive visuals without shadow casting or blinding lights for all commercial and public display applications.
0.25 Ultra Short Throw
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 170”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 170”
Bright, Durable, Eco-friendly
The LS832WU uses 2nd generation laser phosphor technology, offering up to a 30,000 hours lifespan, improved brightness, better heat resistance and instant power on/off in a more compact format. The projector's eco-friendly, lamp-free design eliminates toxic mercury lightbulbs and the hassle of frequent lamp replacement, ensuring consistent image quality during extended commercial display applications.
2nd Generation Laser Phosphor Technology
Bright Images in All Lighting Conditions
The LS832WU’s 5,000 ANSI Lumens and 3,000,000:1 contrast ratio ensure bright and vibrant visuals in all light conditions, even under ambient lighting, making it perfectly suited for digital display applications in public and commercial spaces such as in museums, airports, or shopping malls.
5,000 ANSI Lumens
Get Perfectly-shaped Images Effortlessly
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone & 4 Corner Adjustment
Easy and Cost-effective Installation
The LS832WU is 41% lighter in weight and 47% smaller in size compared to its predecessor, greatly reducing the cost of transportation and increasing the ease of installation.
Lighter Weight & Compact Size
Centralized Device Management
The LS832WU is compatible with Crestron, AMX, PJ Link, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Non-stop 24/7 Operation
With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
Enhanced Dust Resistance
Maintain crystal-clear image quality and product longevity with an advanced IP5X sealed design that prevents dust from entering and affecting internal components.
IP5X
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation with a true-to-life color experience.
Seamless Display from External Devices
Prevent display formatting issues with dual HDMI 2.0b/HDCP 2.2 ports and support for 4K UHD and HDR/HLG content from external devices. Enjoy total peace of mind knowing that your content will be displayed error-free.
Dual HDMI 2.0b
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
Learn more:https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.
Power Wireless HDMI Dongle
The LS832WU’s built-in 5V/1.5A USB output can conveniently deliver power to a Wireless HDMI Dongle, eliminating the need for separate power adapters when streaming multimedia content.
USB Type A Power Supply
What's in the Box
- ViewSonic LS832WU Projector
- Remote Control
- Power Cord
What you may need
- Projector Ceiling Mount
- HDMI Cable
- Projector Screen
| Projection System: 0.67" WUXGA |
| Native Resolution: 1920x1200 |
| Brightness: 5000 (ANSI Lumens) |
| Contrast Ratio: 3,000,000:1 |
| Display Color: 1.07 Billion Colors |
| Light Source Type: Laser Phosphor |
| Light Source Life (hours) with Normal Mode: 20000 |
| Light Source Life (hours) with SuperEco Mode: 30000 |
| Lens: F=2.44, f=3.70mm |
| Projection Offset: 133%±3% |
| Throw Ratio: 0.253 |
| Optical Zoom: Fixed |
| Digital Zoom: 0.8x-2.0x |
| Image Size: 80"- 170" |
| Throw Distance: 0.17-0.66m (100"@0.28m) |
| Keystone: H:+/-10° , V:+/-10° |
| Audible Noise (Normal): 34dB |
| Audible Noise (Eco): 28dB |
| Input Lag: 33.2ms |
| Resolution Support: VGA(640 x 480) to 4K(3840 x 2160) |
| HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency: 15K- 91KHz |
| Vertical Scan Rate: 24- 85Hz |

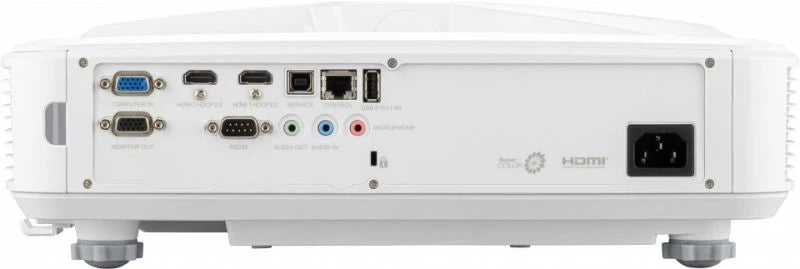

| Input |
| HDMI: 2 |
| (HDMI 2.0/ HDCP 1.4/2.2) |
| Audio-in (3.5mm): 1 |
| Microphone in: 1 |
| Output |
| Monitor out: 1 |
| Audio-out (3.5mm): 1 |
| Speaker: 10W x1 |
| USB Type A (Power): 1 (5V/1.5A) |
| Control |
| RS232 (DB 9-pin male): 1 |
| RJ45 (LAN control): 1 |
| USB Type B (Services): 1 |
| Others |
| Power Supply Voltage: 100-240V+/- 10%, 50/60Hz |
| (AC in) |
| Power Consumption: Normal: 328W |
| Standby: 0.5W |
| Operating Temperature: 5~40℃ |
| Carton: Brown |
| Net Weight: 5.8kg |
| Gross Weight: 8.1kg |
| Dimensions (WxDxH) with Adjustment Foot: 382x318x132mm |
| Packing Dimensions: 518x420x313mm |
| OSD Language: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, T Chinese, S Chinese, Japanese, Korean, Russian, Hungarian Czech, Arabic, Thai, Turkish, Farsi, Vietnam, Indonesian, Romania, Slovakian (27 language) |
| User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages |
| Standard Accessory |
| Power Cord: 1 |
| Remote Control: 1 |
| QSG: Yes |
| Warranty Card: Yes (CN Only) |
