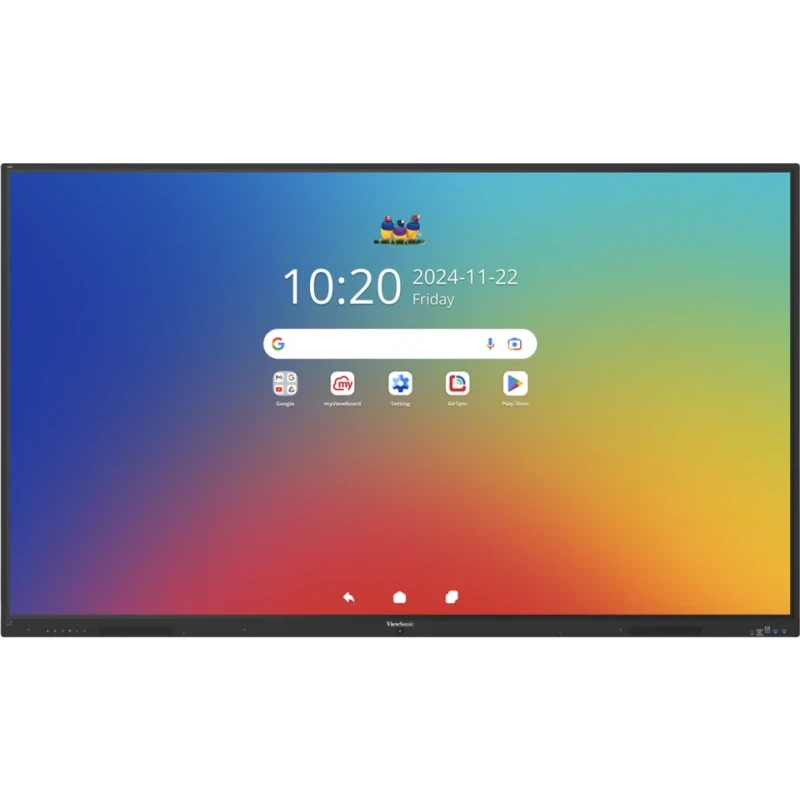

ViewSonic IFP8635-1-1C 86" Viewboard 4K Interactive Display
Experience fast, smooth, and reliable performance in every class with the ViewBoard® IFP35-1 Series. Available in 65", 75", and 86" models, it’s powered by an octa-core CPU with up to 128GB storage. EDLA-certified Android 16 ensures secure access to Google Play apps and a responsive system for effective teaching. Integrated ViewSonic Education Software includes tools for whiteboarding, wireless casting, and device management, helping teachers create interactive and engaging lessons while streamlining IT workflows. Built-in ambient light and motion sensors complete the experience, optimizing brightness, conserving energy, and extending panel life for smarter, more efficient classrooms.
| ViewSonic IFP8635-1-1C Summary | |
|---|---|
| Display | 86", 4K, 350 Nits Brightness |
| Computing | 8GB Memory | 128GB Storage |
| Operating System | Android 16 EDLA |
| Main Connections | 2x USB-C (w/65w power), 3x HDMI ports, 1x Displayport, 1x VGA |
| Audio | 2x 20 Watt Speakers |
| Wireless | Optional |
| Wall Mount | Optional |
| Interactive Pens | 2 Included |
| Warranty | 3 Years. On-Site in Metro Areas |
| Other Features | Ambient Light Sensor, 65 Watt USB-C Power port |
Key Features
- The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
- Built-in ViewSonic Education Software supports dynamic learning and enriched classroom experiences.
- 64-point advanced touch recognition and palm rejection enhances interactivity and collaboration.
- USB-C with 65W power delivery simplifies display, audio, touch, and network connectivity.
- Light and motion sensors automatically adjust brightness for better energy efficiency and panel lifespan.
Experience Fast, Reliable Performance
Keep lessons flowing with an octa-core processor and 8GB RAM. Jump between apps and effortlessly stream content with rapid responsiveness. EDLA-certified Android 16 boosts security and performance, creating a smarter, faster, and worry-free teaching experience.
Safeguard Data with Advanced Security
Enjoy peace of mind with the built-in security EDLA certification unlocks. Features like automatic updates, Google Play Protect, data encryption, and two-way authentication ensure data stays protected and accessible only to authorized users.
Expand Learning with Google Play
Get hassle-free, native access to the apps teachers already know and trust. Docs, Sheets, and Slides integrate seamlessly into everyday workflows, so teaching materials can be edited, stored, shared, and presented directly from Drive. With full compatibility across devices, preparing and teaching lessons has never been simpler.
Personalize Access for Every User
Support multiple users with separate accounts, each featuring its own customized interface, preferred apps, and connected cloud storage. Password protection makes switching between profiles quick and secure, while a dedicated guest account offers temporary access without compromising teachers' privacy and data confidentiality.Empower Sustainable Classrooms
Bring smart efficiency to every lesson with integrated ambient light and PIR motion sensors. The IFP35-1 Series automatically powers on when teachers or students enter and turns off when the room is empty, conserving energy with no interruption to learning. With ENERGY STAR 8.0 certification and an EEI-D rating, it helps schools cut costs and lead the way in sustainability.Streamline Connectivity with Dual USB-C
Simplify integration in any classroom with two USB-C ports. Delivering up to 65W of power, they keep devices charged while supporting smooth multimedia playback, data transfer, and shared network and touch control through a single cable. Fewer connections mean less clutter, faster setup, and more time focused on teaching.
Deliver Immersive Audio
Built-in dual 20W speakers deliver consistent sound across the classroom without the need for external audio equipment. From spoken instruction to multimedia content, lessons remain easy to hear, supporting student focus while simplifying setup for teachers and IT teams.
Make Every Lesson Interactive
Turn passive learning into active engagement with myViewBoard. Designed to support a wide range of teaching styles, our whiteboarding solution offers intuitive tools like an infinite canvas, Irlen filters, and spotlight to encourage participation and collaboration, promoting student involvement and information retention.
Cast Wirelessly, Share Seamlessly
Enjoy fast, easy screen sharing with AirSync. Cast from up to 4 devices at once for collaborative learning and use Moderation Mode to control exactly what content appears in front of the classroom. With Touchback Control, teachers are free to roam the room, interact with students, and keep lessons dynamic.Simplify Display Management
Centralize device control across campus with Manager. A single remote dashboard lets IT administrators swiftly run updates, schedule tasks, send multimedia broadcasts, and operate multiple displays at once, helping schools keep classroom technology consistent and ready for use.Disclaimer:
*Scheduling and broadcast features require an optional Advanced license.
Write with Precision
Capture even the smallest movements with extreme accuracy thanks to 64-point touch technology. Advanced palm rejection blocks unintended inputs to keep strokes clean and controlled, while 4-tier recognition instantly distinguishes between thin pens, thick pens, fingers, and palm-eraser inputs, so every interaction feels smooth and responsive.
Maximize Learning with Smart Accessories
Equip your classroom with accessories that adapt to every teaching style. Whether unlocking Windows access with a slot-in PC, hosting hybrid lessons with a webcam, moving freely with a motorized trolley cart, or capturing every detail with a document camera, ViewSonic accessories integrate seamlessly for a flexible and efficient teaching experience.
Specifications
| Display | |
|---|---|
| Panel Size: | 86" |
| Panel Type: | TFT LCD Module with DLED Backlight. |
| Display Area (mm): | 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal) |
| Aspect Ratio: | 16:9 |
| Resolution: | UHD 3840x2160(Pixels) |
| Colors: | 1.07B colors (8bit+FRC) |
| Brightness: | 350 nits (typ) |
| Contrast Ratio: | 5000:1 (max. with DCR enabled) |
| Response Time: | 6.5ms |
| Viewing Angles: | H = 178, V = 178 typ. |
| Backlight Life: | 50,000 Hours |
| Surface Treatment: | Hardness: 9H. Anti-glare coating |
| Orientation: | Landscape |
| Platform | |
| Processor: | Quad-core CPU |
| RAM: | 8GB |
| Storage: | 128GB |
| Touch | |
| Type/ Tech: | UFT (Ultra Fine Touch) Technology |
| Touch Point: | 64 points touch |
| INPUT | |
| HDMI: | x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1] |
| RGB / VGA: | x1 (1920x1080 @60Hz) |
| Audio: | x1 (PC audio in) |
| RS232: | x1 |
| OPS: | Optional Intel Standard OPS |
| WiFi: | Optional |
| OUTPUT | |
| HDMI: | x1 (HDMI 2.1 4K@60Hz) |
| Audio: | x1 |
| SPDIF: | x1 |
| LAN | |
| RJ45: | x2 |
| USB | |
| Type A: | x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update) |
| Type B: | x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data) |
| Type C: | x2 (Front x1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP 1.2, Ethernet 100M, PD 15W) |
| Audio | |
| Speakers | 20W x 2 Front soundbar |
| Operating System | |
| Embedded OS: | EDLA-Certified with Android 16 |
| Bundle Software | |
| Basic Annotation Software: | myViewBoard WhiteBoard for Android |
| Pro Annotation Software: | myViewBoard for Windows (embedded in VPC) |
| Wireless Presentation: | AirSync |
| Special Features | |
| All-in-one USB port: | USB 3.2 Gen 1 “SmartPort USB” to all channels |
| Simple LAN sharing between IFP and slot-in device: | 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000) |
| Light Sensor: | Yes |
| Power | |
| Voltage: | 100-240VAC +/- 10% Wide Range |
| Consumption: | On: 93.99 W ; Ｏff:< 0.5 W |
| Ergonomics | |
| Wall Mount (VESA® ): | 800 x 600 |
| Operating Conditions | |
| Temperature (º C): | 0°C to 40°C |
| Humidity: | 10% ~ 80% RH non-condensing |
| Dimensions (W x H x D) | |
| Physical (inch / mm): | 77.04 x 45.65 x 3.87 in / 1956.7 x 1159.6 x 98.3 mm |
| Packaging (inch / mm): | 82.68 x 50.63 x 6.93 in / 2100 x 1286 x 176 mm |
| Weight | |
| Net (lb / kg): | 109.57 lb / 49.7 kg |
| Gross (lb / kg): | 137.35 lb / 62.3 kg |
| Regulations | |
| cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL | |
| Package Contents | |
| Included: | 1. Power Cord x1 3 meters, by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN) 2. USB Touch cable x1 3 meters 3. Touch pen (Passive pen) x2 4. Quick Start Guide (With Compliance statement ) 5. Screw x4 (for wall mount) 6. HDMI cable x1 3 meters, (HDMI LA certified) 7. Remote controller x1 8. AAA battery x2 9. Warranty card (only for VSCN) |
| Slot In PC | |
| Compatible Slot-in PC: | VPCF5-W33-G1 / VPC37-W53-G1 / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1 |
