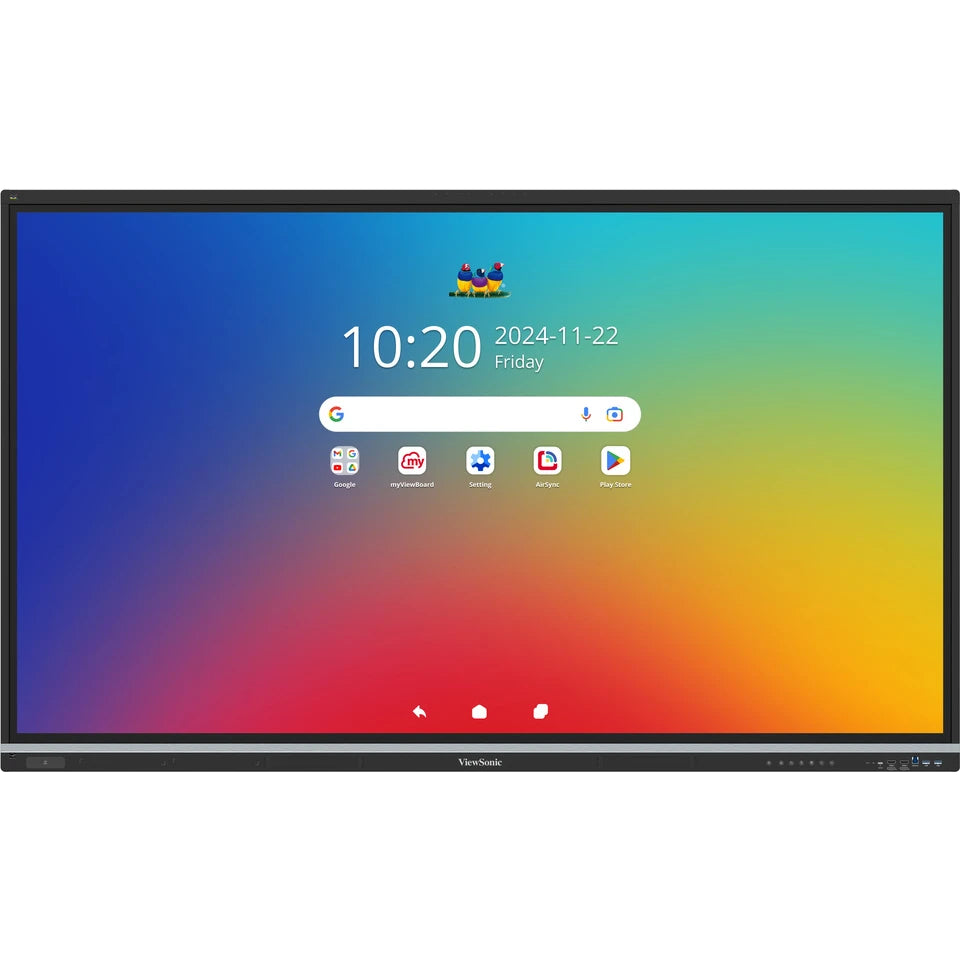

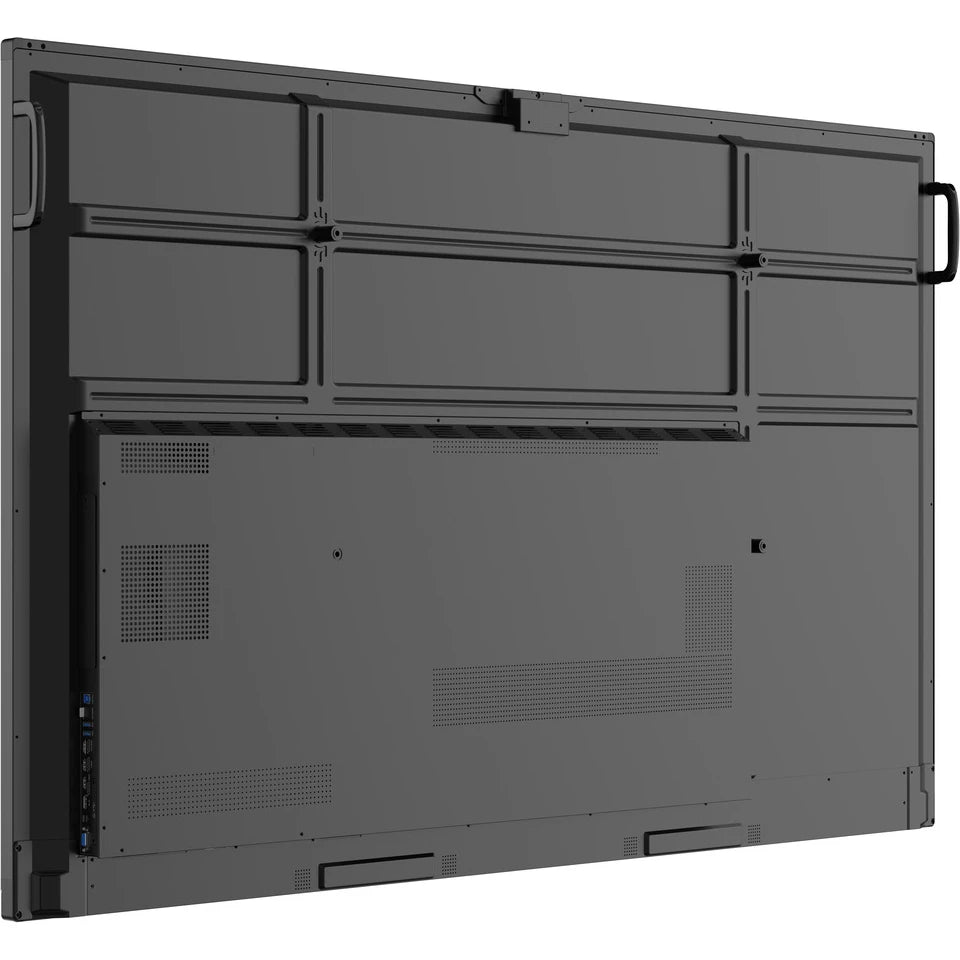

ViewSonic IFP7551 75" Premium Viewboard 4K Interactive Display
Upgrade your workspace with the ViewSonic IFP7551 75" ViewBoard, an interactive 4K Ultra HD display designed to bring lessons and meetings to life. Featuring smooth 20-point touch capability, intuitive dual-pen annotation, and ultra-fine touch technology, it delivers a natural, pen-on-paper writing experience for effortless collaboration. Equipped with the integrated myViewBoard™ software ecosystem, front-facing stereo speakers, and versatile connectivity, this display provides an all-in-one, highly engaging digital canvas tailored perfectly for mid-sized rooms.
| ViewSonic IFP7551 Summary | |
|---|---|
| Display | 75", 4K, 400 Nits Brightness |
| Computing | 16GB Memory | 128GB Storage |
| Operating System | Android 16 EDLA |
| Main Connections | 3x USB-C, 4x HDMI ports, 1x Displayport, 1x VGA |
| Audio | 2x 25 Watt Speakers plus subwoofer |
| Wireless | Optional |
| Wall Mount | Optional |
| Interactive Pens | 2 Included |
| Warranty | 5 Years. On-Site in Metro Areas |
| Other Features | Ambient Light Sensor, 65 Watt USB-C Power port |
Key Features
- Write Away quick-start annotation, enhanced by 50-point touch and palm rejection for precise writing.
- 70W total output power speaker system with built-in 8-microphone array, for rich, immersive audio.
- EDLA-Certified with Android 16, integrated ViewSonic Education Software for seamless functionality.
- NFC and SSO sign-in for swift access to the intuitive launcher and personal settings.
- EPEAT Silver certified for enhanced energy efficiency and sustainability.
Safeguard Data with Advanced Security
Enjoy peace of mind with built-in advanced security features unlocked by the EDLA certification - including automatic updates, Google Play Protect, data encryption, and two-way authentication - so classroom data stays protected and accessible only to authorized users.
Expand Learning with Google Play
Get native access to fully functional Google apps like Docs and Slides with the familiar interface you know and trust. Plus, Bring lessons to life with hands-on experiences that keep students engaged—from interactive science tools to language apps and music platforms—thanks to thousands of educational resources on the Google Play Store.
Tap In and Start Teaching
Step into the classroom and get straight to teaching. With options like NFC one-touch sign-in and SSO, your cloud-stored personalized settings, files, and profiles load instantly—no juggling passwords, no delays, just a seamless start to every lesson.
Teach Brighter, Spend Smarter
Keep every student engaged with a display that stays clear in any lighting. Enhanced brightness ensures crisp, easy-to-read content from every angle, while using 20% less energy than the previous generation. A smarter, brighter way to teach—without the extra cost.
Streamline Connectivity with Triple USB-C
Power up, plug in, and teach without limits with triple USB-C ports. Delivering up to 65W of power, these ports keep devices charged and connected effortlessly. A top-mounted port makes webcam setup a breeze, while front- and rear-facing ports put quick connections at your fingertips.Note: The IFP51 series supports seamless connection with the TWC101 camera via USB-C.
Immerse Every Student in Powerful Audio
Keep every voice heard with an advanced 8-mic array featuring noise suppression, echo cancellation, and automatic gain control. Paired with a 70W audio system—dual 25W front-facing speakers and a 20W subwoofer—it delivers immersive sound that keeps lessons engaging
Make Every Lesson Interactive
Turn passive learning into active engagement with myViewBoard. Designed to adapt to any teaching style, its intuitive tools—like the infinite canvas, Spotlight, Immersive Reader, split-whiteboard Participation Mode, and AI-powered handwriting prediction—create a fluid whiteboarding experience where participation feels effortless.
Power Through with Fast Performance
Keep lessons flowing with an octa-core processor and 16GB RAM. Jump between apps, multitask, and stream content effortlessly—all with rapid responsiveness.
Cast Wirelessly, Share Seamlessly
Take control of screen sharing with AirSync. Cast up to four devices at once for collaborative learning, while Moderation Mode lets you decide what goes on the big screen. Plus, with Touchback Control, you’re free to roam the room, interact with students anywhere, and keep lessons dynamic.Simplify Display Management
Take full control of device management with ViewSonic Manager. From one intuitive dashboard, you can remotely manage apps, update firmware, and instantly broadcast multimedia messages. Plus, with real-time energy monitoring, remote screen on/off control, and ECO mode scheduling, optimizing energy usage has never been easier.Note: The optional Advanced license is required for multimedia broadcasts and ECO mode control. Real-time energy monitoring will be available from H2 2025.
Write with Precision
Keep lessons flowing with ultra-responsive writing that feels as natural as pen on paper. With 50 touch points, advanced palm rejection, and anti-fingerprint coating, every stroke is smooth, clean, and lag-free. And with the floating annotation feature activated, notes stay locked in place as you scroll*, keeping key points always right where you need them.
Maximize Learning with Smart Accessories
Equip your classroom with accessories that adapt to every teaching style. Whether unlocking Windows access with a slot-in PC, hosting hybrid lessons with a webcam, moving freely with a motorized trolley cart, or capturing every detail with a document camera, ViewSonic accessories integrate seamlessly for a flexible and efficient teaching experience.
Specifications
| Display | |
|---|---|
| Panel Size: | 75" |
| Panel Type: | TFT LCD Module with DLED Backlight. |
| Display Area (mm): | 1650.24mm(H) x 928.26mm(V) (74.5”) |
| Aspect Ratio: | 16:9 |
| Resolution: | UHD 3840x2160(Pixels) |
| Colors: | 1.07B colors (8bit+FRC) |
| Brightness: | 400 nits (typ) |
| Contrast Ratio: | 5000:1 (max. with DCR enabled) |
| Response Time: | 6.5ms |
| Viewing Angles: | H = 178, V = 178 typ. |
| Backlight Life: | 50,000 Hours |
| Surface Treatment: | Hardness: 9H. AG+AF |
| Orientation: | Landscape |
| Platform | |
| Processor: | Quad-core CPU |
| RAM: | 16GB |
| Storage: | 128GB |
| Touch | |
| Type/ Tech: | UFT (Ultra Fine Touch) Technology |
| Touch Point: | 50 points touch |
| INPUT | |
| HDMI: | x4 (Frontx2:HDMI2.1 with CEC,HDCP ; Rearx2: [(HDMI2.1 with CEC, HDCP)x1+(HDMI2.1 with CEC, HDCP, ARC)x1] |
| Displayport | x1 |
| RGB / VGA: | x1 (1920x1080 @60Hz) |
| Audio: | x1 (PC audio in) |
| RS232: | x1 |
| OPS: | Optional Intel Standard OPS |
| WiFi: | Optional |
| OUTPUT | |
| HDMI: | x1 (HDMI 2.1 4K@60Hz) |
| Audio: | x1 |
| SPDIF: | x1 |
| LAN | |
| RJ45: | x2 |
| USB | |
| Type A: |
x5 (Front x2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update) |
| Type B: | x2 (Front x 1 and Rear x 1 with USB3.2 Gen 1) |
| Type C: | x3 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W; Topx1 with USB3.2 Gen 1, PD 15W) |
| Audio | |
| Speakers | 25W x 2 Soundbar plus 20W Subwoofer |
| Operating System | |
| Embedded OS: | EDLA-Certified with Android 16 |
| Bundle Software | |
| Basic Annotation Software: | myViewBoard WhiteBoard for Android |
| Pro Annotation Software: | myViewBoard for Windows (embedded in VPC) |
| Wireless Presentation: | AirSync |
| Special Features | |
| All-in-one USB port: | USB 3.2 Gen 1 “SmartPort USB” to all channels |
| Simple LAN sharing between IFP and slot-in device: | 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000) |
| Light Sensor: | Yes |
| Power | |
| Voltage: | 100-240VAC +/- 10% Wide Range |
| Consumption: | On: 99.84W ; Ｏff:< 0.5 W |
| Ergonomics | |
| Wall Mount (VESA® ): | 800 x 400 |
| Operating Conditions | |
| Temperature (º C): | 0°C to 40°C |
| Humidity: | 10% ~ 80% RH non-condensing |
| Dimensions (W x H x D) | |
| Physical (inch / mm): | 67.29 x 40.85 x 3.36 in / 1709.1 x 1037.5 x 85.5 mm |
| Packaging (inch / mm): | 73.35 x 45.79 x 8.86 in / 1863 x 1163 x 225 mm |
| Weight | |
| Net (lb / kg): | 101.54 lb / 46.06 kg |
| Gross (lb / kg): | 126.88 lb / 57.55 kg |
| Regulations | |
| cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL | |
| Package Contents | |
| Included: | 1. Power Cord x1 3 meters, 2. USB Type-C cable x1 1.8 meters , USB-IF certified 3. USB Touch cable x1 3 meters 4. Touch pen (Passive pen) x 2 5. Quick Start Guide 6. RS232 adapter x1 7. Clamp x 5 8. Camera Plate x1 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable x1 3meters, (HDMI LA certified) 11. Remote controller x1 12 AAA battery x2 13. Compliance statement |
| Slot In PC | |
| Compatible Slot-in PC: | VPCF5-W33-G1 / VPC37-W53-G1 / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1 |
