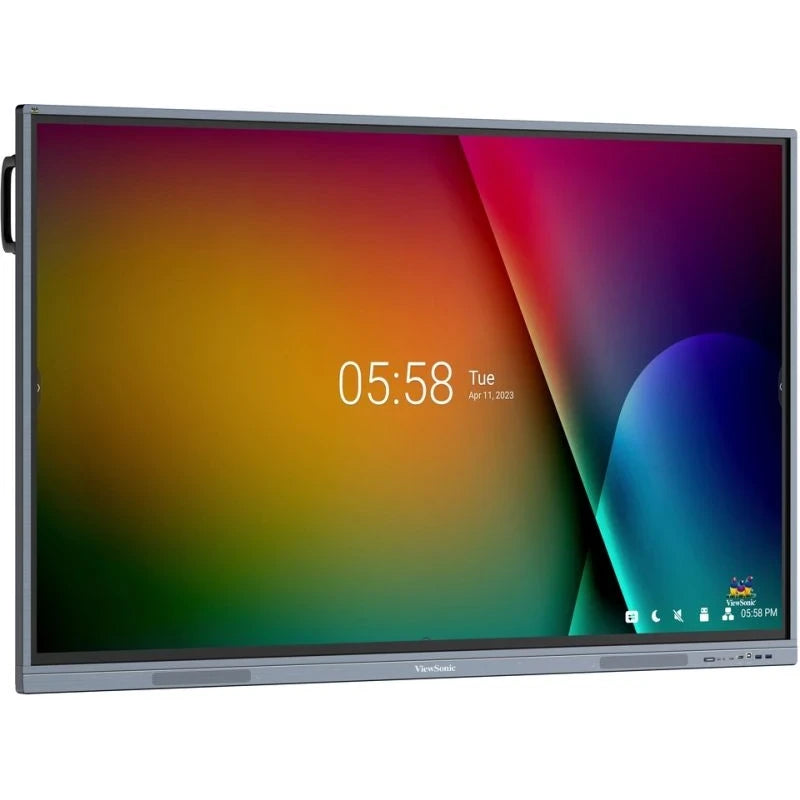

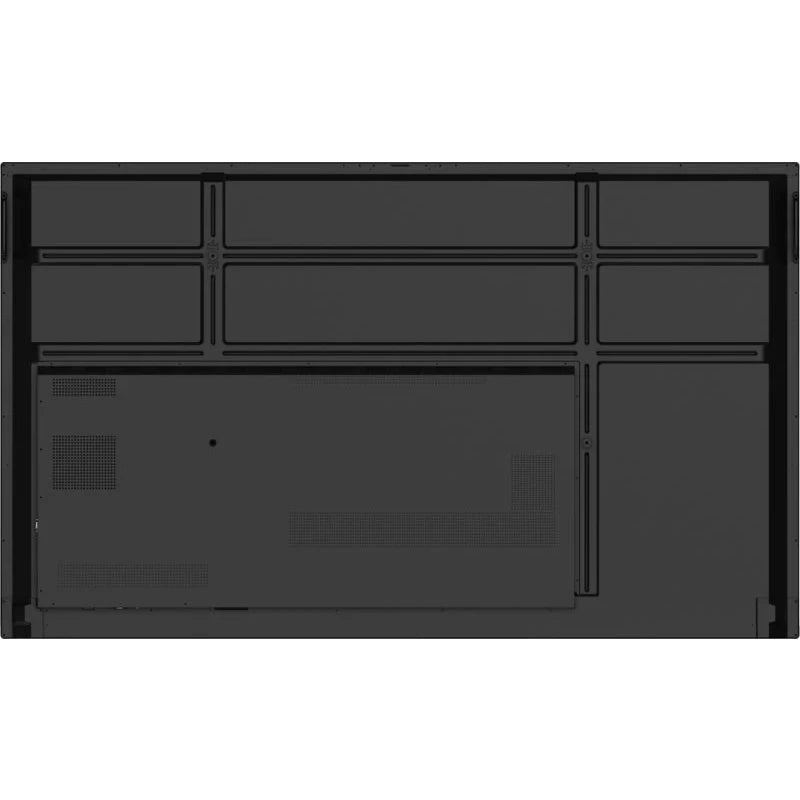

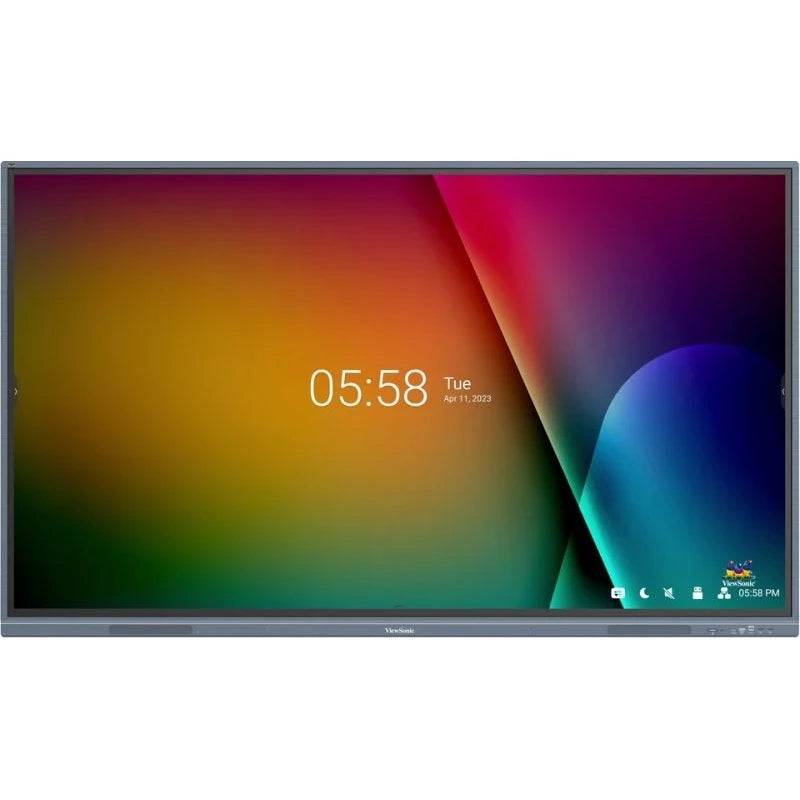

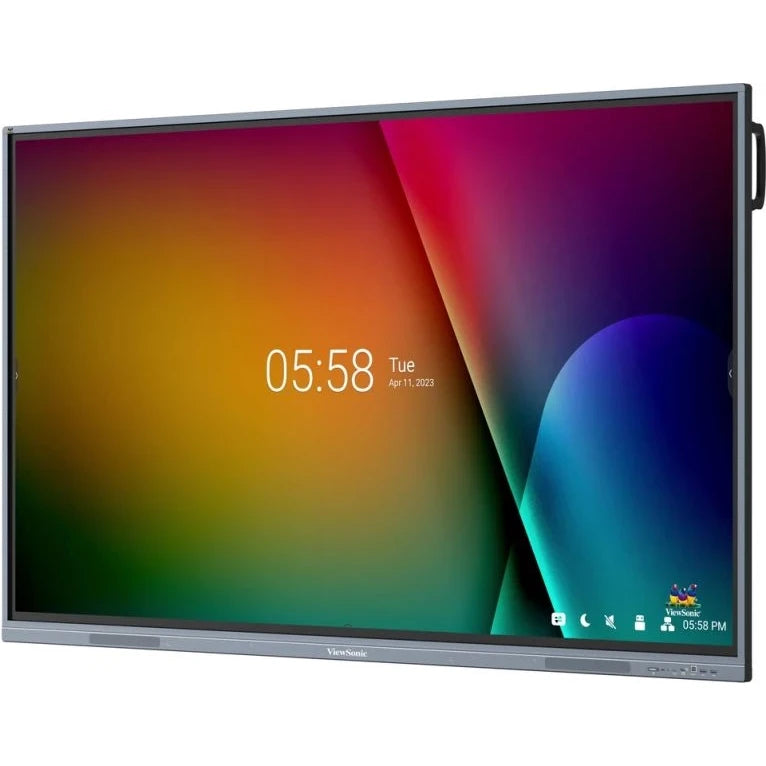

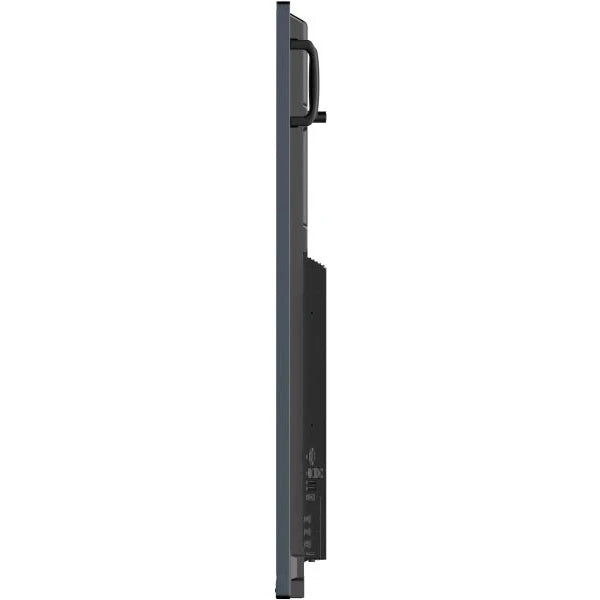

ViewSonic IFP7533-G 75" Viewboard 4K Interactive Display
The ViewBoard IFP33 Series is a comprehensive interactive solution designed for engaging education. It features a 4K UHD display with specialized bonding for maximum clarity and a 40-point touch interface for intuitive, multi-user collaboration. Connectivity is simplified through a universal USB-C port and integrated audio. Furthermore, the built-in myViewBoard software streamlines both classroom instruction and remote device administration, making it a versatile choice for modern schools.
| ViewSonic IFP7533-G Summary | |
|---|---|
| Display | 75", 4K, 400 Nits Brightness |
| Computing | 8GB DDR4 Memory | 128GB Storage |
| Operating System | ViewBoard Android 11 |
| Main Connections | USB-C Single Cable 'Data, Video, & Power', 4x HDMI ports |
| Audio | 2x 16 Watt Speakers |
| Wireless | Included |
| Wall Mount | Optional |
| Interactive Pens | 2 Included |
| Warranty | 5 Years. On-Site in Metro Areas |
| Other Features | Ambient Light Sensor, 65 Watt USB-C Power port |
Key Features
- 75" Display Size
- 4K Resolution
- Industry Leading 5 Year On-site Warranty
- Viewboard (Android based) Operating System
- USB-C for Plug n Play single cable connectivity
- Dual-pen, up to 40*-point touch with naturally smooth writing experience
- Centralized remote management system via myViewBoard Manager
- Interactive teaching tools for more hands-on lessons
Enriched Learning Experience with Multitasking Capabilities
Enhance lessons and activities with split-screen capabilities. Sketch on the ViewBoard while watching a video in Picture-in-Picture mode. Alternatively, use Picture-by-Picture mode to display up to 2 windows simultaneously, allowing for notes to be written in one window next to the test questions.
Smooth Writing for Intuitive Collaboration
Designed for sharing ideas and student collaboration, the ViewBoard IFP33 Series features 40 touchpoints with Ultra-Fine Touch technology and dual-pen capabilities. Experience an enhanced pen-on-paper writing experience as you alternate between the two pens’ dual-tips to effortlessly switch line color and thickness.
Simplify Classroom Setup with USB-C
Embrace simplicity and convenience with the USB-C one-cable solution. Plug in any compatible device to enjoy instant multimedia playback and lightning-fast data transfer. Plus, with up to 65W power delivery, you can even charge your laptop while maintaining a clutter-free workspace.
Seamless Integration for Interactive Lessons
The ViewBoard IFP33 Series seamlessly integrates with myViewBoard software, offering teachers a wide range of interactive lesson and presentation possibilities. Effortlessly prepare, save, and share class materials across various platforms in an instant.
Wirelessly Present from Your Device
Enjoy the ease of quick and seamless wireless screen sharing. myViewBoard Display provides instant browser-based casting, ideal for basic presentations and guest users, while the vCast app takes these functions further, offering educators advanced features like split, extended, and grouped screen capabilities for enhanced teaching possibilities.
Fast Wireless Connectivity for the Classroom
Upgrade the ViewBoard with an optional Wi-Fi module for seamless internet access to watch videos or review online resources within a clutter-free environment. Additionally, the ViewBoard can double as a hotspot to ensure a stable, wireless internet connection for the classroom.
Front-Facing Speakers Deliver Elevated Audio Quality
Captivate students with compelling lessons thanks to the built-in dual 16W front-facing speakers. Whether sharing instructional videos, musical content, or delivering listening exercises, the ViewBoard IFP33 Series brings profound audio depth to create memorable experiences.
Streamline Campus Communication
myViewBoard Manager offers a secure and user-friendly remote management system that enables updating, scheduling, broadcasting, and simultaneous management of multiple displays from any location. Save time and effort with a streamlined campus communication system that allows for text announcements, multimedia messages, and emergency alarms to be efficiently delivered. Disclaimer: *Task scheduling and multimedia broadcast are available with the optional Manager Advanced license
Upgrade the ViewBoard with a Windows Slot-in PC
Maximise the capabilities of the ViewBoard by attaching an optional slot-in PC, which features a standard OPS, Intel Core CPU, and pre-installed myViewBoard for Windows.
Hybrid-ready With Webcam Support
Prepare your classroom for hybrid learning by enhancing the ViewBoard IFP33 with a ViewSonic webcam. Livestream or record classes in high resolution, enabling remote students to easily follow along, even as the teacher moves around the room.
Hybrid-ready With Webcam Support
| Display | |
|---|---|
| Panel Size: | 75" |
| Panel Type: | TFT LCD Module with DLED Backlight. IPS |
| Display Area (mm): | 1649.664(H) × 927.936(V) (74.6” diagonal) |
| Aspect Ratio: | 16:9 |
| Resolution: | UHD 3840x2160(Pixels) |
| Colors: | 1.07B colors (10bit) |
| Brightness: | 400 nits (typ) |
| Contrast Ratio: | 5000:1 (max. with DCR enabled) |
| Response Time: | 8ms |
| Viewing Angles: | H = 178, V = 178 typ. |
| Backlight Life: | 30,000 Hours |
| Surface Treatment: | Hardness: 9H. Anti-glare coating |
| Orientation: | Landscape |
| Platform | |
| Processor: | Quad-core ARM Cortex (A55*4 ) |
| RAM: | 8GB DDR4 |
| Storage: | 128GB |
| Touch | |
| Type/ Tech: | UFT (Ultra Fine Touch) Technology |
| Touch Point: | 40 points touch |
| INPUT | |
| HDMI: | HDMI-IN 2.0 x 3 (3840x2160 @60Hz) |
| RGB / VGA: | x1 (1920x1080 @60Hz) |
| Audio: | x1 (PC audio in) |
| RS232: | x1 |
| OPS: | (Optional Intel Standard OPS) |
| WiFi: | (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) |
| OUTPUT | |
| HDMI: | HDMI 2.0 x1 |
| Audio: | x1 |
| SPDIF: | x1 |
| LAN | |
| RJ45: | x2 |
| USB | |
| Type A: |
USB3.0 x4 (Front x2, Rear x2)； USB2.0 x1 |
| Type B: | x2 (Front x1, Rear x1) |
| Type C: | Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) |
| Audio | |
| Speakers | 16W x 2 |
| Top Camera Plate | |
| Yes | |
| Operating System | |
| Embedded OS: | Android 11 |
| Bundle Software | |
| Basic Annotation Software: | myViewBoard WhiteBoard for Android |
| Pro Annotation Software: | myViewBoard for Windows (Embedded in optional Windows Slot-in PC) |
| Wireless Presentation: | ViewBoard Cast & myViewBoard Display |
| Special Features | |
| All-in-one USB port: | USB 3.0 x 2 |
| Simple LAN sharing between IFP and slot-in device: | 10/100M for Android & Slot-in PC |
| Light Sensor: | Yes |
| Power | |
| Voltage: | 100-240V AC |
| Consumption: | 106W ; Off: ≤ 0.5W |
| Ergonomics | |
| Wall Mount (VESA® ): | 800 x 400 |
| Operating Conditions | |
| Temperature (º C): | 0°C to 40°C |
| Humidity: | 10% ~ 80% RH non-condensing |
| Dimensions (W x H x D) | |
| Physical (inch / mm): | 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in |
| Packaging (inch / mm): | 1863 x 1140 x 225 mm / 73.3x 44.9 x 8.6 in |
| Weight | |
| Net (lb / kg): | 104.3lb/47.3kg |
| Gross (lb / kg): | 133.5lb/60.55kg |
| Regulations | |
| FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS | |
| Package Contends | |
| Included: | 1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m |
| Slot In PC | |
| Compatible Slot-in PC: | VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16 |
