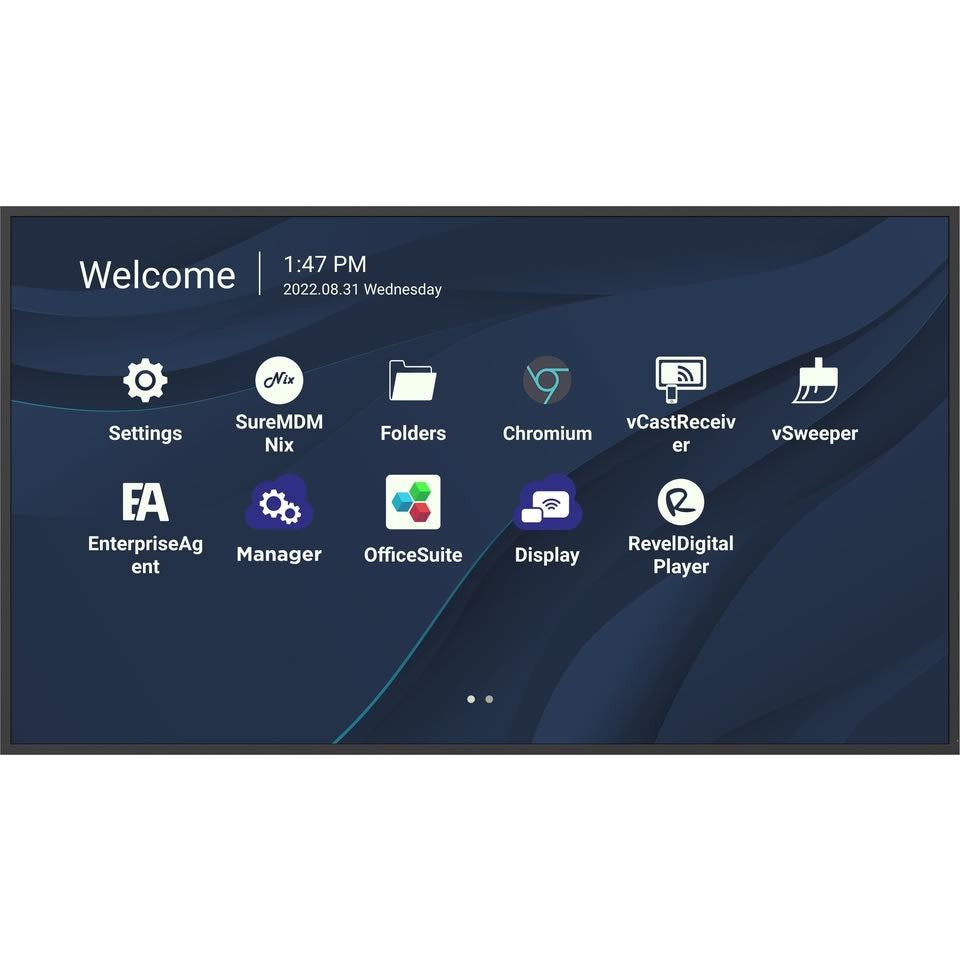

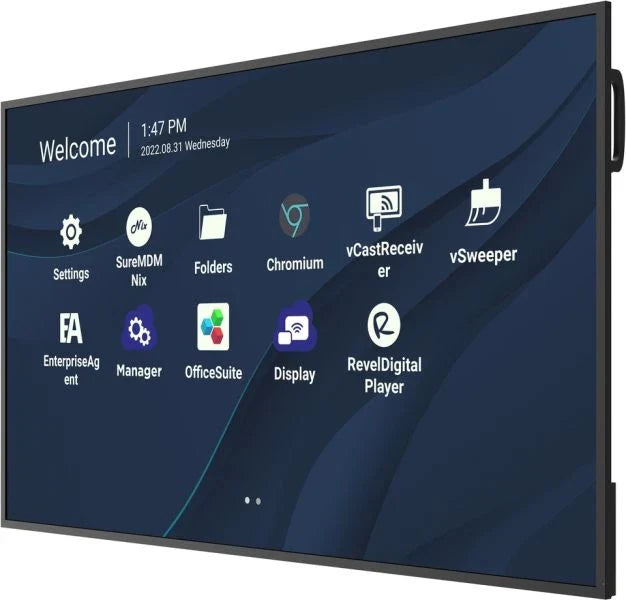

ViewSonic CDE7530 75" 4K Presentation Display
Indulge in breathtaking 4K Ultra HD resolution, exceptional brightness, and the option for both landscape and portrait mode with the CDE7530. Perfect for elevating corporate and campus communication, this display offers continuous and sustainable 24/7 use. With the Quad Core SoC, effortless multitasking is possible, and the USB-C one-cable solution simplifies external device connections. Luxuriate in seamless multimedia playback with the innovative cable-free screen casting and sharing features of myViewBoard Display and ViewBoard Cast, which also support Airplay and Chromecast. Streamline content changes, broadcasting, and software updates with intuitive remote management through myViewBoard Manager. Available in sizes ranging from 43" to 98" and with daisy-chain capability, the CDE30 Series exceeds all communication needs for sophisticated campus and corporate spaces.
ViewSonic CDE7530 Summary | |
---|---|
Display | 75", 4K, 450 Nits Brightness |
Computing | 4GB Memory | 32GB Storage |
Operating System | Android 11. USB media player inbuilt |
Portrait Installation | Yes |
Max Usage | 24 Hours/Day |
Main Connections | 3x HDMI In, 1x USB-C In, 1x HDMI Out |
Media Reader | Yes via USB, internal storage, and Wifi |
Audio | 2x 10 Watt Speakers |
Networking | Wired and Wireless |
Wall Mount | Optional |
Warranty | 3 Years On-Site Metro Areas |
Other Features | USB Media Reader, Remote Management, OPS Slot for Windows Upgrade, USB-C Power, Daisy Chain |
- 75" Display Size
- 4K Resolution
- Landscape or Portrait Installation
- Android 11 Operating System
- OPS for Slot-In PC
- 24/7 usage
- Daisy Chain Compatible
- 3 Year On-Site Warranty
- Ultra Slim Bezel
- USB-C Single Cable Connectivity
- 2x 10 Watt Speakers Inbuilt
- Wireless Display
- Daisy Chain Compatible
Features for Presentation Display
Connection Made Efficient
The CDE6530, with its USB-C connectivity, has been designed to enable ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable speedy-data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.
Wireless Content Sharing
The CDE6530 comes complete with cable-free sharing solutions. myViewBoard Display delivers instant browser-based castings for screen-mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.
Optional Windows Slot-in PC
Equipped with a slot-in PC operating on Windows OS, the CDE6530 will further enhance your productivity. The mighty combination of dual-band Wi-Fi and Bluetooth, up to a powerful Intel® Core™ i7 Processor, 8GB (up to 64GB) RAM, and 256GB SSD storage offer you all the computing power you need to operate CPU-intensive applications.
The feature is only available with the CDE6530, CDE7530, CDE8630, CDE9830 models.
Features for Large Format Display
Non-stop Operation Hours
Alongside its ability to run 24/7 for continuous message delivery, the CDE30 Series smoothly operates in both landscape and portrait modes to deliver the most efficient communication format. The display's brightness ensures captivating visual quality, and its daisy-chain compatibility caters for easy network topology and deployment.
SoC-powered Performance
The CDE30's built-in Quad Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring a media player. This all-in-one digital signage solution reduces both costs and your carbon footprint, while delivering a top-notch performance without needing a PC or any additional cables.
Central Management and Control
Corporate Communication Simplified
ViewSonic myViewBoard Manager is a web-based software for IT teams and administrators that centralizes message broadcasting. With just one device, you can easily synchronize information on multiple Presentation Displays, aligning corporate communication on all levels. No matter whether it’s a general announcement, an emergency message, or a multimedia asset. You are guaranteed a reduced workload.
*For even more features, make sure to check myViewBoard Manager Advanced.
Insight Report and Remote Desktop
ViewSonic myViewBoard Manager offers better operational efficiency thanks to its browser-based centralized management system. IT admins can remotely track devices, apps, and input sources, as well as measure and optimize tool usage with clear metrics and insights reports. The Remote Desktop feature streamlines maintenance, allowing for instant support without requiring on-site IT services. Disclaimer: Device usage status is only available with myViewBoard Manager Advanced.
Compatible with Creston, AMX, Extron
Compatible with Creston Connected V1, AMX, and Extron systems, the CDE30 Series allows for an always-on mode with complete remote control of all lightning, audio, displays, and other AV control systems both on-site and off-site.
Environmentally Friendly
Sustainable solutions
The CDE30 Series has been awarded EPEAT certification in the US — currently, the highest environmental rating achieved by any large format displays— for meeting the required criteria on energy consumption, supply chain carbon emissions, and end-of-life management. Committed to sustainability, ViewSonic has been actively implementing advanced energy-efficient and eco-friendly practices across all its product lines.

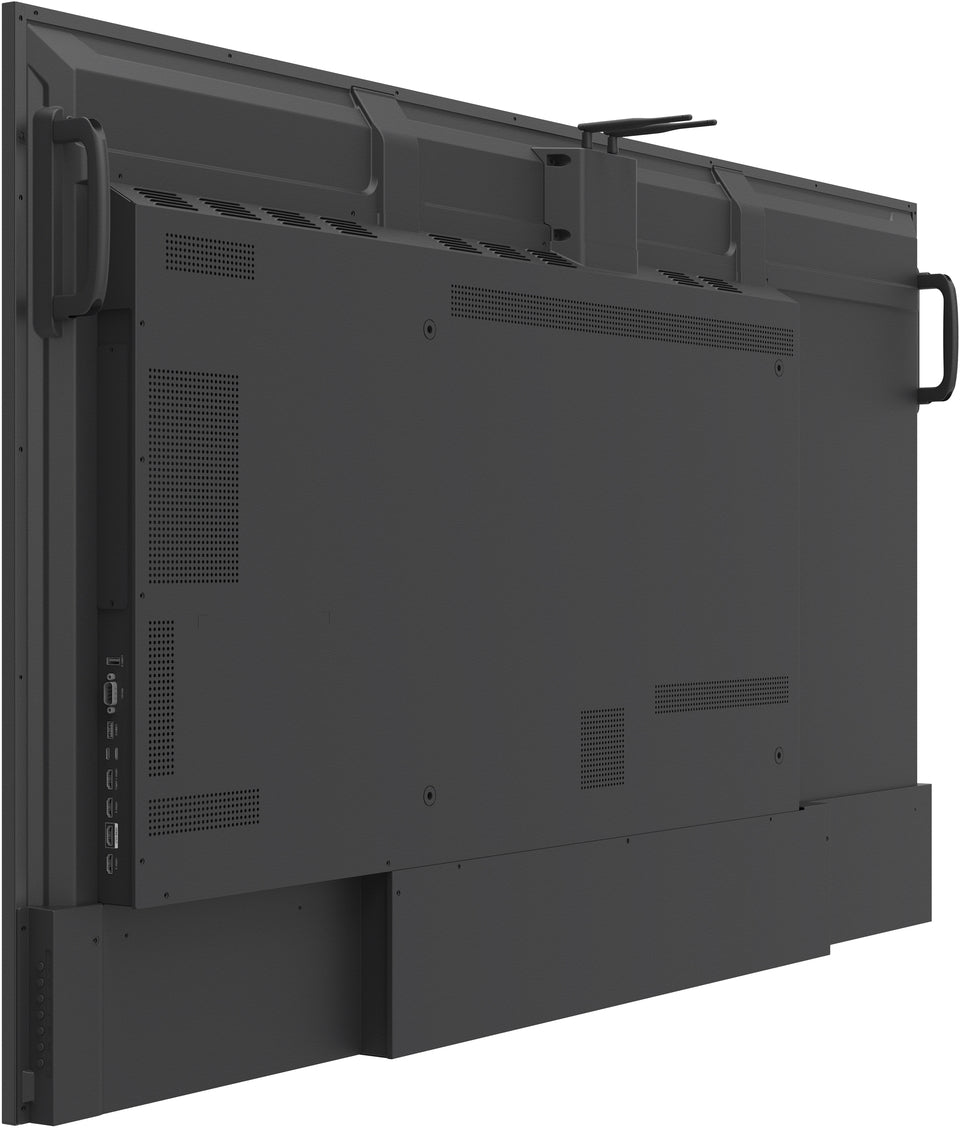

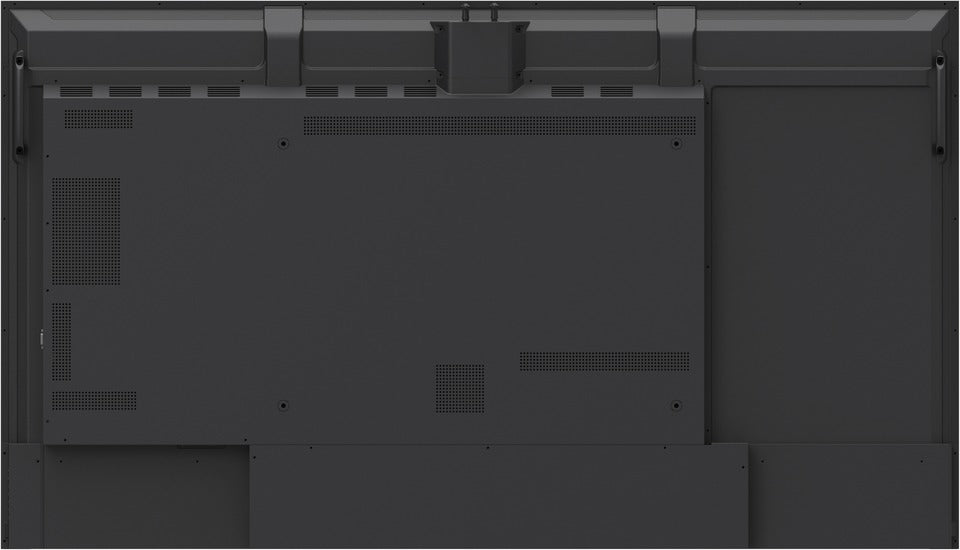

Dimensions & I/O Ports
1. Speaker | 7. HDMI 1(ARC) | 13. VESA® Wall Mount (800x600mm) |
2. OPS Slot | 8. HDMI 2 | 14. AC IN |
3. USB 2.0 | 9. HDMI OUT | 15. Power Switch |
4. RS-232 | 10. HDMI 3 | 16. LAN |
5. USB 3.0 | 11. Control Panel | 17. SPDIF |
6. USB-C | 12. WiFi Slot |
Specifications
Display | |
---|---|
Panel Size: | 75 |
Panel Type: | TFT LCD Module. ADS type, DLED backlight |
Display Area (mm): | 1649.664 (H) ×927.936 (V) (75” diagonal) |
Aspect Ratio: | 16:9 |
Resolution: | UHD 3840x2160(Pixels) |
Aspect Ratio: | 16:9 |
Colors: | 1.07G (8bits + FRC-) |
Brightness: | 450 nits (typ.) |
Contrast Ratio: | 1200:1 (typ.), 5000:1 (DCR enabled) |
Response Time: | 8ms |
Viewing Angles: | H = 178, V = 178 typ. |
Backlight Life: | 50,000 hrs (typ). |
Surface Treatment: | Anti-Glaire, 3H hardness, Haze 25% |
Bezel: | 14.7/14.7/14.7/14.7 mm (L/R/T/B) |
Orientation: | Landscape & Portrait |
Platform | |
Processor: | Quad-core ARM Cortex A55 |
RAM: | 4GB |
Storage: | 32GB |
INPUT | |
HDMI: | 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC) |
RS232: | x1 |
OPS Slot: | x1 |
WiFi: | WiFi module slot x 1 |
OUTPUT | |
HDMI: | 2.0 x1 ( 3840x2160 @60Hz ) |
SPDIF: | x1 (optical) |
LAN | |
RJ45: | x1 |
USB | |
Type A: | 2.0 x 1, 3.0 x 1 |
Type C: | x 1 ( (DP1.2, PD 65W, USB2.0, 100M ethernet) |
Audio | |
Speakers | 10W x2 |
Operating System | |
Embedded OS: | Android 11 |
Power | |
Voltage: | 100-240 VAC +/- 10% |
Consumption: | 126 W(typ.) 0.5W(off) |
Ergonomics | |
Wall Mount (VESA® ): | 800 x 600 |
Operating Conditions | |
Temperature (º C): | 0°C to 40°C |
Humidity: | 10% ~ 90% RH non-condensing |
Operating Hours: | 24/7 |
Dimensions (W x H x D) | |
Physical (inch / mm): | 66.36 x 37.94 x 3.21in/ 1685.6 x 963.7 x 81.6mm |
Packaging (inch / mm): | 73.35 x 42.91 x 8.86 in./1863 x 1090 x 225 mm |
Weight | |
Net (lb / kg): | 76.39 lbs/34.65 kg |
Gross (lb / kg): | 106.15 lbs/48.15 kg |
Regulations | |
cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65 | |
Package Contends | |
Included: | 1. Remote Control with batteries 2. Quick Start Guide 3. Power Cables 4. HDMI cable 5. USB-C cable 6. Wall Mount Screw x 4 7. RS232 adapter 8. Compliance statement |
