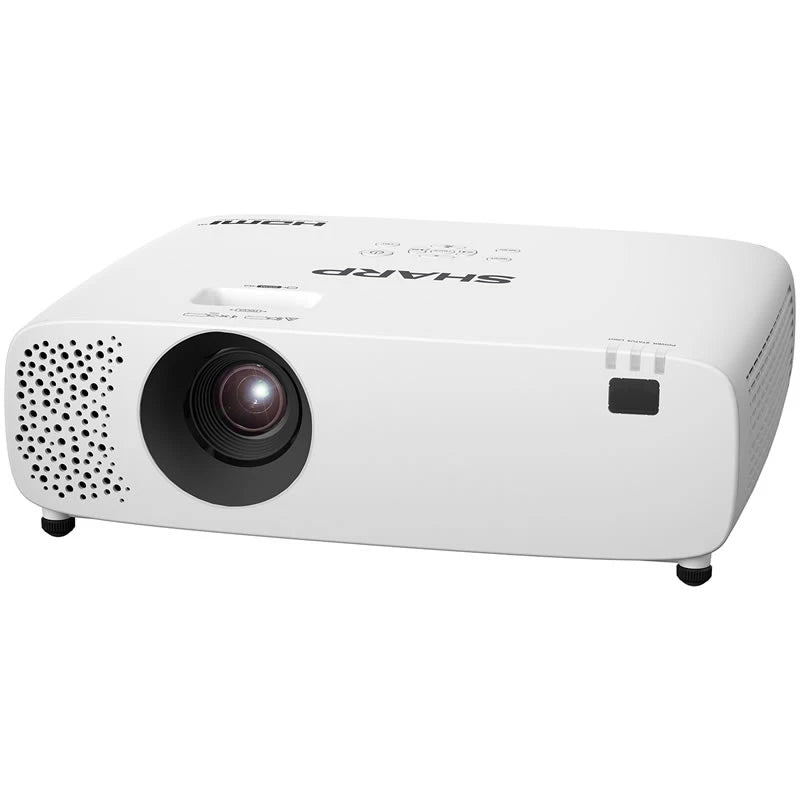

Sharp XP-E501U-W High Brightness Laser Projector
High-impact presentations shouldn't require high-maintenance equipment. The Sharp XP-E501U-W laser projector packs 5,000 lumens and sharp WUXGA resolution into a lightweight, 11-pound design that easily handles bright conference rooms and classrooms. Its advanced 3LCD laser engine runs for up to 20,000 hours without a lamp swap, drastically lowering your maintenance expenses. With dual HDMI ports ready for 4K content, built-in 16W audio, and hassle-free alignment tools, it offers a reliable, budget-friendly way to make your ideas stand out.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 5,000 Lumens
- 5,000,000:1 Contrast
- 5kg Weight
- 39 / 29db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Powerful 16w Speaker
Throw Distance Chart
(Throw Ratio: 1.37-1.65:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | From 2.8m to 3.3m |
| 110" (16:10) 2370x1480mm | From 3.3m to 3.9m |
| 120" (16:10) 2585x1615mm | From 3.5m to 4.2m |
| 130" (16:10) 2800x1750mm | From 3.9m to 4.6m |
| 140" (16:10) 3015x1885mm | From 4.1m to 4.9m |
| 150" (16:10) 3230x2020mm | From 4.4m to 5.3m |
Reliable Laser Light Source
Enjoy the convenience of quick setup with direct power on and quick power off. The E Series offers a longer life, lower maintenance solution, and an overall lower total cost of ownership than a lamp-based projector.
Cornerstone Correction
Cornerstone Correction allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Flexible Installation Options
The XP-E501U-W allows for distortion-free display of content in various orientations, creating new application opportunities. Portrait Mode enables the ability to install a projector on its side to create a 10:16 portrait image. It also supports 360° roll-free installation, allowing the projector to be rotated freely in order to point up or down depending on the installation requirements.
Additional Details
- Built-In 16W speaker or 3.5mm audio output
- ECO Mode extends the light source life and reduces audible noise
- Edge Blending allows color and brightness to be adjusted to display one image across multiple projectors
- NaViSet Administrator 2 software support for management
- Crestron, AMX, and PJLink support
What's in the Box
- Sharp XP-E501U-W Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
| IMAGE | |
|---|---|
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 5,000,000:1 |
| Brightness | 5000 Lm Normal / 5300 Lm Center / 4000 Lm Silent Mode; compliant with ISO21118-2020 |
| Lamp | Laser Light Source |
| Light Source Life [hrs] | 20,000 hours |
| Lens | F= 1.6-1.76, f= 19.16-23.02 mm |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.37-1.65:1 |
| Projection Distance [m] | 0.85 - 11m |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300"; Minimum: 76 / 30" |
| Zoom | Manual; x1.2 |
| Focus Adjustment | Manual |

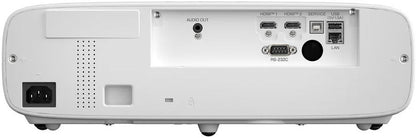

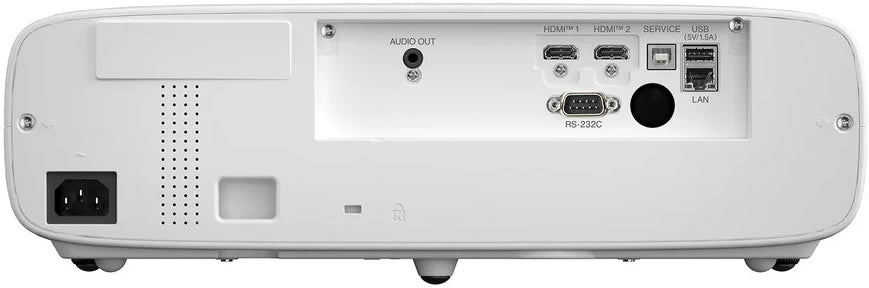

| CONNECTIVITY | |
| Digital | 2 x HDMI™ supporting HDCP |
| Audio Output | 1 x 3.5 mm Stereo Mini Jack |
| Control | 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45 |
| USB | 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 1.5A Power Supply |
| Remote Control | Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left |
| ELECTRICAL | |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption [W] | 310 Normal / 250 Silent Mode / 1 Network Stand-by / 0.4 Stand-by |
| ENVIRONMENTAL CONDICTIONS | |
| Operating Temperature [°C] | 5ºC to 45ºC |
| Operating Humidity [%] | 20 to 80 non-condensing |
| Storage Temperature [°C] | -10ºC to 50ºC |
| Storage Humidity [%] | 20 to 80 non-condensing |
| MECHANICAL | |
| Dimensions (W x H x D) [mm] | 390 x 128 x 294 (without lens and feet) |
| Weight [kg] | 5 |
| Fan Noise [dB (A)] | 39 / 29 (Normal / Silent) |
| ERGONOMICS | |
| Safety and Ergonomics | CE; EAC; ErP; RoHS; TUEV Type Approved |
| ADDITIONAL FEATURES | |
| Special Characteristics | Carbon Savings Meter; Control ID Function; Crestron RoomView; Free Tilt; Geometric Correction; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer |
| WARRANTY | |
| Projector Warranty | 5 years Warranty |
