Sharp PV710ULG WUXGA 7100lm Large Venue Laser Projector

Sharp PV710ULG WUXGA 7100lm Large Venue Laser Projector


Regular price $5,999.00
Regular price Sale price $5,999.00
ON SALE! Sold out
Inc. GST

Found a better deal? Request a Price Match Here!

View full details

Sharp / NEC PV710ULG WUXGA Bright Laser Projector

No Lens is included with this projector, please select the required lens in the optional accessories section.

Enhance large venue projections with the Sharp PV710ULG WUXGA 7100lm Laser Projector, featuring a long-lasting laser and optional lenses. Its durable laser can last up to 20,000 hours and only requires cleaning every 10,000 hours, reducing downtime and costs. Plus, the motorized lenses for focus, shifting, and zoom make adjustments effortless even in difficult to reach installations. A top choice for high capacity and efficient use, the PV710ULG from Sharp / NEC is the perfect fit for any professional setting.

Key Features & Specifications

  • WUXGA 1920 x 1200 16:10
  • 7,100 ANSI Lumens
  • 3,000,000:1 Contrast
  • 11.2kg Weight
  • 40 / 31db(eco) Fan Noise
  • 5 Year Warranty
  • 5 Year/ 10,000hr laser Warranty
  • Est. Laser Life up to 20,000hrs
  • 2x HDMI Input
  • Horizontal & Vertical Keystone
  • Vertical Lens Shift (+50%, -10%)
  • Horizontal Lens Shift (+/- 20%)
  • Powered Zoom, Focus, & Shift
  • 360 Degree Installation (v+h axis)
  • HDBaseT Compatible
  • Portrait Projection
  • Lens Options (Lens not included, please select one from the optional accessories section)

Sharp PV710ULG

Powerful installation projectors equipped to take on the most demanding integration projects

A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.

3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.

  • No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
  • Get Great Performance – while not compromising on quality and ease of use.
  • Low Noise Level – with 31dB, the silent technology will not disturb your meeting.
  • Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.

Legacy Support

Customers utilising previous generation NEC PA Series projectors can use their existing lenses. Eliminates the costly expense of purchasing a new lens. The time consuming efforts and costs associated with reinstallation are eliminated. Supports the legacy manually adjustable lenses, NP11FL, NP12ZL, NP13ZL, NP14ZL and NP15ZL. Also supports motorised lenses NP40ZL, NP41ZL, and NP43ZL.


  • 4K Ready - Display stunning 4K 60P content using Sharp's proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs.
  • Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ Link
  • Allow for complete control system support
  • Lower the cost of your installation by eliminating the need for costly reprogramming of a control system. (supports competitors commands, call Sharp for complete list)


  • Enjoy greater installation flexibility with motorized optional bayonet style lenses providing quick and easy exchanges. Lens throw distances range from 2.5 to 68.5 ft
    - New NP44ML-01LK UST lens placing the projector above the screen and out of site (installation may place the projector above the ceiling line)
  • Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
  • Up to 60% vertical lens shift and +/- 30% horizontal lens shift capabilities make alignment easy

 Sharp PV710ULG lens shift


NaViSet Administrator 2

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality for a majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.


  • Images appear immediately after power on due to instantaneous start up of the laser
  • Dual blue laser systems provide best in class white balance over the life of the projector
  • Inorganic optical components create longer lifetime and greater peace of mind

Sharp PV710ULG laser


  • Multiple Digital computer inputs ensure quick switching between presentations
  • Three audio inputs (one mini stereo [HDMI1TM & HDMI2TM, and HDBaseT) make it easy to add sound to enhance your presentations
  • 21:9 Aspect Ratio supported for engaging meeting spaces

Digital Inputs

Among the PV Series wide selection of inputs are dual HDMI w/ HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

Remote control

Wired and wireless backlit remote allows you to adjust for complete control of the projectors menu structure in a well lit or dark environment. Direct controls such as lamp mode, aspect ratio, volume and input selection eliminates multiple button pushes.


10,000-hour filter life

NEC is committed to designing its products to provide long lifecycles. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.

Sharp PV710ULG long life filter


The projector can be rotated freely (360°) to orient the image depending on the installation requirements

Sharp PV710ULG 360 installation


Projector management software for installation professionals provides network based projector control including input switching, picture, and geometric correction.

Sharp PV710ULG  pro assist


What's in the Box

  • Sharp PV710ULG Projector
  • Remote Control
  • Power Cord

What you may need

  • Projector Lens (a lens is not included)
  • HDMI Cable
  • Projector Screen
  • Projector Mount
Projection Technology 3LCD Technology
Native Resolution 1920 x 1200 (WUXGA)
Aspect Ratio 16:10
Contrast Ratio 3,000,000:1
Brightness 7100 Lm Normal / 7400 Lm Center / 6400 Lm Silent Mode
Lamp Laser Light Source
Light Source Life [hrs] 20,000 hours
Lens 5 manual lens options; 5 motorized lens options
Lense Adjustment Motorized and manual (depending on lens)
Lens shift H:±20, V:-10,+50
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor depending on lens selection (std. option NP13ZL at 1.46-2.95:1)
Projection Distance [m] 0.7 – 50.9 * Depending on lens selection
Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500"; Minimum: 101.6 / 40"
Zoom Motorized and manual (depending on lens)
Focus Adjustment Motorized and manual (depending on lens)
Supported Resolutions 1080i/50/60;
1280 x 768 (60);
1920 x 1200 (60);
3840 x 2160 (23.8/24/25/29.97/30);
Frequency Horizontal: analog: 0-0 kHz, digital: 15/24-100 kHz; Vertical: 50 – 120 Hz

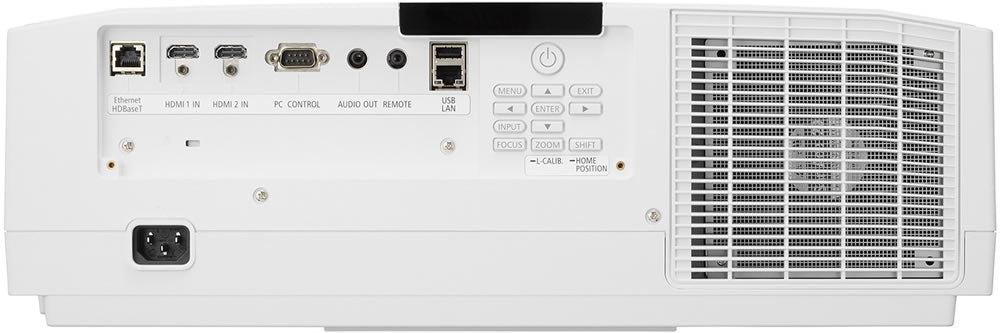

Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4
Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
Input: 1 x 3.5 mm Stereo Mini Jack
Remote Control Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 434.0 Normal / 392.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
Dimensions (W x H x D) [mm] 499 x 164 x 407 (without lens and feet)
Weight [kg] 11.2
Fan Noise [dB (A)] 40 / 31 (Normal / Silent)
Operating Temperature [°C] 0-40°C
Operating Humidity [%] 20 to 80 non-condensing
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80 non-condensing
Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved
Special Characteristics AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life
Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.3W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
Ecological Materials 100% recyclable packaging; Downloadable manuals
Ecological Standards ErP compliant
Projector Warranty 5 years Warranty
Light Source 5 years or 10000h (whatever comes first)
Shipping Content IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide
Optional Accessories 10 optional bayonet lenses; Air Filter (NP-06FT); Cable Cover (NP10CV, NP10CV-B); Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)
Lenses - motorized NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML (0.32:1); NP50ZL (0.6-0.75:1)
Lenses - manual NP11FL (0.79:1); NP12ZL (1.16-1.52:1); NP13ZL (1.46-2.95:1); NP14ZL (2.9-4.68:1); NP15ZL (4.59-7.02:1)
