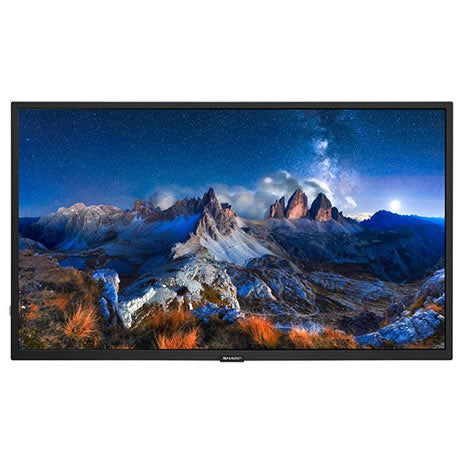

Sharp PN-M322 32" Full HD Professional Grade Display
Sharp Message (M) Series 24/7 Display
The Sharp MultiSync PN-M322 offers a professional-grade 32” display designed for digital signage applications where brightness, image clarity, and design are critical. Featuring a newly integrated anti-glare panel with 450 cd/m² brightness, it ensures your content remains vivid and easily visible across a wide range of environments.
The mechanical design allows for maximum display efficiency while ensuring that the product is built to last effectively for 24/7 applications. These displays also contain a full metal chassis, high end componentry and an integrated scheduler function to allow for customer peace of mind for extended runtime applications in commercial situations.
The PN-M322 also contains full external control support through both RS-232 or LAN connectivity, effectively making these displays ideal for commercial installations where monitoring is necessary - such as for retail advertising, smaller-sized transportation signage or promotional boards in restaurants and convenience stores.
| NEC / SHARP E328 Summary | |
|---|---|
| Display | 32", Full HD, 450 Nits Brightness |
| Computing | n/a |
| Operating System | Nil. USB media player inbuilt |
| Portrait Installation | Yes |
| Max Usage | 24 Hours/Day |

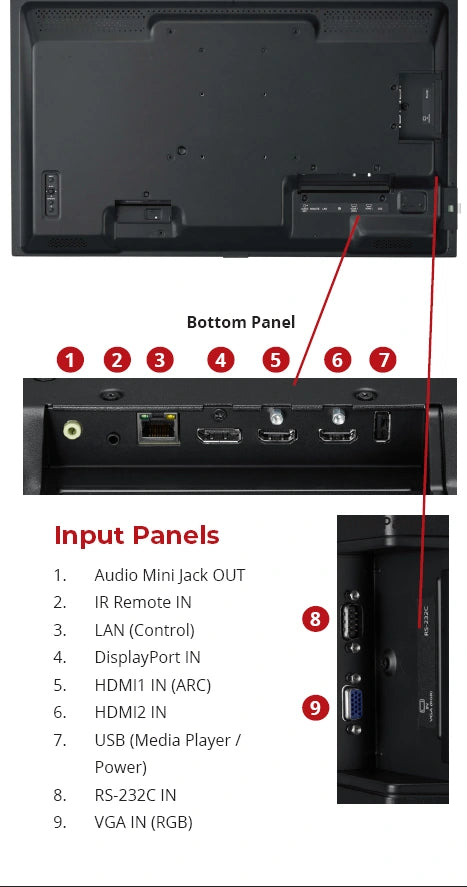

| Main Connections | 2x HDMI In, 1x Displayport In, LAN Control |
| Media Reader | Yes via USB |
| Audio | 2x 5 Watt Speakers |
| Networking | Wired Lan only |
| Wall Mount | Optional |
| Warranty | 3 Years |
| Other Features | USB Media Reader, Network Control Software |
Benefits
- Anti-Reflective 24/7 panel with commercial grade brightness allows these displays to easily fit into applications such as retail, transportation or convenience stores.
- Integrated USB Media Player allows for easy content delivery and an integrated and automatic failover source if necessary.
- Metal Backcover and High-End Components allow for peace of mind and extra protection for extended 24/7 runtimes.
- Full External Control via RS-232C or LAN to allow for monitoring via third party control systems or free.
- Sharp NaViSet Administrator software Landscape and Portrait capable to allow for different installation options dependent on the application and need.
Additional Features
- AMX Support
- ARC Support through HDMI
- Automated Email Alert Function
- Consumer Electronics Control (CEC) Crestron Roomview Support
- Display Browser Control
- Full Input Detect Functionality
- HDR Support (PQ, HLG, HDR10)
- Integrated Temperature sensor
- Integrated USB Media Player
- Key Guide
- NaViSet Administrator 2 Compatible
- Off Timer
- OSD Rotation for Portrait Orientation
- PJ Link Support
- Power USB Port (5V/2A)
- Programmable Gamma
- Real Time Clock
- Removeable Logo Ornament
- Scheduler Function
- SNMP
- TileMatrix
- Vacation Switch
Reduced Installation and Operating Costs
Highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
Slim Design and Integrated Speakers
The aesthetic design is pleasing to the eye and enables easy, low cost installation.
Future Ready Connectivity
Featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Standalone operation
The display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
Effortless content playback
The integrated USB media player supports various image video file formats for effortless and standalone content playback.
Specifications
| Display | |
|---|---|
| Panel Technology | VA |
| Screen Size [inch] | 32 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 450 |
| Contrast Ratio (typ.) | 4000:1 |
| Viewing Angle [°] | 178 |
| Haze Level [%] | 25 |
| Supported Orientation | Landscape and Portrait |
| Resolution | |
| Native Resolution | 1920x1080 |
| Connectivity & Sensor | |
| Input Video Analogue | 1 x VGA |
| Input Video Digital | HDMI 2.0 x2, DP 1.2 x1 |
| Input Audio Analogue | Nil |
| Input Audio Digital | HDMI 2.0 x2 |
| Input Control | LAN 100Mbit, RS232 |
| Input Data | USB 2.0 (Media Player, 5V/2A) |
| Output Audio Analogue | 1 x 3.5mm jack |
| Output Audio Digital | Nil |
| Remote Control | Remote Control IR; RS-232C (9-pin D-sub) Input |
| Sensors | |
| Ambient Light Sensor | Optional (KT-RC3) |
| Temperature Sensor | Integrated and programmable |
| Electrical | |
| Power Consumption [W] | (Typ/Max Brightness/All Max) 40W/50W/75W |
| Power Supply | 100-240 V AC, 50/60 Hz, Internal |
| Operating Humidity | 20-80% |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Mechanical | (Dimensions Excluding Stand) |
| Dimensions (W) [mm] | 726.5 |
| Dimensions (H) [mm] | 425.4 |
| Dimensions (D) [mm] | 66.5 |
| Exact Weight [kg] | 6.3 |
| Bezel Width [mm] (L/R, T/B) | 11.9mm/11.9mm/11.8mm/17.2mm |
| VESA Mounting [mm] | 100mm x 100mm (4 x M4 x 14mm), 200 x 200 (4 x M4 x 10mm, off-center) |
| Additional Features | |
| Special Characteristics | AMX Support, Automated Email Alert Function, CEC Support through HDMI, Crestron Roomview Support, Display Browser Control, Display Wall Calibrator Compatible, HDR Compatible (PQ, HLG, HDR10), Key Guide, NaViSet Administrator 2 Compatible, OSD Rotation for Portrait Orientation, PJ Link Support, Power USB Port (5V/2A), Removeable Logo Ornament, Real Time Clock, TileMatrix, SNMP, Consumer Electronics Control (CEC), Integrated USB Media Player, Integrated Temperature sensor, Full Input Detect Functionality, Programmable Gamma, Scheduler Function, Off Timer, Vacation Switch, Variable or Fixed Audio Out, Key and Button Lock Settings, USB Copy |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Audio | Integrated Speakers (5 W + 5 W) |
| Shipping Content | 3m AC Power Cord, 2.0m HDMI Cable, IR Remote Control, AAA batteries |
| Warranty | 3 years warranty incl. backlight |
| Operating Hours | 24/7 |
