NEC / Sharp

Sharp PA803UG WUXGA 8000lm Large Venue Projector

Sharp PA803UG WUXGA 8000lm Large Venue Projector


Regular price $4,699.00
Regular price Sale price $4,699.00
ON SALE! Sold out
Inc. GST

Found a better deal? Request a Price Match Here!

View full details

Sharp / NEC PA803UG WUXGA Bright Projector

No Lens is included with this projector, please select the required lens in the optional accessories section.

Powerful installation projectors equipped to take on the most demanding integration projects

The PA803UG from Sharp/NEC is a top-of-the-line large venue projector featuring an impressive 8000 lumens, ideal for corporate and educational settings. Its wide range of digital input options allows for seamless connectivity to computers and high definition devices. This model also offers design and installation flexibility with a variety of optional powered lenses, as well as tilt-free and portrait installation capabilities. Additionally, it boasts built-in edge blending and stacking, as well as HDBaseT input and separate HDBaseT loop out for uncompromising single connections for uncompressed full HD digital video, audio, ethernet power, and control signals.

Key Features & Specifications

  • WUXGA 1920 x 1200 16:10
  • 8,000 ANSI Lumens
  • 10,000:1 Contrast
  • 10.2kg Weight
  • 39 / 33db(eco) Fan Noise
  • 5 Year Warranty
  • 6 Month / 1000hrs lamp warranty
  • Est. Lamp Life up to 5,000hrs
  • 2x HDMI Input
  • Horizontal & Vertical Keystone
  • Vertical Lens Shift
  • Horizontal Lens Shift
  • 360 degree Installation (vertical axis)
  • Portrait Installation Mode
  • Edge Blending Inbuilt
  • Stacking Function
  • HDBaseT Compatible
  • Lens Options (Lens not included, please select one from the optional accessories section)

Sharp PA803UG
  • 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
  • Tile Matrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
  • High performance video processing/scaling creates life-like images
  • Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
  • 8000-lumen brightness enhances images for most applications


  • Enjoy greater installation flexibility with a complete line of optional bayonet style lenses 8) for quick and easy exchange. Lens throw distances range from 2.5 to 68.5 ft
  • Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
  • Up to 60% vertical lens shift and +/- 30% horizontal lens shift capabilities make alignment easy

Screen Splitter

Sharp is committed to bringing the latest and greatest innovation to projectors. Multi-display capabilities and TileMatrix technologies are integrated into the new PA series projectors. This processing is all done internally and therefore eliminates the additional hardware typically required to produce a beautiful 4K resolution image.

Sharp PA803UG screen split

Stacking Correction

The industry’s first built-in stacking correction capabilities (up to four projectors) allows the projectors to boost an image’s brightness up to 36,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Stacking Correction

Edge Blending

This function seamlessly blends multiple projected images to display a single high- resolution image.

Edge Blending

Built-In HDBaseT Support

Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.

Get Connected with a wide selection of Inputs

  • Multiple Digital computer inputs ensure quick switching between presentations
  • Five audio inputs (one mini stereo [HDMI1 TM & HDMI2 TM, DisplayPort and HDBaseT) make it easy to add sound to enhance your presentations

Remote control

A wireless backlit remote allows you to adjust for complete control of the projectors menu structure in a well lit or dark environment. Direct controls such as lamp mode, aspect ratio, volume and input selection eliminates multiple button pushes.

Digital Inputs

Among the PA Series’ wide selection of inputs are dual HDMI w/HDCP and DisplayPort w/HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

Input panel cover

This optional accessory creates a clean look for your installation, while hiding signal cables and the power cord.

Advanced Control Features


Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

Sharp Cornerstone


When combined with active shutter glasses and 3D emitter, the PA Series Projectors create 3D images from a computer or Blu-ray player. The PA Series utilize the 3D sync line output from the projector to connect to the 3D emitter. Optional 3D glasses and emitters from XPAND are available from Sharp/NEC.

Geometric Correction

Projecting an image isn’t confined to a standard flat screen or wall with the Sharp PA Series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.

Sharp Geometric Correction

10,000-hour filter life

Sharp is committed to designing its products to provide long lifecycles. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.


The projector can be rotated freely (360°) to orient the image depending on the installation requirements

Sharp PA803UG tilt free

Portrait mode

Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used

Sharp PA803UG portrait

Unique Features

Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers.

Advanced AccuBlend™ ensures detailed images when non- native resolution sources are connected to the projector 64-step image magnification with location control

Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations.

What's in the Box

  • Sharp PA803UG Projector
  • Remote Control
  • Power Cord

What you may need

  • Projector Lens (a lens is not included)
  • HDMI Cable
  • Projector Screen
  • Projector Mount
Display Technology 0.76" LCD w/ MLA
Light Output(Lumens) 8000 normal
Native WUXGA 1920 x 1200
Maximum 4K 4096 x 2160

Contrast Ratio (up to) 10000:1 with auto iris
Lamp Type 370W AC
Lamp Life (up to) 4000 hours normal / 5000 hours eco
Screen Size (diagonal) 40 to 500 in. / 1.02 to 12.7m
Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide
Zoom Variable
Focus Power
F number, fnumber Variable
Shift Mechanical -0.1 to +0.6 vertical, +/-0.3 horizontal

Keystone Correction +/- 40° horizontal, +/- 30° vertical

Signal Compatibility/Connectivity
Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical (Analog/Digital) Analog: 48-120Hz, Digital: 24-120Hz

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
Macintosh Compatibility Yes

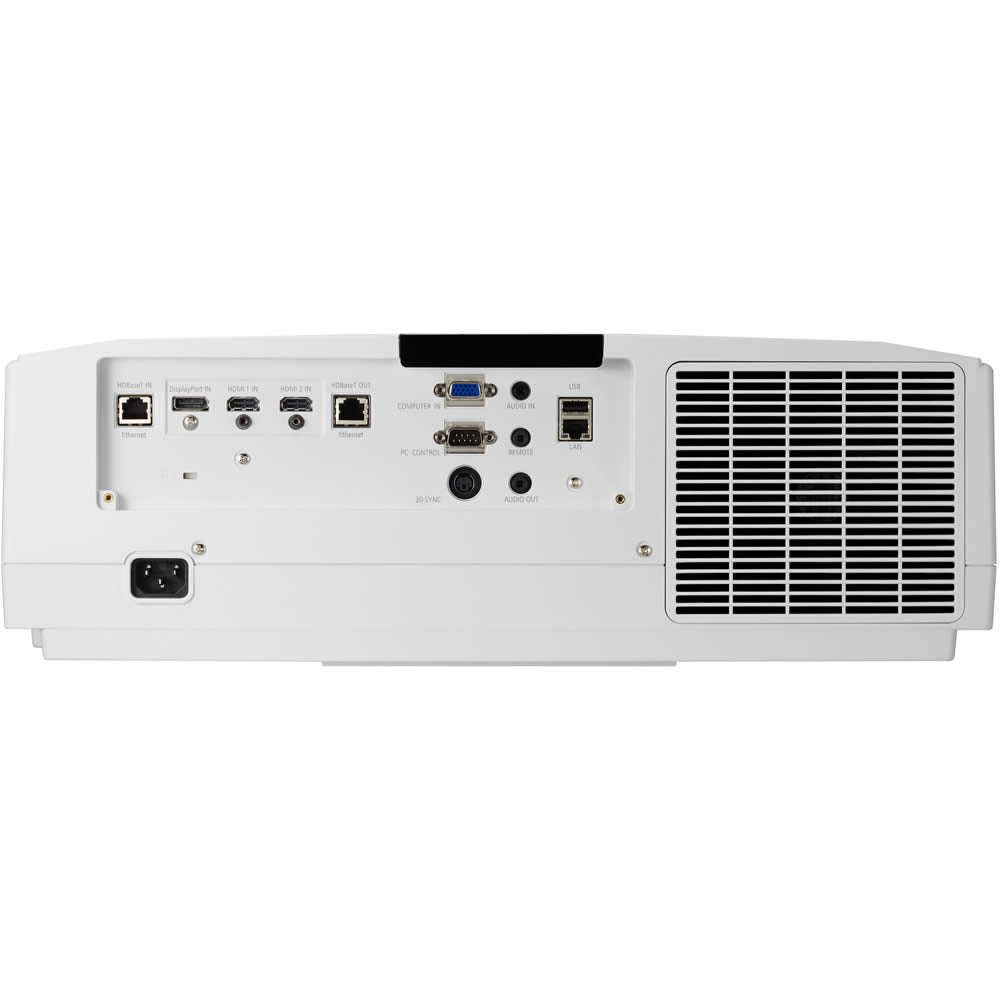

Input/Output Terminals
RGB1(analog) VGA 15-pin D-sub
RGB2(digital) HDMI w/HDCP (V2.2)
RGB3(digital) HDMI w/HDCP (V2.2)
RGB4(digital) DisplayPort w/HDCP (V1.4)
RGB5(digital) HDBaseT w/HDCP (V2.2)
Audio 1 Stereo Mini Jack
Monitor out HDBaseT
Audio out Stereo Mini Jack

External Control RS-232, IR, HDBaseT, DDC/CI, USB
Sync Compatiblity Separate Sync / Composite Sync / Sync on G

Power Requirements 100-240V AC, 50/60 Hz
Input Current 5.6-2.7A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 506W / 390W / 0.7W / 0.3W

Optional Lenses NP11FL, NP12ZL, NP13ZL, NP14ZL, NP30ZL, NP40ZL, NP41ZL, NP42ZL
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxHxD) 499 x 163.7 x 406 (without lens and feet)
Net Weight 22.5 lbs. / 10.2 kg
Fan Noise 39 dB normal / 33 dB eco
Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)

Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -14-122°F / -10-50°C
