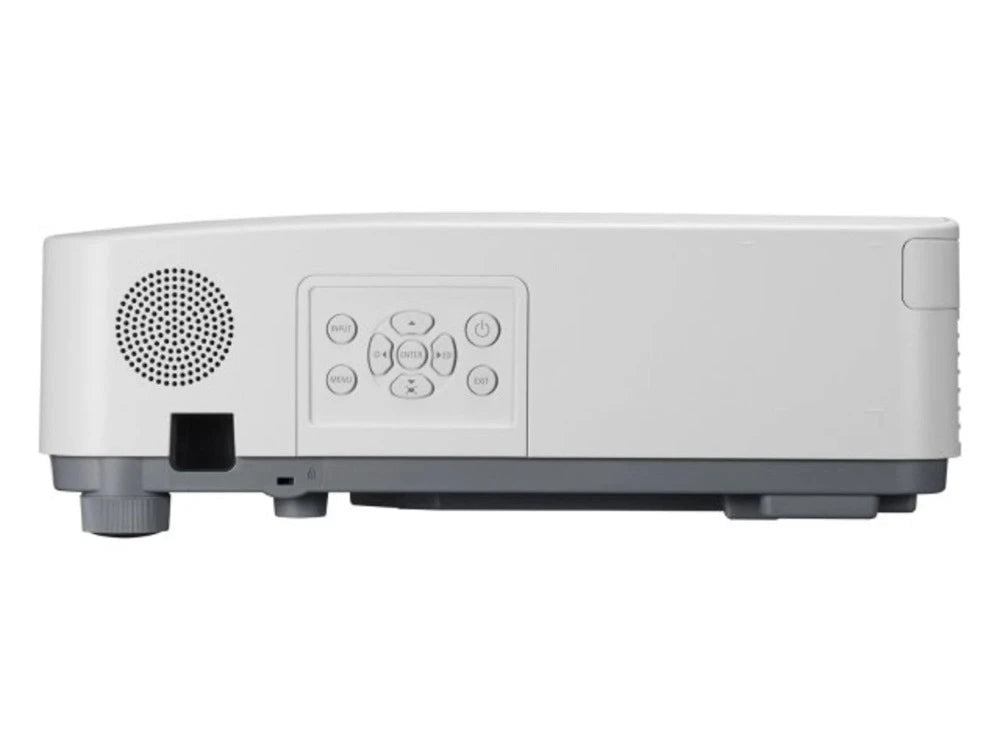

Sharp P547ULG Laser Projector
Powerful installation projector equipped to take on the most demanding integration projects
This high-quality Sharp P547ULG laser projector offers a strikingly silent performance, boasting an impressive 5,400 ANSI lumens that are ideal for well-lit environments. Its advanced cooling system operates at just 26db on high brightness mode and 22db on economic mode, making it perfect for creating a home theater atmosphere. With optical lens shift and a wide zoom range, it can accommodate off-center installations and provides added flexibility. Additionally, it comes with a reassuring 5-year warranty and boasts a lengthy laser lifespan of up to 20,000 hours, ensuring reliable and dependable use.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 5,400 ANSI Lumens
- 500,000:1 Contrast
- 9.7kg Weight
- 26 / 22db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 10,000hr laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Input
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-0%, +60%)
- Horizontal Lens Shift (+/- 29%)
- USB reader (JPEG, PNG)
- Powerful 20w Speaker
- 1.6x zoom
- 360 Degree Installation
- Portrait Installation
- HDBaseT Compatible
Throw Distance Chart
(Throw Ratio: 1.23-2.0:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | From 2.5m to 4.0m |
| 110" (16:10) 2370x1480mm | From 3.0m to 4.7m |
| 120" (16:10) 2585x1615mm | From 3.2m to 5.1m |
| 130" (16:10) 2800x1750mm | From 3.5m to 5.6m |
| 140" (16:10) 3015x1885mm | From 3.8m to 6.0m |
| 150" (16:10) 3230x2020mm | From 4.0m to 6.4m |
Visible yet noiseless - Bringing a sense of calm to your meeting spaces
Scalable visualisation has never been so silent. With an outstandingly low noise level of just 22dB (ECO mode), the P547ULG is quieter than the ticking of a watch.
Thanks to the completely sealed engine, this laser projector is filter-free meaning 20,000 hours of maintenance-free operation. Comprehensive connectivity and optional WiFi provide the utmost flexibility and time saving operation. The enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box to your meeting room. The technology is future-proof with the capability of processing 4K inputs at 30Hz. Bringing the future of projection to your meeting room has never been easier, quieter and as low maintenance than with the NEC P547ULG.
Benefits
- No filter service required - a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- Low Noise Level - with 22dB*, the silent technology will not disturb your meeting.
- No lamp replacement - up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Professional and Flexible Installation - versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
- Risk Group 2 saves you installation and operation effort - because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
Advanced Installation Features

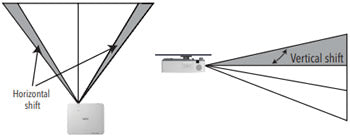

Lens Shift
Lens Shift provides greater flexibility when determining the installation location.
Tilt-free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements
Portrait mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
MultiPresenter
MultiPresenter is application software that lets you display your device’s screen (PC, tablet, smart phone, etc.) on the receiver projectors via wired LAN. MultiPresenter is free and available on Windows, Mac, iOS, and Android. MultiPresenter can send images from your various devices, which enables you to display real-time images with the internal camera or web pages on the smart devices in combination with a file sharing application.
NaViSet Administrator 2
This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality for a majority of Sharp display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.
UNIQUE FEATURES
Advanced AccuBlend™ ensures detailed images when non-native resolution sources are connected to the projector
Remote diagnostics enable the user to monitor and make adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations.
What's in the Box
- Sharp P547ULG Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
| IMAGE | ||
|---|---|---|
| Projection Technology | 3LCD Technology | |
| Native Resolution | 1920 x 1200 (WUXGA) | |
| Contrast Ratio | 500,000:1 | |
| Brightness | 5400 Lumens | |
| Laser Life (50%) | 20,000 hours | |
| Lens | F= 1.5–2.1, f= 17.2–27.7 mm | |
| Lens shift Manual | ( H = +/- 29% / V = -0%~+60%) | |
| Keystone correction | +/- 30° horizontal (manual), +/- 30° vertical (manual + auto) | |
| Throw Ratio | 1.3 - 2.0:1 | |
| Projection Distance [m] | 0.8 to 12.9 | |
| Screen Size (diagonal) [cm] / [inch] | 30 - 300 in. / 0.76 - 7.62m | |
| Zoom | 1.6x; Manual | |
| Focus Adjustment | Manual | |
| Supported Resolutions | WUXGA 1920 x 1200; Max up to 4K@30 (HDMI), WUXGA (1920x1200) Analog | |
| CONNECTIVITY | ||
| RGB (analog) | Input: 1 x VGA 15-pin D-sub | |
| Digital | Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP | |
| Audio | Input: 1 x 3.5 mm Stereo Mini Jack Output: 1 x 3.5 mm Stereo Mini Jack |
|
| Control | Input: 1 x RS-232 (D-Sub 9pin), IR | |
| LAN | 1 x RJ45; Optional WLAN | |
| USB | 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle) | |
| ELECTRICAL | ||
| Power Supply | 100-240 V AC; 50 - 60 Hz | |
| Power Consumption [W] | 293 (Normal) / 220 (Eco) / 1.6 (Network Stand-by) / 0.3 (Stand-by) | |
| MECHANICAL | ||
| Dimensions (W x H x D) [mm] | 480 x 122 x 407 (without lens and feet) | |
| Weight [kg] | 9.7 | |
| Fan Noise [dB (A)] | 22 / 26 (Eco / Normal) | |
| ENVIRONMENTAL CONDICTIONS | ||
| Operating Temperature | 0-40°C | |
| Storage Temperature | -10-50°C | |
| Humidity | 20 to 80 non-condensing | |
| ERGONOMICS | ||
| Safety and Ergonomics | CE, EAC, ErP, RoHS | |
| Speakers [W] | 1 x 20 | |
| ADDITIONAL FEATURES | ||
| Special Characteristics | Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; Mouse Control with USB Display; MultiPresenter Function; NaViSet Administrator 2; OSD with 30 languages; Plug&Play W-LAN Option; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer | |
| GREEN FEATURES | ||
| Ecological Materials | 100% recyclable packaging; Downloadable manuals; ECO packaging | |
| WARRANTY | ||
| Projectors | 5 years conditional warranty | |
| Light Source | 5 years or 10,000 hours (whatever comes first) | |
| SHIPPING CONTENT | ||
| Shipping Content | Power Cable, Remote Control, User Manual, 2x AAA Batteries, Lens Cap, Projector, Quick Setup Guide, Security Sticker, Utility Software | |
| OPTIONAL ACCESSORIES | ||
| Optional Accessories | Wireless LAN module NP05LM4 | |
