Promethean AP9-A86-ANZ-1 ActivPanel 9 86" Interactive Display

Promethean AP9-A86-ANZ-1 ActivPanel 9 86" Interactive Display

SKU:AP9-A86-ANZ-1

Regular price $8,779.00
Regular price Sale price $8,779.00
ON SALE! Sold out
Inc. GST

Found a better deal? Call us on 1300 739 131

View full details

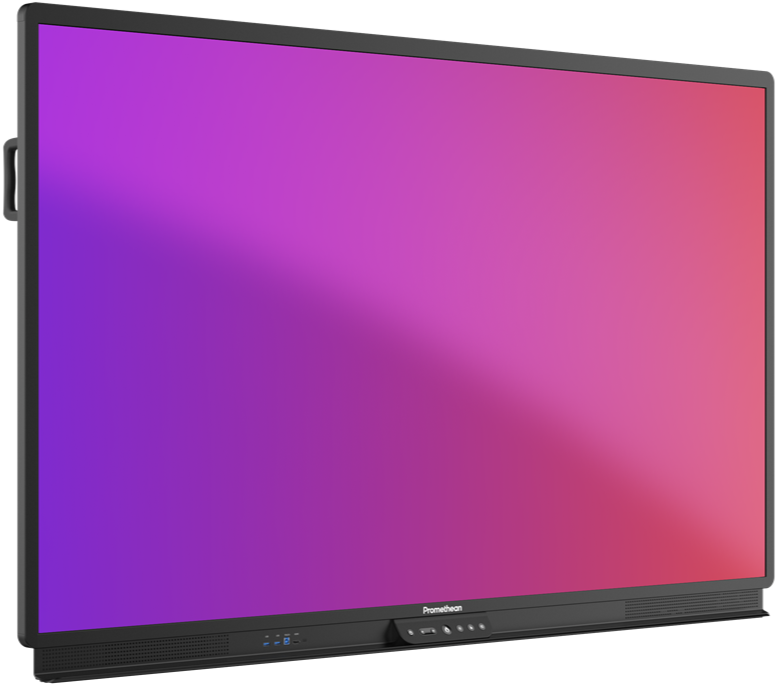

Promethean AP9-A86-ANZ-1 ActivPanel Series 9 86" Interactive Flat Panel with ActivSync

The Promethean ActivPanel 9 AP9-A86-ANZ-1 Interactive Flat Panel Display is a top-of-the-line 86" screen designed for both educational and professional environments. Featuring a durable touch screen, 4K/UHD resolution, and included pens and remote control, the ActivPanel 9 range from Promethean offers versatility and convenience. Enjoy the built-in Android operating system, with the option to upgrade to Windows with a Slot In PC. Multiple sign-in options, such as login/password, the Promethean app, and QR codes, make it easy for different users to securely access their own files.

Key Features

  • 86" Display Size
  • 4K Resolution
  • Android based ActivPanel OS
  • Wireless Screen Share in Real Time* * with optional wifi dongle
  • Multiple Sign-In Options including QR Codes
  • 2 x 15W speakers inbuilt for powerful audio
  • Classroom Essential Apps
  • 5 Year On-Site Warranty
Promethean AP9-A86-ANZ-1  classroom
Promethean AP9-A86-ANZ-1  connectivity

Connectivity

ActivPanel 9 makes it easy for you to teach your way, whether you connect your device or use one of our computing options. It will quickly become the central hub of your classroom.
  • Use a single cable USB-C connection for audio, video, touch interactivity, and charging.
  • Connect up to 39 student devices with Promethean's device agnostic Screen Share app and share up to four student screens on the panel.
  • Control the panel from anywhere in the classroom with our intuitive remote.
Promethean AP9-A86-ANZ-1 simplicity

Simplicity

Designed to allow teachers to focus on teaching, not technology.

  • Tailor the look of your panel with your Promethean profile, so it looks the same every time you sign in.
  • Create shortcuts and customise the layout of the menu and apps for a truly personalised experience.
  • Enhance your teaching with Promethean’s intuitive Classroom Essential apps.
Promethean AP9-A86-ANZ-1  security

Security

Rest assured that personal data is kept safe and confidential with enhanced security and sign-in options.

  • Create a Promethean account using your Microsoft or Google credentials.
  • Enjoy easy and secure sign-in using a dedicated app with a panel-specific code or QR code.
  • Store data in your cloud-based Promethean profile, not on the panel.
Promethean AP9-A86-ANZ-1  adaptability

Adaptability

ActivPanel 9 helps schools provide students with optimal educational experiences in all learning environments.

  • Capture a snippet or record an entire lesson and easily share with students.
  • Use Screen Share for real-time collaboration and communication in classroom, hybrid, and blended learning situations.
  • Work seamlessly with Microsoft 365 and Google Workspace.
  • Wireless operation requires optional wifi dongle.
Promethean AP9-A86-ANZ-1 longevity

Longevity

With its robust design, enhanced hardware components, and multiple sustainability features, ActivPanel 9 offers true peace of mind for your investment.

  • USB-C with 60 watts of power delivery
  • Flexible connection options with six forms of video inputs and outputs
  • Improved viewing from anywhere in the classroom and increased writing accuracy with bonded glass
  • Vellum touch technology with pen and finger differentiation, palm erase, and 20-point touch
Promethean AP9-A86-ANZ-1 close up





ActivPanel 9 Premium ActivPanel 9
Vellum Writing Technology tick tick
Continuous Touch Points 20 20
Pen and Touch Differentiation tick tick
Continuous Pen, Touch & Erase tick tick
Palm Erase tick tick
Palm Rejection Yes (Writing and non-writing hand) Yes (Non-writing hand)
Pens Yes, 4 Yes, 2
ActivPanel 9 Premium ActivPanel 9
Operating System ActivPanel OS ActivPanel OS
RAM / Storage 6.5GB/64GB 4GB/32GB
Promethean Chromebox Compatible Optional Optional
Windows Module: OPS-M Compatible Optional Optional
Over-the-Air Updates tick tick
ActivSync™ tick cross
Cloud-based User Profiles tick tick
ActivPanel 9 Premium ActivPanel 9
Dual Front Facing Speakers 2 x 18 W 2 x 15 W
Subwoofer (Rear) 1 x 15 W cross
Microphone Array tick cross
ActivPanel 9 Premium ActivPanel 9
LAN Gigabit Ethernet Gigabit Ethernet
Wi-Fi® tick Optional
Bluetooth tick Optional
Mirroring / Screen Sharing (Internal) tick Optional
USB-C 3.2 (Rear) 1 (100 W Power Delivery) 1 (60 W Power Delivery)
NFC (Near-field Communication) tick cross
Proximity for Warm Boot tick cross
ActivPanel 9 Premium ActivPanel 9
Ergonomic Angled Center Console tick tick
Easy Access Front Ports tick tick
Classroom Essential Apps (Whiteboard, Annotate, Spinner, Timer) tick tick
Promethean Lesson Delivery Software (ActivInspire, ClassFlow) tick tick
Specifications
DISPLAY
Screen Size and Resolution 65" 4K; UHD (3840 x 2160 @ 60 Hz)
75" 4K; UHD (3840 x 2160 @ 60 Hz)
86" 4K; UHD (3840 x 2160 @ 60 Hz)
Screen Type TFT LCD (Direct LED Backlight)
Blue Light Reduction Yes
Bonded Glass Yes
Aspect Ratio 16:9
Display Area 65" 4K: 1429 x 804 mm (56.3 x 31.7 in)
75" 4K: 1652 x 930 mm (65 x 36.6 in)
86" 4K: 1895 x 1066 mm (74.6 x 41.9 in)
Display Colours 1.07 Billion (10-bit)
LCD Viewing Angle 178°
LCD Response Time 8 ms
LCD Refresh Rate (Panel) 60 Hz
LED Lifespan 50,000 hours
Contrast Ratio 5000:1 Dynamic 1200:1 Static
Brightness 400 cd/m2
Ambient Light Sensor Yes
Glass Hardness 9H (pencil) , 7 (Mohs)
Glass Type Heat tempered, Anti-Glare
Glass Thickness 4 mm
INTERACTIVITY
Vellum Touch Technology Yes
Continuous Touch Points 20
Touch Resolution 32768 x 32768 px
Response Time 10 ms
Touch Accuracy 1 mm
Tracking Rate 4 m/s
Scan Rate 200 Hz
Gestures and Edge Swipes Windows® supported
Unique Pen IDs 1
Pen and Touch Differentiation Yes
Palm Erase Yes
Palm Rejection Yes
Pens Included Yes, 2
Pen Type Battery-less pen
Pen Holder Integrated full-length pen tray
Pen Tip Diameter 3 mm
Classroom Essential Apps Including Whiteboard, Annotate, Timer, Spinner,Screen Capture, Screen Share, Browser, PDF Reader, Media Player
Compatibility Windows® 7 to 11; Mac OS® 10.8 to 10.11; macOS® Sierra 10.12.1 or later; Linux® Ubuntu 20.04 LTS; Chrome OS™
COMPUTING
Operating System ActivPanel OS (Android-based)
RAM 4 GB
Internal Storage 32 GB
CPU ARM CORTEX - A73 x 4
GPU ARM Mali-G71 MP3
ActivSync™ No
Trusted Platform Module Yes
Cloud Based User Profiles Yes
AUDIO
Dual Front-facing Speakers 2 x 15 W
Subwoofer Nil
Microphone Array Nil
CONNECTIVITY
OPS Slot 1
HDMI In (Rear) 2 (2.0)
HDMI In (Front) 1 (2.0)
Display Port 1 (1.2)
USB-A 2.0 (Rear) 1
USB-C 3.2 1 (60 W Power Delivery)
USB-B 3.0 (Touch, Front) 1
USB-B 3.0 (Touch, Rear) 3
USB-A 3.0 (Front) 2
USB-A 3.0 (Rear) 2
MicroSD Slot Yes
LAN In (RJ45) 1 Gbps
LAN Out (RJ45) 1 Gbps
Wake-on-LAN Yes
Wi-Fi (Client) IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6 and dual band supported
Bluetooth 5.0
HDMI Out 1 (2.0)
AV-In (3.5 mm) 1
Mic (3.5 mm) 1
Audio Out (3.5 mm) 1
RS-232 1
PANEL MANAGEMENT
OTA Updates Yes
Promethean Panel Management Yes
POWER
Power Requirements 100 V - 240 V AC
Energy Star Power Consumption 65" 4K: 128 W
75" 4K: 141 W
86" 4K: 194+ W
Power Consumption (Standby) <= 0.5 W
Ultra-Quiet Fanless Design Yes
ENVIRONMENTAL
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity 20% to 80% non-condensing humidity
Storage Humidity 20% to 90% non-condensing humidity
COMPLIANCE & CERTIFICATION
Regulatory Certifications CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified 65" 4K: Yes
75" 4K: Yes
86" 4K: No
PHYSICAL SPECIFICATIONS
Panel Dimensions 65": 1509 x 946 x 113 mm (59.4 x 37.2 x 4.4 in)
75": 1730 x 1070 x 113 mm (68.1 x 42.1 x 4.4 in)
86": 1975 x 1208 x 113 mm (77.8 x 47.6 x 4.4 in)
Packed Dimensions 65": 1660 × 1045 × 220 mm (65.4 x 41.1 x 8.7 in)
75": 1900 × 1160 × 225 mm (74.8 x 45.7 x 8.9 in)
86": 2160 × 1310 × 225 mm (85 x 51.6 x 8.9 in)
Panel Net Weight 65": 43.2 kg (95.3 lb)
75": 55.3 kg (121.9 lb)
86": 69.6 kg (153.4 lb)
Packed Weight 65": 58.6 kg (129.2 lb)
75": 73 kg (160.9 lb)
86": 91.6 kg (201.9 lb)
Wall Mount Dimensions 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
VESA Mount Point 65": 600 x 400 mm (23.6 x 15.7 in)
75": 800 x 400 mm (31.5 x 15.7 in)
86": 800 x 600 mm (31.5 x 23.6 in)
EDUCATION SOFTWARE LICENCE
ActivInspire® Professional Single User
PACKED CONTENTS
What’s in the Box 1x ActivPanel 9
1x 3 m Length HDMI Cable
1x 3 m Length USB Cable (A-B)
1x 3 m Regional Power Cable
1x 2 m Length USB-C Cable
1x Remote Control
2x Batteries for Remote
2x Pens
1x Sealed Antistatic Bag
8x Desiccant
4x VESA Mount Screws (M6)
1x Mini PC Bracket with Screws (x2)
1x Quick Install Guide
