Panasonic PT-MZ17KLWE WUXGA Laser Projector: Engineered for Professionals, by Professionals
No Lens is included with this projector, please select the required lens in the optional accessories section.
This projector is ordered in when required, typical lead time is 1 week.
The Panasonic PT-MZ17KLWE WUXGA 16,500lm Laser Projector - White boasts an impressive 16,500 ANSI Lumens and utilises a cutting-edge laser light source, making it a top-of-the-line LCD projector. Its versatility is unmatched, with a range of compatible lenses making it a popular choice in the projector market.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 16,500 ANSI Lumens
- 3,000,000:1 Contrast
- 22.5kg Weight
- 38 / 32db(eco) Fan Noise
- 5 Year/10,000hr Warranty
- 5 Year/10,000hr Laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Connections
- SDI Connection
- Digital Link Connection
- Horizontal & Vertical Keystone
- Vertical Lens Shift +/-60%
- Horizontal Lens Shift +/-20%
- Powered Lens Shift
- Powered Zoom & Focus
- 360 Degree Installation (v+h axis)
- Portrait Projection
- Optional Lenses (no lens is included)
Ultra Quiet Operation Allows Viewers to Concentrate on Your Presentation
The Panasonic PT-MZ17KLWE is one of the worlds quietest projectors in this brightness range. Not only does it keep participants focused, it also contributes to an improved sound environment for applications such as hybrid conferences. When a quieter environment is required, noise level can be further reduced by setting the projector to QUIET Mode. This helps create an environment where all viewers can concentrate on the presentation.
Pure White Generator Delivers High Brightness and Rich Colour
Pure White Generator, developed by Panasonic Connect, contributes to rich colour reproduction at high brightness of 16,500 lm. Efficient light collection uses a multi-reflection system to minimize loss of light-source energy noticeable with conventional systems. It achieves an optimal color balance without sacrificing brightness for realistic and accurate color expression.
MAIN FEATURES
Long-Life Energy-Saving Design Minimizes Problems
Multi-Laser Drive Engine and Backup Input enable continuous projection even in the event of trouble, and no light-source or filter maintenance is required for 20,000 hours. The series efficiently delivers high brightness with MZ17KL achieving the lowest power consumption in its class for sustainable operation.
Dynamic Contrast NX Realizes a New Dimension of Light and Dark Control
Dynamic Contrast NX, a further evolution of Dynamic Contrast, uses a newly developed video-scene analysis circuit to recognize differences in brightness and darkness more precisely than before.
Light, Bright, Quiet, and Harmonious
As the smallest and lightest 16,500 lm LCD laser projector in its class, the MZ17KLWE installs flexibly almost anywhere and delivers bright, immersive images in a wide range of applications, from conferences to edutainment. Its sophisticated body styling harmonizes with the spatial environment while quiet 32 dB2 operation limits distractions, ideal for hybrid meeting rooms, museums, or lecture halls.
Perfectly Balanced Brightness and Colour
Together with high-efficiency optical engine for immersive high-contrast images in well-lit rooms, the MZ17KLWE features Pure White Generator, an original technology that minimizes loss of light energy and balances rich colour and high brightness. Dynamic Contrast NX includes new scene-recognition circuitry that detects light and dark areas of the image more precisely, while Detail Clarity Processor 4 sharpens text edges for clear visibility.
Geometric Adjustment Corrects Trapezoidal Distortion and Curved Screens
With built-in Geometric Adjustment, various distortions on the screen can be corrected via remote control. In addition to trapezoidal distortion resulting from angled projection, Curved Screen Correction fixes distortion caused by projection onto curved surfaces. Corner Correction allows the user to specify four screen corners, such as the upper right and lower right, for correction. Screen proportions can be maintained and corrections can be saved as data.
Eco-Friendly Energy-Saving Design
The MZ17KLWE is highly efficient, with it consuming less energy than any projector in its class for highly sustainable daily operation. Light-source and filter replacement is extended to 20,000 hours, reducing waste. The projector is liquid cooled and features a dustproof structure for stable operation. Multi-Laser Drive Engine limits brightness loss should a diode fail, while Backup Input function maintains image display if the primary signal is interrupted.
Other Features
- Supports 21:9 input signals
- Supports Art-Net DMX, PJLink™, Crestron Connected™ V2, Crestron XiO Cloud™, Extron XTP®, and IPv612
- Direct Power Off function
- Quick Startup and Quick Off
- DICOM Simulation Mode
- Multi-Screen Support System
- Multi-Unit Brightness and Color Control
- Waveform Monitor function
- Power management system
What's in the Box
- Panasonic PT-MZ17KLWE Projector (no lens incl.)
- Remote Control
- Power Cord
What you may need
- Projector Lens
- HDMI Cable
- Projector Screen
- Projector Mount
- Wireless Dongle
- HDBaseT Transmitter
Projector type | LCD |
---|---|
LCD Panel | |
Panel size | 25.4 mm (1.0 in) diagonal (16:10 aspect ratio) 2,304,000 (1920 x 1200 pixels) |
Light source | Laser diode |
Light output | 16,500 lm |
Time until light output declines to 50 % | 20,000 hours (NORMAL/QUIET) |
Resolution | WUXGA (1920 x 1200 pixels) |
Contrast ratio | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] set to [3].) |
Screen size (diagonal) | 80-600 inches (Depending on Lens) |
Center-to-corner zone ratio | 85 % |
Lens | Optional (no lens included with this model) |
Lens shift | Vertical - ±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered) Horizontal - ±20 % (±19 % with ET-EMW200) (powered) |
Keystone correction range | Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300, ±15 ° with ET-EMW400/ET-EMW500). When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |

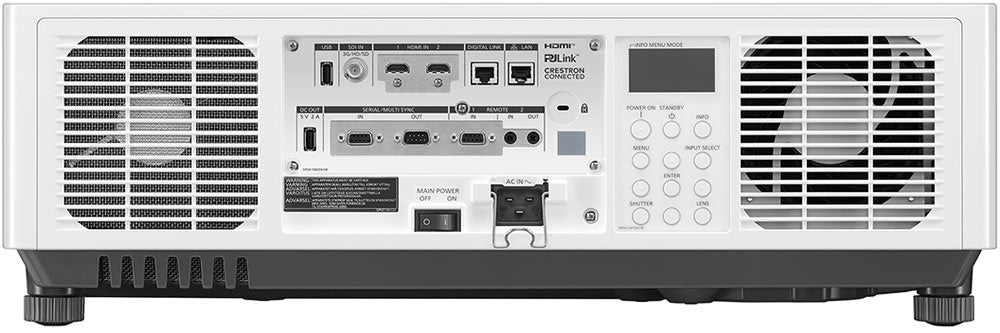

Terminals | |
SDI In | BNC x 1: 3G/HD-SDI input |
HDMI In | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input5), CEC supported |
SERIAL/MULTI PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
SERIAL/MULTI PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
REMOTE 1 IN | D-sub 9-pin (female) × 1 for external control (parallel) |
REMOTE 2 IN | M3 x 1 for wired remote control |
REMOTE 2 OUT | M3 x 1 for link control (for wired remote control) |
DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input5 ) |
LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
DC OUT | USB connector (Type A) x 1 for power supply (Output: 5 V / 2 A) |
USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory |
Power supply | AC 100–240 V, 50/60 Hz |
Power consumption*7 | MAXIMUM 950 W (9.6–4.0 A) (960 VA) NORMAL 880 W (AC 100–120 V), 850 W (AC 200–240 V) QUIET 580 W (AC 100–120 V), 560 W (AC 200–240 V) |
Operation noise2 | 38 dB (NORMAL), 32 dB (QUIET) |
Dimensions (W x H x D) | Approx. 650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝ x 17 5/16˝) (excluding feet and protrusions), 650 x 211 x 440 mm (25 19/32˝ x 8 5/16˝ x 17 5/16˝) (excluding protrusions, feet at shortest position) |
Weight | Approx. 22.5 kg (49.6 lbs) |
Operating environment | Operating temperature: 0–45 °C (32–113 °F)9, operating humidity: 10–80 % (no condensation) |
Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Projector Network Setup Software, Smart Projector Control for iOS/Android™ |
