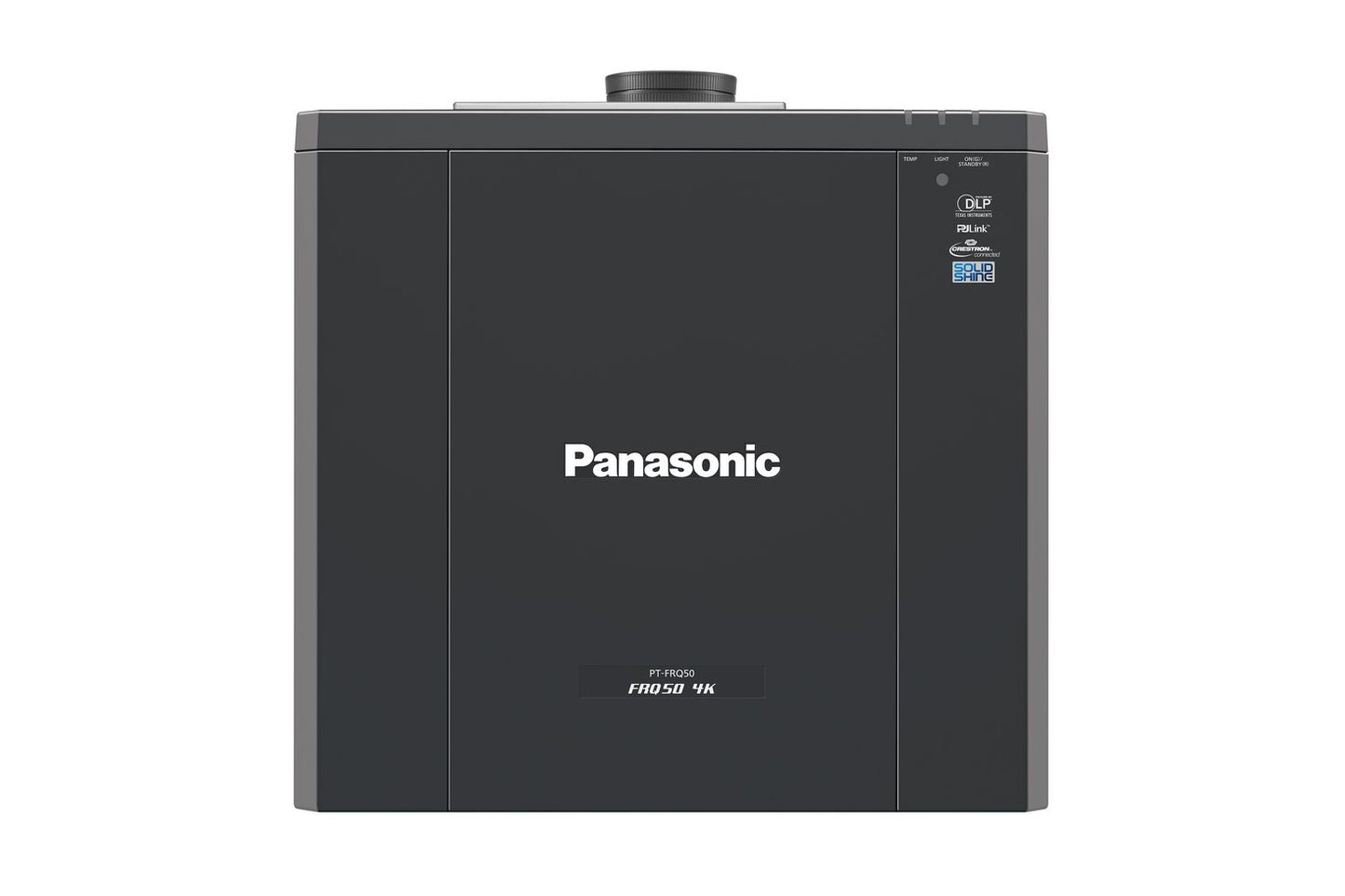

Panasonic PT-FRQ50B Solid Shine 4K UHD Laser Projector: Engineered for Professionals, by Professionals
The Panasonic PT-FRQ50B is a powerful and versatile DLP projector featuring 5200 ANSI Lumens, a laser light source, and the exceptionally detailed 4K resolution. Its 2.0 optical zoom, optical lens shift functions, and inbuilt HDBaseT Receiver make installation a breeze.
Key Features & Specifications
- UHD 3840 x 2160 16:9
- 5,200 ANSI Lumens
- 20,000:1 Contrast
- 16.1kg Weight
- 35 / 28db(eco) Fan Noise
- 5 Year/10,000hr Warranty
- 5 Year/10,000hr Laser Warranty
- Est. Laser Life up to 24,000hrs
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Vertical Lens Shift +71%, -48%
- Horizontal Lens Shift +34%, -27%
- 360 Degree Installation (v+h axis)
- Digital Link / HDBaseT
- Portrait Projection
- 2.0x Optical Zoom
Throw Distance Chart
(Throw Ratio: 1.46-2.93:1)
| Image Size | Installation Distance |
|---|---|
| 92" (16:9) 2030x1140mm | From 3.0m to 5.9m |
| 100" (16:9) 2214x1245mm | From 3.3m to 6.4m |
| 110" (16:9) 2435x1370mm | From 3.6m to 7.1m |
| 120" (16:9) 2657x1494mm | From 3.9m to 7.7m |
| 135" (16:9) 2990x1681mm | From 4.4m to 8.7m |
| 150" (16:9) 3320x1867mm | From 4.9m to 9.7m |
Compact 1-Chip DLP™ Projectors Deliver Smooth, Detailed Images for an Insightful Visual Experience
Smooth and Detailed 4K Image Quality
Quad Pixel Drive, Panasonic’s original 2-axis pixel-quadrupling technology, creates crisp, sharp, and smooth 4K images. Frame rates up to 240 Hz/1080p are supported with 8 ms latency or less1 . Rich Color Enhancer produces deep, accurate color for artwork. Together, these technologies deliver insightful visual experiences in museums and STEM classrooms.
Flexible, Simple to Use, and Easy to Integrate
Wide-range V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI® inputs and DIGITAL LINK simplify operation and integrate the projector into 4K system infrastructure. Free Grid and Remote Preview Lite2 secure eortless installation.
Highly Reliable Low-Maintenance Projection
Heat-pipe cooling system enables implementation of full hermetic sealing for the airtight optical block, eliminating need of a filter for 20,000 hours3 of maintenance-free projection. Multi Monitoring & Control Software with optional Early Warning4 functions enhances reliability and prevents unexpected downtime by sending an alert before problems occur.
Filmlike 4K with Vivid Color
Quad Pixel Drive provides smooth, gridless 4K resolution for precise reproduction of digital artwork, CAD drawings, architectural designs, and other detailed images. Rich Color Enhancer features a Standard/Graphic Mode that optimizes red-channel output for deep and natural color expression, and Dynamic Mode to balance brightness and color for clearest visibility in well-lit environments.
Flexible and Adaptable to Your Application
Flexible 2.0x optical zoom, V/H Lens-Shift, and Geometric Adjustment with Free Grid give freedom to correct image position and distortion without a PC. Two HDMI® inputs support 4K video signals3 and CEC commands from compatible devices, allowing the projector to turn ON/OFF with the source device.
Smooth Playback of 240 Hz Content
PT-FRQ60 Series supports frame rates up to 240 Hz/1080p with input-to-output latency of 8 ms or less1 for applications where smooth motion is important. The projector also works with ET-SWR102, a ready-to-use tracking projection-mapping SDK that enables image projection onto fast-moving objects at up to 240 fps to add lifelike interactivity to your museum exhibit.
Reliable, Cost-Effective Operation
Filterless heat-pipe cooling system draws heat from the hermetically sealed optical block, enabling 20,000 hours4 of maintenance-free projection and reducing operating noise to a comfortable 28 dB5. Remote Preview Lite6 enables input-video checks on a remote PC before projection. These technologies deliver unbeatable peace of mind in mission-critical situations.
Other Features
- Supports IPv67
- Supports 21:9 (2560 x 1080, 3440 x 1440) signal input8
- Supports Crestron Connected™ V2, Crestron XiO Cloud™8 , Extron XTP®, Art-Net DMX, AMX® DD, and PJLink™ • Multi-Screen Support System with Multi-Unit Brightness & Color Control
- DICOM Simulation Mode
- Quick On/Quick Off
- Free 360° installation and 24/7 operation
What's in the Box
- Panasonic PT-FRQ50B Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- Wireless Dongle
- HDBaseT Transmitter
| Projector type | 1-Chip DLP™ projector |
|---|---|
| DLP™ chip | |
| Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system |
| Number of pixels | 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
| Light source | Laser diodes |
| Light output | 5,200 lm / 5,400 lm (Center) |
| Time until light output declines to 50 % | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) |
| Contrast ratio | 20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input) |
| Screen size (diagonal) | 1.02–7.62 m (40–300 in), 16:9 aspect ratio |
| Center-to-corner zone ratio | 90 % |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm |
| Lens shift | |
| Vertical (From the origin point of the lens mounter) |
+71 %, -48 % (manual) |
| Horizontal (From the origin point of the lens mounter) |
+34 %, -27 % (manual) |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±20 ° |
| Terminals | |
| HDMI IN 1/2 | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input6 ), CEC supported |
| COMPUTER IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| AUDIO IN/OUT | M3 stereo mini-jack x 2 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal nput7, Extron XTP®) |
| LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A) |
| Supported Internet Protocol Versions | IPv4, IPv6 |
| Power supply | AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan) |
| Power consumption*7 | 480 W (5.0–2.2 A) (500 VA) |
| Operation noise2 | 35 dB (NORMAL/ECO) / 28 dB (QUIET) |
| Dimensions (W x H x D) | 498 x 168 x 492 mm (19 5/8˝ x 6 5/8˝ x 19 3/8˝ ) |
| Weight | Approx. 16.1 kg (35.5 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F11), operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Projector Network Setup Software |
| Control Function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™12, Art-Net DMX, AMX® DD, and PJLink™ (Class 2) |
