Optoma ZU920TST Laser Projector
The Optoma ZU920TST is a highly efficient laser projector designed for tight spaces, boasting both impressive brightness and a short throw. With a throw ratio of 0.65-0.75, this projector can display an expansive 3-metre wide image from a distance of just 2 metres. Its motorised focus, zoom, and lens shift capabilities make it simple to align, and it also includes an integrated edge blending processor for effortless video wall setups. Additionally, the laser system used in this projector has a long lifespan of up to 30,000 hours and can be utilized continuously for 24/7 operation. It is even capable of being installed in portrait or 360 degree configurations, providing versatility in any setting.
- 8200 ANSI lumen DuraCore laser projector - Ultra bright for immersive installations
- Full motorized lens shift - Ideal for a simple set-up
- Large zoom range - Motorized zoom expands placement opportunities
- Long life - Delivers 30,000 hours of virtually maintenance-free operation
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 8200 ANSI Lumens
- 3,000,000:1 Contrast
- 14kg Weight
- 36db (eco) Fan Noise
- 3 Year / 20,000hr Warranty
- 3 Year / 20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
- Long Life Laser Lightsource
- Horizontal & Vertical Keystone
- 55% Vertical Lens Shift
- 25% Horizontal Lens Shift
- 2x HDMI Connection
- HDMI Out
- Powered Focus / Zoom
- 360° Installation (v&h axis)
- Portrait Installation
- IP5X Dust Resistant Optical Engine
- HDBaseT Compatible
Throw Distance Chart
(Throw Ratio: 0.65-0.75:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | From 1.32m to 1.51m |
| 110" (16:10) 2370x1480mm | From 1.55m to 1.77m |
| 120" (16:10) 2585x1615mm | From 1.68m to 1.93m |
| 130" (16:10) 2800x1750mm | From 1.82m to 2.1m |
| 140" (16:10) 3015x1885mm | From 1.96m to 2.26m |
| 150" (16:10) 3230x2020mm | From 2.10m to 2.42m |
Ultra bright professional laser projector
At 9,800 lumens with 4K and HDR compatibility, the ZU920TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorized zoom and focus, full motorized lens shift and built-in dual 10W speakers.
High brightness, color precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation, and immersive installations.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
Optoma DuraCore Laser Technology – Brighter for longer
DuraCore
Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
4 Corner Adjustment
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Portrait projection
Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.
360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
*Compatible multi output graphics card with overlap function is required.
Color Management System (CMS)
Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.
True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Direct power off
Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.
Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.
Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems
What's in the Box
- Optoma ZU920TST Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- 3D Glasses
- Pelican Transport Case
| Display Technology |
DLP |
|---|---|
| Native Resolution |
WUXGA 1920 x 1200 |
| Brightness |
8,200 ANSI lumens |
| Contrast |
3,000,000:1 |
| Light Source |
Laser |
| Laser Life (up to) |
30,000 hours |
| Throw Ratio |
0.65 – 0.75 |
| Zoom Type |
1.15x Motorised |
| Lens Shift |
±55% Vertical, ±25% Horizontal |

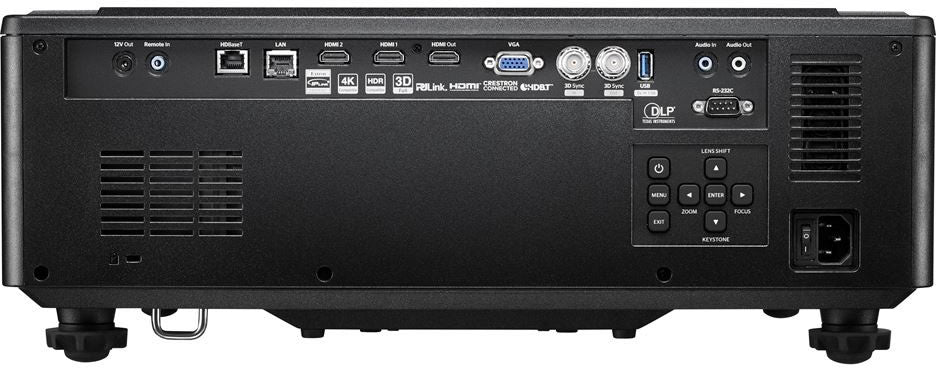

| I/O Connectors |
Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm |
| Keystone Correction |
±30° Vertical, ±30° Horizontal |
| Weight (Kg) |
14.0 |
| Dimensions (W x D x H) (mm) |
486 x 417 x 176 (w/o elevator feet) |
| Aspect Ratio |
16:10 Native, 16:9 and 4:3 Compatible |
| Projection Screen Size |
50”~ 1000” |
| Uniformity |
95% |
| 3D Support |
Full 3D |
| Noise Level |
38 / 36 dB (Eco mode) |
| Power Supply |
AC 90 – 264V 50/60 Hz with PFC input |
| Power Consumption |
Power consumption (standby) - 0.5W |
| Lamp Type |
Laser Phosphor |
| 360-operation |
Yes |
| 24/7-operation |
Yes |
| Portrait Mode |
Yes |
| Conformance |
CE, TUV-GS, CB |
| RoHS |
RoHS and WEEE |
