Optoma ZU820T Large Venue Laser Projector

Optoma ZU820T Large Venue Laser Projector

SKU:ZU820T

Regular price $7,499.00
Regular price $8,999.00 Sale price $7,499.00
ON SALE! Sold out
Inc. GST

Found a better deal? Request a Price Match Here!

View full details

Optoma ZU820T Laser Projector

The Optoma ZU820T projector is specifically designed for heavy use in large venue environments, making it an ideal choice for large screen projection or bright settings. With an impressive 7400 ANSI Lumen brightness and built-in edge blending and warping features, it can also be used in projection walls for even larger screen sizes. Thanks to its highly durable Duracore laser light source, this projector has a lifespan of up to 30,000 hours and is suitable for 24/7 operation, making it the perfect candidate for permanent installations.

  • 8800 lumen (7400 ANSI) DuraCore laser projector - Ultra bright for immersive installations
  • Full motorized lens shift - Ideal for a simple set-up
  • Large zoom range - Motorized zoom expands placement opportunities
  • Long life - Delivers 30,000 hours of virtually maintenance-free operation

Key Features & Specifications

  • WUXGA 1920 x 1200 16:10
  • 7400 ANSI Lumens
  • 3,000,000:1 Contrast
  • 14kg Weight
  • 34db (eco) Fan Noise
  • 3 Year / 20,000hr Warranty
  • 3 Year / 20,000hr Laser Warranty
  • Est. Laser Life up to 30,000hrs
  • Long Life Laser Lightsource
  • Horizontal & Vertical Keystone
  • 55% Vertical Lens Shift
  • 25% Horizontal Lens Shift
  • 2x HDMI Connection
  • HDMI Out
  • Powered Focus / Zoom
  • 1.6x Zoom
  • 360° Installation (v&h axis)
  • Portrait Installation
  • IP5X Dust Resistant Optical Engine
  • HDBaseT Compatible

Throw Distance Chart
(Throw Ratio: 1.25-2.0:1)

Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 2.6m to 4.0m
110" (16:10) 2370x1480mm From 3.0m to 4.7m
120" (16:10) 2585x1615mm From 3.3m to 5.1m
130" (16:10) 2800x1750mm From 3.5m to 5.6m
140" (16:10) 3015x1885mm From 3.8m to 6.0m
150" (16:10) 3230x2020mm From 4.1m to 6.4m

Ultra bright professional laser projector

At 8800 lumens (7400 ANSI)with 4K and HDR compatibility, the ZU820T features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include motorized zoom and focus, full motorized lens shift and built-in dual 10W speakers.

High brightness, color precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.

The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.

Optoma DuraCore Laser Technology – Brighter for longer

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

DuraCore Laser

    Full lens shift

    Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

    Optoma ZU820T lens shift

    4 Corner Adjustment

    Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

    Optoma ZU820T 4 corner adjustment

    IP5X Dust resistant optical engine

    Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

    Optoma ZU820T ip5x rated

    HDBaseT™

    Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

    Optoma ZU820T HDBaseT

    HDR compatible

    Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

    Optoma ZU820T hdr

    Portrait projection

    Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

    Optoma ZU820T  portrait projection

    360 projection*

    Images can be projected over a 360° range* along the projector’s horizontal axis.
    *For more information please refer to the user manual

    Optoma ZU820T  360 degree

    Integrated warping and edge blending processor

    Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
    *Compatible multi output graphics card with overlap function is required.

    Optoma ZU820T edge blending

    Color Management System (CMS)

    Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

    True AV mute

    True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Wired remote

    The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

    Direct power off

    Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.

    Constant power

    Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

    Constant brightness

    Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems





    What's in the Box

    • Optoma ZU820T Projector
    • Remote Control
    • Power Cord

    What you may need

    • HDMI Cable
    • Projector Screen
    • Projector Mount
    • 3D Glasses
    • Pelican Transport Case
    Specifications
    Display Technology

    DLP

    Native Resolution

    WUXGA 1920 x 1200

    Brightness

    7,400 ANSI lumens

    Contrast

    3,000,000:1

    Light Source

    Laser

    Laser Life (up to)

    30,000 hours

    Throw Ratio

    1.25 – 2.0

    Zoom Type

    1.6x Motorised

    Lens Shift

    ±55% Vertical, ±25% Horizontal

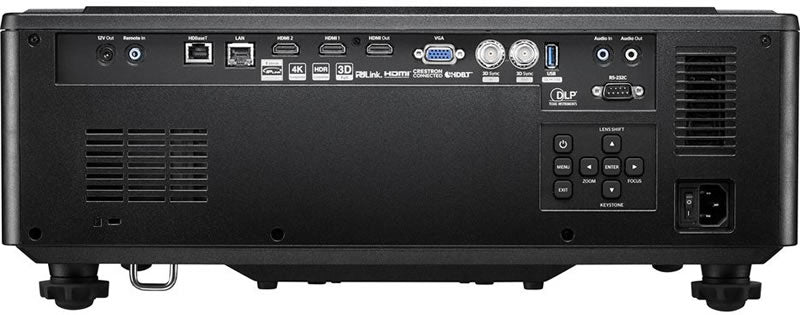

    I/O Connectors

    Inputs 1 x HDBaseT, 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm
    Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm
    Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232

    Keystone Correction

    ±30° Vertical, ±30° Horizontal

    Weight (Kg)

    14.0

    Dimensions (W x D x H) (mm)

    486 x 433 x 176 (w/o elevator feet)

    Aspect Ratio

    16:10 Native, 16:9 and 4:3 Compatible

    Projection Screen Size

    50”~ 300”

    Uniformity

    95%

    3D Support

    Full 3D

    Noise Level

    36 / 34 dB (Eco mode)

    Power Supply

    AC 90 – 264V 50/60 Hz with PFC input

    Power Consumption

    Power consumption (standby) - 0.5W
    Power consumption (min) - 260W
    Power consumption (max) - 520W

    Lamp Type

    Laser Phosphor

    360-operation

    Yes

    24/7-operation

    Yes

    Portrait Mode

    Yes

    Conformance

    CE, TUV-GS, CB

    RoHS

    RoHS and WEEE
