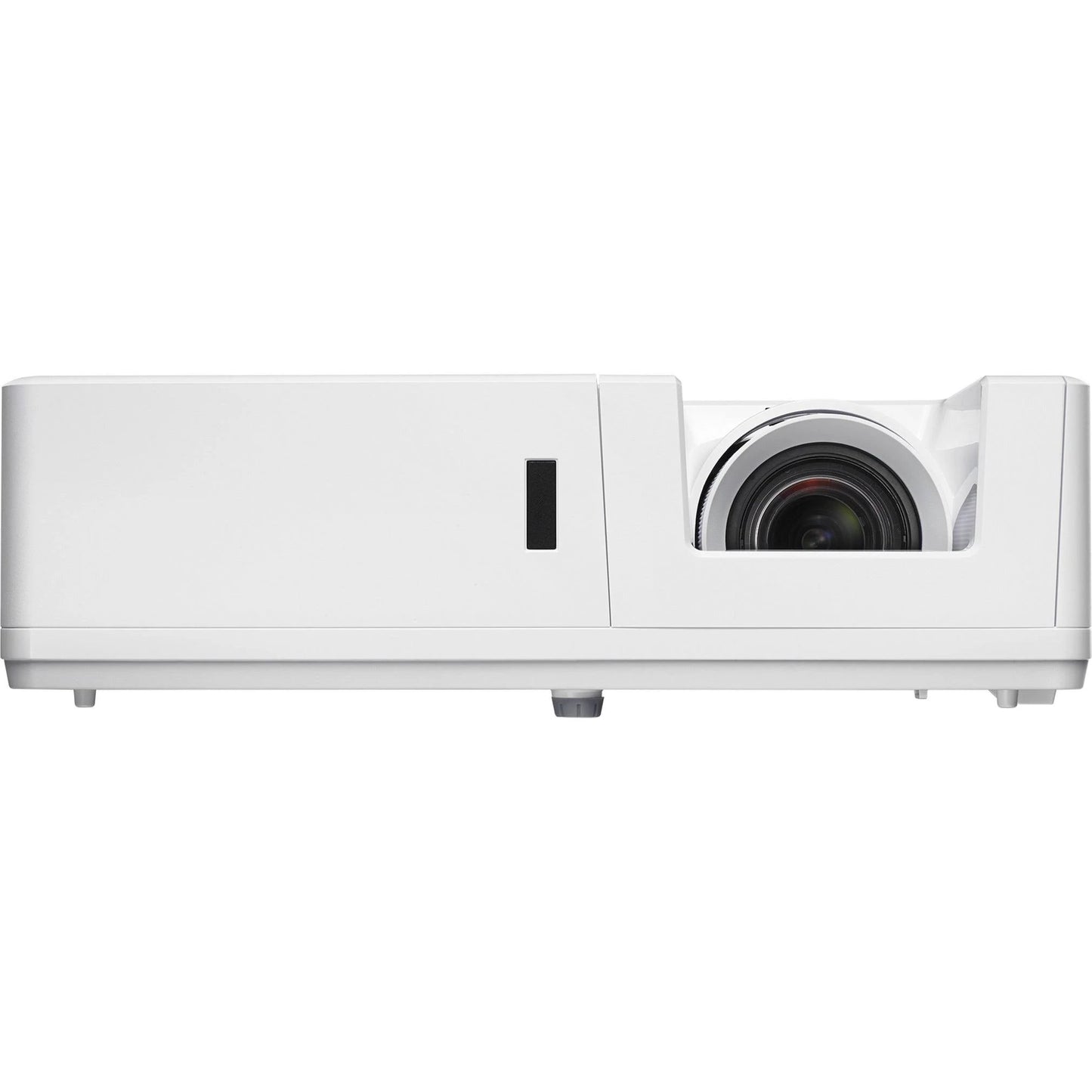

Optoma ZU606T Bright Laser Projector
The Optoma ZU606T Large Venue Laser Projector is powered by the long-lasting and efficient Duracore laser, making it ideal for high traffic settings such as churches, conference rooms, and lecture halls. This projector boasts a sealed optical block and a lifespan of up to 20,000 hours, eliminating the need for frequent lamp replacements and the associated costs of technicians and scissor lifts. With its 24/7 operation rating, the ZU606T is also a perfect choice for retail displays that experience heavy usage. Plus, it comes with a 3-year or 20,000 hour warranty and features a wide 1.6x optical zoom and HDBaseT compatibility, making it an excellent option for large venue installations.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 6000 ANSI Lumens
- 300,000:1 Contrast
- 5.7kg Weight
- 32db (eco) Fan Noise
- 3 Year / 20,000hr Warranty
- 3 Year / 20,000hr Laser Warranty
- Est. Laser Life up to 20,000hrs
- Long Life Laser Lightsource
- Horizontal & Vertical Keystone
- 20% Vertical Lens Shift
- 2x HDMI Connection
- Powerful 2x 10W Speaker
- 1.6x Zoom
- 360° Installation
- Portrait Installation
- 3D Capable(3D glasses required)
- IP6X Dust Resistant Optical Engine
- HDBaseT Compatible
Throw Distance Chart
(Throw Ratio: 1.2-1.92:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | From 2.5m to 3.8m |
| 110" (16:10) 2370x1480mm | From 2.9m to 4.5m |
| 120" (16:10) 2585x1615mm | From 3.2m to 4.9m |
| 130" (16:10) 2800x1750mm | From 3.4m to 5.3m |
| 140" (16:10) 3015x1885mm | From 3.7m to 5.7m |
| 150" (16:10) 3230x2020mm | From 3.9m to 6.2m |
- High lumens brightness projector compatible with 4K & HDR
- Optoma DURACORE Technology, IP6X dust resist provides good brightness and reliability
- Up to 20,000 hours laser light source life and virtually zero maintenance for system
- Amazing color, 90% Rec.709 color gamut coverage to render lifelike images
- Dynamic Black delivers more depth to the image with a stunning high contrast ratio.
- Big 1.6x zoom & vertical lens shift with smallest size among competition make it labor and time saving for installation
- Tilt free orientation, including portrait mode
- Full 3D supported
- HDBaseT for easy installation
Focusing on its high brightness 6,000 lumens, the ZU606T is offering best value for the professional installation market. This projector is perfect for those applications that simply require the brightness level, ease of installation, with minimum maintenance for up to 20,000 hours. Delivering outstanding reliability, high intensity brightness, compact design, stunning colors and spectacular image quality, The ZU606T is precision engineered to power larger than life experiences.
The ZU606T is the perfect solution for businesses, conference rooms, higher education, auditoriums, exhibitions, digital signage, entertainment venues, projection mapping, and simulation.
4K / HDR Compatible
The 606 series is capable to accept native 4K signals and compatible with HDR10. High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.
Robust & Reliable Optoma DuraCore
This projector is designed with Optoma’s Airtight Optical Engine with IP6X certification.The airtight enclosure resists dust particles and ensures a long lasting, reliable and maintenance free experience, and ultimate brightness consistency and reliability. The Mercury free laser light source is rated for up to 20,000 hours enabling a low total cost of ownership.
Amazing colour
This projector achieves 90% Rec. 709 coverage to render lifelike images that will wow your audience.
Dynamic Black
This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.
1.6x Zoom Range
A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen.
An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.
Vertical Lens Shift
Simplify installation with lens shift, which provides a wide range of projector placement possibilities.
4 Corner Adjustment
By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.
Colour Matching Mode
The color matching system, combines accurate measurements across multiple projectors creates seamless blends every time.
Full 3D Supported
606 series can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.
24/7 operation
All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.
360° and portrait projection capability
Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.
Network control protocols
Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are.
HDBaseT
Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
AV Mute
In situations where only absolute darkness is required, this projector can provide a total blackout that functions like mechanical shutter. The change between normal projection to a total black image and vice versa is instantaneous.
Low Noise: Quieter than a Whisper
Only 32dB in ECO mode.
Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
What's in the Box
- Optoma ZU606T Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- 3D Glasses
- Pelican Transport Case
| Display Technology |
DLP |
|---|---|
| Native Resolution |
WUXGA 1920 x 1200 |
| Brightness |
6000 ANSI Lumens |
| Contrast |
300,000:1 (w/ Extreme black) |
| Light Source |
Laser phosphor |
| Light Source Life |
20,000 hours to 50% brightness (Eco mode) |
| Throw Ratio |
1.2 – 1.92 |
| Zoom Type |
1.6x Manual Zoom |
| Lens Shift |
100% – 120% vertical |
| I/O Connectors |
HDMI x1, HDMI/MHL x1, VGA in x1, VGA out x1, Audio in 1/ Mic x1, Audio in 2 x1, Audio out x1, USB Power (5V/1.5A), RJ-45, RS232, Composite x1, 12V out x1, 2nd VGA in, S-video & HDBaseT |
| Speaker (Watts) |
10W x 2 |
| Keystone Correction |
±30° Vertical, ±30° Horizontal |
| Weight (Kg) |
5.7 |
| Dimensions (W x D x H) (mm) |
374 x 302 x 107 (excluded adjustment feet) |
| Aspect Ratio |
4:3, 16:9 or 16:10, LBX, Native, Auto |
| Offset |
100% – 120% |
| Projection Screen Size |
31.5 – 301.8” |
| Projection Distance |
1.3 – 7.8m |
| Projection Lens |
1.6x Manual Zoom |
| Uniformity |
85% |
| Computer Compatibility |
UHD, WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA Compression, VESA standards, PC & Macintosh compatible |
| Video Compatibility |
480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (24/50/60Hz), 2160p(24/50/60Hz) |
| 3D Support |
Full 3D |
| Horizontal Scan Rate |
15.375 – 91.146 kHz |
| Vertical Scan Rate |
24 – 85 Hz (120Hz for 3D feature projector) |
| Displayable Colors |
1073.4 million colors (10 bit) |
| Noise Level |
32db (Eco mode) |
| Power Supply |
100–240V, 50–60Hz, auto-switching |
| Power Consumption |
Bright : Typical 406W MAX 467W @ 110VAC Typical 388W MAX 446W @ 220VAC / Eco: (50% Power) Typical 188W MAX216W @ 110VAC Typical 183W MAX 211W @ 220VAC |
| 360-operation |
Yes |
| Portrait Mode |
Yes |
| Projection Method |
360° operation, Portrait mode supported |
