Optoma ZU500USTe Ultra Short Throw Laser Projector
The Optoma ZU500USTe Ultra Short Throw Laser Projector offers a remarkable 5000 lumen brightness and an ultra short throw distance, making it ideal for use in bright venues and compact spaces. Its ability to project a 140" image at just 75cm from the lens eliminates any shadows caused by passersby, making it an excellent choice for wall-mounted displays in public areas. Additionally, this projector utilizes a long-lasting laser with a lifespan of up to 30,000 hours, making it a reliable option for heavy usage and store signage.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 5000 ANSI Lumens
- 100,000:1 Contrast
- 5.7kg Weight
- 33db (eco) Fan Noise
- 3 Year / 20,000hr Warranty
- 3 Year / 20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
- Long Life Laser Lightsource
- Ultra Short Throw
- Horizontal & Vertical Keystone
- 2x HDMI Connection
- Powerful 10W Speaker
- 3D Capable(3D glasses required)
- IP6X Dust Resistant Optical Engine
- From 133" to 154" Image Size
Throw Distance Chart
(Throw Ratio: 0.25:1, from wall to lens)
| Image Size | Installation Distance |
|---|---|
| 140" (16:10) 3015x1885mm | Approx 0.75m |
| 150" (16:10) 3230x2020mm | Approx 0.80m |
ZU500USTe Features
- Bright 5,000 lumens with 100,000:1 high dynamic contrast
- 30,000 hrs laser light source life (Eco mode)
- 4 Corner and HV Keystone supported
- Unique digital lens shift for easy setup.
- 24/7 operation supported
- Instant on / off
- Compatible with Optoma Management Suite (OMS)
The ZU500USTe is powered by a long-lasting, low maintenance DuraCore laser light source. The lamp-less design vastly reduces running costs for a low total cost of ownership. Weighing only 5.7kg, this projector can be mounted just centimeters away from a wall or surface and can project an image size of over 130 inches.
Supporting 24/7 operation and unique digital lens shift, the ZU500USTe is a flexible, powerful and bright ultra short throw projector perfectly for installations in where space or accessibility can be limited, such as shop windows, museums or retail displays.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Ultra short throw lens
With an ultra-short throw lens, you can project an impressive image greater than 130” from less than a meter away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.
Unique Digital Lens Shift
General ultra short-throw projectors do not allow users to adjust image positioning with Lens Shift because of optical limitation. To give users more image control, Optoma adds the digital lens shift feature on ZU500USTe to provide greater installation flexibility while projecting large images from a short distance away.
Optoma Digital Lens Shift is a great feature for installing an ultra short-throw projector in constrained spaces or low ceiling space like a conference room, exhibit space or home theater because digital lens shift assists in properly aligning the projector’s image with the projector screen, making it far easier to correctly mount or position a projector for optimal image quality. It allows users to make an adjustment without physically moving the projector.
Total cost of ownership
The total cost of ownership of a projector is not in the purchase cost but in expensive maintenance and service. The Optoma ZH500USTe requires very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimized.
Amazing colour
Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
HDR10 compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3D media servers.
Compatible with Optoma Management Suite (OMS™)
Optoma Management Suite (OMS)™ is an intuitive display management solution, designed to streamline operations by monitoring, diagnosing and controlling audio visual displays via a local area network from a single platform and location. Users can also broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.
System integration and control
Featuring a wide range of options you can control and monitor the projector remotely:
- RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX Compatibility Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- LAN Control Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
- Schedule the projectors to power on/off.
- Control and alter the projector settings using the simple web browser.
- Emergency text broadcast capabilities for urgent or important announcements.
- Automatically receive email updates for lamp maintenance.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
What's in the Box
- Optoma ZU500USTe Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
| Display Technology |
DLP |
|---|---|
| Native Resolution |
WUXGA 1920 x 1200 |
| Brightness |
5,000 Lumens |
| Contrast |
100,000:1 |
| Light Source |
Laser phosphor |
| Light Source Life Bright |
30,000 hours ( Eco mode ) |
| Throw Ratio |
0.253:1 |
| Zoom Type |
Fixed |

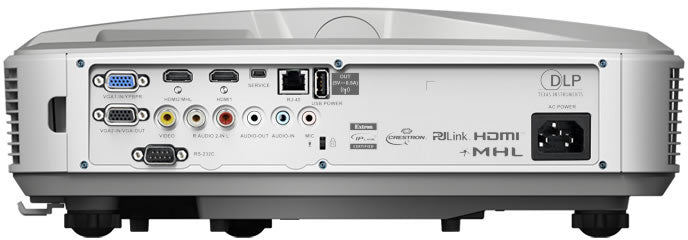

| I/O Connectors |
HDMI x 2 (HDCP 2.0 ; compatible with HDMI 1.4a); VGA in x 1; VGA out x 1; USB B x 1 (for service); USB Type A x 1 (for Power); RJ45 LAN control x 1; RS232 x 1; Audio in x 1 (mini Jack); Audio out x 1 (mini Jack); Microphone (mini Jack) x 1 |
| Speaker (Watts) |
10W |
| Keystone Correction |
±15° Vertical, ±15° Horizontal |
| Weight (Kg) |
5.7 |
| Dimensions (W x D x H) (mm) |
383 x 318 x 88 (excluded adjustment feet) |
| Aspect Ratio |
16:10 Native, 16:9 and 4:3 Compatible |
| Projection Screen Size |
133.5”~154.1” |
| Projection Distance |
727 – 840 mm |
| Computer Compatibility |
UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Compatibility |
PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p) |
| 3D Support |
Full 3D |
| 3D compatibilty |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate |
15.375 – 91.146 kHz |
| Vertical Scan Rate |
24 – 85Hz |
| Displayable Colors |
1073.4 million colors (10 bit) |
| Noise Level |
33 / 35dB (Eco / Bright mode) |
| Power Supply |
Universal AC 90 – 264V, 50/60Hz with PFC input |
| Power Consumption |
328W±15% @ 110VAC (Power mode: Active); 320W±15% @ 220VAC (Power mode: Active) |
| RoHS |
Compliant |
