Optoma AZH460ST 1080P Short Throw Laser Projector
Designed for durability and versatility, the Optoma AZH460ST is a high-performance projector capable of casting a massive 3-meter image from a mere 1.5 meters away thanks to its specialized short-throw lens. With a powerhouse 4,000 ANSI lumen output and a 2,000,000:1 contrast ratio, it ensures vibrant colors and deep blacks even in high-use settings like golf simulators or galleries. Its longevity is backed by a long-life laser light source and an IP6X dust-resistant optical engine, making it a rugged, low-maintenance solution for any professional or creative environment.
Key Features & Specifications
- 1080p 1920 x 1080 16:9
- 4000 ANSI Lumens
- 2,000,000:1 Contrast
- 3.0kg Weight
- 27db (eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
- 1080p 1920 x 1080 16:9
- 4000 ANSI Lumens
- 2,000,000:1 Contrast
- 3.0kg Weight
- 27db (eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
Throw Distance Chart
(Throw Ratio: 0.496:1)
| Image Size | Installation Distance |
|---|---|
| 92" (16:9) 2030x1140mm | Approx. 1.0m |
| 100" (16:9) 2214x1245mm | Approx. 1.1m |
| 110" (16:9) 2435x1370mm | Approx. 1.2m |
| 120" (16:9) 2657x1494mm | Approx. 1.3m |
| 135" (16:9) 2990x1681mm | Approx. 1.5m |
| 150" (16:9) 3320x1867mm | Approx. 1.6m |
- Bright FHD 1080p DuraCore laser projector - 4,000 lumens and IP6X certified
- Small form factor & short throw lens for easy installation - 360-degree and portrait projection
- DuraCore laser technology - 30,000 hours maintenance-free laser light source
- Built with the environment in mind - Long laser life span, incorporating Post consumer recycled material
Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
4K & HDR Compatible
High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Optoma DURACORE Made for Environmental Sustainability
Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.
Mercury Free
High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.

Maintenance Free & Economical
Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.

Designed with sustainability in mind - Optoma Green Badge
Optoma is a forerunner in green product design. Optoma’s SSI products take things a step further with sustainability incorporated into all aspects of a product, including design, production, packaging, and logistics. Optoma Green Badge represents Optoma’s commitment to sustainability. Our primary ways of lowering the environmental impact of our products are centered on four areas.

Energy-saving products reduce the carbon footprint of products and customers
Reducing power consumption is one of our key approaches to minimizing the impact of our
products.
Energy consumption during product usage makes up most of the carbon footprint over the product's
lifetime. Products that use less energy can reduce their environmental impact, so do our
customers’.
As a result, Optoma is shifting to the use of laser technology in its business and home projectors,
which can reduce power consumption by nearly 40% compared to lamp-based counterparts.
The use of environmentally friendly materials generate less waste
The use of environmentally friendly materials for products and during production.
According to UK Plastics Pack 2022, it takes 75% less energy to make a plastic bottle from recycled
plastic than virgin materials. Our product design team works closely with suppliers to identify
environmentally friendly recycled materials that minimize waste that would otherwise go into
landfills and reduce the use of virgin plastics. Optoma is committed to producing SSI-based
projectors that are made with 50 % post-consumer recycled (PCR) plastics.
Moreover, Optoma complies with WEEE, RoHS, and REACH regulations that restrict the use of hazardous
substances during production, which helps protect landfills from permanent contamination.

Optimized product size for efficient logistics
Compact product and packaging sizes for logistical efficiency
Designed to be compact, Optoma’s advanced thermal and laser technology enable small and compact
designs without sacrificing reliability and safety.
Our latest laser projector series is 34% smaller, and its packaging has been reduced by 47% in size
compared with the previous series. This allows twice as many products per container, contributing to
a reduction in fossil fuel consumed per unit and thus a lower carbon footprint.

Sustainable Packaging
Optimized packaging made with more recycled and reusable materials
Optoma brings sustainability to the consumer unboxing experience. Our choice of materials ensures
that our packaging can be easily recycled and reused to start another packaging journey.
Our outer carton boxes are made from up to 85% recycled material, and we have replaced EPE foam
cushioning with recycled paper and paper mold materials without compromising the durability of the
packaging!

Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
360 projection*
Images can be projected over a 360° rangealong the projector’s horizontal axis. *For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Device Control by HDMI CEC Link
When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link feature. This lets one device or multiple devices in a group power on/off simultaneously.

Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
Low Noise: Quieter than a Whisper
Less than 30 dB in ECO mode.
What's in the Box
- Optoma AZH460ST Projector
- Remote Control
- Power Cord & Transformer
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- 3D Glasses
| 360 Operation | Yes |
|---|---|
| Display Technology | DLP |
| Native Resolution | 1080p Full HD (1920×1080) |
| Brightness | 4,000 Lumens |
| Contrast | 2,000,000:1 |
| Aspect Ratio | 16:9 Native, 16:10 & 4:3 Compatible |
| Keystone Correction | ±15° Vertical, ±15° Horizontal |
| Displayable Colors | 1073.4 million colors (10 bit) |
| Horizontal Scan Rate | 15 – 140Khz |
| Vertical Scan Rate | 24 – 120Hz |
| Uniformity | 75% |
| Projection Screen Size | 30-300inch |
| Light Source | Laser |
| Light Source Life | 30,000 hours (Eco mode) |
| Throw Ratio | 0.496:1 |
| Projection Distance | 0.4 – 3.2 m |
| Zoom | None |
| Focal Length | 7.51 |
| Native offset | 116% |

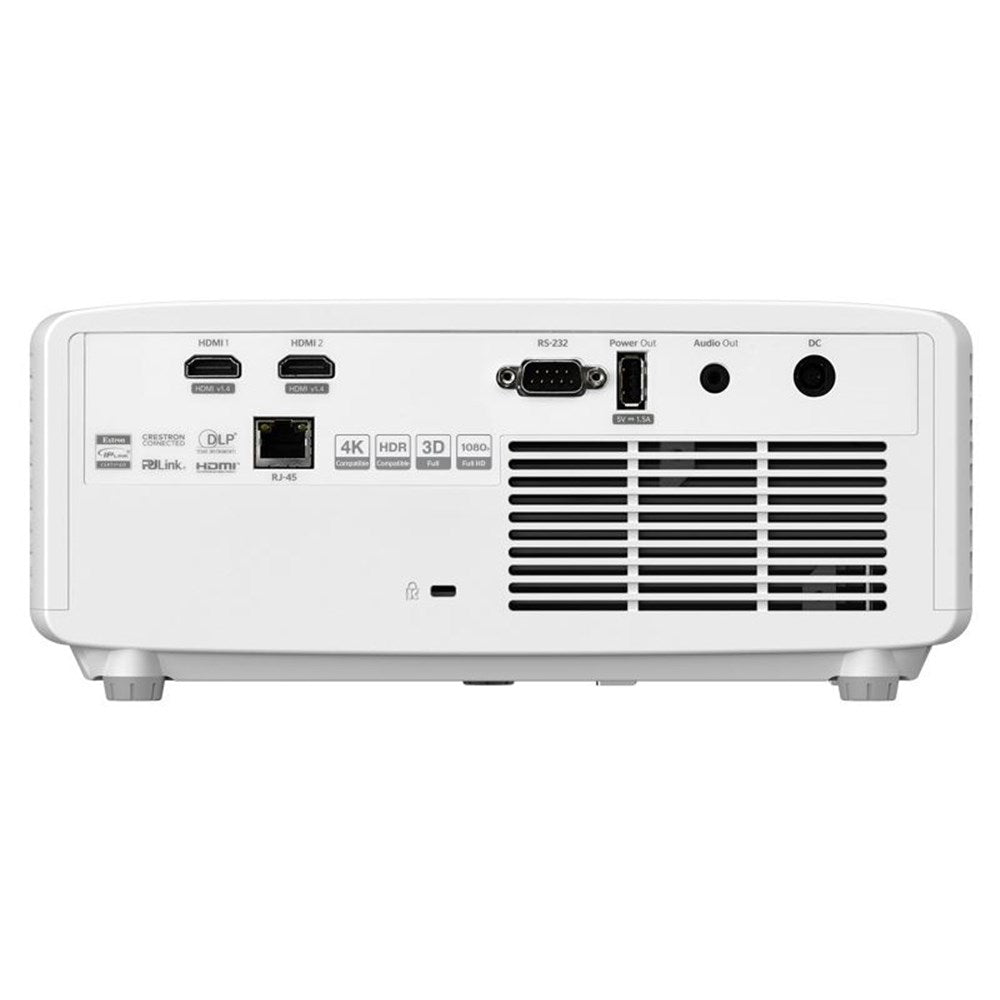

| I/O Connectors | Inputs 2 x HDMI 2.0, 1 x RJ45Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A Control 1 x RS232 |
| Noise Level | 34 dB / 27 dB (eco) |
| Computer Compatibility | UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 3D compatibilty | Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)ver-Under: 1080p24, 720p50 / 60 |
| IP Rating | IP6X |
| OSD/ Display Languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 Operation | Yes |
| 360-operation | Yes |
| Operating Temperature | 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m |
| Speaker (Watts) | 15W |
| LAN - Control | Yes |
| LAN | Yes |
| Power Supply | DC input 19V via a 180W power adapter (AC input 100~240V, 50/60 Hz to DC 19V) |
| Power Consumption | 0.5W (standby) 140W (min) 200W (max) |
| Dimensions (W x D x H) (mm) | 274 x 216 x 114 |
| Weight (Kg) | Gross weight 4.2 kg, Net weight 3 kg |
