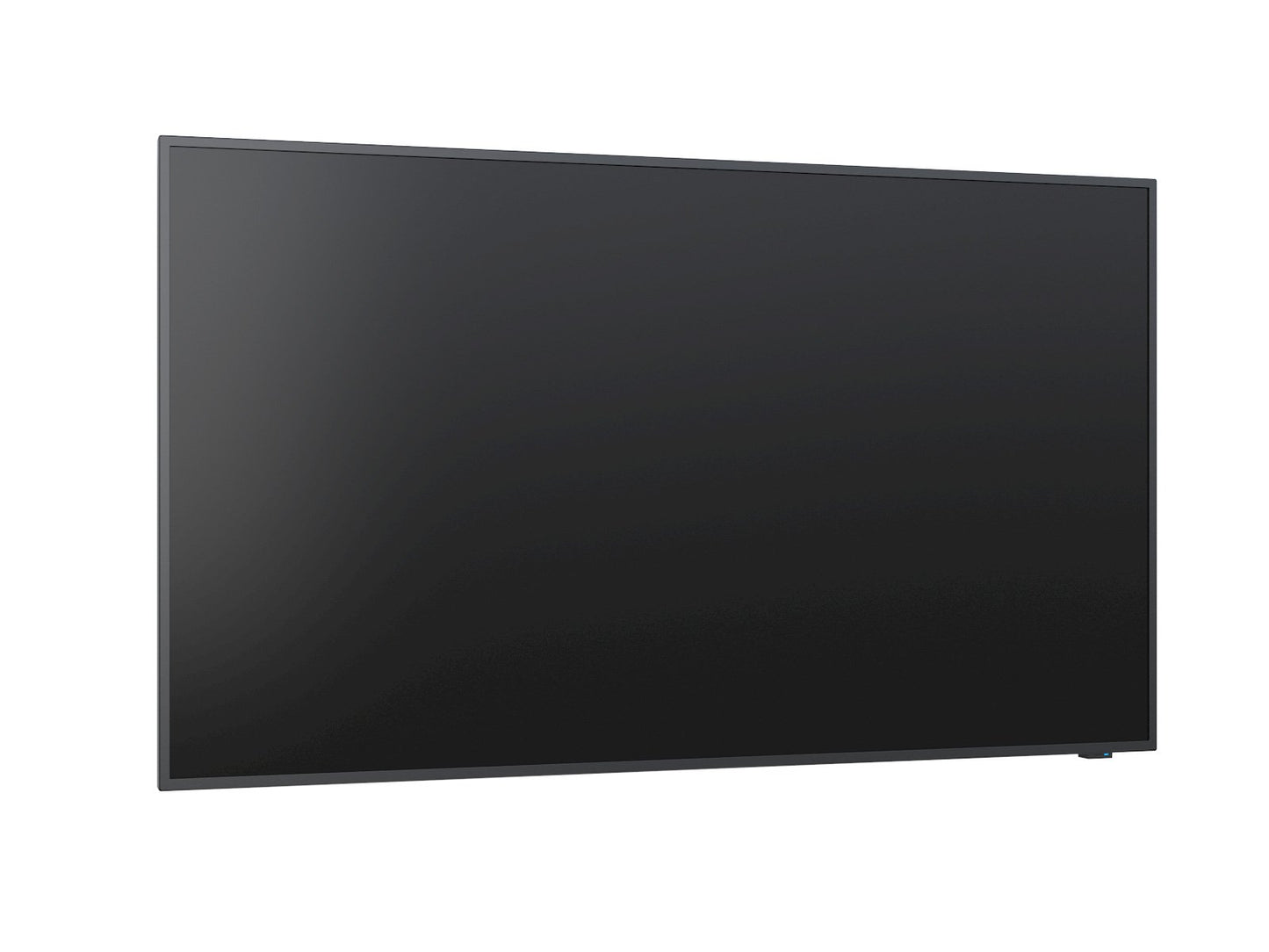

NEC E328 MultiSync 32" 1080p LCD Commercial Display
The price you want, the Functionality you need.
The NEC/Sharp E328 Commercial Display is specifically designed to withstand the demands of commercial usage. Its professional-grade features make it an ideal solution for budget-conscious applications. Unlike consumer TVs, the NEC E328 offers the necessary functionality and dependability required for commercial use.
The NEC E328 has an integrated MediaPlayer that allows for FULL HD resolution, providing natural, highly detailed content playback with a timed auto-play function. With no need for extra cables, external devices, or signage software, the USB MediaPlayer allows for a simple and seamless professional signage solution. Additionally, a 10W USB interface is available for connecting external devices if additional computing power is needed.
Effortlessly switch between HDMI sources and enjoy automatic detection for instant start-up in meeting spaces. The E328 from NEC is the ideal option for corporate meeting rooms and entry level digital signage, featuring integrated LAN and NEC's NaviSet Administrator 2 technology for remote control of your digital estate.
Features
- 32" Display Size
- 1080p Resolution
- IPS Panel with Direct LED backlights
- Landscape and Portrait Installation
- Up to 16/7 hours Operation
- 350nit Brightness
Reduced Installation and Operating Costs
Highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
Slim Design and Integrated Speakers
The aesthetic design is pleasing to the eye and enables easy, low cost installation.
Future Ready Connectivity
Featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Standalone operation
The display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
Effortless content playback
The integrated USB media player supports various image video file formats for effortless and standalone content playback.
Enter the world of professional signage
In a world of digitalisation, signage is following the trend. Digital posters and information boards are now the most common method of information transfer.
Where cost and reliability are key, NEC’s E328 essential series display is the perfect choice. With its eye pleasing slim bezel design, your content gets the attention it deserves, whether in small information installations or built-in solutions.
Plug and play
Sustainable investment
With its low cost of ownership and the Energy Star 8.0 certification, the E328 not only lowers your carbon footprint but also reduces running costs. A wide range of connectivity offers the possibility of multiple input sources and makes the displays a future-proof investment
Specifications
| Display | |
|---|---|
| Panel Technology | IPS |
| Screen Size [inch] | 32 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 350 |
| Contrast Ratio (typ.) | 1200:1 |
| Viewing Angle [°] | 178 |
| Haze Level [%] | 1 |
| Supported Orientation | Landscape and Portrait |
| Resolution | |
| Native Resolution | 1920x1080 |
| Supported Resolution | 1920x1080, 1920x1200, 1280x720, 720×576 |
| Connectivity & Sensor | |
| Input Video Analogue | 1 x VGA, Component (RCA), Composite (RCA) |
| Input Video Digital | 3 x HDMI |
| Input Audio Analogue | 1 x 3.5 mm jack |
| Input Audio Digital | 3 x HDMI |
| Input Control | LAN 100Mbit, RS232 |
| Input Data | 1 x USB 2.0 (Media Player) 1 x USB Type-C (5V/3A, power for external devices) |
| Output Audio Analogue | 1 x 3.5mm jack |
| Output Audio Digital | 1 x SPDIF |
| Remote Control | Remote Control IR; RS-232C (9-pin D-sub) Input |
| Sensors | |
| Ambient Light Sensor | Integrated triggered actions programmable |
| Temperature Sensor | Integrated Triggered actions programmable, 1 sensor |
| Electrical | |
| Power Consumption [W] | 0-100 |
| Power Supply | 100-240 V AC, 50/60 Hz, Internal |
| Operating Humidity | 10% ~ 80% RH non-condensing |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 10 to 80 |
| Storage Humidity [%] | 5 to 85 |
| Storage Temperature [°C] | -10 to +60 |
| Mechanical | |
| Dimensions (W) [mm] | 726.6 |
| Dimensions (H) [mm] | 422.3 |
| Dimensions (D) [mm] | 67.1 |
| Exact Weight [kg] | 5.3 |
| Bezel Width [mm] | 12.5 (left, right and top); 13.9 (bottom) |
| Bezel Width (left, right and top) [mm] | 12.5 |
| Bezel Width (bottom) [mm] | 13.9 |
| VESA Mounting [mm] | 4 holes, M6, 100 x 100 (FDMI) |
| Media Player | |
| Supported File Storage / File System | USB 2.0 / FAT16 / FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| Green Features | |
| Energy Efficiency | LED backlight, Energy consumption: 27 kWh/1000 h, Energy efficiency class: F |
| Ecological Standards | EnergyStar 8.0 |
| Additional Features | |
| Special Characteristics | Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Safety and Ergonomics | Energy Star 8.0, RCM, PSB, UL/C-UL, VCCIEnergy Star 8.0, RCM, PSB, UL/C-UL, VCCI |
| Audio | Integrated Speakers (5 W + 5 W) |
| Shipping Content | Display, HDMI Cable, Power Cable, Remote Control, 2x AAA Batteries, Setup Manual |
| Warranty | 3 years warranty incl. backlight |
| Operating Hours | 16/7 |
