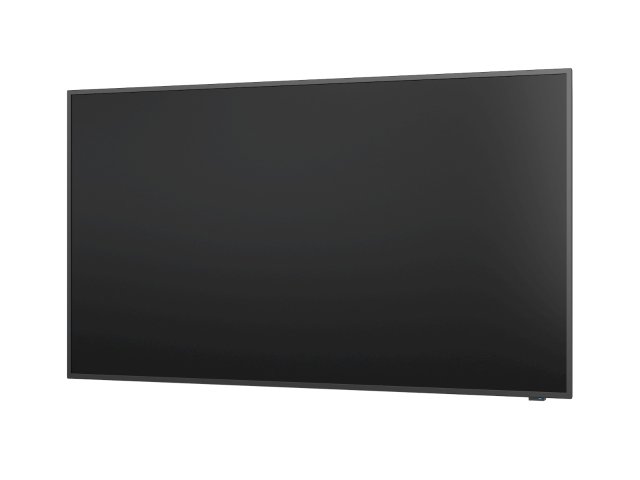

NEC E758 MultiSync 75" 4K UHD LCD Commercial Display
The price you want, the Functionality you need.
Experience the limitless possibilities of the NEC Sharp E758 MultiSync 75" 4K Commercial Display - the perfect choice for professional use that combines affordability and top-notch quality. Say goodbye to unreliable consumer televisions and welcome a superior commercial display that exceeds expectations in functionality and efficiency. Perfect for any commercial setting!
The NEC E758 MultiSync 75" 4K Commercial Display boasts an integrated MediaPlayer that effortlessly supports 4K resolution and HDR for impeccable content playback, complete with a timed auto-play feature. Say goodbye to tangled cables, extra gadgets, and signage programs – the USB MediaPlayer offers a streamlined solution for professional displays. Not enough power? Just plug in an external device to the convenient 10W USB interface.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E758 the perfect choice for corporate meeting rooms and entry level digital signage.
Features
- 75" Display Size
- 4K Resolution
- IPS Panel with Direct LED backlights
- Landscape and Portrait Installation
- Up to 16/7 hours Operation
- 350nit Brightness
Reduced Installation and Operating Costs
Highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
Slim Design and Integrated Speakers
The aesthetic design is pleasing to the eye and enables easy, low cost installation.
Future Ready Connectivity
Featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Standalone operation
The display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
Effortless content playback
The integrated USB media player supports various image video file formats for effortless and standalone content playback.
Enter the world of professional signage
In a world of digitalisation, signage is following the trend. Digital posters and information boards are now the most common method of information transfer.
Where cost and reliability are key, NEC’s E758 essential series display is the perfect choice. With its eye pleasing slim bezel design, your content gets the attention it deserves, whether in small information installations or built-in solutions.
Plug and play
Sustainable investment
With its low cost of ownership and the Energy Star 8.0 certification, the E758 not only lowers your carbon footprint but also reduces running costs. A wide range of connectivity offers the possibility of multiple input sources and makes the displays a future-proof investmentSpecifications
| Display | |
|---|---|
| Panel Technology | IPS |
| Screen Size [inch] | 75 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 350 |
| Contrast Ratio (typ.) | 8000:1 |
| Viewing Angle [°] | 178 |
| Haze Level [%] | 25 |
| Supported Orientation | Landscape and Portrait |
| Resolution | |
| Native Resolution | 3840x2160 |
| Supported Resolution | 1920x1080, 3840x2160, 1920x1200, 4096x2160, 640x480, 1280x720, 720×576, 720x480 |
| Connectivity & Sensor | |
| Input Video Analogue | 1 x VGA, Component (RCA), Composite (RCA) |
| Input Video Digital | 3 x HDMI |
| Input Audio Analogue | 1 x 3.5 mm jack |
| Input Audio Digital | 3 x HDMI |
| Input Control | LAN 100Mbit, RS232 |
| Input Data | 1 x USB 2.0 (Media Player) 1 x USB Type-C (5V/3A, power for external devices) |
| Output Audio Analogue | 1 x 3.5mm jack |
| Output Audio Digital | 1 x SPDIF |
| Remote Control | Remote Control IR; RS-232C (9-pin D-sub) Input |
| Sensors | |
| Ambient Light Sensor | Integratedm triggered actions programmable |
| Temperature Sensor | Integratedm Triggered actions programmable, 1 sensor |
| Electrical | |
| Power Consumption [W] | 200-300 |
| Power Supply | 100-240 V AC, 50/60 Hz, Internal |
| Operating Humidity | 10% ~ 80% RH non-condensing |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 90 |
| Storage Temperature [°C] | -20 to +60 |
| Mechanical | |
| Dimensions (W) [mm] | 1682.3 |
| Dimensions (H) [mm] | 961.1 |
| Dimensions (D) [mm] | 83.2 |
| Exact Weight [kg] | 36.3 |
| Bezel Width [mm] | 14.3 (left, right and top); 14.8 (bottom) |
| Bezel Width (left, right and top) [mm] | 14.3 |
| Bezel Width (bottom) [mm] | 14.8 |
| VESA Mounting [mm] | 4 holes, M8, 600 x 400 (FDMI) |
| Media Player | |
| Supported File Storage / File System | USB 2.0 / FAT16 / FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| Green Features | |
| Energy Efficiency | LED backlight, Energy consumption: 128 kWh/1000 h, Energy efficiency class: G |
| Ecological Standards | EnergyStar 8.0 |
| Additional Features | |
| Special Characteristics | Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Safety and Ergonomics | Energy Star 8.0, RCM, PSB, UL/C-UL, VCCIEnergy Star 8.0, RCM, PSB, UL/C-UL, VCCI |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | Display, HDMI Cable, Power Cable, Remote Control, 2x AAA Batteries, Setup Manual |
| Warranty | 3 years warranty incl. backlight |
| Operating Hours | 16/7 |
