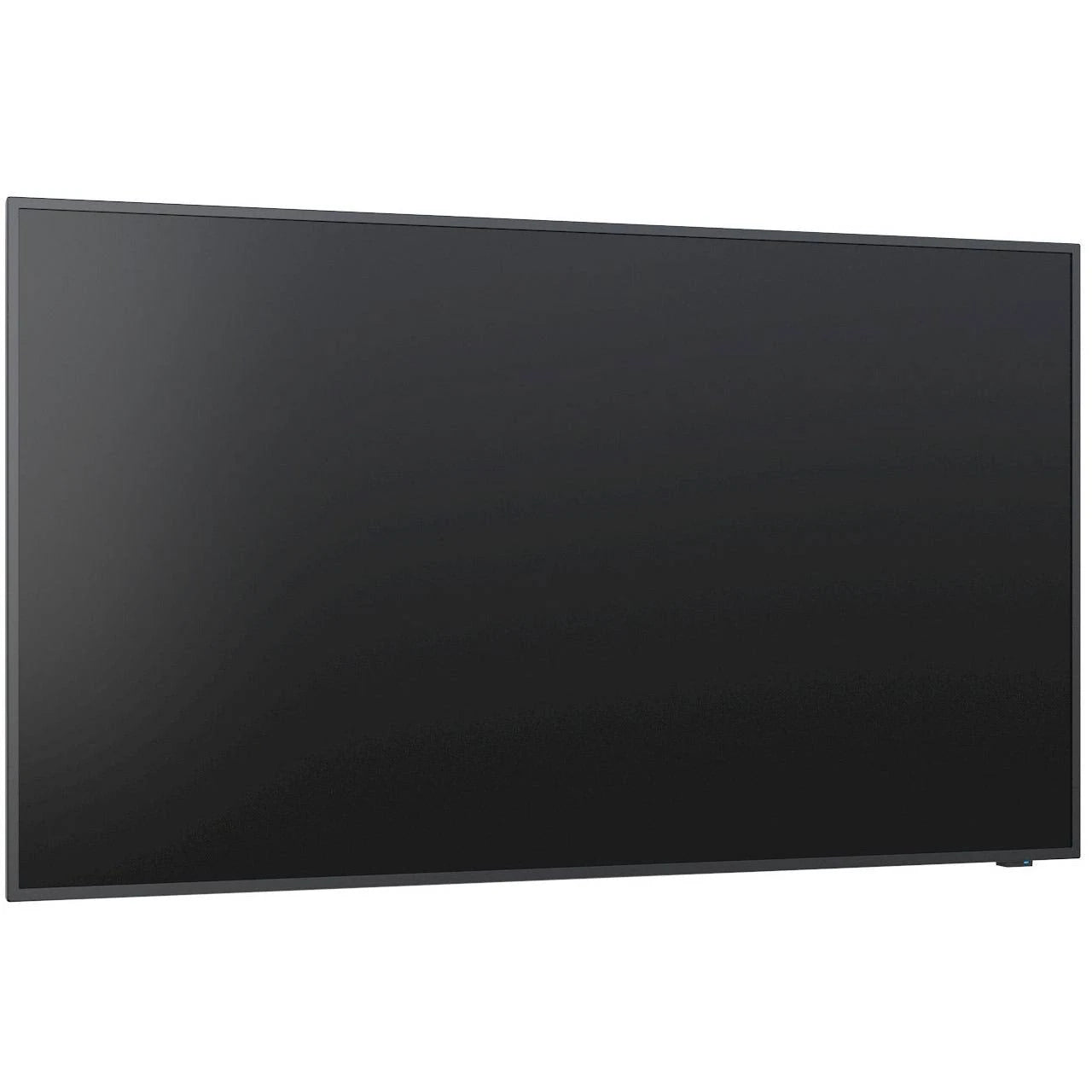

NEC E438 MultiSync 43" 4K UHD LCD Commercial Display
The price you want, the Functionality you need.
Get ready to experience the power of the NEC/Sharp E438 MultiSync 43" 4K Commercial Display - a top choice for budget-friendly professional use. Say goodbye to unreliable domestic TVs and hello to a commercial display that offers superior functionality and performance. Perfect for any commercial setting!
The NEC/Sharp E438’s integrated MediaPlayer supports the 4K resolution with HDR for natural, high detailed, content playback with timed auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E438 the perfect choice for corporate meeting rooms and entry level digital signage.
| NEC / SHARP E438 Summary | |
|---|---|
| Display | 43", 4K, 350 Nits Brightness |
| Computing | n/a |
| Operating System | Nil. USB media player inbuilt |
| Portrait Installation | Yes |
| Max Usage | 16 Hours/Day |
| Main Connections | 3x HDMI In, 1x VGA In, |
| Media Reader | Yes via USB |
| Audio | 2x 10 Watt Speakers |
| Networking | Wired Lan only |
| Wall Mount | Optional |
| Warranty | 3 Years |
| Other Features | USB Media Reader, Network Control Software |
Features
- 43" Display Size
- 4K Resolution
- IPS Panel with Direct LED backlights
- Landscape and Portrait Installation
- Up to 16/7 hours Operation
- 350nit Brightness
Reduced Installation and Operating Costs
Highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
Slim Design and Integrated Speakers
The aesthetic design is pleasing to the eye and enables easy, low cost installation.
Future Ready Connectivity
Featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Standalone operation
The display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
Effortless content playback
The integrated USB media player supports various image video file formats for effortless and standalone content playback.
Enter the world of professional signage
In a world of digitalisation, signage is following the trend. Digital posters and information boards are now the most common method of information transfer.
Where cost and reliability are key, NEC’s E438 essential series display is the perfect choice. With its eye pleasing slim bezel design, your content gets the attention it deserves, whether in small information installations or built-in solutions.
Plug and play
Sustainable investment
With its low cost of ownership and the Energy Star 8.0 certification, the E438 not only lowers your carbon footprint but also reduces running costs. A wide range of connectivity offers the possibility of multiple input sources and makes the displays a future-proof investmentSpecifications
| Display | |
|---|---|
| Panel Technology | IPS |
| Screen Size [inch] | 43 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 350 |
| Contrast Ratio (typ.) | 1200:1 |
| Viewing Angle [°] | 178 |
| Haze Level [%] | 1 |
| Supported Orientation | Landscape and Portrait |
| Resolution | |
| Native Resolution | 3840x2160 |
| Supported Resolution | 1920x1080, 3840x2160, 1920x1200, 4096x2160, 640x480, 1280x720, 720×576, 720x480 |
| Connectivity & Sensor | |
| Input Video Analogue | 1 x VGA, Component (RCA), Composite (RCA) |
| Input Video Digital | 3 x HDMI |
| Input Audio Analogue | 1 x 3.5 mm jack |
| Input Audio Digital | 3 x HDMI |
| Input Control | LAN 100Mbit, RS232 |
| Input Data | 1 x USB 2.0 (Media Player) 1 x USB Type-C (5V/3A, power for external devices) |
| Output Audio Analogue | 1 x 3.5mm jack |
| Output Audio Digital | 1 x SPDIF |
| Remote Control | Remote Control IR; RS-232C (9-pin D-sub) Input |
| Sensors | |
| Ambient Light Sensor | Integratedm triggered actions programmable |
| Temperature Sensor | Integratedm Triggered actions programmable, 1 sensor |
| Electrical | |
| Power Consumption [W] | 0-100 |
| Power Supply | 100-240 V AC, 50/60 Hz, Internal |
| Operating Humidity | 10% ~ 80% RH non-condensing |
| Environmental Conditions | |
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 10 to 80 |
| Storage Humidity [%] | 5 to 85 |
| Storage Temperature [°C] | -10 to +60 |
| Mechanical | |
| Dimensions (W) [mm] | 970.2 |
| Dimensions (H) [mm] | 559.8 |
| Dimensions (D) [mm] | 71 |
| Exact Weight [kg] | 8.9 |
| Bezel Width [mm] | 12.5 (left, right and top); 13.9 (bottom) |
| Bezel Width (left, right and top) [mm] | 12.5 |
| Bezel Width (bottom) [mm] | 13.9 |
| VESA Mounting [mm] | 4 holes, M6, 400 x 200 (FDMI) |
| Media Player | |
| Supported File Storage / File System | USB 2.0 / FAT16 / FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| Green Features | |
| Energy Efficiency | LED backlight, Energy consumption: 55 kWh/1000 h, |
| Ecological Standards | EnergyStar 8.0 |
| Additional Features | |
| Special Characteristics | Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Safety and Ergonomics | Energy Star 8.0, RCM, PSB, UL/C-UL, VCCIEnergy Star 8.0, RCM, PSB, UL/C-UL, VCCI |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | Display, HDMI Cable, Power Cable, Remote Control, 2x AAA Batteries, Setup Manual |
| Warranty | 3 years warranty incl. backlight |
| Operating Hours | 16/7 |
