Kramer's Premium Active 4K HDMI Cable for 4K gaming at up to 60hz & 4:4:4 colour*
This HDMI Cable is highly recommended for 4K resolutions, especially when used at long distances.

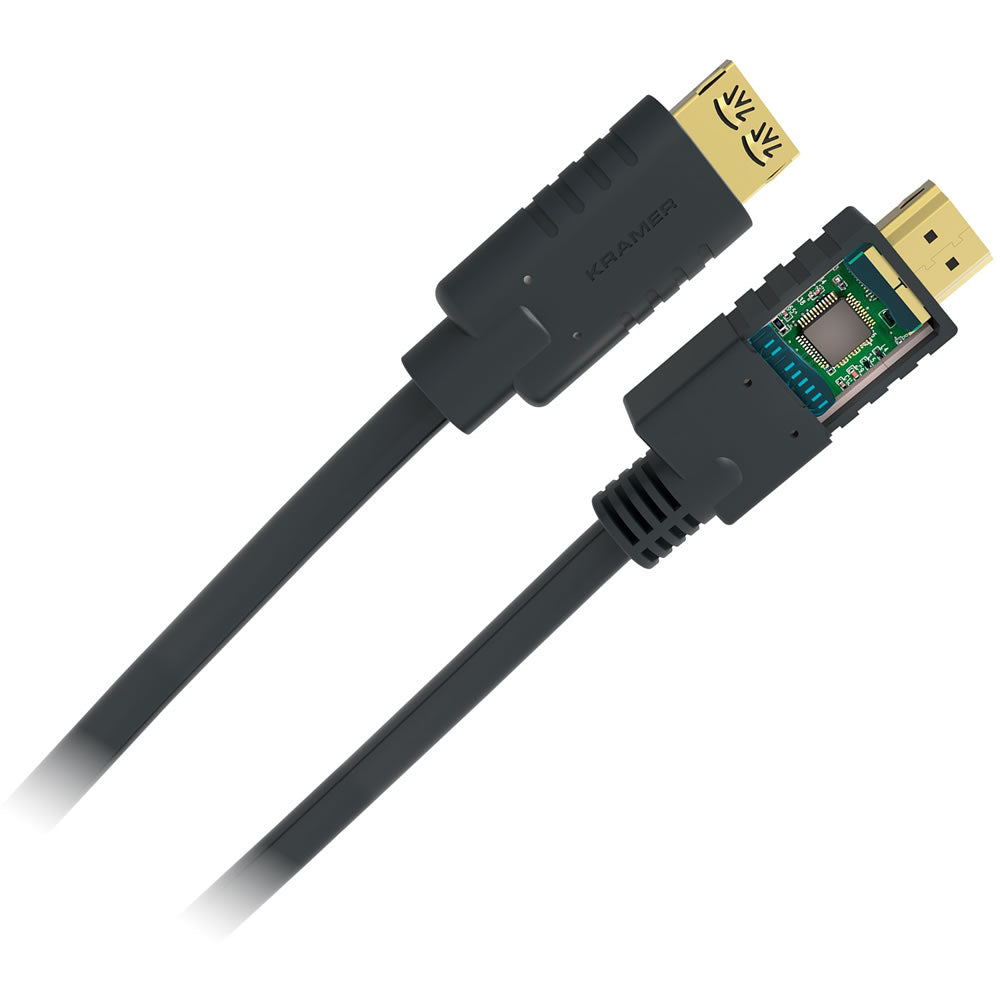

The Kramer v2.0 Active 4K HDMI Cable is a reliable solution for transmitting HDMI signals over long distances. With speeds of 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft), this cable utilizes innovative technology in its connector to provide superior equalizing and signal compensation. This makes it ideal for demanding Pro AV installations. Plus, the cable is easy to install with its true plug & play design, which draws power from the HDMI source, eliminating the need for an external power source. The Kramer exclusive K-Lock HDMI connector is also included, preventing unintentional disconnections and reducing cable-related service calls. And with an LED indicator on the connector, you can easily see when the signal is successfully transmitted.
FEATURES
- High Speed HDMI CAT2 cable
- Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
- Designed to support the features of HDMI V2.0 and previous versions
- Video Resolution of up to 4K@60Hz (4:4:4)
- High Data Transfer Rate of up to 18Gbps
- High Speed HDMI performance with a dedicated Ethernet channel.
- Shieled cable construction for optimum RF & EMI Protection
- 24K Gold Plated terminals
- 12 Month Warranty
| CA–HM–15 | Active High Speed HDMI Cable with Ethernet | 4.60m (15ft) | 4K@60Hz (4:4:4) |
| CA–HM–25 | Active High Speed HDMI Cable with Ethernet | 7.60m (25ft) | 4K@60Hz (4:4:4) |
| CA–HM–35 | Active High Speed HDMI Cable with Ethernet | 10.70m (35ft) | 4K@60Hz (4:4:4) |
| CA–HM–50 | Active High Speed HDMI Cable with Ethernet | 15.20m (50ft) | 4K@60Hz (4:4:4) |
| CA–HM–66 | Active High Speed HDMI Cable with Ethernet | 20.00m (66ft) | 4K@60Hz (4:4:4) |
| CA–HM–82 | Active High Speed HDMI Cable with Ethernet | 25.00m (82ft) | 4K@60Hz (4:2:0) |
| CA–HM–98 | Active High Speed HDMI Cable with Ethernet | 30.00m (98ft) | 1080p@60Hz 12-Bit |
SPECIFICATIONS
VIDEO
- Max Resolution for 15−66ft (4.6−20m) lengths: 4K@60Hz (4:4:4)
- Max Resolution for 82ft (25m) length: 4K@60Hz (4:2:0)
- Max Resolution for 98ft (30m) length: 1080p@60hz
- Max Data Rate for 15−66ft (4.6−20m) lengths: 18 Gbps (6Gbps per channel)
- Max Data Rate for 82−98ft (25−30m) length: 10.2 Gbps (3.4Gbps per channel)
- HDMI Compliance: HDCP 2.2, HDR, EDID and CEC
AUDIO
- Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD
PHSYICAL
- HDMI Source: On a male type A, 24K gold–plated K–Lock connector
- HDMI Display: On a male Type A, 24K gold–plated K–Lock connector (optional external power input via micro USB connector)
CONDUCTORS
- 15ft (4.6m) length: 32AWG
- 25-35ft (7.6-10.7m) lengths: 28AWG
- 50ft (15.2m) length: 26AWG
- 66-98ft (20-30m) lengths: 24AWG
SCREENING
- TMDS pairs: Aluminum/mylar
- Overall: Aluminum/mylar + aluminum braid
JACKET
- Material: PVC
- Color: Black
- Diameter - 15ft (4.6m) length: 5.5±0.15mm
- Diameter - 25-35ft (7.6-10.7m) lengths: 7.10±0.15mm
- Diameter - 50ft (15.2m) length: 8.5±0.20mm
- Diameter - 66-98ft (20-30m) lengths: 9.5±0.25mm
MECHANICAL
- Cable Bending radius - 15ft (4.6m) length: 27.5mm
- Cable Bending radius - 25-35ft (7.6-10.7m) lengths: 35.5mm
- Cable Bending radius - 50ft (15.2m) length: 42.5mm
- Cable Bending radius - 66-98ft (20-30m) lengths: 47.5mm
- Connector Max. Pulling Strength: 15lbs/6.8kg
ELECTRICAL
- Power Consumption: Up to 90mA / 1mA (standby mode)
- Temperature Rating: 80°C
- Voltage Rating: 30V
- Conductor Resistance - 32AWG: 588 Ω/km
- Conductor Resistance - 28AWG: 237.25588 Ω/km
- Conductor Resistance - 26AWG: 148.94 Ω/km
- Conductor Resistance - 24AWG: 381 Ω/km
REGULATORY
- Electrical: UL listed, CL3/FT4
- Environmental: RoHS 2011/65/EU
