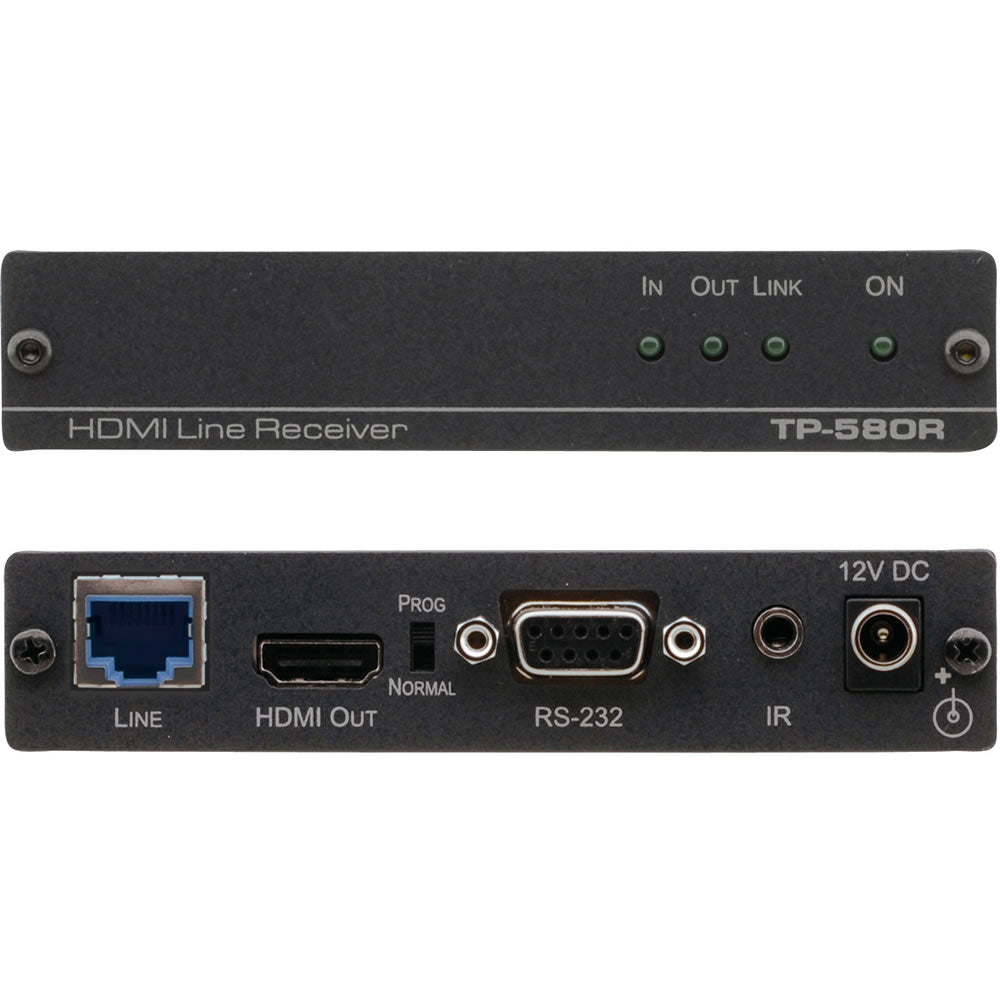

Kramer TP-580R HDBaseT Receiver (Extend HDMI, RS-232 & IR over CAT6 cable)

Kramer TP-580R 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS–232 & IR over Long–Reach HDBaseT

• HDBaseT 1.0 receiver
• Up to 70m (230ft) at 1080p
• Up to 40m (130ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• Control extension
• Requires a HDBaseT Transmitter.
• This Receiver is not required if your display features a HDBaseT port.

TP−580R is a high−performance, long−reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS−232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

High Performance Standard Extender

Professional HDBaseT extender system for providing long–reach signals over twisted–pair copper infrastructures. TP–580R is a standard receiver that can be connected to any market–available HDBaseT–compliant transmitter product. For optimum extension reach and performance, use recommended Kramer cables.

HDMI Signal Extension

HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.

I–EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi–channel Audio Extension

Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.

Bidirectional RS–232 Extension

Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional Infrared Extension

IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Cost–effective Maintenance

Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.

Easy Installation

Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

Applications

Long–distance AV signal extension for multi–room, large dividable auditoriums and lecture hall connectivity. AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
