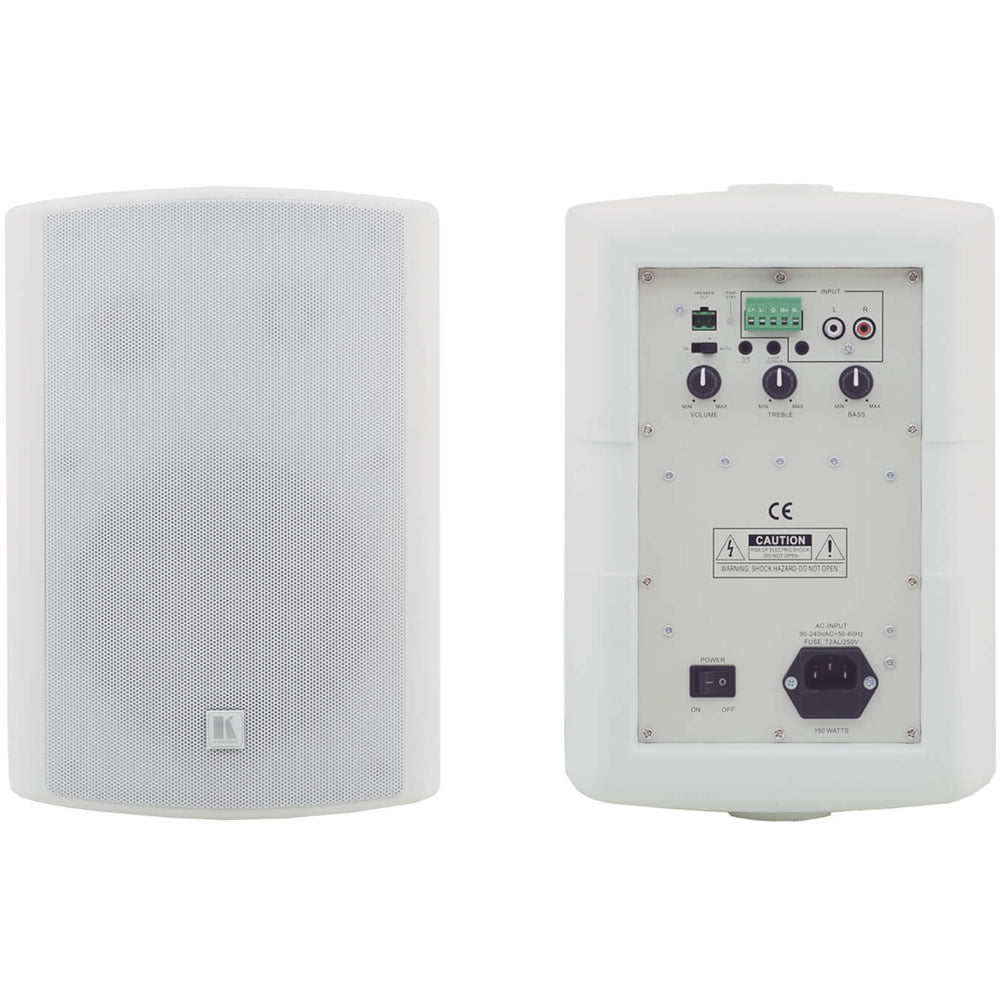

Kramer Tavor 6-O 6.5 Inch Wall Mountable Powered Speakers
Includes 2 speakers
The Tavor 6-O are two 6.5-inch powered speakers that can be mounted on walls or placed on shelves. They have an active speaker that amplifies a line-level stereo input with a built-in amplifier and sends it to the passive speaker.
The Tavor 6-O Speaker Kit is perfect for class rooms, conferences rooms, and multipurpose venues. Install it on the wall with the included brackets or place them on a shelf. The speakers are available in either White or Black colours.
Key Features
- Active Loudspeaker — Stereo 2x50W RMS, 2x140W continuous program built–in power amplifier.
- Inputs — 1 unbalanced RCA, 1 unbalanced 3.5mm mini jack, 1 balanced on terminal block.
- Audio Level Controls — Volume, treble and bass.
- Magnetically Shielded.
- Enhanced Bass Reflex.
- Auto Power — Shuts off when system is not in use, indicated by a LED.
- Automatic Input Voltage Selector — 90 to 240V AC, 50 to 60Hz.
- Indoor Wall Mounting.
- Mounting Configuration — Active speaker: left, passive speaker: right.
- Weight (Single Speaker) — Active speaker 3.6kg (7.92lbs) approx., passive speaker 2.7kg (5.94lbs) approx.
- Package — 2 speakers (1 pair); 1 pair of U–shaped rotating mounting brackets with 4 mounting knobs; 4m (13.12ft) power cord; 4m (13.12ft) loudspeaker cable; 2m (6.6ft) 3.5mm to 2 RCA cable.
Specifications
| DESCRIPTION | 2–way powered speaker | ||
|---|---|---|---|
| BUILT-IN POWER AMPLIFIER | 2 X 50W RMS, 2 X 140W continuous program | ||
| FREQUENCY RESPONSE | 45Hz to 20kHz @–10dB, 50Hz to 20kHz @±3dB | ||
| WOOFER | 6.5” polypropylene cone with rubber edge woofer | ||
| TWEETER | 1” silk dome tweeter | ||
| SENSITIVITY | 85dB SPL, 1W@1m | ||
| MAX SPL | 85dB SPL, 1W@1m | ||
| SENSITIVITY | Continuous: 100dB, peak:108dB | ||
| POWER SOURCE | 90–240V AC 50/60Hz | ||
| IMPEDANCE | 4Ω | ||
| CROSSOVER FREQUENCY | 8kHz | ||
| DIRECTIVITY FACTOR (Q) | 7.5 averaged 1kHz to 10kHz | ||
| DIRECTIVITY INDEX (DI) | 4Ω | ||
| IMPEDANCE | 8.7dB averaged 1kHz to 10kHz | ||
| INPUT CONNECTORS | Line level unbalanced stereo audio on a 3.5mm mini jack, line level balanced stereo audio on a terminal block connector, line level unbalanced stereo audio on left and right RCA connectors | ||
| OUTPUT CONNECTORS | Speaker (to connect to the external passive speaker), 3.5mm mini jack line out for optional sub–woofer, 3.5mm mini jack loop output | ||
| DISPERSION COVERAGE | Vertical: 54 degrees @2000Hz, horizontal:65deg @2000Hz | ||
| DAMPING FACTOR | 19 @4Ω/1000Hz | ||
| S/N RATIO | 80–90dB | ||
| THD | ≦0.15% | ||
| CONTROLS | Volume, bass and treble | ||
| INPUT POWER | ON or AUTO | ||
| STANDBY MODE POWER CONSUMPTION | 0.5W | ||
| INPUT LEVEL FOR SYSTEM “WAKE-UP” FROM STANDBY MODE | 12mV | ||
| MATERIALS | Aluminum grill, steel brackets, ABS cabinet | ||
| WEIGHT PER SINGLE SPEAKER | Active speaker: 3.6kg (7.93lbs) approx | ||
| WEIGHT WITH MOUNTING KIT | Active speaker: 4.2kg (9.25lbs) approx | ||
| DIMENSIONS WITH MOUNTING BRACKETS | 21cm x 25cm x 32cm (8.3” x9.8” x12.6”) W, D, H | ||
| ACCESSORIES | 1 pair of U–shaped rotating mounting brackets with 4 mounting knobs, 4m (13.12ft) power cord, 4m (13.12ft) loudspeaker cable, 2m (6.6ft) 3.5mm to 2 RCA cable | ||
| COLOURS | Available in black and white | ||
