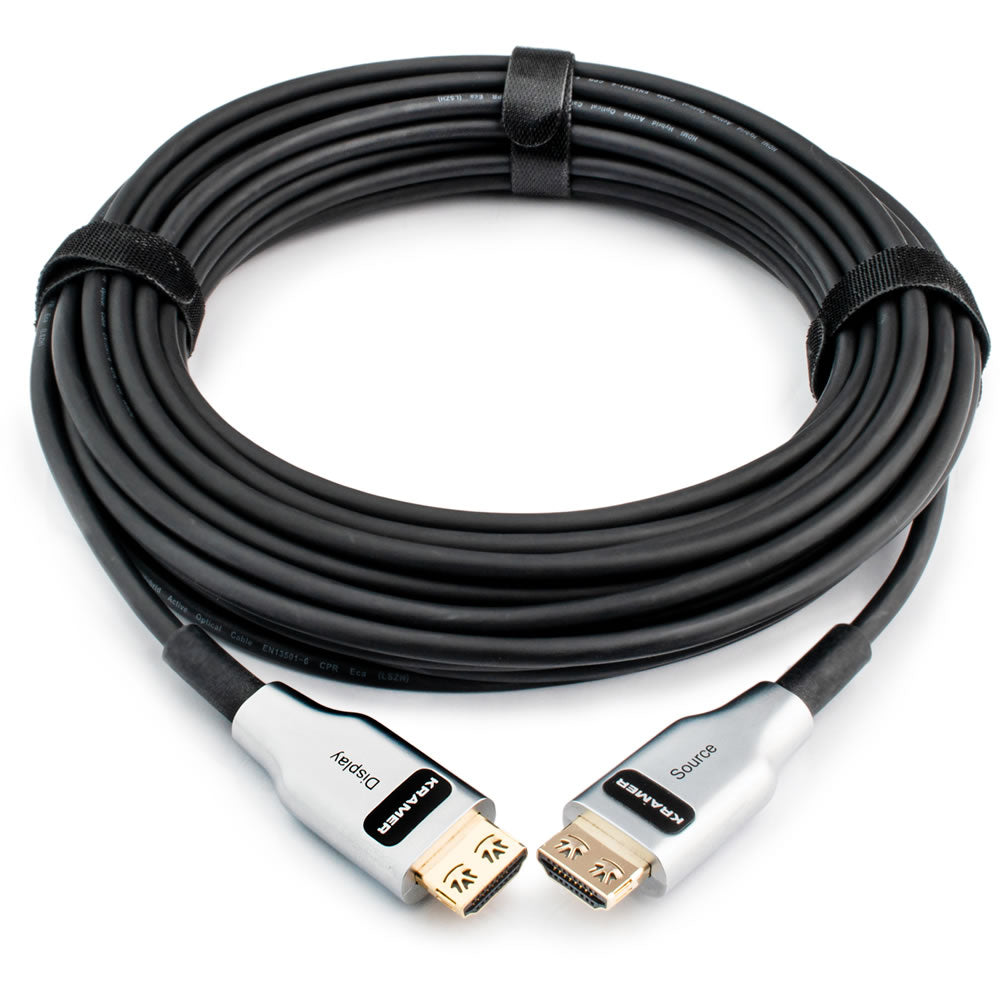

Kramer Premium Active Optical Hybrid 8K HDMI Cable
A premium quality certified* ultra-high-speed HDMI Cable for 4K & 8K resolutions
The CLS-AOCH/UF is a state-of-the-art active optical HDMI cable designed for superior performance. It effectively transmits 8K resolution signals up to 100 meters (328 ft), outperforming both copper and regular optical cables. Its slim, lightweight, and flexible design sets it apart, and it even comes with clear EDID and HDCP support for compatibility with any device. This advanced cable minimizes signal attenuation and eliminates the potential for electromagnetic and radio frequency interference, ensuring a seamless audio-visual experience.
*Ultra High Speed Certified up to 20 Metres.
What is an Active Optical 8K HDMI Cable?
Active Optical HDMI Cables use fibre optic technology to transmit the signal with light pulses rather than electricity. Active Optical Cables are capable of transmitting signals over longer runs than standard hdmi or active hdmi cables and tend to be thinner and lighter. Certified Ultra High Speed cables also have the ability to transmit 8K signals and extremely high speeds up to 48Gbps. These cables are recommended for use when very long runs are required or if high resolutions are needed. Using an Active Optical HDMI Cable can reduce the chance of signal drop out or degradation, and maximise colour depth, particularly when transmitting extremely high resolutions such as 8K.
FEATURES
- Ultra High Speed Fibre Optic HDMI Cable
- Type A to Type A Male-to-Male
- HDCP 2.2, HDR, EDID, eARC, and DSC as specified in HDMI 2.1
- Video Resolution of up to 4K@120, 8K@60Hz (4:2:0)
- Ultra High Data Transfer Rate of up to 48Gbps
- Shieled cable construction for optimum RFI & EMI Protection
- 24K gold–plated, corrosion–resistant terminals
- Low smoke & halogen free Construction
- RoHS 2011/65/EU CE,FCC Compliant
- Ultra Thin 4.5mm diameter cable
- 12 Month Warranty
| Model | Description | Length | Resolution |
|---|---|---|---|
| CLS–AOCH/UF–33 | Certified Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 10.00m (33ft) | 8K@60Hz |
| CLS–AOCH/UF–50 | Certified Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 15.20m (50ft) | 8K@60Hz |
| CLS–AOCH/UF–66 | Certified Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 20.00m (66ft) | 8K@60Hz |
| CLS–AOCH/UF–98 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 30.00m (98ft) | 8K@60Hz |
| CLS–AOCH/UF–131 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 40.00m (131ft) | 8K@60Hz |
| CLS–AOCH/UF–164 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 50.00m (164ft) | 8K@60Hz |
| CLS–AOCH/UF–197 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 60.00m (197ft) | 8K@60Hz |
| CLS–AOCH/UF–230 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 70.00m (230ft) | 8K@60Hz |
| CLS–AOCH/UF–262 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 80.00m (262ft) | 8K@60Hz |
| CLS–AOCH/UF–295 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 90.00m (295ft) | 8K@60Hz |
| CLS–AOCH/UF–328 | Ultra High–Speed HDMI Optic Hybrid Cable — LSHF | 100.00m (328ft) | 8K@60Hz |
SPECIFICATIONS
VIDEO
- Max Resolution: 8K@60Hz
- Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
- HDMI Support: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH
AUDIO
- Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD
PHYSICAL
- HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
- HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
GENERAL
- Cable Type: Hybrid with OM3 fiber and copper wire
- O/E Converter: 4 channel 850 nm VCSEL array
- Material: Bare Copper
- Flammability: LSHF
MECHANICAL
- Cable Bending Radius: 45mm
JACKET
- Color: Black
- Diameter : 4.5mm
POWER
- Consumption: 250mW (max)
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 50°C
- Storage Temperature: –40–70°C
STANDARDS COMPLIANCE - EC VERIFIED
- Safety: CE/FCC
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Environmental: REACH,RoHS 2011/65/ EU
