Epson EpiqVision EH-LS650B Ultra short throw Laser Home theatre projector
The Epson EH-LS650B produces an incredible 120” image from just 40cm away from the wall or screen. The long life laser projector produces 3600 ANSI lumens brightness for a strong image. The crisp 4Ke resolution is perfect for big screen projection and with inbuilt Android TV allows you to stream online apps effortlessly. The LS650 is fitted with an inbuilt Yamaha sound bar for easy all in one use but can also be connected with a large scale sound system using eARC or SPDIF.
Key Features & Specifications
- 4Ke 1920x1080x2 16:9
- 3600 ANSI Lumens
- 2,500,000:1 Contrast
- 7.4kg Weight
- 23db Fan Noise (eco)
- 3 Year/ 20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Connection
- HDMI Audio Return (eARC)
- HDR10/HLG Compatible
- Android TV Streaming*
- Chromecast Inbuilt
- 20W Powerful Yamaha Speakers
- Up to 120" Image Size
Throw Distance Chart
(Throw Ratio: 0.25-0.62:1)
Image Size | Installation Distance (from screen to projector chassis) |
---|---|
92" (16:9) 2030x1140mm | Approx. 22.0cm |
100" (16:9) 2130x1200mm | Approx. 27.6cm |
110" (16:9) 2435x1370mm | Approx. 33.9cm |
120" (16:9) 2657x1494mm | Approx. 40.2cm |
Projector Central Review
Black levels on the LS650 are excellent, with details in the dark areas of the projected image still evident. Also notable was the lack of a blue or green hue so often found on projectors displaying darker images.
The LS650 is a 3,600 ANSI lumens projector designed for the broader market of consumers who don't care about being able to adjust every element of the projector's video performance to a high degree. The LS650 is meant to be easy to set up and look good out of the box in various environments, including those where total control of ambient light sources is impossible. 3,600 lumens of equal white and color brightness, and the Epson 3-chip 3LCD system make the LS650 a great lights-on viewing projector. The LS650's brightness and color capabilities make it more than capable of replacing the living room television.
When paired with a good ambient light-rejecting screen in a typical living room, the Epson EpiqVision LS650 is one of its best, out-of-the-box ultra-short throw projectors.
Key Features
- Produces a picture up to 120"
- 3-chip 3LCD technology for a clear picture, even in brightly lit rooms
- 4K PRO-UHD1 technology for amazing picture detail and clarity
- Immersive built-in sound by Yamaha
Immersive Entertainment — Even in Small Spaces — Place the projector close to the wall and enjoy incredible 4K PRO-UHD1 images up to 120"
Designed for Your Living Room — True 3-chip 3LCD technology delivers 3,600 lumens of color and white brightness2 for clear, colorful images, even in brightly lit rooms
Exceptionally Sharp 4K Experience — 4K PRO-UHD1 uses advanced pixelshifting technology and image processing to deliver amazing detail and clarity without sacrificing picture brightness
Hassle-Free Setup — Available for both iOS® and Android™ devices, the Epson® Setting Assistant app3 makes it easy to set up the projector and adjust display size in seconds
Smart TV Capability — Watch all your favorite streaming4 channels including Amazon Prime Video®, Hulu®, Disney+®, HBO®, YouTube™ and more4; even stream live TV with apps like YouTube TV™ using the latest Android TV®4 interface and a simple-to-use remote including voice search with built-in Google Assistant™
Amazing Built-In Sound by Yamaha — Built-in 2.1 virtual surround system designed by Yamaha exclusively for Epson creates an immersive sound performance with presets for TV, Sports, Movies and Music; connect your smartphone via Bluetooth® to use as a standalone speaker
Single-Cable Solution for Audio — One of the updated HDMI® ports includes eARC5 support to transmit audio formats like Dolby Atmos® or DTS to compatible A/V receivers or soundbars; makes it easy to switch audio between the projector’s built-in speakers and other external audio devices
What's in the Box
- Epson EH-LS650 Projector
- Android TV dongle (inbuilt)
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Fixed Frame Projector Screen
- Projector Mount
WHAT'S IN THE BOX | |
---|---|
EH-LS650B (V11HB07153) Projector, 1.8m Power Cable, Remote Control, HDMI Extension Cable, USB Power Cable, Feet, Lens cap, SMP Dongle with Remote Control, Batteries, Registration Sheet | |
TECHNOLOGY | |
Projection System | Epson 3-chip 3LCD technology (ultra short throw) |
LCD Panel | 0.62 inch with C2 Fine |
Light Source | Laser Diode |
IMAGE | |
Color Light Output | 3,600 Lumen In accordance with IDMS15.4 |
White Light Output | 3,600 Lumen In accordance with ISO 21118:2020 |
Resolution | 4K PRO-UHD |
High Definition | 4K enhancement |
Aspect Ratio | 16:9 |
Contrast Ratio | 2,500,000 : 1 |
Colour Video Processing | Full 10-bit |
Colour Reproduction | Up to 1.07 billion colours |
OPTICAL | |
Throw Ratio | 0.25 - 0.62:1 |
Zoom | Digital, Factor: 1 - 2.5 |
Lens | Optical |
Screen Size | 60 inches - 120 inches |
Projection Lens F Number | 1.6 |
Projection Distance Wide | 43.3 cm (77" screen) |
Projection Lens Focus | Manual |
Offset | 5.2 : -1 |
CONNECTIVITY | |

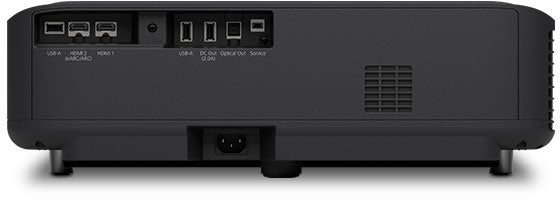

Input: Digital | 2x HDMI 2.0 (18 Gbps/HDCP 2.3) (1x ARC) |
USB: I/O | 3x USB type A (2x for data, 1x for 5V/2A power supply), 1x USB B mini (service only) |
Wireless Connectivity | Built-in |
Output: Audio | 1x S / PDIF |
ADVANCED FEATURES | |
Built-in Speakers | Yamaha DSP 2.1; 2x full-range 5 W speakers and 1x 10 W subwoofer (20 W total) |
Super Resolution | Yes |
Frame Interpolation | Yes |
Auto Contrast | Yes |
Scene Adaptive Gamma | Yes |
HDR10 | Yes |
HLG | Yes |
Smart Media Player | Yes (Built In) |
Sound Modes | Theatre, TV, Studio, Stadium, Concert, Karaoke |
Colour Modes | Dynamic, Vivid, Cinema, Natural |
GENERAL | |
Dimensions D x W x H (excluding feet) | 400 x 467 x 133 mm |
Package Dimensions D x W x H | 565 x 540 x 236 mm |
Weight | 7.4 kg |
Package Weight | 10.47 kg |
Light Source Life | 20,000 h |
Power Consumption (normal / standby) | 264 W / 2 W |
Warranty | 3 Years |
What's in the box | EH-LS650B, 1.8 m power cable, projector remote control, batteries and quick setup guide |
