Epson EB-L730U Large Venue Laser Projector
The Epson EB-L730U boasts an impressive 7000 ANSI lumens brightness, making it ideal for large venues and well-lit areas. Additionally, Epson has included a variety of built-in and optional features, making it a versatile choice for any setting. This projector also offers inbuilt Miracast wireless connectivity, two HDMI inputs, and one HDMI output, perfect for connecting multiple devices or running a second projector. With a wide 1.6x optical zoom, it's a suitable replacement for existing projectors. Additionally, it is fully compatible with the new ELPWP10 screen share module - a plug and play wireless adapter that eliminates the need for software or difficult setup. Simply plug in the dongle and your presentation is ready to be displayed. And to top it off, the EB-L730U comes with an impressive 5-year/20,000-hour warranty.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 7000 ANSI Lumens
- 2,500,000:1 Contrast
- 8.4kg Weight
- 38 / 27db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr Laser Warranty
- Est. Laser Life up to 20,000hrs
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-50%, +50%)
- Horizontal Lens Shift (+/- 20%)
- 1.6x Zoom
- 2x HDMI Connection
- 1x HDMI Output
- 360° Projection
- Portrait Projection
- HDBaseT Compatible
- USB to laptop Connection
- Instant Off
- Miracast Wireless - Included
- Presentation Wireless - Optional
- Easy Wireless Sharing - Optional
Throw Distance Chart
(Throw Ratio: 1.35-2.20:1)
Image Size | Installation Distance |
---|---|
94" (16:10) 2025x1265mm | From 2.8m to 4.4m |
110" (16:10) 2370x1480mm | From 3.2m to 5.2m |
120" (16:10) 2585x1615mm | From 3.5m to 5.6m |
130" (16:10) 2800x1750mm | From 3.8m to 6.1m |
140" (16:10) 3015x1885mm | From 4.1m to 6.6m |
150" (16:10) 3230x2020mm | From 4.4m to 7.1m |
Key Features
- Laser Light Source – Experience astonishing quality and reliability
- Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
- NEW Powerful Brightness – Up to 7,000 Lumens colour brightness and 7,000 Lumens white brightness
- WUXGA High Definition Resolution – Enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
- Extraordinary sharpness and detail – Up to 2,500,000:1 dynamic contrast ratio
- Virtually Maintenance-free Operation – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours†;
- Bright and Compact – The flat, simplified design makes the EB-L730U an ideal fit for a range of environments, including modern offices and luxury interiors
- NEW Flexible Display Options and Sizes – Deliver impactful sessions with displays up to 450 inches in 16:6 wide aspect ratio
- NEW Wireless Screen Sharing – With optional ELPWP10 screen sharing device
- NEW Image Enhancement Features – Experience crisp images with super resolution and detail enhancement technology
- Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
- 360° Installation – Install on any plane, from horizontal to vertical and everything in-between
- Manual Lens Shift, Zoom and Focus– Up to ±50 percent vertical and ±20 percent horizontal manual lens shift
- HDBaseT– Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
- Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
-
5 Year Projector Warranty– A class leading 5 year warranty**
Laser Light Source
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.
7,000 ANSI Lumens!
Powered by 3LCD technology and Epson’s laser optical engine, the EB-L730U is capable of producing White Light and Colour Light Output of 7,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.
Custom brightness adjustment
The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level. This makes it easy to adjust the image to fit to your viewing environment and can also prolong projector life.
High Resolution with 4K input support
The Epson EB-L730U features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion. WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail. The EB-L730U can also receive a 4K input signal up to 4K/60Hz 4:2:0, ensuring high quality resolution for high quality content.
Scene adaptive gamma correction
The EB-L730U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.
Flexible display options and sizes
Deliver impactful sessions by displaying up to 500" in 16:9 aspect ratio or up to 450" with a 16:6 wide aspect ratio.
This flexibility allows for using the entirety of the screen surface for projection, or for switching between digital and analog working, which makes the room suitable for different working situations.
Super Resolution with Detail Enhancement
Get a crisper and sharper image with advanced image features on the EB-L700 Series. Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.
Scene adaptive gamma correction
The EB-L730U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.
ADVANCED INSTALLATION FEATURES
Manual Lens Shift, Zoom and Focus
The manual lens shift covers a wide range, offering a great deal of flexibility when installing the projector. *±50% vertically, ±20% horizontally for EB-L630U/L730U/L735U/L630SU/L635SU
HDBaseT and Diverse Connectivity
Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.
360 Degree Projection
The Epson EB-L730U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
Edge Blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
Point Correction
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.
Arc Correction
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.
Colour Uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.
Epson Projector Professional Tool (EPPT)
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.
Epson Projector Professional Tool x ELPEC01 support
Pair an ELPEC01 (Optional) external camera with the L730U projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.
Universal Ceiling Mounts
EB-L730U is compatible with ceiling mount ELPMB22. If you are already using ELMB23, simply attach the lower parts of ELMB22 to the EB-L730U projector. This eliminates the need for additional cable work or other construction.
EASY TO USE
Content Playback
The EB-L730U projectors have an in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epson’s dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.
- For instant content creation, the Epson Creative Projection App is available on iOS devices.
- For scheduling, the Epson Content Management software is available for planning and execution.
Epson Creative Projection App
With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be projected on the wall with the ability to edit and preview content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.
Epson Content Management Software
With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedule and register the shape filter settings gives you advanced control such as synchronised playback.
Key features of the software include:
- Creating playlists
- Adding visual effects
- Setting up remote shortcuts
- Applying custom filters
- Scheduling playlists
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
Collaborative Presenting
Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector.
You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image: another great tool for remote meeting setups.
Simple Control with Epson Projector Management software
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.
Wireless Screen Sharing with the optional ELPWP10 device
Content sharing from individual devices is a crucial element in today’s workspaces - and so too is the ability to see and collaborate with content on a large screen display. The EB-L730U paired with an ELPWP10 wireless device is the perfect solution for this, enabling more interactive presentations and increasing productivity in the meeting room.
The ELPWP10 connects any source device (such as a laptop) directly to a select range of Epson laser display solutions without the need for long cable connections, with users simply plugging the wireless transmitter into their laptop. Other mobile devices can also be connected using the Epson iProjection app. The ELPWP10 allows content to be displayed from four different devices simultaneously, making content sharing a seamless experience.
Miracast
Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast
Wireless LAN Enterprise security
WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so that projectors can connect to an integrated environment over a secure network.
5 Year Warranty**
Experience complete peace of mind with the 5 year warranty. This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.
What's in the Box
- Epson EB-L730U Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- HDBaseT HDMI Extender
- ELPAP10 Wifi Dongle
PRODUCT NAME | Epson EB-L730U |
PRODUCT CODE | V11HA25053 |
TECHNOLOGY | |
---|---|
Projection System | 3LCD |
LCD Panel | 0.67-inch |
IMAGE | |
Light Source | Laser Diode |
Resolution | WUXGA |
Colour Light Output | 7,000 Lumens |
White Light Output | 7,000 Lumens |
Native Aspect Ratio | 16:10 |
Contrast Ratio | 2,500,000:1 |
LD Input Power | 236 W |
Keystone Correction (Standard Lens) | Vertical: ±30° Horizontal ±30° |
Lens Shift (Standard Lens) | Vertical: ±50° Horizontal ±20° |
OPTICAL | |
Zoom | 1 - 1.6 (Optical) |
Screen Size (Standard Lens) | 50" to 500" |
Projection Distance (Standard Lens) | 80" screen 2.33 m - 3.78 m |
Throw Ratio | 1.35 (Zoom:Wide) 2.20 (Zoom:Tele) |
Projection Lens F Number | 1.5 - 1.7 |
Projection Lens Focal Length | 20.0mm - 31.8mm |
Focus Method | Manual |

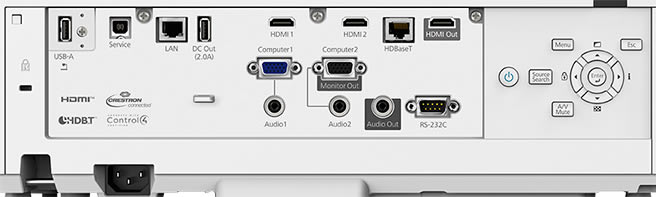

CONNECTIVITY | |
Input: Computer | 2 x D-sub 15-Pin (RGB) 1 x USB 2.0 type B |
Input: Digital | 2 x HDMI, 1 x HDBaseT |
Input: Audio | 2 x Stereo mini |
Control: I/O | 1 x RS-232C |
Network: I/O | 1 x RJ45, 1 x USB Type A (for optional ELPAP11*) |
HDBaseT | Yes |
Wireless Connectivity | Included |
Output: Video | 1 x D-sub 15-Pin (RGB) |
Output: Digital | 1 x HDMI |
Output: Audio | 1 x Stereo mini |
ADVANCED FEATURES | |
Built-in Speaker | 10W |
EPSON Projector Management (Network & Control) |
Yes |
EPSON iProjection (Multi-PC Projection) |
Yes |
EPSON Professional Tool | Yes |
EPSON Projector Content Manager | Yes |
Wireless LAN Enterprise Security | Yes |
Miracast | Yes |
4K Enhancement | – |
Lens Position Memory | – |
Split Screen | Yes |
Edge Blending | – |
Curved Screen Projection | – |
Frame Interpolation | – |
Super Resolution | Yes |
Detail Enhancement | Yes |
360 Degress Projection | Yes |
Content Playback | Yes |
Instant Off | Yes |
Direct Power On | Yes |
Security | Kensington®-style lock provision Wireless LAN Unit Lock Security cable hole |
Colour Modes | Dynamic Presentation Cinema sRGB DICOM SIM Multi-Projection |
GENERAL | |
Dimensions D x W x H (Including Feet) | 339 x 440 x 136 mm |
Weight | 8.4 Kg |
Power Consumption: LD On | 345 W |
Power Consumption: Standby | 2.0 W |
Noise Level (Normal/Eco) | 38 / 27 dB |
