Epson EB-685W Short Throw Projector
Wall Mount not included (Sold Separately)
The Epson EB-685W provides a budget-friendly option for large screen projections with a brightly detailed image. Its HD resolution is ideal for use in classrooms and meeting rooms, and its 3500 ANSI lumen brightness ensures clear viewing even in well-lit areas. With the ability to project up to a 100” image and the option for a wall mount, the EB-685W allows for effortless and tidy installation just above a screen or whiteboard.
Key Features & Specifications
- WXGA 1280x800 16:10
- 3500 ANSI Lumens
- 14,000:1 Contrast
- 5.7kg Weight
- 35 / 30db(eco) Fan Noise
- 2 Year Warranty
- 1 Year/750Hr lamp Warranty
- Est. Lamp Life up to 10,000hrs
- Vertical Keystone
- Horizontal Keystone
- Powerful 16W Speaker
- 3x HDMI Connections
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Optional
Throw Distance Chart (Throw Ratio: 0.48-0.65:1)
Image Size | Installation Distance |
---|---|
83" (16:10) 1790x1120mm | From 0.18m to 0.35m |
98" (16:10) 2110x1320mm | From 0.28m to 0.39m |
FEATURES:
- 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Bright Images – 3,500 lumens colour/white brightness
- Amazing images – WXGA resolution (1280 x 800) and 16:10 format
- Ultra-short throw presentation display – get a 100" image from as little as 28cm away with virtually no shadow interference
- Simultaneously display and control multiple device screens – wirelessly share content from up to four devices2, including Chromebooks, with Moderator software (requires optional wireless module)
- Manage your display and send announcements remotely – easy network connectivity; software included
- Versatile connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
- Powerful sound to engage every student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
- 10,000Hr maintenance cycle – the lamp and filter lasts up to 10,000 hours in ECO Mode
BASIC FUNCTIONS
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
Up to 3x Brighter with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
Brighter Images
With brightness up to 3,500 lumens, the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Readability from Anywhere in the room
Ensure every student in the classroom can easily read and understand the information you're sharing. Offering clear, easy-to-see images up to 100", Epson displays help students learn and retain information, regardless of where they sit.
Wide viewing angle
Clear images can be seen from any angle with no limitations of reflective glare. Projected images also allow you to get closer to the image without straining your eyes.
High Resolution
Featuring native resolution of WXGA (1280 x 800), the Epson EB-685W delivers high quality images and crisp, sharp text without any distortion.
WIRELESS CLASSROOMS
Epson iProjection™ via optional wireless dongle
Epson iProjection is the wireless display solution for today's BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, PCs and Mac® computers, as well as iOS and Android devices.
When used in conjunction with Epson Multi-PC projection plus Moderator device management software4, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It's the perfect tool for displaying a variety of content — or for comparing students' work side by side.
Networking features that take teaching to the next level
- Manage up to 1,024 Epson networked displays using the included EasyMP® Monitor software or Crestron RoomView® — saves time and money
- Update display firmware in-house via the network, a USB cable, or a USB flash drive — eliminates the need for external service centre repairs; saves time and money
- Send updates or announcements remotely to up to 1,024 Epson networked displays using the Message Broadcasting plug-in for EasyMP Monitor
- Connect your display to an access point to share it with the entire class, without running more cables
4Moderator feature is part of Easy MP Multi-PC Projection software
EASY INSTALLATION AND MAINTENANCE
Easy Setup Options
Epson displays offer a suite of innovative features that ensure flexible placement and fast, easy setup:
3x HDMI — supports multiple high-definition A/V devices. Compatible with the latest laptops, Blu-Ray Disc® and media players
MHL — the latest in connectivity
- Display content from your MHL-enabled smartphones, tablets and streaming devices
- Use the display remote to control MHL-enabled devices
- Charge your MHL-enabled device when it's plugged into the display5
- Offers instant access to movies, games and more
5Depending on your MHL device, charging may not be supported
Quick Corner® — this innovative feature allows you to move any of the four corners of an image independently, to adjust each corner for a perfectly rectangular picture
Advanced 3-in-1 USB Plug'n Play instant setup — instantly project audio and video from a PC or Mac via a USB connection
Quick, convenient control — Instant Off® means no cool-down time required; it's ready to shut down when you are
Copy menu settings for multiple display installations — save on installation time; copy settings via a USB flash drive, USB cable or LAN
Flexible wall mount (optional)
Easily install the display with convenient adjustments, color-coded dials and on-screen prompts. Wide cut-outs facilitate cable management.
10,000 Hour Maintenance cycle
The lamp and filter now share the same 10,000 hour replacement schedule when run in eco mode. This saves time and money by reducing the frequency of costly replacements.
Easily conserve power
Epson delivers a number of features aimed towards conserving power and delivering top performance:
- ECO Mode — operates the display in a lower brightness setting
- Light Optimizer Mode® — adjusts the lamp brightness, based on the projected image
- Auto Mode — sensor automatically adjusts the lamp brightness, based on the room environment
- Sleep Mode (A/V Mute) — control your presentation; it's right at your fingertips
- Direct Power Off/On — power the display on/off with the flip of a wall switch
- Standby audio — use the display's internal speakers or continue to pass audio out to an external speaker, even when the display is "off" (in Standby Mode)
What's in the Box
- Epson EB-685W Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Fixed Frame Projector Screen or Whiteboard
- Projector Wall Mount
PRODUCT NAME | EB-685W | ||
PRODUCT CODE | V11H744553 | ||
WHAT'S IN THE BOX | |||
---|---|---|---|
Main Unit | EB-685W Projector | ||
Power Cable | Yes 5M | ||
Remote Control | Yes | ||
Battery for Remote Control | AA x 2 | ||
Feet for main unit | Yes | ||
Password Protect sticker | Yes | ||
TECHNOLOGY | |||
Projection Technology | Epson 3LCD, 3-chip technology | ||
Projection System | RGB liquid crystal shutter projection system | ||
LCD Panel | 0.59-inch with (D9, C2 Fine) | ||
OPTICAL | |||
Zoom | 1 - 1.35 (Digital Zoom) | ||
Screen Size (Projection Distance) | 60.0" to 100.0" [35.4 to 60.1cm] 74.3" screen 44.3 cm |
||
Throw Ratio | 0.28 (Zoom:Wide), 0.37 (Zoom:Tele) | ||
Projection Lens Type | No Optical Zoom / Focus (Manual) | ||
Projection Lens F Number | 2.6 | ||
Projection Lens Focal Length | 3.7 mm | ||
Focus Method | Manual Focus | ||
Offset | 5.8:-2 | ||
IMAGE | |||
Colour Light Output | 3,500 Lumens | ||
White Light Output | 3,500 Lumens | ||
Resolution | WXGA | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | 14,000:1 | ||
Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees |
||
Colour Reproduction | Up to 1.07 billion colours | ||
Colour Processing | 10 bit | ||

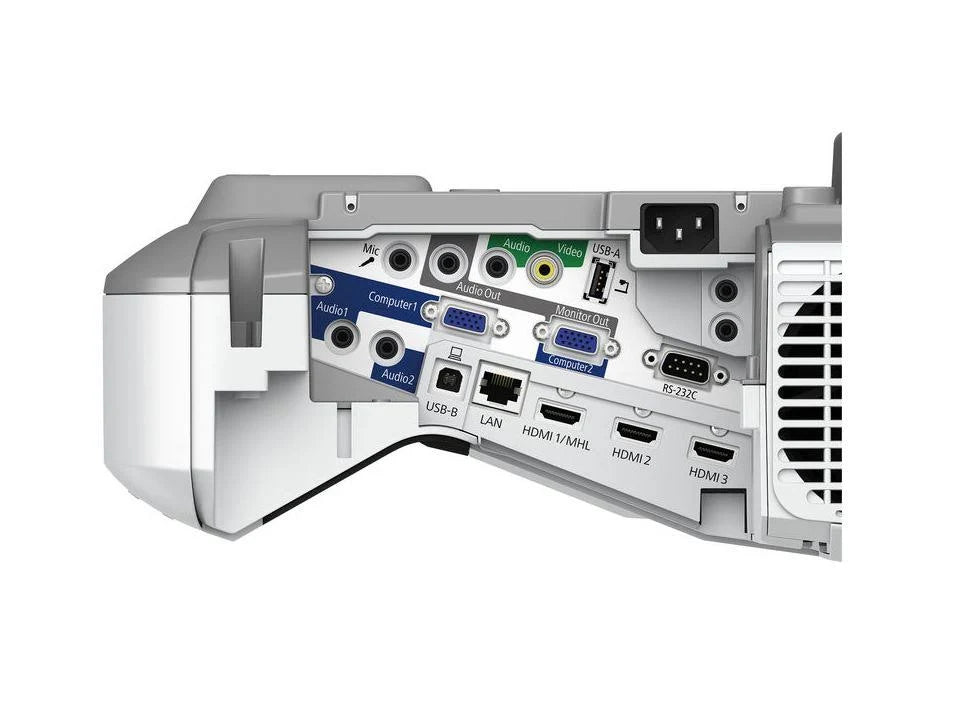

CONNECTIVITY | |||
Video I/O - Input | 2x RGB D-sub 15pin *Computer 2 in common with Monitor Out 1x RCA Composite |
||
Video I/O - Output | 1x RGB D-sub 15pin *Computer 2 in common with Monitor Out (Output signal : Computer 1 only) |
||
Digital Input | 3x HDMI (1 supports MHL) | ||
Audio I/O - Input | 3x Stereo mini | ||
Audio I/O - Output | 1x Stereo mini | ||
Mic I/O - Input | 1x Stereo mini | ||
Control I/O | 1x RS-232C D-sub 9pin | ||
USB I/O | 1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings) 1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
||
Network I/O: | 1x RJ45 (100Mbps) Wired LAN 1x USB Type A (for Optional ELPAP10 LAN unit) |
||
Wireless Connectivity | Optional ELPAP10 Wireless LAN unit | ||
Speaker Output | Monaural: 16 W x 1 | ||
ADVANCED FEATURES | |||
EasyMP Network Projector control and projector management via network | Yes | ||
AMX Device Discovery | Yes | ||
Crestron Integrated Partner | Yes | ||
Crestron RoomView | Yes | ||
Extron IP Link | Yes | ||
Control4 | Yes | ||
EasyMP Network Multi PC Projection | Yes | ||
Message Broadcasting | Yes | ||
Firmware update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | ||
Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | ||
Quick Wireless Connection | Yes | ||
Wireless LAN Security | WPA/WPA2-Personal (with optional Wireless LAN Unit) | ||
Instant Off | Yes | ||
Direct Power On | Yes | ||
Auto Power On | Yes (Computer1,USB-B) | ||
Security | * Kensington® - lock provision * Padlock & Security cable hole * Wireless LAN unit lock * Password protect function (Power On, Network, Protection of User logo) |
||
Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard | ||
Wall Mount | Optional (ELPMB46) | ||
GENERAL | |||
Dimensions D x W x H (excluding feet) | 367 x 400 x 149mm | ||
Weight | 5.7kg | ||
Lamp Warranty | 1 Year (or 750 hours)* | ||
Projector Warranty | 3 Years | ||
Lamp Hours | 5,000 hours (Normal), 10,000 hours (ECO) | ||
Lamp Type | 250W UHE | ||
Power Consumption: Lamp On | 354W (Normal), 309W (ECO) | ||
Power Consumption: Networked Standby | 2.3W | ||
Power Consumption: Energy Saving | 0.37W | ||
Air Filter maintenance cycle | up to 10,000 hours | ||
Noise Level | 35dB (Normal), 30dB (ECO) |
