Epson

Epson EB-1485Fi Interactive Ultra Short Throw Laser Projector

Epson EB-1485Fi Interactive Ultra Short Throw Laser Projector

SKU:EB-1485Fi

Regular price $4,499.00
Regular price Sale price $4,499.00
ON SALE! Sold out
Inc. GST

Found a better deal? Call us on 1300 739 131

View full details

Epson EB-1480Fi Interactive Ultra Short Throw Laser Projector with Wall Mount & Finger Touch

With multi point finger touch interactivity, the Epson EB-1485Fi projector is the perfect choice for creating a massive 2.2 metre wide iPad screen. This interactive projector includes interactive pens, a wall mount, and the ability to easily share or save presentations. Its edge blending feature allows for an immense projection when multiple projectors are installed side by side. Plus, with a long life laser that can last up to 20,000 hours and a 3 year warranty, the EB-1485Fi is an ideal companion for any high-tech training room or classroom setting.

Enhance collaboration, engagement, and knowledge sharing in your workplace with the versatile and scalable display of the EB-1485Fi Interactive Ultra Short Throw Laser Projector. Utilizing the latest connectivity options, this user-friendly projector is designed for effortless use and facilitates agile and collaborative work environments.


Key Features & Specifications

  • 1080p 1920x1080 16:9
  • 5000 ANSI Lumens
  • 2,500,000:1 Contrast
  • 9.7kg Weight
  • 36 / 27db(eco) Fan Noise
  • 3 Years / 20,000 hours Warranty
  • 3 Years / 20,000 hr Laser Warranty
  • Laser Life up to 20,000hrs
  • Vertical Keystone
  • Powerful 2x 8W Speaker
  • 3x HDMI Connections
  • Instant Off
  • HDBaseT Compatible
  • Presentation Wireless - Included
  • Miracast Wireless - Included
  • Edge Blending
  • Finger Touch Interactive
  • Pen Touch Interactive
  • Wall Mount Included

Throw Distance Chart (Throw Ratio: 0.27-0.37:1)

Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
82" (16:9) 1770x1035mm From 0.47m to 0.65m
92" (16:9) 2030x1140mm From 0.54m to 0.75m
100" (16:9) 2214x1245mm From 0.59m to 0.81m


FEATURES:

  • 3 x brighter colours and reliable performance1 – 3LCD, 3-Chip technology. Look for both high colour brightness and high white brightness
  • Reinvent your whiteboard – turn any wall or existing dry-erase board into a 100" interactive display for more efficient meetings and collaboration, in the room or across the globe
  • Break through laser technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Full HD* display up to 100" – for an optimal viewing experience and clear readability – over 2x as big as a 70" flat panel.
  • Touch–enabled interactivity – turn on the projector and start writing using your finger or the included pens.
  • Easy to use – just walk in, turn it on and start writing - no computer, software or training is required.
  • Capture, save and share – no need to transcribe meeting notes or snap a photo; easily save, print or email directly from your projector
  • Wireless device compatibility – wirelessly display documents, files and photos from your iPad®, iPhone®, and Android™ mobile devices with the Epson iProjection™ App.
  • Convenient HDMI–out connectivity – share content to a larger display, videoconferencing system or recording device.
  • Flexible display options and sizes – deliver impactful sessions with interactive displays up to 120 inches (16:6 standalone) or 155 inches as an edge blended image using two projectors

BASIC FUNCTIONS

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x brighter colours with Epson projectors*

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.

Laser light source

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the light burning out during important presentations.

Epson EB-1485Fi laser light

Big Screen

While conventional whiteboards and panels are limited to pre-determined height and width, the MeetingMate has no such constraints. Set the size of the interactive area to fit the available space in your meeting room.

Ultra short throw

An ultra-short-throw design eliminates many of the common problems of interactive systems, such as shadowing and eye glare. With an incredibly efficient throw ratio, this model allows you to project extra-large interactive images up to 100" in 16:9 and 120” in a 16:6 aspect ratio.

Full High Definition Content

Enjoy images in full HD resolution* and crisp, sharp text without any distortion. Easily read the fine print in applications such as Excel and Word. With the addition of super resolution and detail enhancement processing, images are near cinema quality.
*Pixel shifting technology achieves full HD resolution on screen

Epson EB-1485Fi Full Hd

Home screen

Get up and running in a snap with an intuitive, user-friendly home screen. Select the content source and easily access frequently-used functions such as the whiteboard tool, screen sharing and more.

EASY WIRELESS CONNECTION

Epson iProjection App

Wirelessly display content from your iOS or Android mobile device with the free Epson iProjection App and any nearby Epson interactive display with wireless or network capabilities1

  • Send files from your email or cloud storage account to the app, then project
  • Advance through PowerPoint® or Keynote® presentations (iOS only)
  • View Microsoft® Word documents or Excel® spreadsheets (iOS only)
  • Zoom in and out of PDFs (iOS and Android)
  • Project webpages and view brilliant, high-quality images
  • Control interactive display features with just a touch of your device screen
  • Easily pair your device with the interactive display via a QR code (available on select models)

Easy set up features

Including automated processes for screen and interactivity set up, the EB-1480Fi can be up and running within a matter of moments. The control pad also helps simplify the process with the addition of HDBaseT connectivity allowing a single cable to be run up to 60M to the projector.

Miracast and HDMI out

Sharing content within a meeting room has been made easier with a wider range of connectivity. Users can project their smartphone or tablet screens without a cable connection using Miracast. You also have the option of sharing your content with a second display via the HDMI output.

1To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model. Not all files and formats are supported. See www.epson.com.au for details.

SMARTER MEETINGS

Digital made easy, without a PC or software

Transform traditional dry-erase whiteboards, plain walls and even tables into digital surfaces. Just pick up the pen and start writing. Or, use your finger — touch-enabled interactivity — to draw, share and interact with intuitive and familiar gestures. Add pages, or insert shapes and images. When you’re done, share your notes via the email, print or save functions — all without a computer.

Epson EB-1485Fi smarter meetings

 Instant information sharing

Epson EB-1485Fi Instant Information sharing

Whiteboard mode allows you to output the meeting results on-site in the user’s preferred format. Time to perform tasks such as saving meeting data to PDF (on USB memory, Network), sending email, printing, and making meeting minutes has been shortened considerably. You can also reuse and edit data again from a previous whiteboard session that was saved to a USB memory or server.

Share notes via Email

Share meeting notes and content directly from your MeetingMate via email with up to 50 participants. Connect your projector to an active directory server and you can search names and email address.

Epson EB-1485Fi email

Easy to save notes to a PC

Simply connect to a PC via USB cable and you can save the meeting notes directly to your PC.

Epson EB-1485Fi save notes to pc

Output images to videoconferencing systems

You no longer need a flat-panel display for your videoconferencing needs. Connect your videoconferencing system to your MeetingMate projector and display an image as large as 100" (diagonal). Simultaneously display your videoconference on one side of the screen and additional content, such as a webpage or presentation, on the other side using the Split Screen feature (consult your user manual for input combinations).

 Epson EB-1485Fi Video Conferencing

Multi-PC Projection

Epson’s Multi-PC utility with Moderator device management software allows you to simultaneously display up to four devices on the screen over network (wired or wireless), with even more users connected to the same interactive display on Standby mode. The moderator can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side

Epson EB-1485Fi Multi PC Projection

INTERACTIVE FUNCTIONS

All on screen items can be rearranged and edited freely

Any image on the screen can be resized and moved as if it were an object. So even if there is no writing space on the screen, written contents can be shrunken down to make room for new annotations.

Epson EB-1485Fi interactive finger touch

Real-time drawing and PC operation

Connecting the projector to a PC via USB cable makes it possible to operate the PC mouse using the included interactive pen and even your finger.

Generate up to 20 pages

There’s no need to worry about running out of space when writing meeting notes or importing information on the Whiteboard.

What's in the Box

  • Epson EB-1485Fi Projector
  • Remote Control
  • Power Cord
  • USB Cable
  • 2 Interactive Pens
  • Finger Touch Unit
  • Wall Mount

What you may need

  • HDMI Cable
  • Fixed Frame Projector Screen or Whiteboard
Specifications
PRODUCT NAME EB-1485Fi
PRODUCT CODE V11H919053
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
Light Source Laser Diode
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.62-inch (C2fine)
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 65" to 100" [39.2cm to 61.3cm] @16:9
61" to 120" [39.5cm to 79.6cm] @16:6
Projection Distance Standard size: 80" screen 48.7cm
Throw Ratio 0.27 (Zoom:Wide) 0.37 (Zoom:Tele)
Projection Lens F Number 1.5
Projection Lens Focal Length 3.9 mm
Focus Method Manual Focus
Offset 8.68:-1
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution 1080P
Native Aspect Ratio 16:9
Contrast Ratio 2,500,000:1
Keystone Correction Vertical: -3 to +3 degrees
Quick Corner Yes
Auto Set Up Yes
Split Screen Yes
Edge Blending Yes
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit

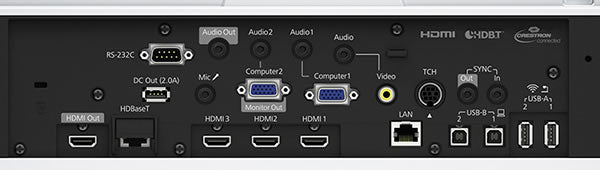

CONNECTIVITY
Input: Video 2x RGB D-sub 15pin
1x RCA Composite
Output: Video 1x RGB D-sub 15pin (shared)
Digital Input 3x HDMI , 1x HDBaseT
Digital Output 1x HDMI
Audio I/O - Input 3x Stereo mini
1x Mic-In Stereo Mini
Audio I/O - Output 1x Stereo mini
Control I/O 1x RS232C (D-sub 9 pin)
Interactive sync Stereo Mini - 1x In, 1x Out
Touch Unit Control - Mini DIN 8pin
USB I/O 2x Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD Settings)
1x TypeA DC Out (2.0A)
2x Type B (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
Touch Interactive Min DIN 8pin
Wireless Connectivity Built-in Miracast and Built-in Wireless
Optional Wireless LAN unit (ELPAP11)*
*With an optional ELPAP11, it is possible to use the Miracast and Wi-Fi function simultaneously (both simple AP mode and manual mode).
Speaker Output 2 x 8 W Stereo
ADVANCED FEATURES
Projector Management Software Yes
Partner Standards Crestron Integrated Partner, Crestron RoomView, Extron IP Link
AMX Device Discovery, Control4 Simple Device Discovery Protocol
Message Broadcasting Yes
Easy Interactive Tools Ver 5.00 (Windows/Mac OS)
Finger Interactive Unit Dimension: 422 x 40 x 65mm (WxHxD)
Weight: 600g
Technology: Infrared Laser (Class 1)
Adjustment: Auto
Control I/O: 1 x Mini DIN 8pin
Security: Kensington® - lock provision
PC Interactive Tool Multiple pen/finger support: Yes (with Easy Interactive Tools)
Easy Interactive Pen: Up to 2.
Finger: Up to 6.
PC Free Annotation Tool Multi-pen support: Yes
Easy Interactive Pen: Up to 2
Finger: Up to 6
Whiteboard function: (Pen up to 2, optional: up to 6)
Projector operation
Firmware Update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Wireless LAN Security WPA2/WPA3-PSK, WPA2/WPA3-EAP
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (HDMI1, Computer 1, USB Display)
Security Padlock & Security Cable Hole
Kensington® lock provision
Wireless LAN Unit Lock
Password protection
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard, DICOM SIM, Multi-Projection
Wall Mount Included (ELPMB62)
EXTERNAL CONTROL PAD
Dimensions WxDxH 174 x 36.5 x 201.8mm
Weight 0.6 kg
Buttons Power, HDMI 1, HDMI 2
Input 1 x USB Type A (Pass through for USB Document Camera, PC Free, Memory)
2 x USB Type B (for interactive)
2 x HDMI
Output 1 x USB Type B
1 x HDBaseT (RJ-45)
GENERAL
Dimensions WxDxH 458 x 209.5 x 375 mm
Weight Approx. 9.7 Kg
Projector Warranty 3 Years
Power Consumption 366 W (Normal)
262 W (Quiet)
Fan Noise Level 36 dB (Normal)
27 dB (Quiet)
WHAT'S IN THE BOX
Main Unit EB-1485Fi Projector
Control Pad Yes
Power Cable 1.8 m
USB Cable Cable 1.8 m
Remote Control Yes
Battery for Remote Control 2 x AA
Wall Mount ELPMB62
Easy Interactive Pen 2 Pens
Battery for Easy Interactive Pen 2 x AA
Pen Stand Yes
Pen Tip (Soft) x 4
Pen Tip (Hard) x 2
Pen Tip Holder Yes
Light Curtain Finger Touch Unit Yes - excludes wall mount
Corner markers for auto setup Yes
