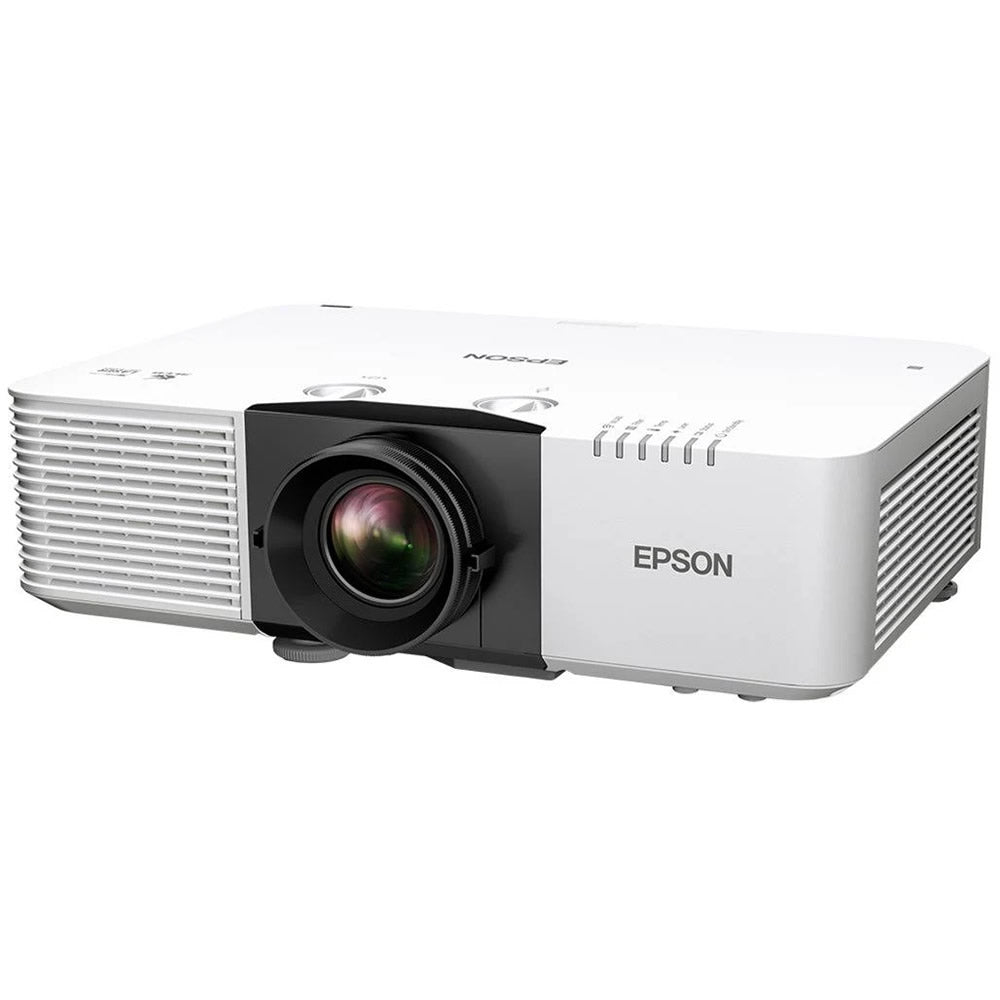

Epson EB-L890U Large Venue Laser Projector
The Epson EB-L890U delivers exceptional performance in demanding projection environments with its 8,000 ANSI lumens output, making it ideal for large venues and spaces with ambient light. This WUXGA laser projector excels where brightness is critical. For expanded capabilities, pair multiple units using the optional Epson blending and stacking camera to create seamless side-by-side displays or overlay projections, achieving up to 16,000 lumens—a cost-effective alternative to investing in a single ultra-high-brightness system.
Key Features & Specifications
- WUXGA 1920 x 1200
- 8000 ANSI Lumens
- 5,000,000:1 Contrast
- 8.5kg Weight
- 36 / 26db(eco) Fan Noise
- 5 Year/ 20,000hr Warranty
- 5 Year/ 20,000hr Laser Warranty
- Est. Laser Life up to 30,000hrs
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-50%, +50%)
- Horizontal Lens Shift (+/- 20%)
- 1.6x Zoom
- 2x HDMI Connection
- 360° Projection
- Portrait Projection
- HDBaseT Compatible
- USB to laptop Connection
- Instant Off
- Epson Presentation Wireless
- Miracast & Airplay Wireless
Throw Distance Chart
(Throw Ratio: 1.35-2.20:1)
| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | From 2.8m to 4.4m |
| 110" (16:10) 2370x1480mm | From 3.2m to 5.2m |
| 120" (16:10) 2585x1615mm | From 3.5m to 5.6m |
| 130" (16:10) 2800x1750mm | From 3.8m to 6.1m |
| 140" (16:10) 3015x1885mm | From 4.1m to 6.6m |
| 150" (16:10) 3230x2020mm | From 4.4m to 7.1m |
Key Features
- Up to 3x brighter colours, and reliable performance1 – 3LCD, 3-chip technology
- WUXGA high definition resolution – enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
- Amazing colour brightness – up to 8,000 lumens colour brightness and 8,000 lumens white brightness
- Large, versatile display options – easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
- Simplified installation – compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
- Split screen – project from two different image sources for flexible options in the workplace
- Wireless networking and content sharing – Wi-Fi® 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
- Built-in NFC – reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
- Virtually maintenance-free operation2 – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
- Enhanced connectivity – HDBaseT® and HDMI® two in and one out for daisy-chaining and signal monitoring
-
Up to 5 year projector warranty– enjoy peace of mind
Laser Light Source
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.
Brilliant images in any setting
Powered by 3LCD technology and Epson’s laser optical engine, the Epson L890U series is capable of producing white light and colour light output of 8,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.
Large image size
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500”, your audience can easily read and understand the information you’re sharing.
Super Resolution with Detail Enhancement
Get a crisper and sharper image with advanced image features on the EB-L700 Series. Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.
Scene adaptive gamma correction
The EB-L890U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.
ADVANCED INSTALLATION FEATURES
Manual Lens Shift, Zoom and Focus
The manual lens shift covers a wide range, offering a great deal of flexibility when installing the projector.
HDBaseT and Diverse Connectivity
Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.
NFC functionality
NFC functionality enables communication with smart devices even when the projector is switched off and can be configured and checked easily from the Epson Projector Config Tool on a smart device. This means initial configuration can be carried out at the warehouse before transportation, reducing the work hours needed for installation and helping to reduce adjustment time when multiple projectors are being installed.
360 Degree Projection
The Epson L890U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.
Compact design
Weighing around 9 kg, the Epson L890U series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation.
Edge Blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
Point Correction
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.
Colour Uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.
Epson Projector Professional Tool (EPPT)
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.
Epson Projector Professional Tool x ELPEC01 support
Pair an ELPEC01 (Optional) external camera with the L890U projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.
Universal Ceiling Mounts
The Epson L890U supports the software Epson Projector Management Connected, which provides a range of monitoring, notification and control functions for the projector.
EASY TO USE
Content Playback
The EB-L890U projectors have an in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epson’s dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.
- For instant content creation, the Epson Creative Projection App is available on iOS devices.
- For scheduling, the Epson Content Management software is available for planning and execution.
Epson Creative Projection App
With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be projected on the wall with the ability to edit and preview content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.
Epson Content Management Software
With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedule and register the shape filter settings gives you advanced control such as synchronised playback.
Key features of the software include:
- Creating playlists
- Adding visual effects
- Setting up remote shortcuts
- Applying custom filters
- Scheduling playlists
DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
Simple Control with Epson Projector Management software
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.
Epson iProjection
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your mobile device.
Miracast
Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast
Airplay3
Sharing information has been made easier with Apple Airplay. Stream high quality video from your iPhone or iPad with no cable. Apple Airplay has screen mirroring feature from your iPhone or iPad or Mac.
This feature can make Apple user connect to Epson projector without cable.
5 Year Warranty
Experience complete peace of mind with the 5 year warranty. This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.
What's in the Box
- Epson EB-L890U Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- HDBaseT HDMI Extender
| PRODUCT NAME | Epson EB-L890U | ||
| PRODUCT CODE | V11HB27053 | ||
| TECHNOLOGY | |||
|---|---|---|---|
| Projection System | 3LCD | ||
| LCD Panel | 0.67-inch | ||
| Light Source | Laser Diode | ||
| IMAGE | |||
| Colour Light Output | 8,000 Lumens | ||
| White Light Output | 8,000 Lumens | ||
| ECO Mode Light Output | 5,600 Lumens | ||
| Resolution | WUXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 5,000,000:1 | ||
| Colour Reproduction | Up to 1.07 billion colours | ||
| Colour Processing | 10 bit | ||
| OPTICAL | |||
| Zoom | 1 - 1.6 (optical zoom) | ||
| Screen Size | 50" to 500" [1.44 m to 14.76 m] | ||
| Projection Distance | 80" screen 2.33 m - 3.78 m | ||
| Throw Ratio | 1.35 (Zoom: Wide) 2.20 (Zoom: Tele) |
||
| Projection Lens F Number | 1.5 - 1.7 | ||
| Projection Lens Focal Length | 20.0 mm - 31.8 mm | ||
| Focus Method | Manual | ||
| CONNECTIVITY | |||
| Input: Digital | 2 x HDMI, 1 x HDBaseT | ||
| Control: I/O | 1 x RS-232C | ||
| Network: I/O | 1 x RJ45 | ||
| HDBaseT | Yes | ||
| Wireless Connectivity | Built-in | ||
| Output: Video | 1 x HDMI | ||
| Output: Audio | 1 x Stereo mini | ||
| ADVANCED FEATURES | |||
| Built-in Speaker | 10W | ||
| EPSON Projector Management (Network & Control) | Yes | ||
| EPSON iProjection (Multi-PC Projection) | Yes | ||
| EPSON Projector Professional Tool | Yes | ||
| EPSON Projector Content Manager | Yes | ||
| ELPEC01 external camera functionality | Yes | ||
| Scene Adaptive Gamma | Yes | ||
| Wireless LAN Enterprise Security | Yes | ||
| NFC | Yes | ||
| Airplay | Yes | ||
| Miracast | Yes | ||
| Split Screen | Yes | ||
| Edge Blending | Yes | ||
| Detail Enhancement | Yes | ||
| 360 Degress Projection | Yes | ||
| Content Playback | Yes | ||
| Instant Off | Yes | ||
| Direct Power On | Yes | ||
| Security | Kensington® - style lock provision Wireless LAN Unit Lock Padlock & security cable hole |
||
| Colour Modes | Dynamic Presentation Cinema BT.709 Natural DICOM SIM Multi-Projection |
||
| GENERAL | |||
| Dimensions D x W x H (Including Feet) | 340 x 440 x 138 mm | ||
| Weight | Approx. 8.5 kg | ||
| Warranty | 5 years | ||
| Power Consumption (Normal/Energy Saving): | 450 W / 0.4 W | ||
| Noise Level | Normal / Eco: 36 dB / 26 dB | ||
