Epson EB-L790SU 7,000lm LCD WUXGA Short Throw Laser Projector

Epson EB-L790SU Large Venue Short Throw Laser Projector

The Epson EB-L790SU delivers exceptional performance for demanding projection environments with its 7,000-lumen laser light source and short throw optical design. This WUXGA projector maximizes installation flexibility through integrated zoom and optical lens shift capabilities, enabling precise positioning even in space-constrained venues. The laser-based illumination system eliminates frequent lamp replacements, reducing operational costs and downtime significantly. Built for professional reliability, it's protected by a comprehensive 5-year warranty covering 20,000 hours of operation, making it an investment-grade solution for corporate, educational, and large-venue applications.

Key Features & Specifications

• WUXGA 1920 x 1200
• 7000 ANSI Lumens
• 5,000,000:1 Contrast
• 9.2kg Weight
• 36 / 26db(eco) Fan Noise
• 5 Year/ 20,000hr Warranty
• 5 Year/ 20,000hr Laser Warranty
• Est. Laser Life up to 30,000hrs
• Horizontal & Vertical Keystone
• Vertical Lens Shift (-50%, +50%)
• Horizontal Lens Shift (+/- 20%)
• 1.7x Zoom
• 2x HDMI Connection
• 360° Projection
• Portrait Projection
• HDBaseT Compatible
• USB to laptop Connection
• Instant Off
• Epson Presentation Wireless
• Miracast & Airplay Wireless


Throw Distance Chart
(Throw Ratio: 0.80-1.36:1)

Experience ultra bright and compact projectors with pro‑level features.

An updated fleet of projectors that are designed to fit within many environments including meeting rooms, classrooms, immersive experiences, and golf simulators.

Key Features

• Up to 3x brighter colours, and reliable performance1 – 3LCD, 3-chip technology
• WUXGA high definition resolution – enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
• Amazing colour brightness – up to 7,000 lumens colour brightness and 7,000 lumens white brightness
• Large, versatile display options – easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
• Simplified installation – compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
• Split screen – project from two different image sources for flexible options in the workplace
• Wireless networking and content sharing – Wi-Fi® 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
• Built-in NFC – reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
• Virtually maintenance-free operation2 – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
• Enhanced connectivity – HDBaseT® and HDMI® two in and one out for daisy-chaining and signal monitoring
• Up to 5 year projector warranty– enjoy peace of mind


Laser Light Source

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum.

Brilliant images in any setting

Powered by 3LCD technology and Epson’s laser optical engine, the Epson L790SU series is capable of producing white light and colour light output of 8,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.

Large image size

While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500”, your audience can easily read and understand the information you’re sharing.

Super Resolution with Detail Enhancement

Get a crisper and sharper image with advanced image features on the EB-L700 Series. Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

ADVANCED INSTALLATION FEATURES

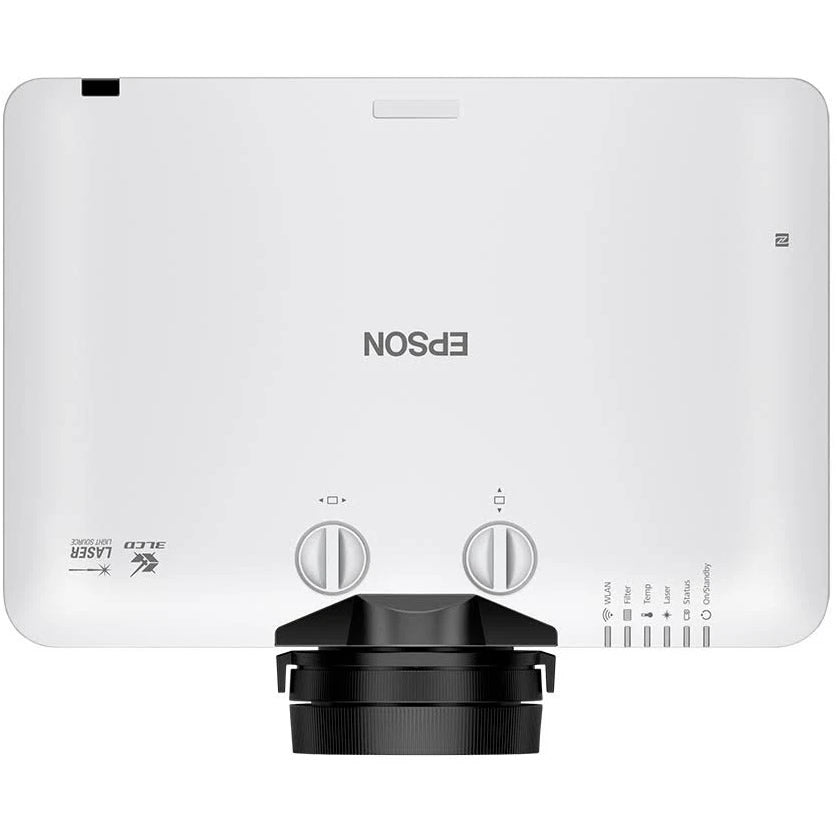

Manual Lens Shift, Zoom and Focus

The manual lens shift covers a wide range, offering a great deal of flexibility when installing the projector.

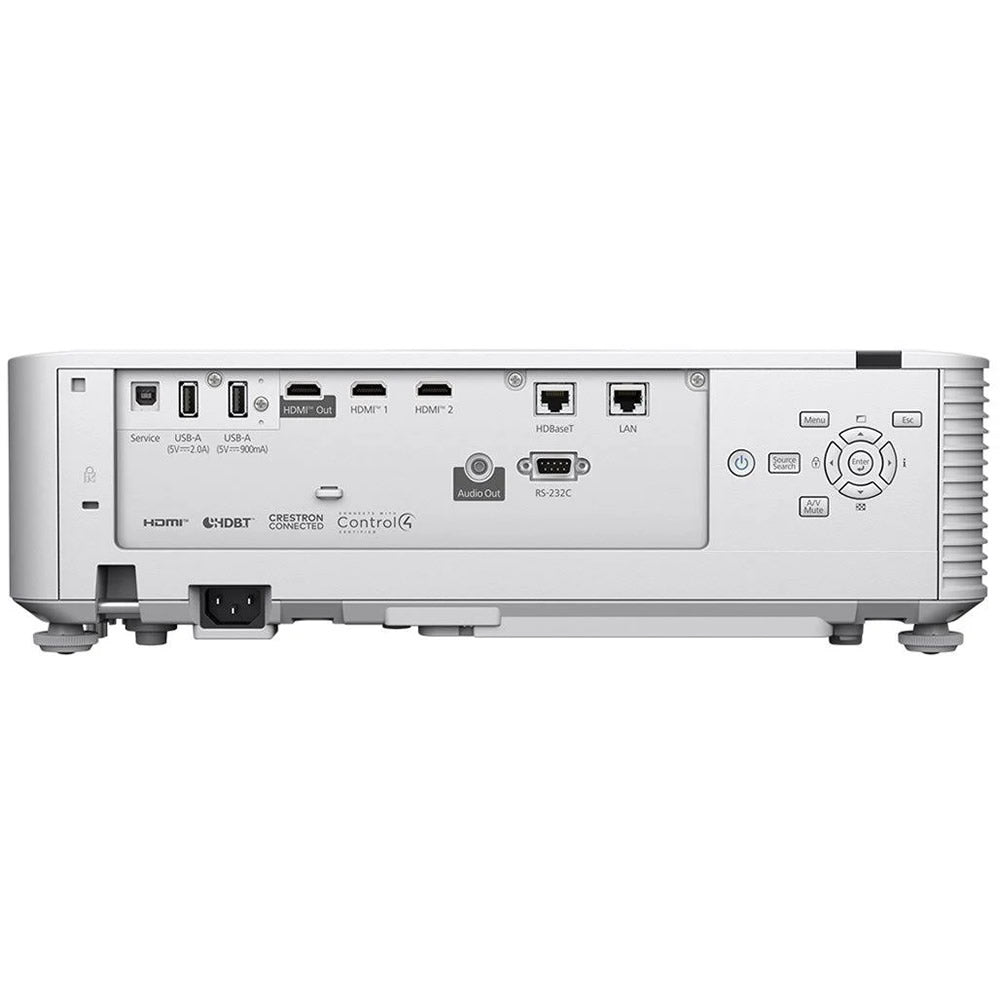

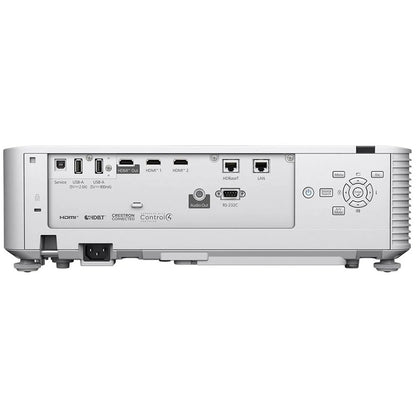

HDBaseT and Diverse Connectivity

Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree Projection

The Epson L790SU can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Compact design

Weighing around 9 kg, the Epson L790SU series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation.

Edge Blending

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Colour Uniformity

Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.

Epson Projector Professional Tool (EPPT)

Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

Epson Projector Professional Tool x ELPEC01 support

Pair an ELPEC01 (Optional) external camera with the L790SU projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.
