Epson EB-FH54 Flexible Full HD Multimedia Projector
The Epson EB-FH54 is more than just a projector—it's a robust and adaptable solution ideal for meeting rooms, classrooms, or home theaters. With 4100 ANSI lumens of brightness, it produces clear, vibrant images even in brightly lit environments, eliminating the need to dim lights or close curtains. Featuring Full HD (1080p) resolution, it delivers sharp details and rich colors, enhancing the clarity and impact of your presentations and media.
Key Features & Specifications
- 1080p 1920x1080 16:9
- 4100 Lumens
- 16,000:1 Contrast
- 3.1kg Weight
- 37/28db(eco) Fan Noise
- 2 Year Warranty
- 1 Year/750Hr lamp Warranty
- Est. Lamp Life up to 12,000hrs
- Horizontal & Vertical Keystone
- USB to laptop Connection
- Powerful 16W Speaker
- 1.6x Zoom
- 2x HDMI Connections
- USB reader (JPEG, GIF, BMP, AVI)
- Instant Off
- Presentation Wireless - Included
- Miracast Wireless - Included
- Airplay Wireless - Included
Throw Distance Chart
(Throw Ratio: 1.32-2.14:1)
Image Size | Installation Distance |
---|---|
92" (16:9) 2030x1140mm | From 2.7m to 4.3m |
100" (16:9) 2214x1245mm | From 3.0m to 4.7m |
110" (16:9) 2435x1370mm | From 3.3m to 5.2m |
120" (16:9) 2657x1494mm | From 3.5m to 5.6m |
135" (16:9) 2990x1681mm | From 4.0m to 6.3m |
150" (16:9) 3320x1867mm | From 4.4m to 7.1m |
KEY FEATURES:
- Up to 3x brighter colours and reliable performance1 – 3LCD, 3-chip technology
- Brilliant images – up to Full HD resolution for sharp, widescreen images
- Amazing colour brightness – up to 4,100 lumens colour brightness and 4,100 lumens white brightness
- Miracast support – project your smartphone or tablet screens without a cable connection
- Airplay support – project your Mac OS laptop or iOS mobile device screens without a cable connection
- Ultra-portable – weighing in at only 3.1kg for easy travel between home and the office
- Captivating sound – enjoy a built-in stereo speaker up to 16 W for life-like sound
- Wireless LAN enterprise security – connect projectors in a secure wireless network environment
- Simple set-up – auto vertical correction and easy-slide horizontal image correction to help get up and running in no time
- Low cost of ownership – long-life, cost efficient lamps and a high efficiency filter extends the life of your projector and allows for hassle free maintenance
- Easy to use – a simple welcome guide and easy-to-use remote puts all the most commonly used functions right at your fingertips
- Auto power on – simply plug-in a HDMI, USB cable to turn the projector on
- Up to 2 year projector warranty – enjoy peace of mind
1080p Full high definition
Full HD resolution (1920 x 1080) ensures high quality images and crisp, sharp text without any distortion. Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever-increasing image quality and higher definition.

Brilliant images in any setting
With both colour and white brightness up to 4,100 lumens, the EB-FH54 series makes it easy to enjoy brilliant content in any setting, even well-lit rooms. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 16,000:1 contrast ratio.
Large Image Size
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 304", your audience can easily read and understand the information you’re sharing.

Large Image Size
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 320”, your audience can easily read and understand the information you’re sharing.
Travel Light
Weighing in at only 3.1kg, these projectors are perfect for being carried from room-to-room around the office. The switch between home and work has never been more convenient.
Flexible Positioning
Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and Easy-Slide horizontal image correction. Additionally, optical zoom up to 1 - 1.62x enables you to adjust the image easily and quickly, even in a limited space.

Wireless LAN Enterprise security
WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so that projectors can connect to an integrated environment over a secure network.
Epson iProjection
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your mobile device.
Miracast
Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
*Laptops or mobile devices must support Miracast.
Airplay3
Sharing information has been made easier with Apple Airplay. Stream high quality video from your iPhone or iPad with no cable. Apple Airplay has screen mirroring feature from your iPhone or iPad or Mac.
This feature can make Apple user connect to Epson projector without cable.
Quick, Convenient Control
Enjoy fast set-up with the Auto Power On function, as the projector startup is activated via USB, or HDMI cable insertion. Slide the lens shutter closed at any time and the projector will go into A/V mute (sleep mode) so you can stop and start your presentations when needed. Then, with Instant Off, simply remove the power cord of the projector, pack up and go.
Long-lasting solution
With this model's long-lasting lamp light source, you can enjoy a big screen experience for up to 18 years*
PC Free Presentations With USB Media Reader
Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portability. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details.
Simple Set-up
An easy-to-use home screen offers quick access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made effortlessly because all the information you need is right there on the screen.
Powerful 16W Speaker
A powerful 16W speaker delivers clear sound to every corner of the classroom or meeting room, saving money by eliminating the need for additional speakers.
What's in the Box
- Epson EB-FH54 Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- Carry Bag
PRODUCT NAME | EB-FH54 | ||
PRODUCT CODE | V11HB59053 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | 3LCD | ||
LCD Panel | 0.62-inch | ||
IMAGE | |||
Light Source | Lamp | ||
Resolution | FULL HD | ||
Colour Light Output | 4,100 Lumens | ||
White Light Output | 4,100 Lumens | ||
ECO Mode Light Output | 2,300 Lumens | ||
Native Aspect Ratio | 16:9 | ||
Contrast Ratio | 16,000:1 | ||
Colour Reproduction | Up to 16.77 million colors | ||
Colour Processing | 8 Bit | ||
OPTICAL | |||
Zoom | 1 - 1.62 (optical) | ||
Screen Size (Standard Lens) | 31" to 304" | ||
Projection Distance (Standard Lens) | 60" screen 1.73 m – 2.80 m | ||
Throw Ratio | 1.30 (Zoom: Wide) 2.09 (Zoom: Tele) |
||
Projection Lens F Number | 1.51 – 1.77 | ||
Projection Lens Focal Length | 18.2 mm – 29.1 mm | ||
Focus Method | Manual | ||
CONNECTIVITY | |||

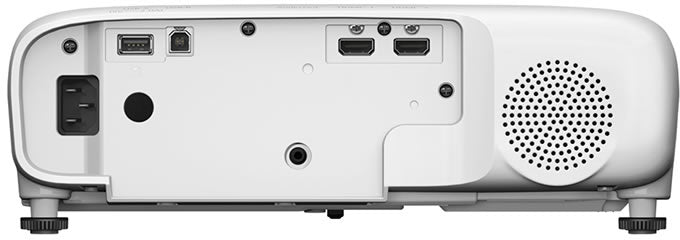

Interfaces | 2 x HDMI 1 x USB type A 1 x USB type B for firmware update 1 x stereo mini (audio out) |
||
ADVANCED FEATURES | |||
Built-in Speaker | 16 W | ||
Wireless | Built-in | ||
Epson Projector Management (Network & Control) | Yes | ||
Epson iProjection (Multi-PC Projection) | Yes | ||
Miracast | Yes | ||
Airplay | Yes | ||
Keystone correction | Vertical: - 30 to + 30 degrees (Auto) Horizontal: - 30 to + 30 degrees (Manual) |
||
Horizontal slide keystone correction | Yes | ||
Instant off | Yes | ||
Direct power on | Yes | ||
Security | Kensington – style lock provision & padlock | ||
Colour modes | Dynamic, Presentation, Cinema, sRGB, Blackboard | ||
GENERAL | |||
Dimensions W x D x H (Including Feet) | 309 x 282 x 90 mm | ||
Weight | 3.1kg | ||
Projector Warranty | 2 Years | ||
Power consumption (normal / energy saving): | 231 W / 0.3 W | ||
Noise Level (Normal/Eco) | 37 / 28 dB |
