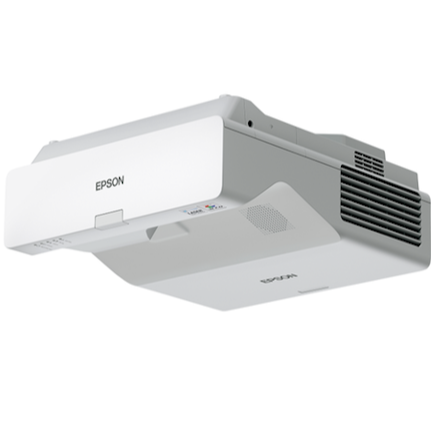

Epson EB-770F Ultra Short Throw Laser Projector

Epson EB-770F Ultra Short Throw Laser Projector


Regular price $3,299.00
Regular price Sale price $3,299.00
ON SALE! Sold out
Inc. GST

Found a better deal? Call us on 1300 739 131

View full details

Epson EB-770F Ultra Short Throw Laser Projector

Wall Mount not included (Sold Separately)

The Epson EB-770F Projector is capable of producing a bright and detailed image, making it ideal for use in classrooms and meeting rooms. It boasts a high brightness of 4100 ANSI Lumens, allowing it to easily handle well-lit environments. Additionally, its long-lasting laser light source eliminates the need for frequent lamp changes or technician maintenance. Featuring Miracast wireless technology and three HDMI ports, the EB-770F offers convenient connectivity options. Its edge blending feature also allows for creating a video wall. With a projection size of up to 150 inches, this ultra short throw projector offers versatility and impressive capabilities.

Key Features & Specifications

  • 1080p 1920x1080 16:9
  • 4100 ANSI Lumens
  • 2,500,000:1 Contrast
  • 5.9kg Weight
  • 37 / 27db(eco) Fan Noise
  • 3 Years / 20,000 hours Warranty
  • 3 Years / 20,000 hr Laser Warranty
  • Laser Life up to 20,000hrs
  • Horizontal & Vertical Keystone
  • Powerful 16W Speaker
  • Edge Blending
  • 3x HDMI Connections
  • LAN, RS-232, Audio Out
  • USB to laptop Connection
  • Instant Off
  • Presentation Wireless - Included
  • Miracast Compatible

Throw Distance Chart
(Throw Ratio: 0.25-0.35:1)

Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm From 0.51m to 0.71m
100" (16:9) 2214x1245mm From 0.56m to 0.77m
110" (16:9) 2435x1370mm From 0.61m to 0.85m
120" (16:9) 2657x1494mm From 0.67m to 0.92m
135" (16:9) 2990x1681mm From 0.75m to 1.04m
150" (16:9) 3320x1867mm From 0.83m to 1.16m


  • Up to 3x brighter colours and reliable performance1 – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
  • Lamp-free laser light source – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • 1080p resolution – for Full HD presentations, videos, images, digital signage and more
  • Amazing colour brightness – up to 4,100 lumens colour brightness and 4,100 lumens white brightness
  • Miracast support – project your smartphone or tablet screens without a cable connection
  • Large image size – displays large true-to-life images up to 150" in a convenient ultra short throw design
  • Flexible display – 16:9 display with additional support for ultra wide 16:6 and 21:9 formats; ideal for large, multi-device, split screen images
  • Captivating sound – enjoy a built-in stereo speaker up to 16 W for life-like sound
  • Simple set-up – easily project wall-sized images — built-in edge blending features for easy, scalable projection Up to 3-year projector warranty – enjoy peace of mind

Epson EB-770F Lamp Free
Epson EB-L770F large images

Flexible display

16:9 display with additional support for ultra wide 16:6 and 21:9 format is ideal for large, multi-device, split screen images.

Epson EB-770F Flexible display

Easily project wall-sized images

Built-in edge blending and split screen features for easy, scalable projection

Epson EB-770F Wall Sized Images

Connect and cast from up to 50 devices

Free downloadable Epson iProjection software makes it easy to cast wirelessly from Chromebooks, iOS and Android devices, Mac computers or PCs. Never lose control of displayed content with the moderator feature.

1. Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.

2. 20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 3 years.

3. Consult your user manual for Split Screen input combinations.

What's in the Box

  • Epson EB-770F Projector
  • Remote Control
  • Power Cord

What you may need

  • HDMI Cable
  • Fixed Frame Projector Screen or Whiteboard
  • Projector Wall Mount
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.62-inch (C2fine)
Resolution 1080p
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 60" to 150" [32.5 cm to 89.3 cm] @16:9
57" to 142" [39.4 cm to 85.3 cm] @21:9
Projection Distance 77" screen at 43.3 cm
Throw Ratio 0.25 (Zoom:Wide) - 0.35 (Zoom:Tele)
Projection Lens F Number 1.6
Projection Lens Focal Length 3.7mm
Focus Method Manual Focus
Offset 5.2 : -1
Colour Light Output 4,100 Lumens
White Light Output 4,100 Lumens
Native Aspect Ratio 16:9
Contrast Ratio 2,500,000:1
Light Source Laser diode
Hours Normal Mode: Up to 20,000 hours
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Quick Corner Yes (Manual)
Auto Setup Yes
Refresh Rate 192 Hz / 240 Hz
Video I/O - Input 2 x RGB D-sub 15-pin
1x RCA Composite
Video I/O - Output 1 x RGB D-sub 15-pin (shared)
Digital Input 3 x HDMI
Audio I/O - Input 3 x Stereo mini
1 x Mic-In Stereo Mini
Audio I/O - Output 1 x Stereo mini
Control I/O 1 x RS232C (D-sub 9-pin)
USB I/O 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1)
1 x Type B (Firmware update, Copy OSD Settings, USB display)
Network I/O: 1 x RJ45, 1 x USB Type A for optional wireless LAN2
Wireless Connectivity Included
Speaker Output 16W
Miracast Yes
Super Resolution Yes
Detail Enhancement Yes
Scene Adaptive Gamma Correction Yes
Edge Blending Yes
Partner Standards Crestron Integrated Partner, Crestron Connected, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Wireless LAN Security WPA2/WPA3-PSK, WPA2/WPA3-EAP
Instant Off Yes
Direct Power On Yes
Auto Power On Yes
Security Padlock and security cable hole
Kensington® lock provision
Wireless LAN Unit Lock
Password protection
Colour Modes Dynamic
Wall Mount Optional (ELPMB62)
Epson Projection Management Software Yes
Ver 5.43 (Windows)
Epson iProjection Software Yes
Ver 3.32 (Windows)
Ver 3.31 (mac OS)
Ver 3.3.1 (iOS/Android)
Ver 2.1.0 (Chrome)
Firmware Update Network via LAN cable,
Network via Wireless LAN,
USB A via USB thumb drive,
USB B via USB cable
Copy OSD settings Network via LAN cable,
USB A via USB thumb drive,
USB B via USB cable
Epson Projector Content Manager Ver 1.201 (Windows)
Ver 1.21 (mac OS)
Epson Creative Projection Ver 1.0.4 (iOS)
Dimensions D x W x H (including feet) 395 x 357 x 165 mm
Weight 5.9 kg
Projector Warranty 3 Years
Power Consumption: Projector on 263 W
Power Consumption: Standby 2.0W
Noise Level 37dB/27dB
Main Unit EB-770F Projector
Power Cable 1.8 m
Remote Control Yes
Battery for Remote Control 2 x AA
Projector Feet Yes
Quick Start Guide Yes
