Epson EB-2250U Corporate Multimedia Projector
The Epson EB-2250U is a powerful projector that delivers an impressive 5000 lumens brightness, making it ideal for well-lit environments and large display sizes. It boasts multiple input options, including two HDMI ports, a VGA port, USB, and composite, with the added option for wireless connectivity. Its WUXGA resolution provides outstanding detail, perfect for presentations with small text or HD videos. Additionally, the projector offers convenient installation flexibility with its 1.6x zoom lens and 2D Keystone correction. With a lamp life of up to 10,000 hours and an affordable replacement lamp priced at $149, the EB-2250U is a cost-effective choice for any setting.
Key Features & Specifications
- WUXGA 1920x1200 16:10
- 5000 ANSI Lumens
- 15,000:1 Contrast
- 4.8kg Weight
- 39 / 29db(eco) Fan Noise
- 3 Year Warranty
- 1 Year/750Hr lamp Warranty
- Est. Lamp Life up to 10,000hrs
- Horizontal & Vertical Keystone
- Powerful 16W Speaker
- 1.6x Zoom
- 2x HDMI Connections
- USB to laptop Connection
- USB reader (JPEG, GIF, BMP, AVI)
- Instant Off
- Presentation Wireless - Optional
Throw Distance Chart
(Throw Ratio: 1.38-2.28:1)
Image Size | Installation Distance |
---|---|
94" (16:10) 2025x1265mm | From 2.8m to 4.6m |
110" (16:10) 2370x1480mm | From 3.3m to 5.4m |
120" (16:10) 2585x1615mm | From 3.6m to 5.8m |
130" (16:10) 2800x1750mm | From 3.9m to 6.3m |
140" (16:10) 3015x1885mm | From 4.2m to 6.8m |
150" (16:10) 3230x2020mm | From 4.5m to 7.3m |
FEATURES:
Key Features
- 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution – WUXGA image resolution (1920 x 1200)
- Versatile Connectivity – Easily integrate with any system with HDMI and MHL
- Endless Wireless Functionality – Optional Wi-Fi,
- Gesture Presenter – Simply move your hand in front of the presentation
- Split Screen – simultaneously project two images, video or still, side by side, from two different sources
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
- Remote Network Monitoring and Control – Plus Message Broadcasting and built-in schedule functions with EasyMP® software / Multi-PC Projection
Brilliant high definition image up to 300"
If you are after a sharp full HD picture the EB-2250U offers a solution perfect for high detail presentations. With a WUXGA native resolution (1920x1200) the EB-2250U has been made to handle everything from a basic PowerPoint to 3D CAD drawings, internet movies and Blurays. Designed to connect with all the latest devices from tablets, laptops to PC’s and even smartphones the EB-2250U is perfect for a wide variety of applications.
High brightness
Although the EB-2250U has a reasonably compact design and light weight of 4.8kg it truly pack a punch with a massive 5000 lumens brightness and 15,000:1 contrast ratio. This makes it perfect for a variety of uses everything from backyard theatre to large venues with light on to even halls and churches where the lighting conditions are not ideal.
Epson iProjection App (Optional wireless upgrade Required)
If you add on the optional wireless dongle the EB-2250U can also use the Epson iProjection app. This free to download app can work on Android devices as well as iPhone and iPad allowing you to present content and control it wirelessly from your smart device without having to travel with a laptop.
Auto V/H keystone and screen fit
Auto horizontal and vertical keystone allows you to setup more quickly if the projector is being used as a mobile unit. With a press of one button the EB-2250U can adjust the projection angles to square up the image and fit the borders of a screen.
Auto power on feature
The EB-2250U also offer auto power on to stream line turning the projector on. As soon as it detects a signal from VGA*, HDMI* or USB the EB-2250U will turn on saving you time booting the projector separately.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only
Gesture presentation
Present smarter with newly added ‘gesture presentation’ function. Simply move your hand in front of the arrows, and make your presentation more engaging and realistic with the audience.
Split Screen
The EB-2250U also offers split screen making it possible to present from two sources on the one screen. You could even present a video and a presentation simultaneously or two video’s.
New home screen
The EB-2250U comes with a new home screen giving you all the information on the input sources at a glance. It even show up wireless setup information without having to go through a menu system.
EasyMP Multi-PC projection
The EB-2250U can use the Epson EasyMP Multi PC Projection application which allows you to connect to up to 50 computers. The moderator can then select up to 4 computers to present their screen while maintaining control.
EasyMP Monitor
With EasyMP Monitor, Epson's network monitoring and control software, a single PC can see which projectors are available and if they are running efficiently, even across the biggest of networks. This series can be configured remotely, with instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector's serial number can also be accessed remotely via LAN/serial connection.
Wireless LAN Enterprise security (For Optional Wireless)
The EB-2250U projector now includes ‘WPA-Enterprise security' mode to connect in robust integrated network environment; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols.
PC Free Presentations With USB Meadia Reader
Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portabilty. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details.
Longer lamp life
The EB-2250U features a revolutionary lamp making it perfect for heavy use installations. With a 5,000 hour lamp life on high brightness mode and 10,000 on economic the EB-2250U doesn’t require replacements regularly. On top of that the lamp id prices at only $149rrp so they are cheap to replace.
What's in the Box
- Epson EB-2250U Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- Carry Bag
- ELPAP10 Wifi Dongle
PRODUCT NAME | Epson EB-2250U |
PRODUCT CODE | V11H871053 |
EAN | 9314020623752 |
TECHNOLOGY | |
---|---|
Projection System | Epson 3LCD, 3-chip technology |
LCD Panel | 0.67-inch panel |
OPTICAL | |
Zoom | 1-1.6 (Optical Zoom) |
Screen Size | 50" to 300" [1.46m to 8.95m] (Zoom: Wide) 50" to 300" [2.43m to 14.79m] (Zoom: Tele) |
Projection Distance | 80" screen 2.36m - 3.92m |
Throw Ratio | 1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
Projection Lens F Number | 1.5 - 2.0 |
Projection Lens Focal Length | 23mm - 38.4mm |
Focus Method | Manual Focus |
Offset | 10:1 |
IMAGE | |
Colour Light Output | 5,000 Lumens |
White Light Output | 5,000 Lumens |
Resolution | WUXGA |
Native Aspect Ratio | 16:10 |
Contrast Ratio | 15,000:1 |
Lamp Hours | Normal/Eco: 5,000/10,000 Hours |
Lamp Type | 300W UHE |
Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |

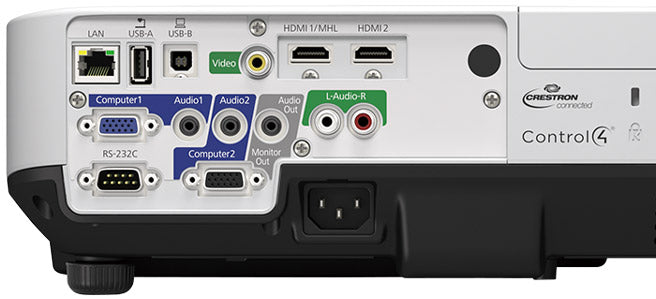

CONNECTIVITY | |
Input: Video | 1 x RCA (Yellow) |
Input: Computer | 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
Input: USB Memory Device | 1 x USB Type A |
Input: Three-In-One USB Display | 1 x USB 2.0 type B |
Input: Digital | 2 x HDMI (1 x MHL) |
Input: Audio | 1 x RCA (Red/White), 2 x Stereo mini jack |
Input: Control | 1 x USB 2.0 type B, 1 x RS232C |
Input : HDBaseT | NA |
Input: Epson USB Document Camera | 1 x USB 2.0 type A |
Network I/O: | 1 x RJ45 (100Mbps) |
Wireless Connectivity | Optional |
WiDI/Miracast | NA |
Output: Video | 1 x D-sub 15 pin (black moulding) |
Output: Audio | 1 x Stereo mini jack |
Speaker Output | 16W |
ADVANCED FEATURES | |
EasyMP Network & Control | Yes |
EasyMP Network Projection | Yes |
PC Free Presentations | Yes |
USB Plug 'n Play | Yes |
AV Mute Slide | Yes |
Instant Off | Yes |
Auto Power On | Yes |
Direct Power On/Off | Yes |
Security | Padlock & Security Cable Hole Kensington®-style lock provision Wireless LAN Unit Lock Password protect function |
Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM |
GENERAL | |
Dimensions D x W x H (excluding feet) | 291 x 377 x 110 mm |
Weight | 4.8kg (approximate) |
Compatible lamp model | ELPLP95 (New) |
Lamp Warranty | 12 months or 750 hours* |
Projector Warranty | 3 Years |
Power Consumption: Lamp on | Normal/Eco: 420/350W |
Power Consumption: Standby | 0.5W (communication off) |
Noise Level | Normal/Eco: 39/29dB |
