Elite VMAXT110XWH3 110 Inch 16:9 Tab Tensioned Motorised Screen

Elite VMAXT110XWH3 110 Inch 16:9 Tab Tensioned Motorised Screen


Regular price $1,439.00
Regular price Sale price $1,439.00
ON SALE! Sold out
Inc. GST

Found a better deal? Call us on 1300 739 131

View full details

Elite Screens VMAXT110XWH3 110" 16:9 Tab Tensioned Motorised Screen with White Casing

The Elite Screens VMAX Tab-Tension 3 is an electric projector screen featuring a stylish, curved white casing that complements any décor, and its flush mounting option creates a seamless, streamlined look. Its tab-tensioning system keeps the screen perfectly flat for crisp visuals, and it's compatible with a wide range of projectors including short-throw models. Additionally, the CineWhite material is ISF-certified for brilliant colour accuracy in low-light environments.

Its elegant white arc-shaped housing allows it to be flush mounted on a wall and includes a pair of brackets for flush ceiling installation. Full control kit included to operate the screen right out of the box for a true plug and play solution.

Image Area (excluding border) : 2510x1370mm
Case Length : 2781mm
Weight: 13.8kg
2 Years
Case Colour: White

*International model shown in video, minor variations are possible in Australian models.

Screen Material

  • CineWhite® ISF matte white flexible front projection 1.1 gain material for light controlled environments
  • Wide diffusion uniformity allows viewers to see a clear bright picture from any seating position
  • Top/Bottom black masking borders format the image and absorb projector overshoot while enhancing visual contrast
  • Compatible with Ultra, Short, and Standard Throw Projectors
  • ISF Certified for Accurate Color Reproduction – An Industry Standard for High-Fidelity Video Display Systems
  • Mildew resistant and easy to clean with mild soap and water
  • Available in various diagonal sizes and aspect ratios

Control System

  • Integrated Radio Frequency (RF) and Infrared (IR) receivers with remote controls included
  • Detachable 3-way wall switch keypad for manual UP/STOP/DOWN operation
  • IR “eye” extended sensor for concealed installations but require Infrared signal
  • Wireless 5-12-volt trigger enables drop/rise operation to synchronize with the projector’s power cycle

Design and Installation

  • Durable arc-shaped white enameled housing is moisture resistant
  • Versatile flush wall or ceiling installation options to suit your environment and application

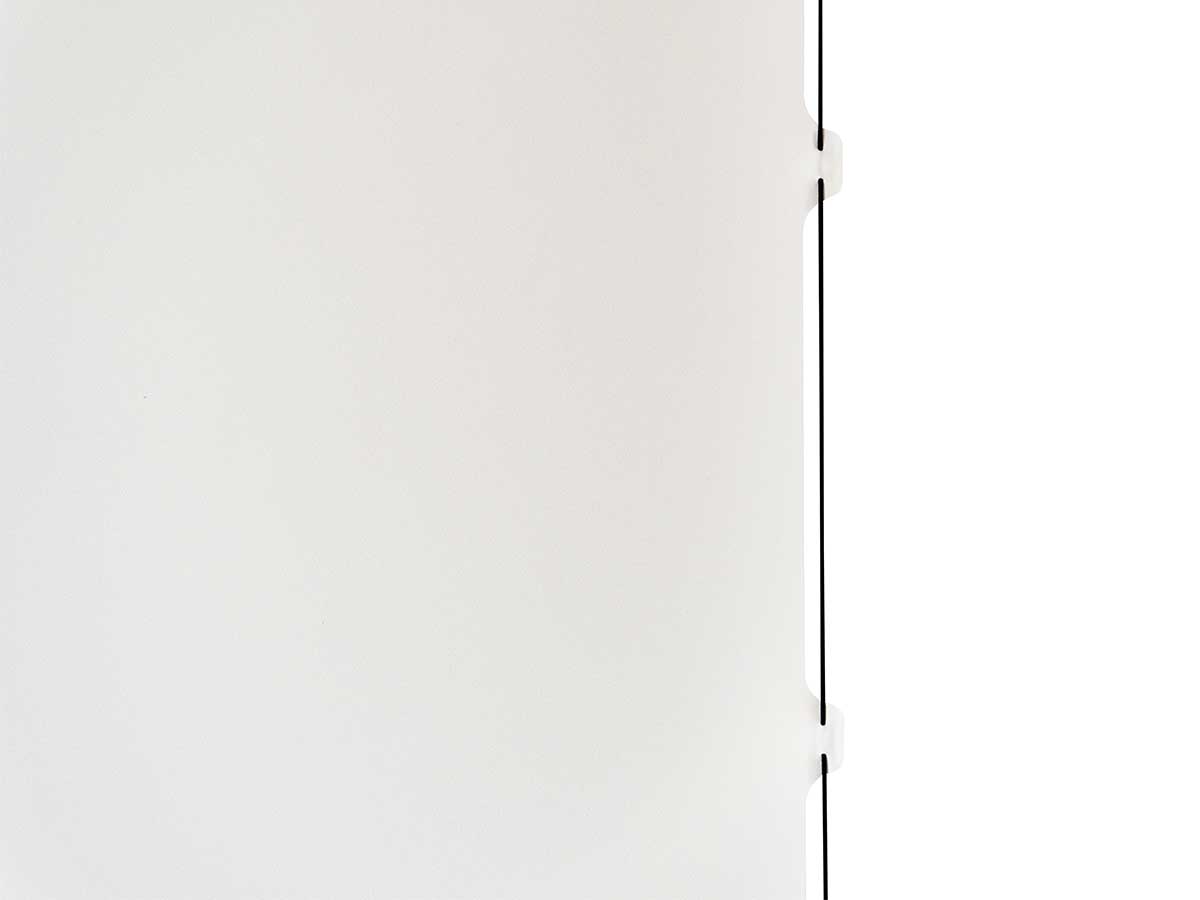

  • Tab-tension design helps maintain a flat, taut projection surface that is ripple-free
  • Ships fully assembled with standard 3-prong power connection ready to plug and play
  • Optional 6” & 12” extension brackets available - sold separately

Quality and Reliability

  • Fast acting tubular motor with superior weight tolerance
  • 2-year premium warranty
  • Lifetime Tech Support by Elite Screens Professional Service Team through Email or Phone



(mm) + or - 1%

Elite VMAX Tab Tensioned Motorised Screen Diagram


Model Size View W x H (A1 x B1) Bar Length (A3) Case Length (A) Total Height (B) Bottom Masking (B3) Top Masking (B5) End Cap Width (C2) End Cap Height (B5)
VMAXT100XWH3 100" (16:9) 2289x1245mm 2460mm 2560mm 1592mm 60mm 152mm 97mm 122mm
VMAXT110XWH3 110" (16:9) 2510x1370mm 2681mm 2781mm 1716mm 60mm 152mm 97mm 122mm
VMAXT120XWH3 120" (16:9) 2732x1494mm 2903mm 3003mm 1841mm 60mm 152mm 97mm 122mm
VMAXT135XWH3 135" (16:9) 3064x1681mm 3235mm 3335mm 2028mm 60mm 152mm 97mm 122mm
