Elite M120NWV 120" 4:3 Manual Pull Down Screen with White Casing
Elite's Manual Series projection screens provide a flawless solution for creating a professional projection system in your home, business, or classroom.
M120NWV
Image Area (excluding border) : 2438x1829mm
Case Length : 2598mm
Warranty: 2 Years
Case Colour: White
The Elite manual series offers a top-tier projection surface at an affordable price. Its advanced features include an automatic locking mechanism for customizable height settings, black masking borders, and wide diffusion consistency. It also comes with a convenient lanyard for easy operation and a cutting-edge end cap design that caters to both wall and ceiling installations. Sizes range from 71" to 170" and are compatible with overhead projectors (1:1), commercial PCs (4:3), WXGA (16:10), and home theater aspect ratios (16:9). Choose from white or black metal casings to suit your training facility or home media room. Rest assured knowing this product comes with a professional-grade 2-year manufacturer's warranty.
Inform, Educate, or Entertain.

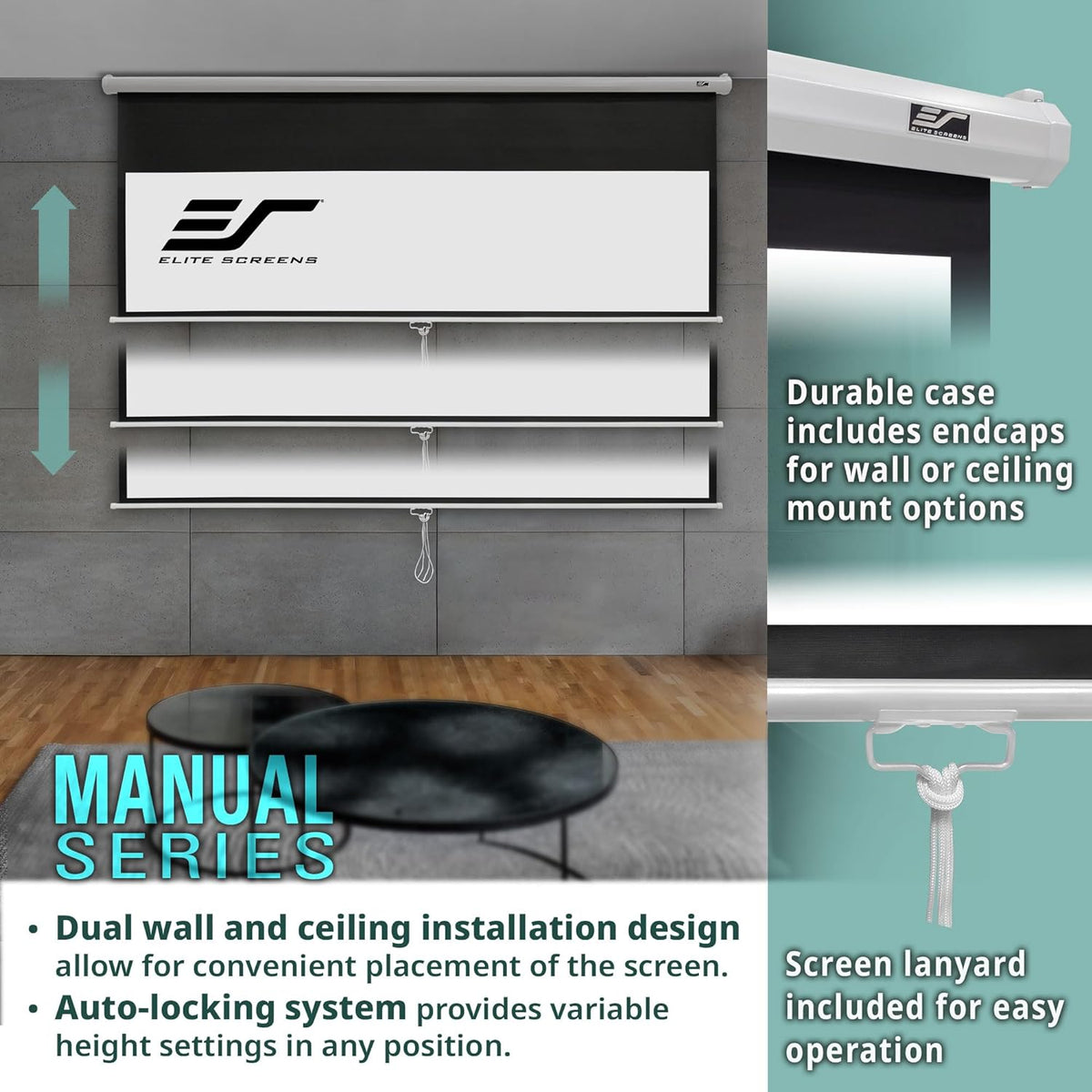

- Mount your screen on either the wall or ceiling and retract it to save space.
- Equipped with Elite's 1.1 gain MaxWhite tensioned screen material gives wide viewing angles, so no one needs to miss out on the action.
- Eliminates unwanted light penetration with Elite's standard black backing.
- Surrounded by 4 sides of black masking to functionally absorb excess light overspray given off by many projectors.
- Watch the game on the big screen within minutes. The Manual series is a cinch to install.
- Auto-Locking mechanism provides its user with variable height settings.

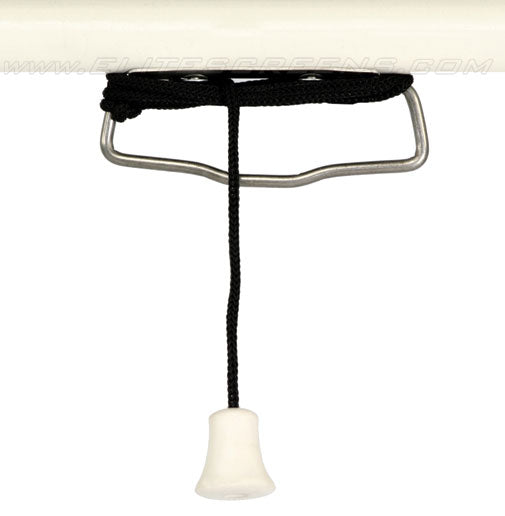

- Screen lanyard helps in situations where the screen is situated in elevated locations.
- Impress your friends and family with sizes from 71" to 170" in 1:1, 4:3, 16:9 and 16:10 aspect ratios.
- 2-year parts and labor premium warranty
MaxWhite screen material is the most versatile screen surface for front projection presentations. This material provides the widest possible viewer angles with perfect diffusion uniformity while giving precise definition, image color reproduction and black & white contrast. Screen surface has black-backing to avoid light penetration and can be cleaned safely with mild soap and water. Woven screen material is a multi-layer, cross-array coated with a matte white reflective compound.
- 1.1 gain with 160 degree wide viewing angle
- Surface can be easily cleaned with mild soap and water
- GREENGUARD® Indoor Air Quality and GREENGUARD® Children & Schools Certified
- Constructed of a multi-layer weave and textured surface coating
- Black masking on all sides to absorb unwanted overspray
Specifications
(mm) + or - 1%
Model | Image W (A1) | Image H (B1) | Screen Width (A2) | Leader (B2) | Case Width (A) | Total Height (B) | Case Height (B5) | Case Depth (C) |
---|---|---|---|---|---|---|---|---|
M71XWS1 | 1275 | 1275 | 1351 | 114 | 1432 | 1533 | 82 | 69 |
M85XWS1 | 1527 | 1527 | 1603 | 114 | 1686 | 1785 | 82 | 69 |
M99NWS1 | 1778 | 1778 | 1854 | 76 | 1938 | 2008 | 92 | 80 |
M113NWS1 | 2030 | 2030 | 2106 | 114 | 2192 | 2298 | 92 | 80 |
M119XWS1 | 2137 | 2137 | 2213 | 101 | 2294 | 2392 | 92 | 80 |
M170XWS1 | 3053 | 3053 | 3129 | 114 | 3212 | 3334 | 105 | 88 |
M84NWV | 1707 | 1280 | 1783 | 76 | 1867 | 1490 | 82 | 69 |
M100NWV1 | 2032 | 1524 | 2088 | 114 | 2166 | 1782 | 82 | 69 |
M120XWV2 | 2438 | 1829 | 2514 | 114 | 2598 | 2097 | 92 | 80 |
M135XWV2 | 2743 | 2057 | 2819 | 114 | 2953 | 2338 | 105 | 88 |
M150XWV2 | 3048 | 2286 | 3124 | 114 | 3248 | 2567 | 105 | 88 |
M84UWH | 1860 | 1046 | 1936 | 114 | 2014 | 1304 | 82 | 69 |
M92XWH | 2037 | 1146 | 2093 | 114 | 2166 | 1404 | 82 | 69 |
M100XWH | 2214 | 1245 | 2290 | 114 | 2374 | 1513 | 92 | 80 |
M120XWH2 | 2657 | 1494 | 2733 | 114 | 2816 | 1762 | 92 | 80 |
M135XWH2 | 2989 | 1681 | 3065 | 114 | 3148 | 1962 | 105 | 88 |
M150XWH2 | 3321 | 1868 | 3397 | 114 | 3484 | 2149 | 105 | 88 |
M86NWX | 1852 | 1158 | 1928 | 114 | 2014 | 1416 | 82 | 69 |
M94NWX | 2025 | 1265 | 2101 | 114 | 2185 | 1523 | 82 | 69 |
M109NWX | 2348 | 1467 | 2424 | 101 | 2506 | 1735 | 92 | 80 |
M128NWX | 2757 | 1723 | 2833 | 114 | 2917 | 1991 | 92 | 80 |
M139NWX | 2994 | 1871 | 3070 | 114 | 3148 | 2139 | 92 | 80 |
