Elite Screens FT70XWH 70" 16:9 Scissor Lift Pull Up Projector Screen with Side Tensioning

The Elite Screens ezCinema Tab-Tension is a portable projection screen designed for use on the go, featuring a tab-tension system for easy setup. Its "scissor-backed" mechanism allows for swift pulling up and retracting without the need for extra tools or effort. Encased in a compact box, this matte white screen has a wide viewing angle and is masked on all four sides, offering enhanced aesthetics and visual contrast. With a black backing to prevent light penetration, the tab-tension design makes it compatible with short-throw projectors and ensures a flat surface for optimal image fidelity.

FT70XWH
Image Area (excluding border) : 1540x860mm
Case Length : 2010mm
Weight: 15.0kg
Warranty: 2 Years

Features

  • MaxWhite® 2 (matte white) 1.1 Gain front projection material
  • Wide viewing angle allows viewers to see a clear picture with equal brightness over a full 180° angle.
  • ISF Certified for accurate color reproduction
  • Black masking borders absorb projector overshoot while enhancing visual contrast
  • Active 3D, 4K Ultra HD, and HDR ready
  • Compatible with Short and Standard Throw Projectors Only
  • Black material backing reduces light penetration for enhanced image brightness

Design and Operation

  • Easy to transport and set up for traveling presentations (carrying bag included)
  • Lightweight yet durable aluminum casing protects the screen during transport & storage
  • Tab-tension design keeps screen material flat for short throw projector presentations
  • Folding handle enables a quick and swift pull-up operation
  • Scissor-backed design permits screen to deploy and retract effortlessly
  • Rotating base feet provide added stability

What's in the Box?

  • 1x ezCinema Tab Tensioned Screen
  • 1x User Manual
  • 1x Carry Bag

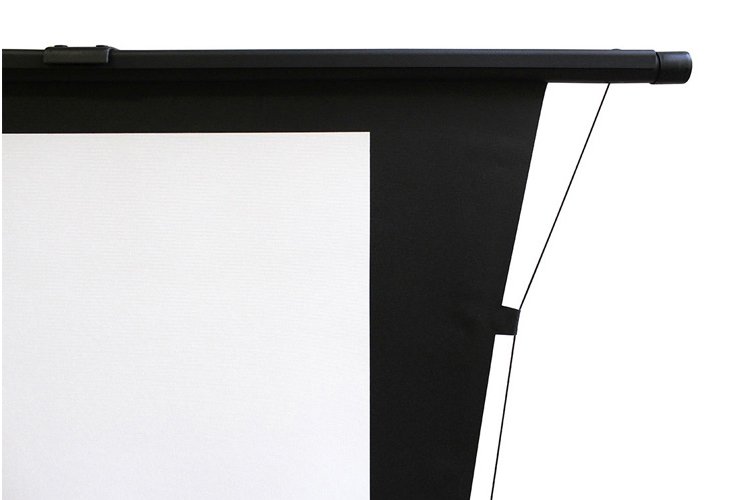

Elite EzCinema Tab Tensioned pull up screen



Specifications

(mm) + or - 1%

*Sizes may vary slightly between batches.

Elite Screens tab tensioned pull up screen specifications diagram



Model Nominal Diagonal Viewable Width (A1) Viewable Height (A2) Case Length (C1) Carry Bag Length (E3) Leader (B3) Overall Height (C3) D1 D2
FT74XWV 74" 1500mm 1130mm 1960mm 1974mm 1050mm 2320mm 30mm 160mm
FT80XWV 80" 1630mm 1220mm 2090mm 2104mm 1070mm 2430mm 30mm 130mm
FT84XWV 84" 1710mm 1280mm 2190mm 2204mm 1050mm 2470mm 30mm 140mm
FT90XWV 90" 1830mm 1370mm 2290mm 2304mm 920mm 2430mm 30mm 135mm
FT100XWV 100" 2030mm 1520mm 2540mm 2554mm 900mm 2560mm 30mm 125mm

FT70XWH 70" 1550mm 870mm 2010mm 2024mm 1090mm 2210mm 30mm 135mm
FT74XWH 74" 1640mm 920mm 2100mm 2114mm 1090mm 2260mm 30mm 125mm
FT80XWH 80" 1770mm 1000mm 2230mm 2244mm 1040mm 2180mm 30mm 130mm
FT90XWH 90" 1990mm 1120mm 2450mm 2464mm 1090mm 2460mm 30mm 145mm
FT92XWH 92" 2040mm 1150mm 2500mm 2514mm 1060mm 2460mm 30mm 120mm
FT100XWH 100" 2210mm 1240mm 2670mm 2684mm 1030mm 2520mm 30mm 125mm
