Elite ER135WH2 SableFrame 135 Inch 16:9 Fixed Frame Screen
Suitable for all projector types
ER135WH2
Diagonal Size: 135" 16:9
Image Area (excluding frame): 2990x1680mm
Total Size: 3110x1800mm
Warranty: 2 Years
The Elite ER135WH2 SableFrame is a fixed frame screen designed specifically for modern home cinema 1080p and 4K projectors. Simple assembly and quick installation make it a convenient choice. Its sleek 6cm aluminum frame, covered in black velvet, not only adds elegance to your wall but also minimises any excess light from the projector to improve image quality. With adjustable fix plates for even tension and sliding wall mounts for precise centering, this screen provides the ultimate viewing experience.
Screen Material:
- Award winning Home Theater Screen with full tension uniformity
- Outstanding picture quality at any viewing angle with no compromise in resolution or brightness
- CineWhite 1.1 Gain flat tensioned material
- Standard black backing eliminates light penetration
- Wide viewing angle with excellent diffusion uniformity
- Active 3D and 4K Ultra HD Ready
Frame and Installation:

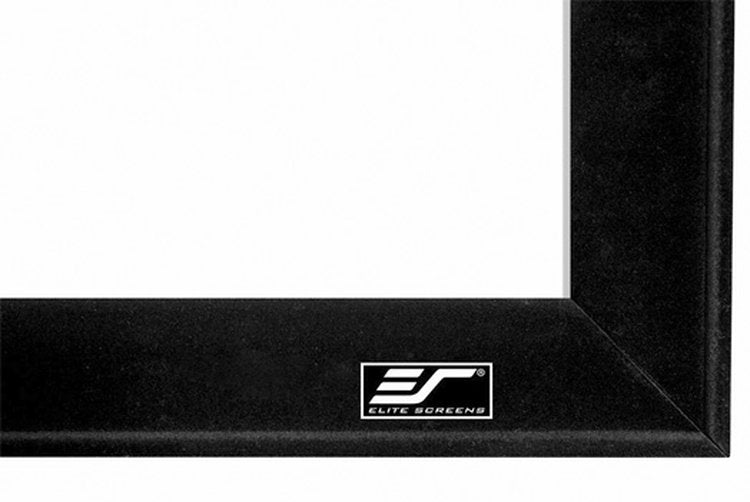

- 60mm width frame and is velvet coated
- Split-frame design facilitates lower shipping costs without sacrificing quality
- Easy to assemble and install in minutes
- Wall brackets allow screen to slide horizontally for properly centered
Installation:
- Installation kit includes: Wood screws & anchors, Wall Brackets, Screwdriver, Mallet
Quality and Reliability:
- Standard 2-year parts and labor warranty
- ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
- GREENGUARD Indoor Air Quality and GREENGUARD Children & Schools Certified
Elite Screens are certified for safe use indoors by the GREENGUARD Environmental Institute, which certifies products with low chemical emissions. Children & School certification means that Elite Screens are ideal for use in schools, as well as other education, military, and religious environments.
CineWhite Material:
CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite's tensions screen product lines. This tension PVC surface is the best choice for today's high-contrast ratio projectors in commercial or residential presentations. The CineWhite material equals the performance to the Elite Screen MaxWhite product, but improves the experience with the superior surface flatness. Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.
*International model shown in video, minor variations are possible in Australian models.
Elite Screens SableFrame Specifications
Model | Size | View W x H(A x B) | Frame Width (C) | Frame Depth (D) | Distance between Top & Bottom Mounts (D1) |
---|---|---|---|---|---|
ER92WH2 | 92" (16:9) | 2037x1145mm | 60mm | 40mm | 1210mm |
ER100WH2 | 100" (16:9) | 2214x1245mm | 60mm | 40mm | 1310mm |
ER106WH2 | 106" (16:9) | 2347x1320mm | 60mm | 40mm | 1385mm |
ER110WH2 | 110" (16:9) | 2435x1370mm | 60mm | 40mm | 1435mm |
ER120WH2 | 120" (16:9) | 2657x1494mm | 60mm | 40mm | 1559mm |
ER135WH2 | 135" (16:9) | 2990x1680mm | 60mm | 40mm | 1745mm |
ER150WH2 | 150" (16:9) | 3320x1870mm | 60mm | 40mm | 1935mm |
ER180WH2 | 180" (16:9) | 3985x2240mm | 60mm | 40mm | 2305mm |
ER200WH2 | 200" (16:9) | 4430x2490mm | 60mm | 40mm | 2555mm |
ER100WX1 | 100" (16:10) | 2152x1346mm | 60mm | 40mm | N/A |
ER120WX1 | 120" (16:10) | 2585x1615mm | 60mm | 40mm | N/A |
