Elite Screens

Elite ELECTRIC150H 150 Inch 16:9 Motorised Screen

Elite ELECTRIC150H 150 Inch 16:9 Motorised Screen

SKU:ELECTRIC150H

Regular price $1,589.00
Regular price Sale price $1,589.00
ON SALE! Sold out
Inc. GST

Found a better deal? Request a Price Match Here!

View full details

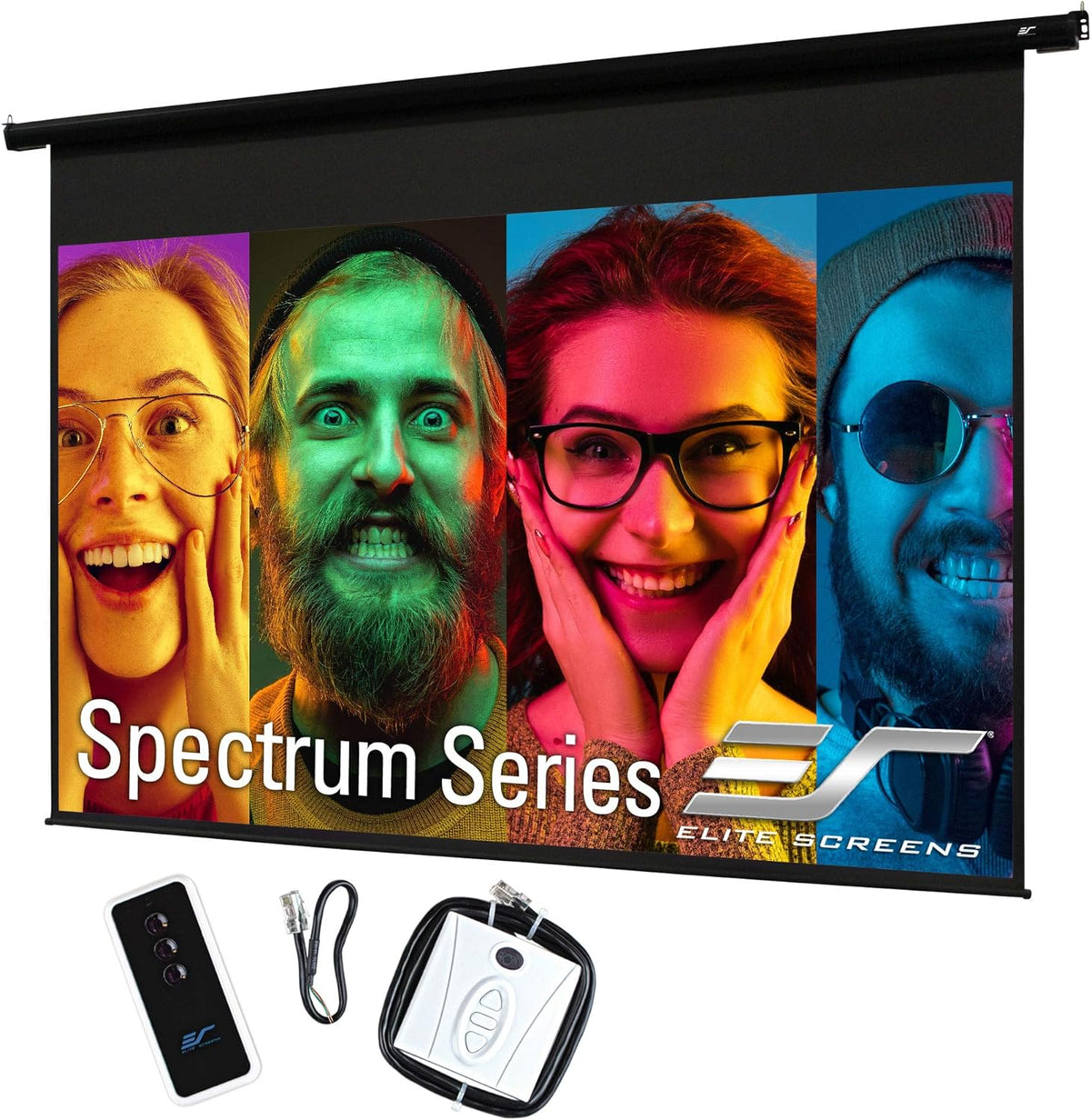

Elite ELECTRIC150H 150" 16:9 Motorised Screen with Black Casing

The Elite Screens Spectrum series provides a flexible choice for electric motorised screens, ideal for residential and commercial wall/ceiling applications. Its 1.1 gain MaxWhite Screen material ensures superior clarity and color accuracy, making it compatible with most LCD or DLP projectors. Certain models also include AcousticPro1080P2 acoustic transparent angular weave material to optimize sound quality from wall speakers and eliminate the moire effect on the screen.

ELECTRIC150H
Image Area (excluding border) : 3320x1869mm
Case Length : 3622mm
Weight: 20.4kg
Warranty:
2 Years
Case Colour: Black

*International model shown in video, minor variations are possible in Australian models.

Screen Material

  • MaxWhite material is durable and easy to clean
  • 180 degree wide viewing angle with 1.1 gain
  • Active 3D and 4K Ultra HD Ready
  • Standard black masking borders
  • Available in various diagonal sizes and aspect ratios
  • 100" and 125" (16:9) models available with AcousticPro-AUHD 4K Acoustic Transparent material
  • AcousticPro UHD: Flame Retardant: Complies with NFPA 701 Standards
  • Not compatible with Ultra Short-Throw Projectors

Total Control

  • Infrared (IR) remote control
  • Detachable 3-way wall UP/STOP/DOWN switch
  • Built-in 5-12 volt trigger port enables Drop/Rise operation to synchronize with the projector's power cycle
  • Low-voltage internal IR Receiver
  • RJ45 input port allows easy integration with 3rd party control systems
  • Optional RF Remote, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger output port) and In-wall switch

Design and Installation

  • Durable casing for wall/ceiling installations
  • Includes wood screws and drywall anchors
  • Bubble leveler included
  • Ships fully assembled with 3-prong power connection ready to plug & play
  • Optional in-ceiling trim kit and 6" and 12" L brackets

Quality and Reliability

  • Synchronous motor allows silent operation with extended operational longevity and low power consumption (84" - 128" models)
  • Tubular motor allows swift operation and speed (142" models and above)
  • Certified by AMX and CRESTRON
  • GREENGUARD and GREENGUARD Gold Certified | UL 281
  • 2-year warranty
Elite Spectrum Motorised Projector Screen



Specifications

(mm) + or - 1%

Elite Spectrum Motorised Projector Screen Specifications



Model Size View W x H (A1 x B1) Bar Length (A4) Case Length (A) Screen Width (A2) Bottom Masking (B3) Top Masking (B5) End Cap Width (C2) End Cap Height (B4)
ELECTRIC84V 84" (4:3) 1707x1280mm 1863mm 2016mm 1783mm 60mm 203mm 80mm 93mm
ELECTRIC100V 100" (4:3) 2032x1524mm 2212mm 2366mm 2132mm 60mm 127mm 80mm 93mm
ELECTRIC120V 120" (4:3) 2438x1829mm 2618mm 2773mm 2538mm 60mm 102mm 80mm 93mm

ELECTRIC84H 84" (16:9) 1859x1046mm 2016mm 2168mm 1936mm 60mm 203mm 80mm 93mm
ELECTRIC100H 100" (16:9) 2214x1245mm 2394mm 2544mm 2314mm 60mm 152mm 80mm 93mm
ELECTRIC125H 125" (16:9) 2767x1557mm 2956mm 3103mm 2869mm 60mm 136mm 80mm 93mm
ELECTRIC150H 150" (16:9) 3320x1869mm 3501mm 3622mm 3421mm 60mm 102mm 88mm 105mm
ELECTRIC180H 180" (16:9) 3985x2243mm 4165mm 4276mm 4085mm 60mm 152mm 88mm 105mm

ELECTRIC90X 90" (16:10) 1939x1212mm 2095mm 2248mm 2015mm 60mm 102mm 80mm 93mm
ELECTRIC106X 106" (16:10) 2283x1427mm 2463mm 2618mm 2383mm 60mm 102mm 80mm 93mm
ELECTRIC128X 128" (16:10) 2757x1723mm 2937mm 3091mm 2857mm 60mm 102mm 80mm 93mm

ELECTRIC100H-AUHD 100" (16:9) 2214x1245mm 2394mm 2544mm 2314mm 60mm 152mm 80mm 93mm
ELECTRIC125H-AUHD 120" (16:9) 2767x1557mm 2956mm 3103mm 2869mm 60mm 136mm 80mm 93mm
