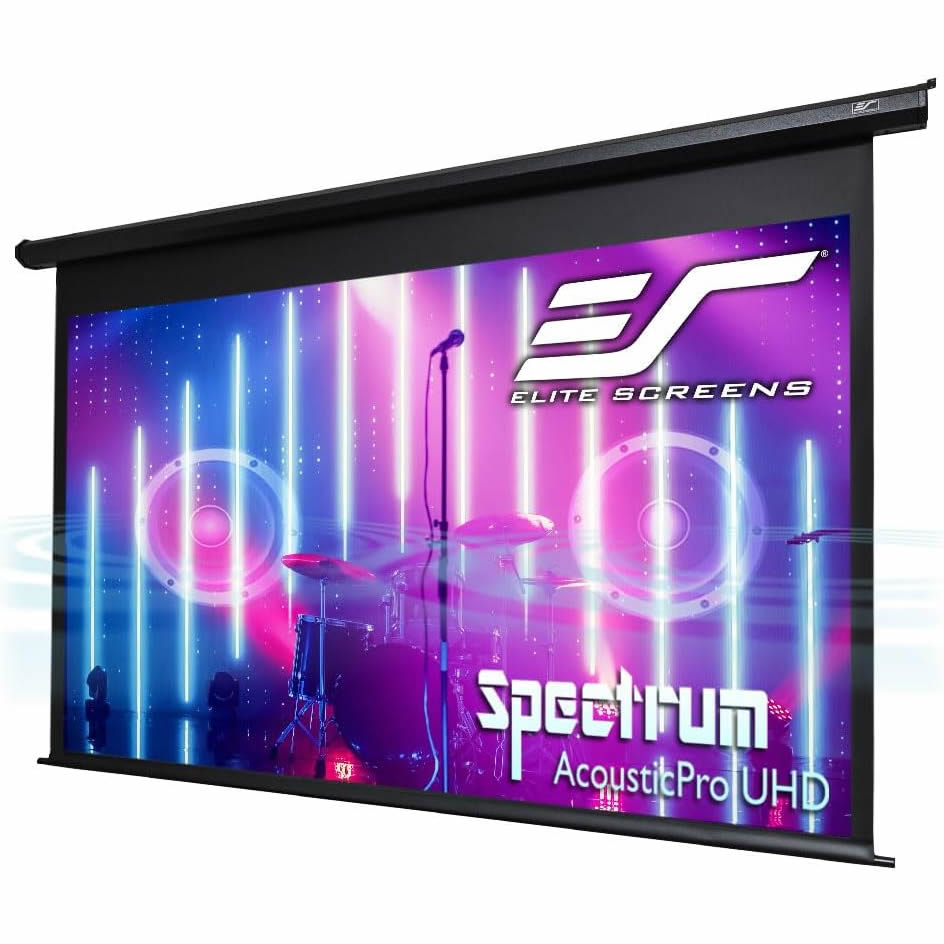

Elite ELECTRIC125H-AUHD 125" 16:9 Motorised Screen with Black Casing & AcousticPro Material
The AcousticPro projector screen has a matte white surface with a 1.0 gain that provides excellent colour neutrality for superb colour reproduction along with wide diffusion uniformity. The angular weave material is designed to allow wall-speaker sound to breathe through the screen while eliminating the visual artifact known as moiré effect. The precision angled mesh of the material allows viewers to enjoy a visually superior presentation with strong color neutrality and artifact-free performance. The material is perfect for use with native 1080P and 4K projectors for home cinema and commercial applications.
ELECTRIC125H-AUHD
Image Area (excluding border) : 2767x1557mm
Case Length : 3103mm
Weight: 12.9kg
Warranty: 2 Years
Case Colour: Black
*International model shown in video, minor variations are possible in Australian models.
Screen Material

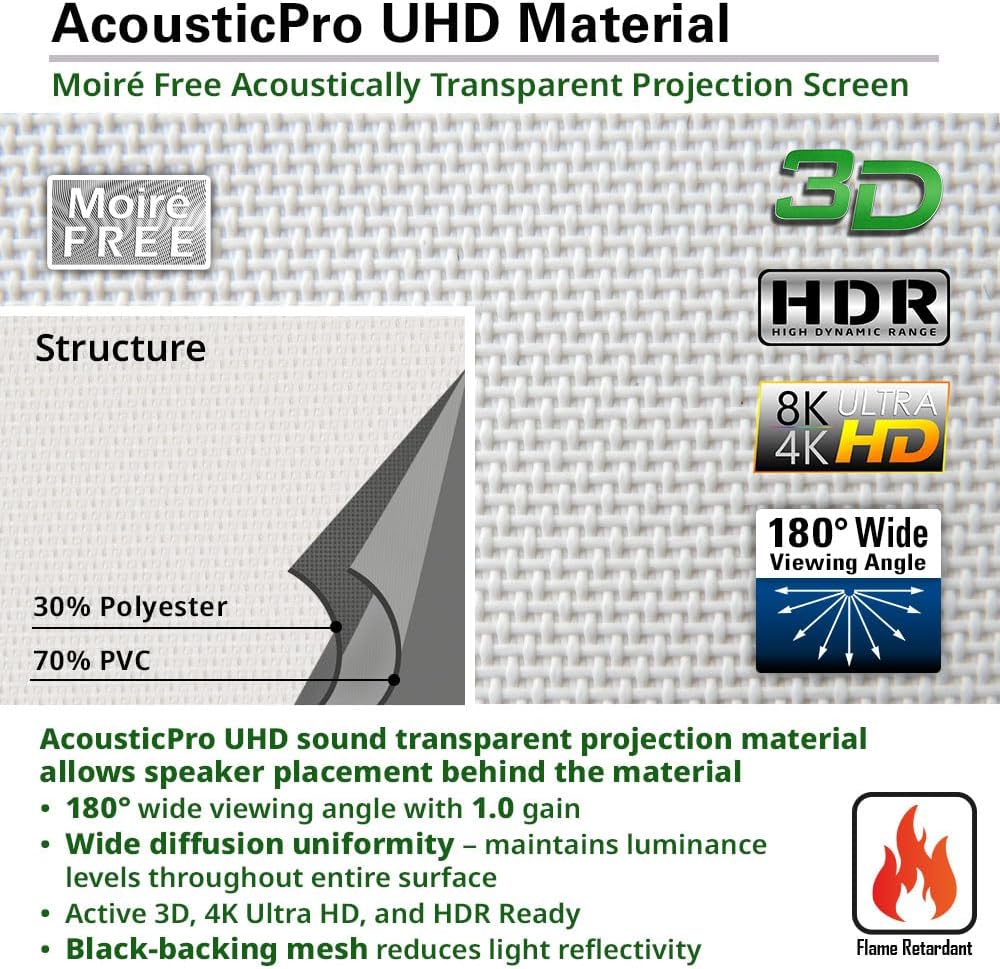

- AcousticPro Angular Weave material
- 160 Degree wide viewing angle with 1.0 gain
- Superb off-axis luminance
- Optimal color neutrality; color shift is not compromised
- Active 3D and 4K Ultra HD Ready
- Standard black masking borders
- Flame Retardant: Complies with NFPA 701 Standards
- Not compatible with Ultra Short-Throw Projectors
Total Control

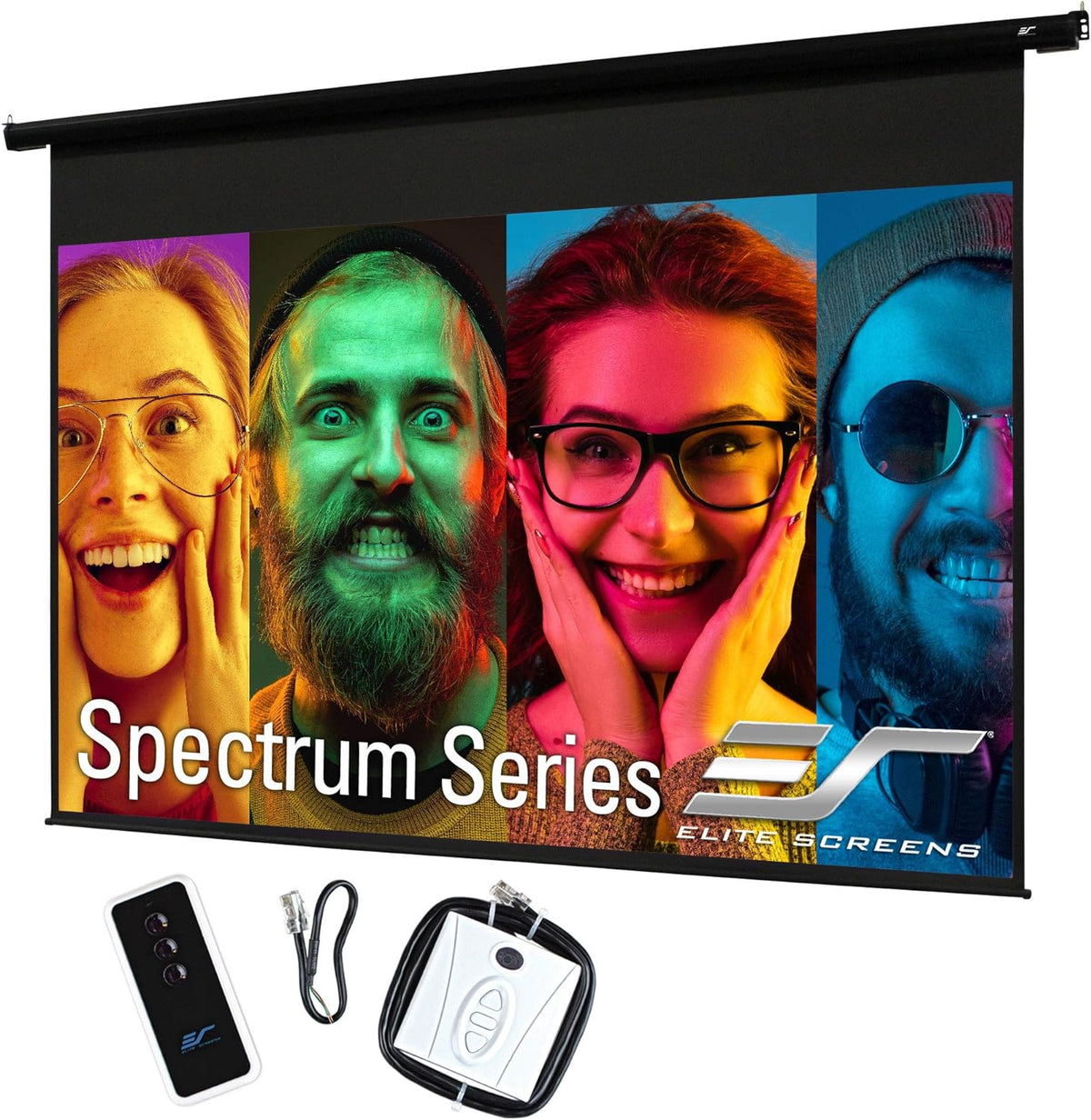

- Infrared (IR) remote control
- Detachable 3-way wall UP/STOP/DOWN switch
- Built-in 5-12 volt trigger port enables Drop/Rise operation to synchronize with the projector's power cycle
- Low-voltage internal IR Receiver
- RJ45 input port allows easy integration with 3rd party control systems
- Optional RF Remote, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger output port) and In-wall switch
Design and Installation
- Durable casing for wall/ceiling installations
- Includes wood screws and drywall anchors
- Bubble leveler included
- Ships fully assembled with 3-prong power connection ready to plug & play
- Optional in-ceiling trim kit and 6" and 12" L brackets
Quality and Reliability
- Synchronous motor allows silent operation with extended operational longevity and low power consumption
- Certified by AMX and CRESTRON
- GREENGUARD and GREENGUARD Gold Certified | UL 281
- 2-year warranty
Specifications
(mm) + or - 1%
Model | Size | View W x H (A1 x B1) | Bar Length (A4) | Case Length (A) | Screen Width (A2) | Bottom Masking (B3) | Top Masking (B5) | End Cap Width (C2) | End Cap Height (B4) |
---|---|---|---|---|---|---|---|---|---|
ELECTRIC84V | 84" (4:3) | 1707x1280mm | 1863mm | 2016mm | 1783mm | 60mm | 203mm | 80mm | 93mm |
ELECTRIC100V | 100" (4:3) | 2032x1524mm | 2212mm | 2366mm | 2132mm | 60mm | 127mm | 80mm | 93mm |
ELECTRIC120V | 120" (4:3) | 2438x1829mm | 2618mm | 2773mm | 2538mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC84H | 84" (16:9) | 1859x1046mm | 2016mm | 2168mm | 1936mm | 60mm | 203mm | 80mm | 93mm |
ELECTRIC100H | 100" (16:9) | 2214x1245mm | 2394mm | 2544mm | 2314mm | 60mm | 152mm | 80mm | 93mm |
ELECTRIC125H | 125" (16:9) | 2767x1557mm | 2956mm | 3103mm | 2869mm | 60mm | 136mm | 80mm | 93mm |
ELECTRIC150H | 150" (16:9) | 3320x1869mm | 3501mm | 3622mm | 3421mm | 60mm | 102mm | 88mm | 105mm |
ELECTRIC180H | 180" (16:9) | 3985x2243mm | 4165mm | 4276mm | 4085mm | 60mm | 152mm | 88mm | 105mm |
ELECTRIC90X | 90" (16:10) | 1939x1212mm | 2095mm | 2248mm | 2015mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC106X | 106" (16:10) | 2283x1427mm | 2463mm | 2618mm | 2383mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC128X | 128" (16:10) | 2757x1723mm | 2937mm | 3091mm | 2857mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC100H-AUHD | 100" (16:9) | 2214x1245mm | 2394mm | 2544mm | 2314mm | 60mm | 152mm | 80mm | 93mm |
ELECTRIC125H-AUHD | 120" (16:9) | 2767x1557mm | 2956mm | 3103mm | 2869mm | 60mm | 136mm | 80mm | 93mm |
