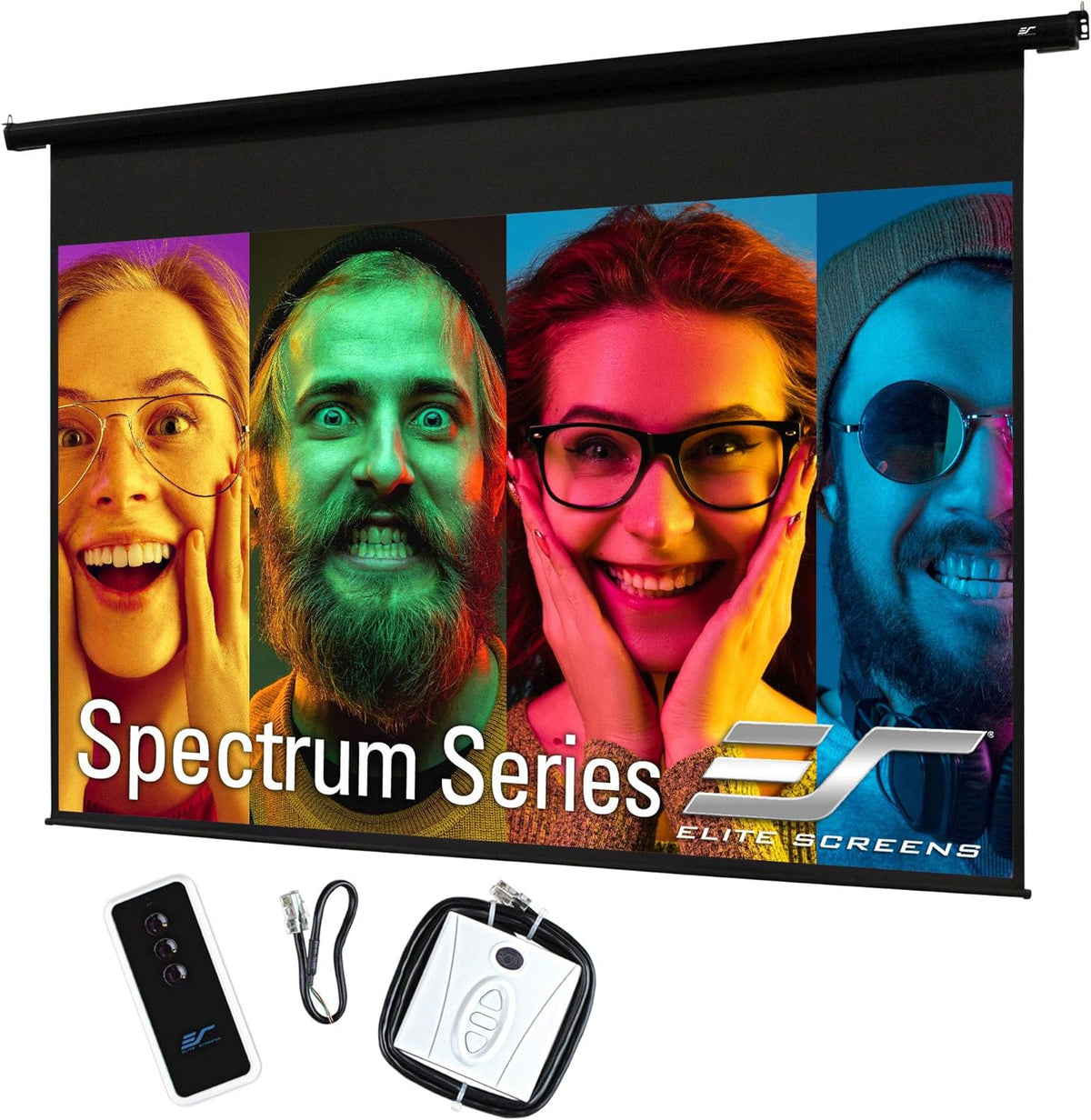

Elite ELECTRIC125H 125" 16:9 Motorised Screen with Black Casing
The Elite Screens Spectrum series provides a flexible choice for electric motorised screens, ideal for residential and commercial wall/ceiling applications. Its 1.1 gain MaxWhite Screen material ensures superior clarity and color accuracy, making it compatible with most LCD or DLP projectors. Certain models also include AcousticPro1080P2 acoustic transparent angular weave material to optimize sound quality from wall speakers and eliminate the moire effect on the screen.
ELECTRIC125H
Image Area (excluding border) : 2767x1557mm
Case Length : 3103mm
Weight: 12.9kg
Warranty: 2 Years
Case Colour: Black
*International model shown in video, minor variations are possible in Australian models.
Screen Material
- MaxWhite material is durable and easy to clean
- 180 degree wide viewing angle with 1.1 gain
- Active 3D and 4K Ultra HD Ready
- Standard black masking borders
- Available in various diagonal sizes and aspect ratios
- 100" and 125" (16:9) models available with AcousticPro-AUHD 4K Acoustic Transparent material
- AcousticPro UHD: Flame Retardant: Complies with NFPA 701 Standards
- Not compatible with Ultra Short-Throw Projectors
Total Control
- Infrared (IR) remote control
- Detachable 3-way wall UP/STOP/DOWN switch
- Built-in 5-12 volt trigger port enables Drop/Rise operation to synchronize with the projector's power cycle
- Low-voltage internal IR Receiver
- RJ45 input port allows easy integration with 3rd party control systems
- Optional RF Remote, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger output port) and In-wall switch
Design and Installation
- Durable casing for wall/ceiling installations
- Includes wood screws and drywall anchors
- Bubble leveler included
- Ships fully assembled with 3-prong power connection ready to plug & play
- Optional in-ceiling trim kit and 6" and 12" L brackets
Quality and Reliability
- Synchronous motor allows silent operation with extended operational longevity and low power consumption (84" - 128" models)
- Tubular motor allows swift operation and speed (142" models and above)
- Certified by AMX and CRESTRON
- GREENGUARD and GREENGUARD Gold Certified | UL 281
- 2-year warranty
Specifications
(mm) + or - 1%
Model | Size | View W x H (A1 x B1) | Bar Length (A4) | Case Length (A) | Screen Width (A2) | Bottom Masking (B3) | Top Masking (B5) | End Cap Width (C2) | End Cap Height (B4) |
---|---|---|---|---|---|---|---|---|---|
ELECTRIC84V | 84" (4:3) | 1707x1280mm | 1863mm | 2016mm | 1783mm | 60mm | 203mm | 80mm | 93mm |
ELECTRIC100V | 100" (4:3) | 2032x1524mm | 2212mm | 2366mm | 2132mm | 60mm | 127mm | 80mm | 93mm |
ELECTRIC120V | 120" (4:3) | 2438x1829mm | 2618mm | 2773mm | 2538mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC84H | 84" (16:9) | 1859x1046mm | 2016mm | 2168mm | 1936mm | 60mm | 203mm | 80mm | 93mm |
ELECTRIC100H | 100" (16:9) | 2214x1245mm | 2394mm | 2544mm | 2314mm | 60mm | 152mm | 80mm | 93mm |
ELECTRIC125H | 125" (16:9) | 2767x1557mm | 2956mm | 3103mm | 2869mm | 60mm | 136mm | 80mm | 93mm |
ELECTRIC150H | 150" (16:9) | 3320x1869mm | 3501mm | 3622mm | 3421mm | 60mm | 102mm | 88mm | 105mm |
ELECTRIC180H | 180" (16:9) | 3985x2243mm | 4165mm | 4276mm | 4085mm | 60mm | 152mm | 88mm | 105mm |
ELECTRIC90X | 90" (16:10) | 1939x1212mm | 2095mm | 2248mm | 2015mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC106X | 106" (16:10) | 2283x1427mm | 2463mm | 2618mm | 2383mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC128X | 128" (16:10) | 2757x1723mm | 2937mm | 3091mm | 2857mm | 60mm | 102mm | 80mm | 93mm |
ELECTRIC100H-AUHD | 100" (16:9) | 2214x1245mm | 2394mm | 2544mm | 2314mm | 60mm | 152mm | 80mm | 93mm |
ELECTRIC125H-AUHD | 120" (16:9) | 2767x1557mm | 2956mm | 3103mm | 2869mm | 60mm | 136mm | 80mm | 93mm |
