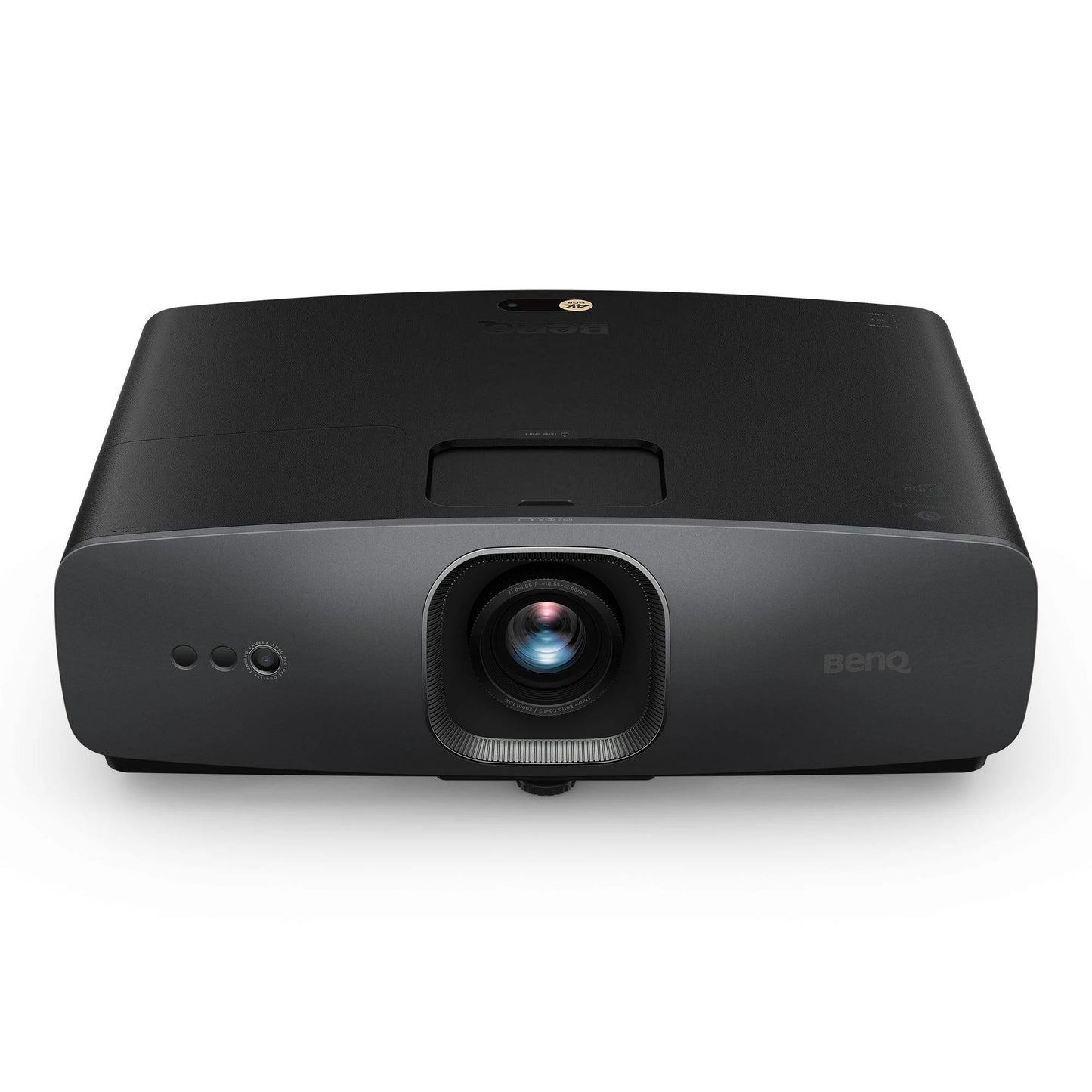

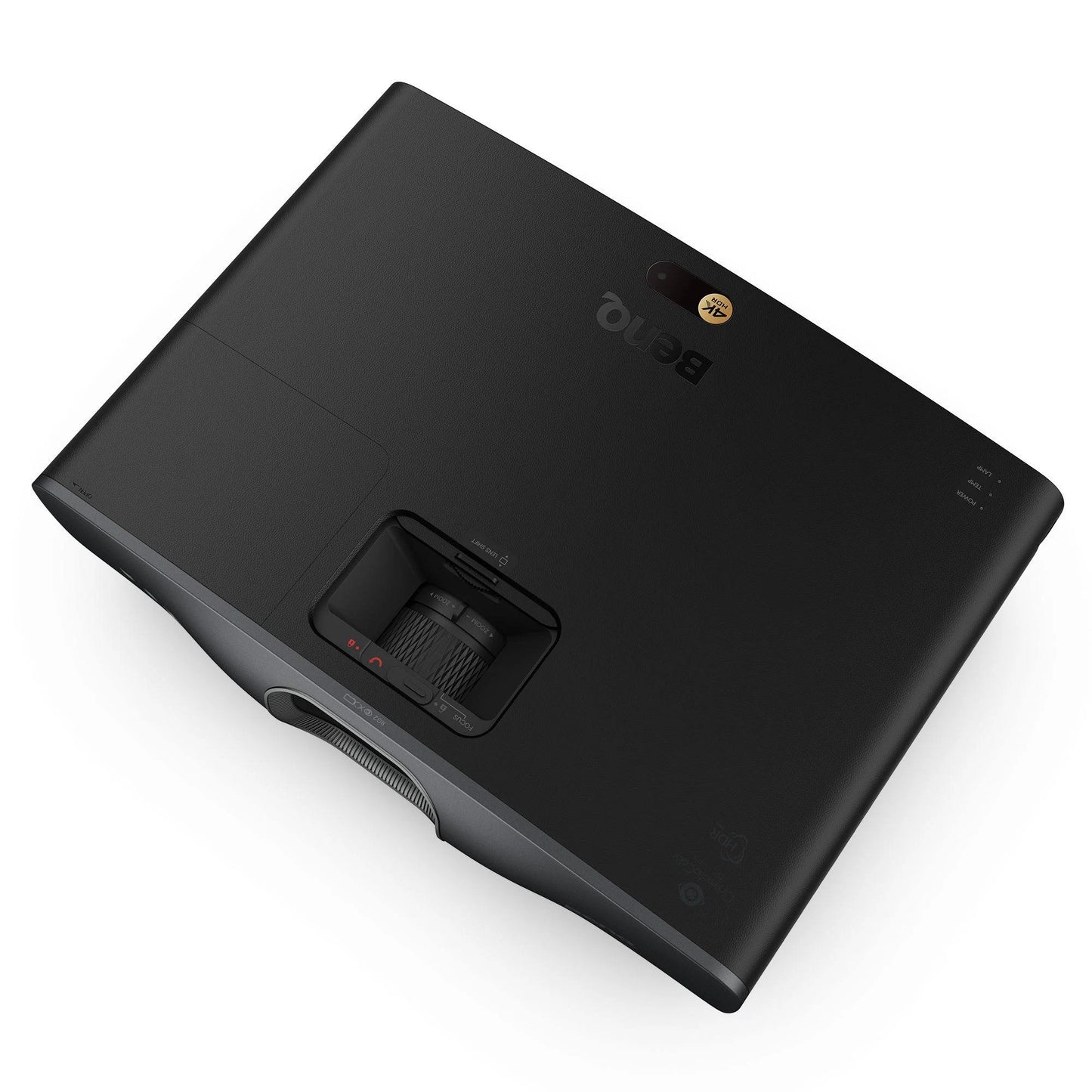

BenQ W5800 4K Laser Home Cinema Projector
Introducing the BenQ W5800 4K Laser Home Theatre Projector - the ultimate cinema experience with stunningly precise color and razor-sharp, highly-detailed images. Boasting a powerful long-lasting laser with a lifespan of up to 25,000 hours and an impressive 2600 ANSI lumens, this projector is perfect for large-scale projections. Enjoy effortless image adjustments with the fully motorized lens, offering 1.6x optical zoom and remote control for vertical and horizontal lens shift. With 100% coverage of the coveted DCI-P3 color gamut, the BenQ W5800 delivers faithful color accuracy, staying true to the director's vision. Elevate your at-home viewing experience with the expertly designed W5800.
Key Features & Specifications
- UHD 3840 x 2160 16:9
- 2,600 ANSI Lumens
- 2,000,000:1 Contrast
- 10.5kg Weight
- 30 / 27db(eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr LED Warranty
- Est. LED Life up to 25,000hrs
- 100% DCI-P3 Colour
- 100% REC.709 Colour
- 1.6x Motorised Zoom
- Horizontal & Vertical Keystone
- Motor. Vertical Lens Shift (+/-50%)
- Motor. Horizontal Lens Shift (+/-20%)
- 2x HDMI connections
- HDMI Audio Return (eARC)
- HDR10 Compatible
Throw Distance Chart
(Throw Ratio: 1.52-2.45:1)
Image Size | Installation Distance |
---|---|
92" (16:9) 2030x1140mm | From 3.1m to 4.9m |
100" (16:9) 2214x1245mm | From 3.4m to 5.4m |
110" (16:9) 2435x1370mm | From 3.7m to 5.9m |
120" (16:9) 2657x1494mm | From 4.1m to 6.5m |
135" (16:9) 2990x1681mm | From 4.6m to 7.3m |
150" (16:9) 3320x1867mm | From 5.1m to 8.1m |
Projector Reviews Comments

The BenQ W5800 combines excellent picture quality with installation flexibility to deliver a premium viewing experience. Color Accuracy, high native contrast, fine optics, and low audible noise separate a premium projector like the W5800 from other home entertainment projectors. While BenQ makes several great lifestyle projectors with smart features and excellent built-in sound systems, the W5800 focuses solely on picture quality.
Color accuracy is another area where the BenQ W5800 excels. The projector supports BenQ's CinematicColor technology, which covers a wide color gamut and reproduces colors accurately. This feature is particularly important for movie enthusiasts who want to experience films as the directors intended.
BenQ also factory calibrates every W5800 to ensure the best picture possible. Few projectors can match the W5800 color accuracy, and most cost significantly more. Our pre-calibrated measurements were better than many projectors' post-calibrated measurements.

The BenQ W5800 is a good projector that performs just as well if not better in some areas as its peers in this same price category. It provides a sharp and vibrant image, with great gamut tracking and full DCI-P3 D65 coverage achieved without the use of a filter, so users do not have to take a hit on loss of light. It is this ability, along with its base out-of-box color accuracy, that constitute its real strengths. Additionally, it gives users a bright image with its 2,600 largely usable lumens, and offers features like HDR10+, eARC, and a lamp-free laser light source, all making for a compelling option for those in the market for a higher end home theater projector.
- Solid state laser light source
- Very accurate color out of the box
- High quality, motorized lens
- Full DCI P3 coverage without need of filter
- HDR10+ Support
W5800|4K 2600lm BenQ Home Cinema Projector
See Colours as Directors Envisioned in Your AV Sanctuary
Easy Upgrade to a 200” 4K Home Theater
Experience a 200” screen with laser-sharp clarity. Precision-calibrated for 100% DCI-P3 color coverage and Delta E <1 color accuracy, the W5800 leverages installation features to easily upgrade your entertainment.
Laser Precision, Unmatched Visuals
The W5800 features a groundbreaking laser array light source, presenting a breathtaking 4K image with an impressive brightness of 2,600 lumens for vivid color and clarity.
Colours as Directors Envisioned
Faithfully reproduce the image the way the artist intended. BenQ W5800 Home Cinema Projectors with CinematicColor super-wide 100% DCI-P3 and 100% Rec.709 color space deliver precise colors to perfectly preserve what the directors envisioned.
Out-of-Box Colour Accuracy
Individual factory calibration reports assure 100% Rec.709 Delta E<2, grayscale tracking Delta E<2 and optimized DCI-P3 color table for true Hollywood colors.
ISFccc® Certified
Acclaimed ISFccc® calibration customizes image and color performance for any space, along with preset day/night light balance modes.
Exclusive Colour Temperature Tuning
BenQ high-end cinema projectors provide advanced color temperature tuning with leading 11 levels of white balance controls between high to low brightness, enabling content fanatics to adjust the most accurate colors in mid-tone colors.
Filmmaker Mode
Most movies are shot at 24 frames per second (fps). In order to display movies exactly as the director intended, the W5800 supports 24P playback that accepts high-definition sources at 24 fps without judder in HDR mode to preserve the purity of the original image.
4K Clarity Through All-Glass Lens
Utilizing an all-glass lens system featuring 14-element 7-group coated with low dispersion materials, the W5800 has superior transparency to greatly reduce color difference, fully displaying 4K image clarity.
HDR Tone Mapping
BenQ exclusive HDR-PRO technology heightens the 4K HDR viewing experience with two-step enhanced tone mapping, reproducing more balance between details in bright and dark scenes.
Locally Enhanced Shadows and Highlights
Applying the industry-leading Local Contrast Enhancer (LCE) algorithm to divide images into 1,000+ zones, LCE analyzes each segment’s brightness and adjusts gamma independently for greater dark and bright detail definition and enriched image depth.
Comprehensive Image Optimization
BenQ Dynamic Black technology dynamically adjusts the projection light output by detecting imagery, ensuring optimal contrast and lifelike images. Laser projectors, equipped with fast dimming, promptly response to brightness changes, delivering 20% higher contrast than other SSI models.
HDR Video Optimization Frame by Frame
New HDR10+ technology adds dynamic metadata to HDR10 source files, which is used to optimize each frame of the HDR video to enhance details in both bright and dark areas of HDR10+ content.
Superior Acoustic Enjoyment
The W5800 connects you to all kinds of entertainment with universal ports including dual HDMI 2.0b (HDCP 2.2)*, two USB-Type A, SPDIF, and eARC allows 7.1 channel and Dolby Atmos audio pass through, transmitting the original-full resolution audio signal to your sound system via one HDMI cable.
*Only HDMI-1 supports eARC with multichannel audio output.
Lossless Images Fit for Any Large Spaces
1.6x Motorized Zoom
The 1.6x optical motorized zoom enables effortless adjustment of the projector’s throw ratio for flexible screen placement. Unlike digital zoom, the optical zoom preserves image quality without pixel decay and latency.
2D Lens Shift
W5800 employs 2D lens shift (±50% vertical and ±21% horizontal) to provide perfectly straight-edged images without loss of resolution, allowing more flexible installation and placement options.
Projection Distance
1.6x zoom maximizes available space with a range of throw distances for big-screen entertainment without the hassle of complicated installation.
Immersive Silence
The W5800 is equipped with a low-noise multi-channel cooling system, that effectively reduces environmental noise to a quiet range of 27dB to 30dB
Patterned Lens Ring
Elegantly patterned lens ring prevents stray light with rearward tilt to eliminate optical engine light leakage.
Anti-Dust Vertical Louver
Air intake vertical louvers reject dust from cooling system.
What's in the Box
- BenQ W5800 Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- 3D Glasses
Projection System | |
Projection System | DLP |
Display | |
Brightness (ANSI lumens) | 2600 |
Native Resolution | 4K UHD (3840×2160) |
Native Aspect Ratio | 16:9 |
Contrast Ratio (FOFO) | (w/ Lightsource Dimming), 2,000,000:1 |
Display Color | 30-bit (1.07 billion colors) |
Light Source | Laser |
Light Source Life | a. Normal 20000 hrs, b. ECO 25000 hrs |
Optical | |
Throw Ratio | 1.52~2.45 |
Zoom Ratio | 1.6x |
Lens | F/# 2.1 ~ 3.0 , f 16.0 (Wide) ~25.7 (Tele) mm |
Projection Offset (Full-Height) | 0% |
Keystone Adjustment | 2D, Vertical ± 35 degrees; Horizontal ± 35 degrees |
Lens Shift Vertical | +/-50% Motorised |
Lens Shift Horizontal | +/-20% Motorised |
Picture | |
DCI-P3 Coverage | 100% |
Rec. 709 Coverage | 100% |
Picture Modes | 3D, Bright, Bright Cinema, Cinema, FILMMAKER MODE, FILMMAKER MODE HDR, HDR10, HDR10+, HLG, ISF Day, ISF Night, User |
Compatibility | |
Input Lag | 13 ms (1080p@120Hz), 17.9ms (1080P 60Hz), 17.9ms (4K 60Hz) |
Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
Horizontal Frequency | 15K~135KHz |
Vertical Scan Rate | 23~240Hz |
I/O Interface | |
HDMI in | (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2) |
LAN (RJ45) | (10/100 Mbps), (x1) |
3D Sync out | (x1), VESA |
USB Type A | USB Type A-1 (2.0/Power Supply2.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader) |
USB Type B | (x1) |
RS232 in (DB-9pin) | (x1) |
Audio | |
Speaker | No Speaker |
Audio out (3.5mm Mini Jack) | (x1) |
HDMI Audio Return | eARC, 7.1 channel |
Audio out (S/PDIF) | 2-Channel, PCM, Multi-Channel, RAW |
Environment | |
Operating Temperature | 0~40℃ |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption (110V) | Max 450W/ Normal 380W/ ECO 240W |
Stand-by Power Consumption | 0.5W |
Network Stand-by Power Consumption | <2W |
Acoustic Noise (Typ./Eco.)(dB) | 30/27 |
Accessories | |
Remote Control w/ Battery | RCV024 |
Power Cord (by region) | x1 (1.8M) |
HDMI Cable | x1 (3.0M) |
Quick Start Guide | (x1) 18L |
Lens cover | Yes |
Dimension & Weight | |
Dimensions (WxHxD) (mm) | 525.2x145.7x392.2 |
Net Weight (kg) | 10.5 |
