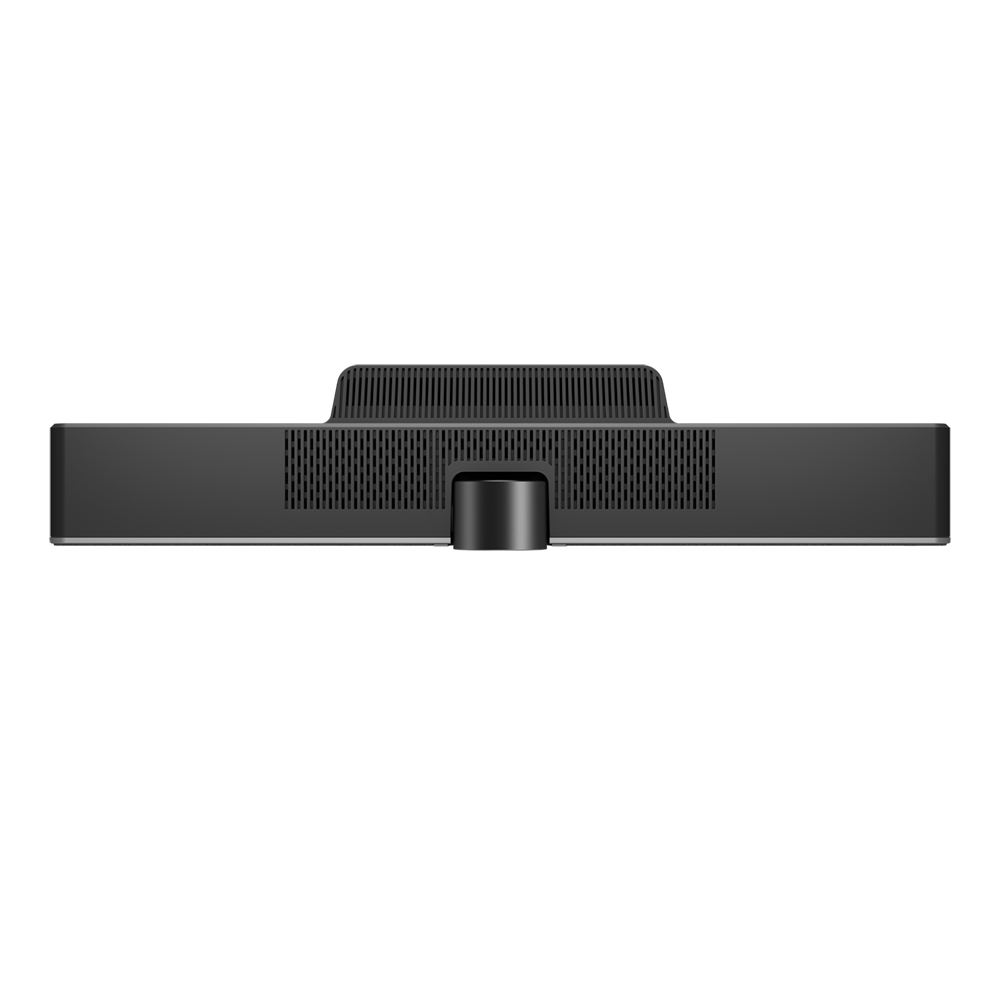

VC01A 4K UHD Smart Video Bar
Video conferencing solution with built-in Android
Conduct online meetings seamlessly with the BenQ VC01A 4K UHD Smart Video Bar. This all-in-one device can connect to any device, such as a TV, monitor, or projector, to enable video conferencing in all types of meeting rooms and allow screen sharing from personal devices. The VC01A is compatible with all major video conferencing software, making it versatile for any meeting style. Its 4K UHD resolution, 120° field of view, and auto framing feature ensure stable, high-quality images that keep all participants in the frame. The noise-cancelling mic array captures voices within 8 meters, while the powerful 8-watt speaker produces clear sound.
- 120° field of view with 5x digital zoom
- AI-powered auto framing with fast focus
- Beamforming mic array with 16ft/8m pickup
- One-click wireless screen sharing
- Compatible with any display, TV, or projector
Specifications
| Dimensions | 462.0 × 76.0 × 93.0 mm (18.2 × 3.0 × 3.7 inch) |
| Memory | Storage | 4GB I 16GB |
| Ethernet | 10 / 100 Mbps (Android) × 1 |
| Wireless screen sharing | InstaShare 2 |
| Cables | 1 × HDMI (1.5 m | 4.9 ft); USB Type C to Type A*1 |
| Camera Sensor | 4K UHD |
| Resolution |
H.264/MJPG: 3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 1024x576 / 960×540 / 800×600 / 640×480 / 640×360 / 480×270 / 352×288 / 320×240 / 320×180 / 176×144 / 160×120 / 160×90 YUV2: 640×480 / 640×360 / 480×270 / 352×288 / 320×240 / 320×180 / 176×144 / 160×120 / 160×90 |
| Field of view | DFOV: 120° |
| Focus | Fixed / 0.5m |
| Auto Framing | Yes |
| Pixel | 12 MP |
| Digital Zoom | x5 |
| Manual Adjustable Angle | ±15° |
| Microphone | 6 - array |
| Microphone Pick up distance | 8m |
| Voice Localization | Yes |
| Voice Optimization | Beamforming / Noise reduction / Echo cancellation / Auto gain control |
| Speaker | 8W x1 |
| Speaker Automatic Level Control (ALC) | Yes |
| Built-in OS | Android 9.0 |
| Compatible OS | Win10 / Win8 / Win7 / Win XP / Linux OS /Mac OS / Chrome OS |
| IO Port | USB 2.0 (Type C, device port only) x1, USB 3.0 (Type A), HDMI out x1 RJ45 (10M/100M) x1, AUX (mic in / line out) |
| Power Consumption (max/standby) | 36W / <0.5W |
