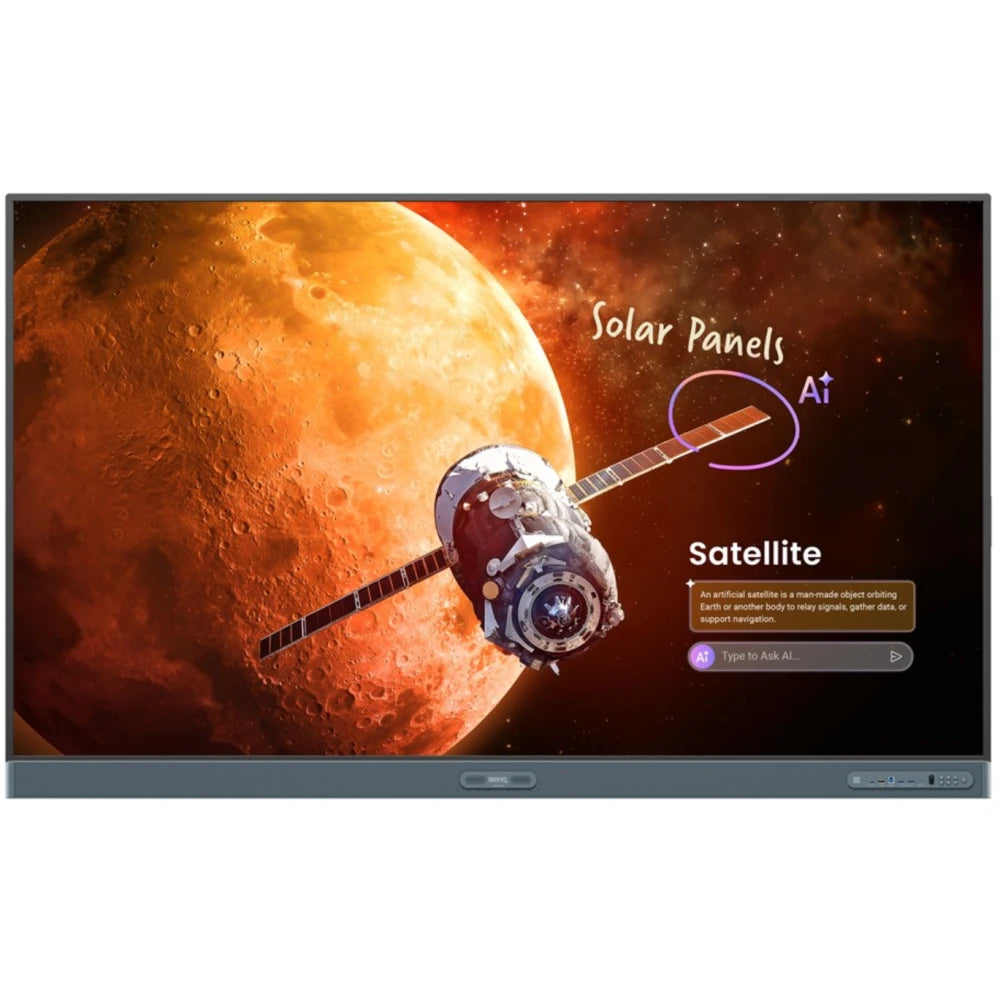

BenQ RP8605 86" Professional Series Interactive Panel
Teach in ways you never imagined
Transform modern collaboration and learning spaces with the BenQ RP8605 86” Interactive Display, designed to spark engagement while prioritising user health. Featuring crisp 4K UHD resolution, responsive multi-touch technology, and built-in cloud whiteboarding tools, it enables seamless team sharing and interactive instruction. Engineered with BenQ’s health-focused ClassroomCare™ innovations - including a germ-resistant screen, anti-glare technology, and smart air quality sensors - the RP8605 delivers an intuitive, safe, and powerful hub for high-impact meetings and immersive lessons.
| BenQ RP8605 Summary | |
|---|---|
| Display | 86", 4K, 450 Nits Brightness |
| Computing | 16GB Memory | 256GB Storage |
| Operating System | Android 15 EDLA with Google Play Store |
| Main Connections | USB-C Single Cable 'Data, Video, & Power', 3x HDMI ports |
| Audio | 2x 25 Watt Speakers, 20 Watt Subwoofer, 8 Microphone Array |
| Wireless | Included |
| Wall Mount | Included |
| Interactive Pens | 2 Included |
| Warranty | 3 Years. On-Site in Metro Areas |
| Other Features | NFC & QR Code Log in, Air Sensor, Air Ionizer, Germ Resistant, Ambient Light Sensor, 100 Watt USB-C Power port |
Key Features
- Google Play Support
- Industry Leading AI
- Do-it-all teaching Assistant
- Max Blue Light Protection
- 70W Sound System
- Auto Account set up with Directory Sync
- Multi-User Login via QR Code or NFC
- Android 15
A VERY GOOGLE EXPERIENCE
The new EDLA-certified BenQ Board Pro RP8605 gives you the best possible classroom experience by combining the proven reliability of BenQ hardware and software with official Google services for education.
Google Play
Get access to your favorite education apps right on the BenQ Board.
Core Apps Included
Google core services come pre-installed on the RP8605
Collaboration tools
Use any of the Google Docs Editors to open your files directly on the board.
Access your files
With Google Drive on the board, you can conveniently open your cloud-based teaching materials and then save them back to your drive once class is done.
The enhanced security you expect
Google Play Protect helps safeguard your displays and prevents you from installing potentially harmful apps and malware.
Less hassle for IT, secure logins for teachers
No manual account setup needed with directory sync. Import users from ClassLink, Clever, Google, Microsoft, and other identity providers and manage with ease.
An unlimited canvas
Go beyond writing and drawing with EZWrite 6. Expand the whiteboard, split sections for group activities, and enrich lessons with 3D images, templates, and live camera feeds.
Import. Edit. Share.
Hybrid Classrooms
AI tools for accessibility and inclusivity
- Text-to-speech
Have written text read aloud for everyone in class
- Multilingual translation
Translate resources to different languages and access a world of content. - OCR
Convert text directly from images and documents to an editable format.
Made for Collaboration
The RP8605 Board Pro interactive display is ready to facilitate effective and engaging discussions right out of the box.
- Unique Login Experience
Save time by logging in to the RP8605 with a simple tap of your NFC card or by scanning the QR code with your phone. Access your cloud storage and load personal settings on any BenQ Board Pro easily and securely.
- Instant Screen Share
No need for cables to present your content. With InstaShare 2, teachers and students can wirelessly cast their laptop and tablet screens to the BenQ Board from wherever they are in the room.
- Shortcuts on the Side
Accessible with just a tap, the sidebar gives you quick access to the Home screen, input sources, EZWrite, and all your most-used apps.
- Streamlined Connectivity
The RP8605 has multiple ports at the front for convenient connectivity. It also features a 100W USB-C port that lets you display screens, charge devices, and enable touchback.
Immersive Audio and Crystal-Clear Sound Pickup
Seamless Wireless Sharing of Diverse Content
Enhance presentations and discussions to captivate everyone involved. Team members can effortlessly share images, videos, or even live camera feeds from their laptops, tablets, or mobile phones simultaneously.
Only the Best for your Eyes
The RP8604 is the first and only Eyesafe® Certified 2.0 smart board, offeing the highest level of protection available for the eyes. The display prevents eye strain by greatly reducing high-energy blue light while maintaining the screen’s vivid colours.
Germ Protection
Shared surfaces can easily become vectors of germs in the classroom. The RP8605’s pens and remote control have been made germ-resistant for extended protection.
Air Ionizer
The BenQ Board Pro is the only smart board with a built-in air ionizer that helps regulate impurities when pollutant levels rise.
RP05 Series Dimensions
| Panel | |
|---|---|
| Screen size | 86" |
| Panel type | IPS |
| Active area | 1895.0 × 1066.0 mm |
| Resolution | UHD 3840 × 2160 pixels |
| Orientation | Landscape |
| Aspect ratio | 16:9 |
| Panel brightness (typical) | 450 nits |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 50,000:1 |
| Color gamut | 72% NTSC |
| Color depth | 10-bit |
| Backlight life (typical) | 50,000 hrs |
| Glass | |
| Germ-resistant technology | Nano-ionic silver |
| Anti-glare | Yes |
| Hardness | 9H tempered |
| Touch screen | |
| Touch technology | High Precision IR |
| Touch points | up to 50 |
| Touch response time | < 2.5 ms |
| System | |
| Memory | Storage | 16GB I 256GB |
| OS | Android 15 (EDLA) |
| GPU | Arm Mali-G57 MC2 |
| CPU | Arm Cortex-A78 × 2 + A55 × 6 |
| Connectivity | |
| VGA | 1 |
| HDMI (in | out) | 3 × HDMI 2.0 | 1 × HDMI 2.0 |
| DisplayPort | 1 × 1.2a |
| USB-A | 4 × 3.0, 3 × 2.0 |
| USB-C | 1 × 3.0 (PD 100 W), 1 x USB 2.0 |
| USB-C Out | 1 × USB 2.0 (data, video out, audio out, touch) |
| USB-B (for touch) | 3 × USB 3.0 |
| 3.5 mm Line in (1) | Mic × 1 |
| 3.5 mm Line in (2) | PC Audio × 1 |
| 3.5 mm Line out | Earphone × 1 |
| OPS slot (for slot-in PC) | 1 |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth® | Bluetooth 5.2 |
| S/PDIF out | 1 (optical) |
| Ethernet | 2 x Gibabit (Android) |
| RS-232 | 1 |
| Built-in peripherals | |
| NFC sensor | Yes |
| Ambient light sensor | Yes |
| IR sensor | Yes |
| Microphone | 8-microphone array (range: up to 12 m | 39ft) |
| Speaker | 2 × 25 W (max) |
| Subwoofer | 1 x 20 W |
| Air Sensor | CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity |
| Air Ionizer | Yes |
| Power | |
| ENERGY STAR® | Yes |
| Power | AC 100-240V 50/60Hz |
| Standby power consumption | <0.5 W |
| Typical power consumption | 126.4 W |
| Physical | |
| Dimensions (W x H x D) | 1957.0 × 1200.5 × 130.0 mm |
| Shipping dimensions (W x H x D) | 2110 × 1314 × 205 mm |
| Weight (product I shipping) | 55 kg | 73.6 kg |
| Mount (screws) | VESA 800 × 600 mm (4 × M8 × 25L) |
| Pen Tray | Yes |
| Environment | |
| Operating temperature | 0°C ~ 40°C | 32°F ~ 104°F |
| Storage temperature | -10°C ~ 60°C | 14°F ~ 140°F |
| Storage humidity | 10% ~ 90% RH Non-Condensing |
| Operating humidity | 10% ~ 90% RH non-condensing |
| Software | |
| Whiteboarding | EZWrite 6.0 |
| Wireless screen sharing | InstaShare 2 |
| Device management | DMS |
| Account management | AMS |
| Quick access tool | Floating Tool |
| Broadcast system | X-Sign Broadcast |
| Accessories | |
| Cables | 1 x HDMI (3m), 1x USB-B touch (3m), 1x USB-C (1.5m) |
| Wall mount | 1 |
| Pen | 2 |
| Remote control | 1 |
