BenQ RM7504 75" Board Master Interactive Panel
Enhance your capabilities to create a more efficient and effective digital workplace.
Transform your meeting rooms with the BenQ RM7504 Board Master Interactive Display, backed by EDLA and featuring top-notch software and hardware from BenQ along with authorised Google services. Witness the ultimate meeting and classroom experience!
| BenQ RM7504 Summary | |
|---|---|
| Display | 75", 4K, 450 Nits Brightness |
| Computing | 8GB Memory | 32GB Storage |
| Operating System | Android 13 EDLA with Google Play Store |
| Main Connections | USB-C Single Cable 'Data, Video, & Power', 4x HDMI ports |
| Audio | 2x 20 Watt Speakers, 8 Microphone Array |
| Wireless | Optional Dongle Required |
| Wall Mount | Included |
| Interactive Pens | 2 Included |
| Warranty | 3 Years. On-Site in Metro Areas |
| Other Features | NFC & QR Code Log in |
Key Features
- Download useful apps directly from the Google Play Store
- Easy account management across Azure, Google, and Microsoft
- Access cloud drives with just one tap
- Upgrade to enterprise-grade security
Google-powered lessons
Easy app access
Enhance your lessons with a huge catalogue of interactive educational apps from Google Play.
Google essentials
The RM7504 comes with Google Core Services such as Google Drive and Meet.
Collaboration tools
Fully utilise Google Docs, Sheets, and Slides on a large touchscreen display.
Convenient file access
Open files from your Google Drive to teach with material you’ve prepared beforehand, and save them right back onto the cloud so you can always have access to the latest files.
Enhanced security
Google’s security features on your RM7504, including Play Protect, prevent data leaks, phishing, malware, and data loss.
Voice assistant
Let your voice guide your lessons using Google Assistant via the RM7504 remote control.

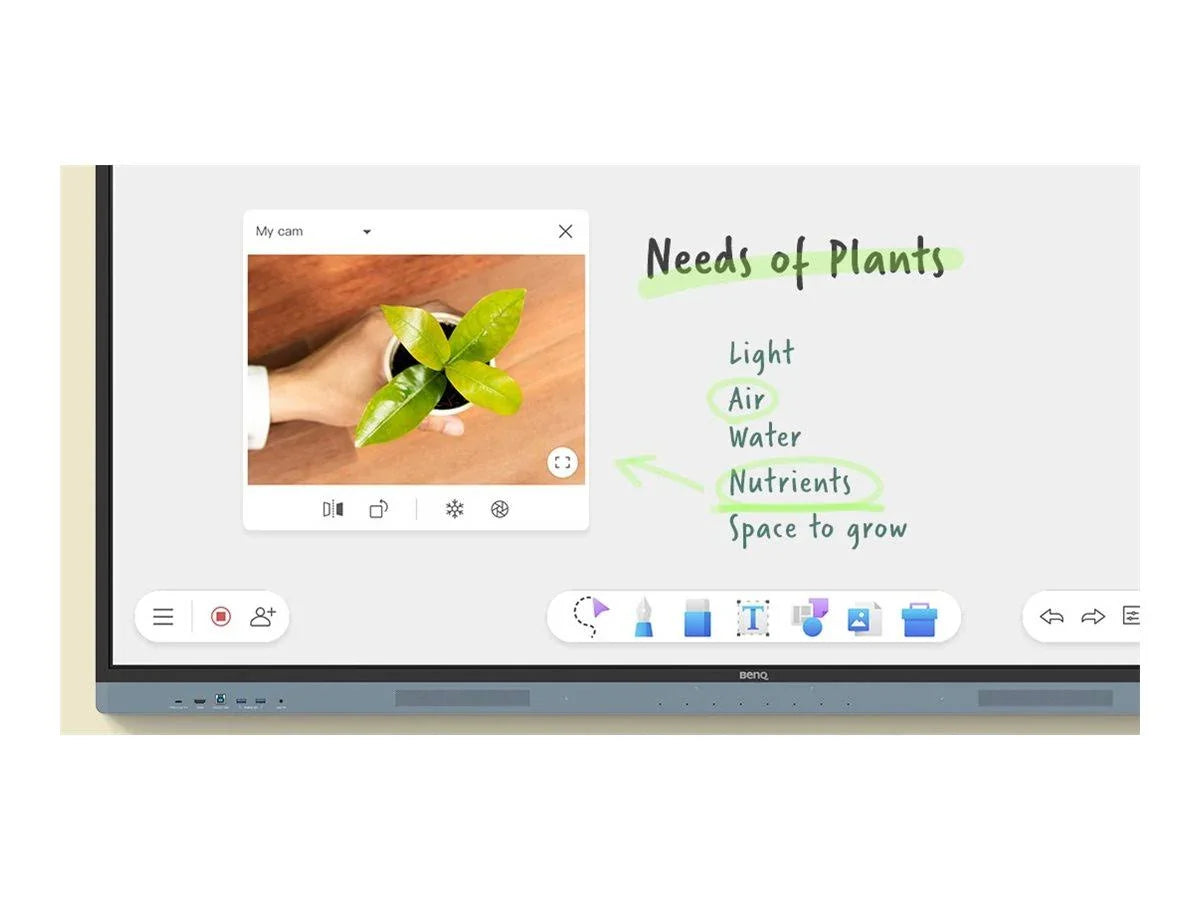

Whiteboard without limits
Enhance your lessons using EZWrite, a powerful whiteboard that’s packed with classroom tools you can use for more engaging face-to-face or hybrid classes.
More than just a whiteboard
EZWrite 6 lets you do a lot more than just write, draw, and add text. Use the expandable canvas, split the screen for competitions, insert templates, use math tools, or show a live camera feed.
Import and export files
Extend your classroom
AI tools for more inclusive lessons
- Text-to-speech
Hear text as it is displayed or written on screen
- Multilingual translation
Translate text in numerous languages for more context-rich lessons. - OCR
Easily edit text directly from photos and scanned pages.
Designed for Dynamic Collaboration
The RM7504 interactive display is ready to facilitate effective and engaging discussions right out of the box.
- Unique Login Experience
Easily access your cloud storage and load personalised settings on any BenQ Board Master by simply tapping your NFC card or scanning the QR code - Instant Sharing with a Tap
Share pictures, videos, and other meeting materials directly from your Android phone by simply tapping it on the BenQ Board’s NFC reader. - Efficient Shortcuts at Your Fingertips
Navigate with ease using the sidebar, which offers quick access to the home screen, input sources, EZWrite, and all your frequently used apps. - Streamlined Connectivity
The RM7504 interactive display boasts a 65W USB-C port, enabling screen sharing, device charging, and touch back functionality.
Immersive Audio and Crystal-Clear Sound Pickup
Seamless Wireless Sharing of Diverse Content
Enhance presentations and discussions to captivate everyone involved. Team members can effortlessly share images, videos, or even live camera feeds from their laptops, tablets, or mobile phones simultaneously.
RM7504 Dimensions
| Panel | |
|---|---|
| Screen size | 75" |
| Panel type | IPS |
| Active area | 1649.7 × 927.9 mm |
| Resolution | UHD 3840 × 2160 pixels |
| Orientation | Landscape |
| Aspect ratio | 16:09 |
| Panel brightness (typical) | 450 nits |
| Contrast ratio (typical) | 1200:01:00 |
| Dynamic contrast ratio | 50,000:1 |
| Response time | 8 ms |
| Color gamut | 72% NTSC |
| Color depth | 10-bit |
| Backlight life (typical) | 50,000 hrs |
| Glass | |
| Germ-resistant technology | Nano-ionic silver |
| Anti-glare | Yes |
| Hardness | 9H tempered |
| Touch screen | |
| Touch technology | High Precision IR |
| Touch points | up to 40 |
| Touch response time | < 5 ms |
| System | |
| Memory | Storage | 8GB | 32GB |
| OS | Android 13 (EDLA) |
| GPU | Arm Mali-G52 MP8 |
| CPU | Arm Cortex-A73 × 4 + A53 × 4 |
| Connectivity | |
| VGA | 1 |
| HDMI (in | out) | 3 × HDMI 2.0 | 1 × HDMI 2.0 |
| DisplayPort | 1 × 1.2a |
| USB-A | 5 × 3.0, 2 × 2.0 |
| USB-C | 1 × 3.0 (PD 65 W), 2 × 3.0 |
| USB-B (for touch) | 3 × 3.0 |
| 3.5 mm Line in (1) | Mic × 1 |
| 3.5 mm Line in (2) | PC Audio × 1 |
| 3.5 mm Line out | Earphone × 1 |
| OPS slot (for slot-in PC) | 1 |
| Wi-Fi | Wi-Fi 6 (optional) |
| Bluetooth® | Bluetooth 5.2 |
| S/PDIF out | 1 (optical) |
| Ethernet | 2 |
| RS-232 | 1 |
| Built-in peripherals | |
| NFC sensor | Yes |
| Ambient light sensor | Yes |
| IR sensor | Yes |
| Microphone | 8-microphone array (range: up to 8 m | 26ft) |
| Speaker | 2 × 20 W (max) |
| Power | |
| ENERGY STAR® | Yes |
| Power | AC 100-240V 50/60Hz |
| Standby power consumption | <0.5 W |
| Typical power consumption | 124.7 W |
| Physical | |
| Dimensions (W x H x D) | 1717.1 x 1036.8 x 87.1 mm (67.6 x 40.8 x 3.4 inch) |
| Shipping dimensions (W x H x D) | 1860.0 × 1125.0 × 185.0 mm (73.2 × 44.3 × 7.3 inch) |
| Weight (product I shipping) | 51.5 kg | 67.6 kg (113.5 lbs | 149.0 lbs) |
| Mount (screws) | VESA 800 × 400 mm ( 4 × M8 × 25L) |
| Environment | |
| Operating temperature | 0°C ~ 40°C | 32°F ~ 104°F |
| Storage temperature | -10°C ~ 60°C | 14°F ~ 140°F |
| Storage humidity | 10% ~ 80% RH Non-Condensing |
| Operating humidity | 20% ~ 80% RH non-condensing |
| Software | |
| Whiteboarding | EZWrite 6.0 |
| Wireless screen sharing | InstaShare 2 |
| Device management | DMS |
| Account management | AMS |
| Quick access tool | Floating Tool |
| Broadcast system | X-Sign Broadcast |
| Accessories | |
| Cables | 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft) |
| Wall mount | 1 |
| Pen | 2 |
| Remote control | 1 |
