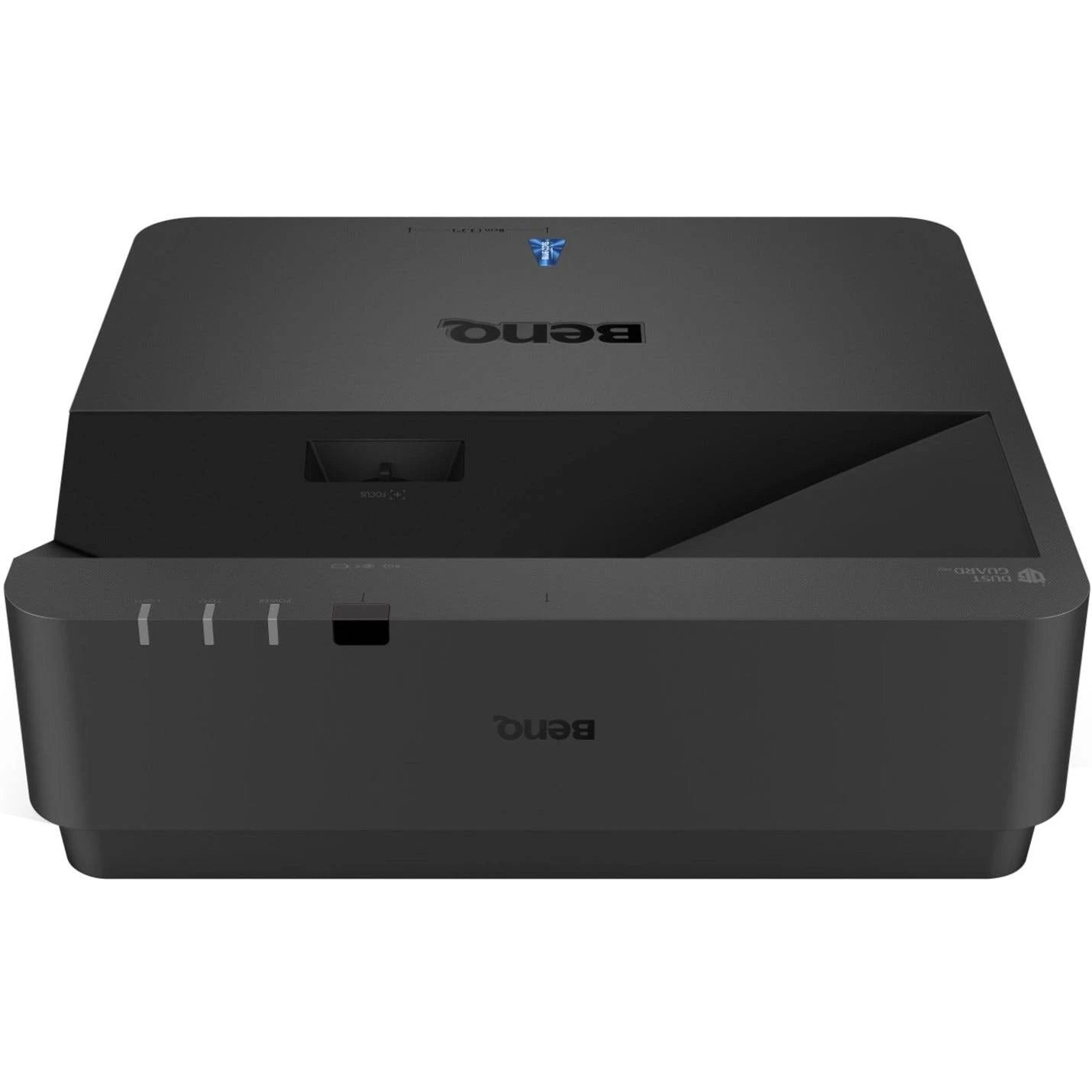

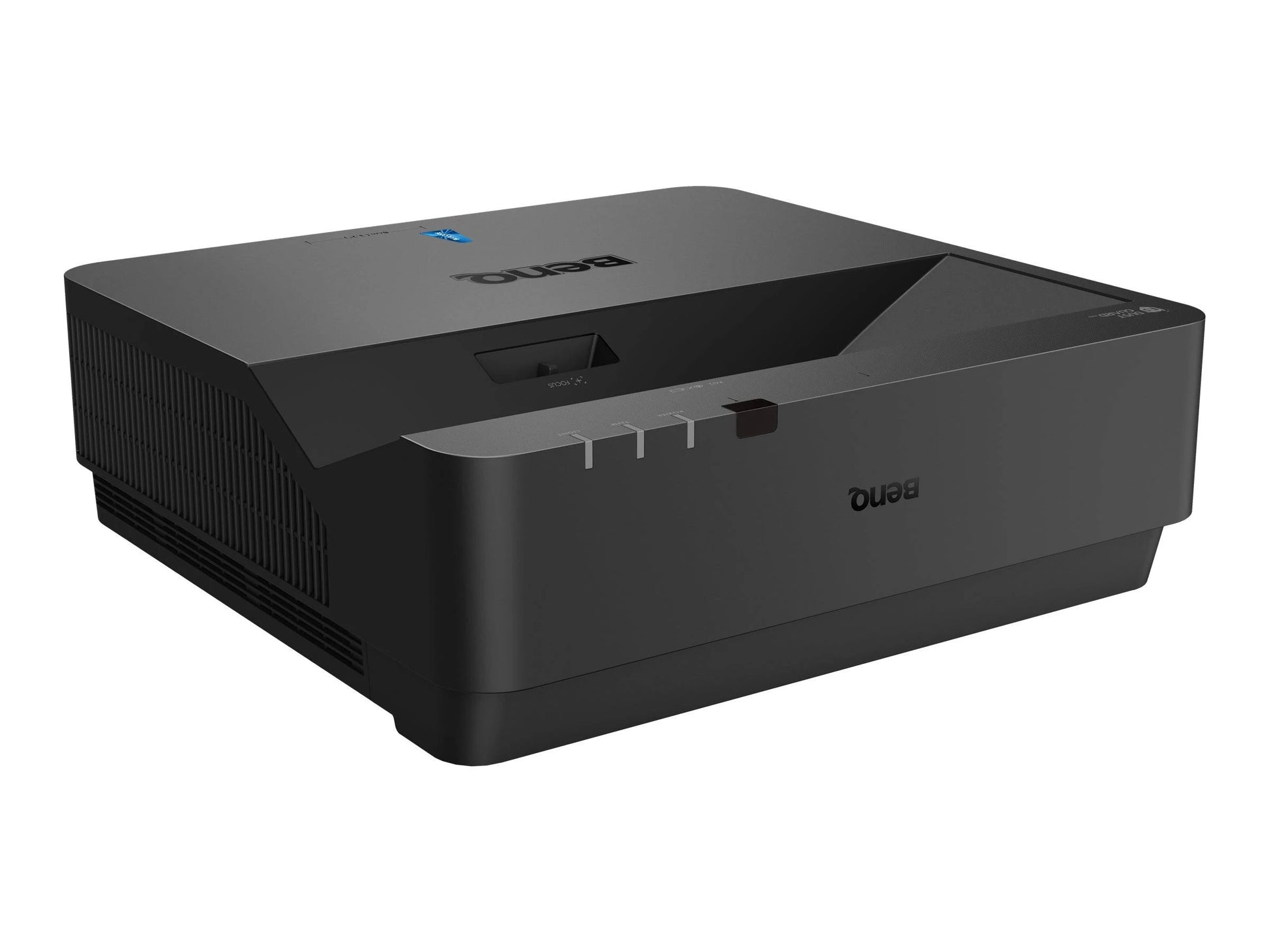

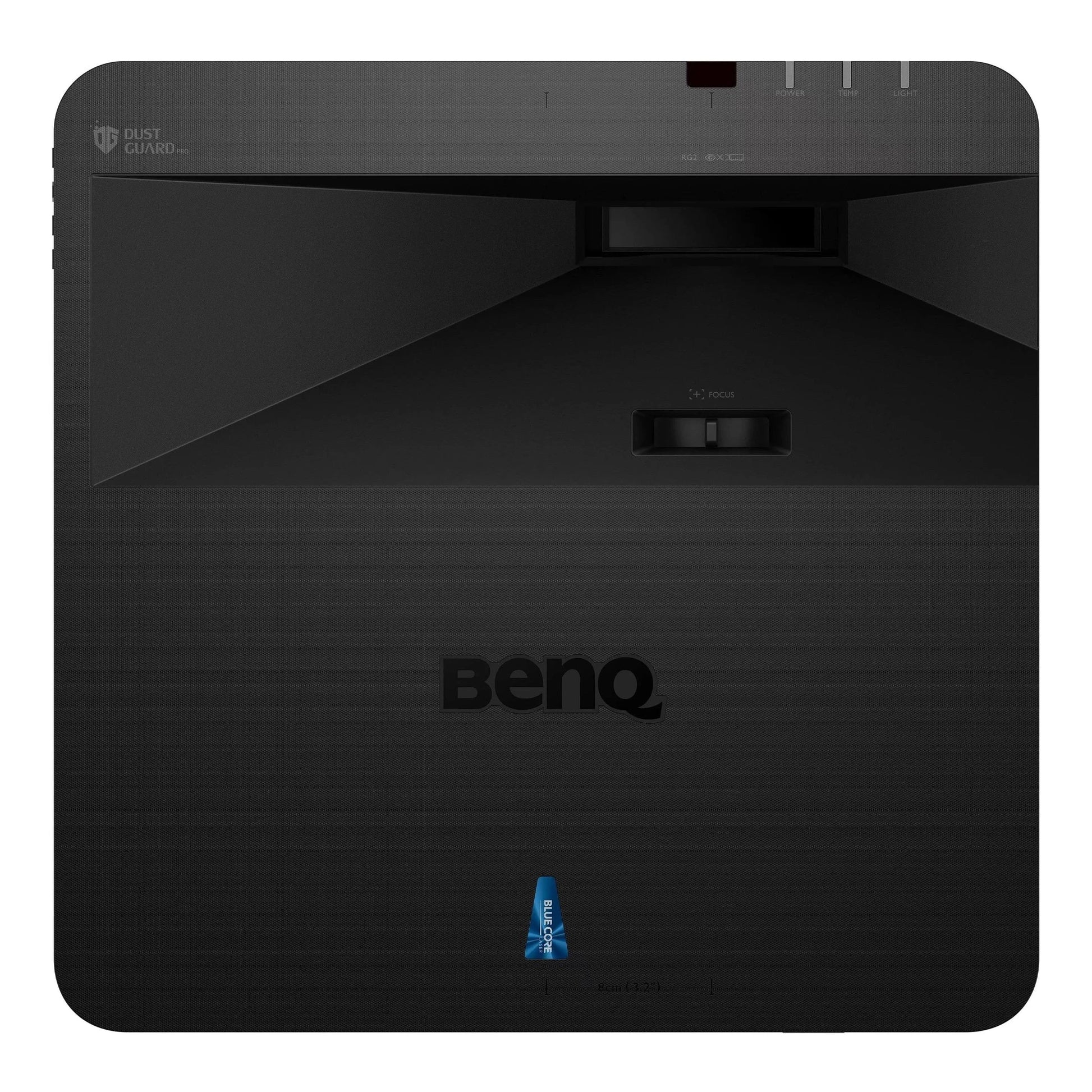

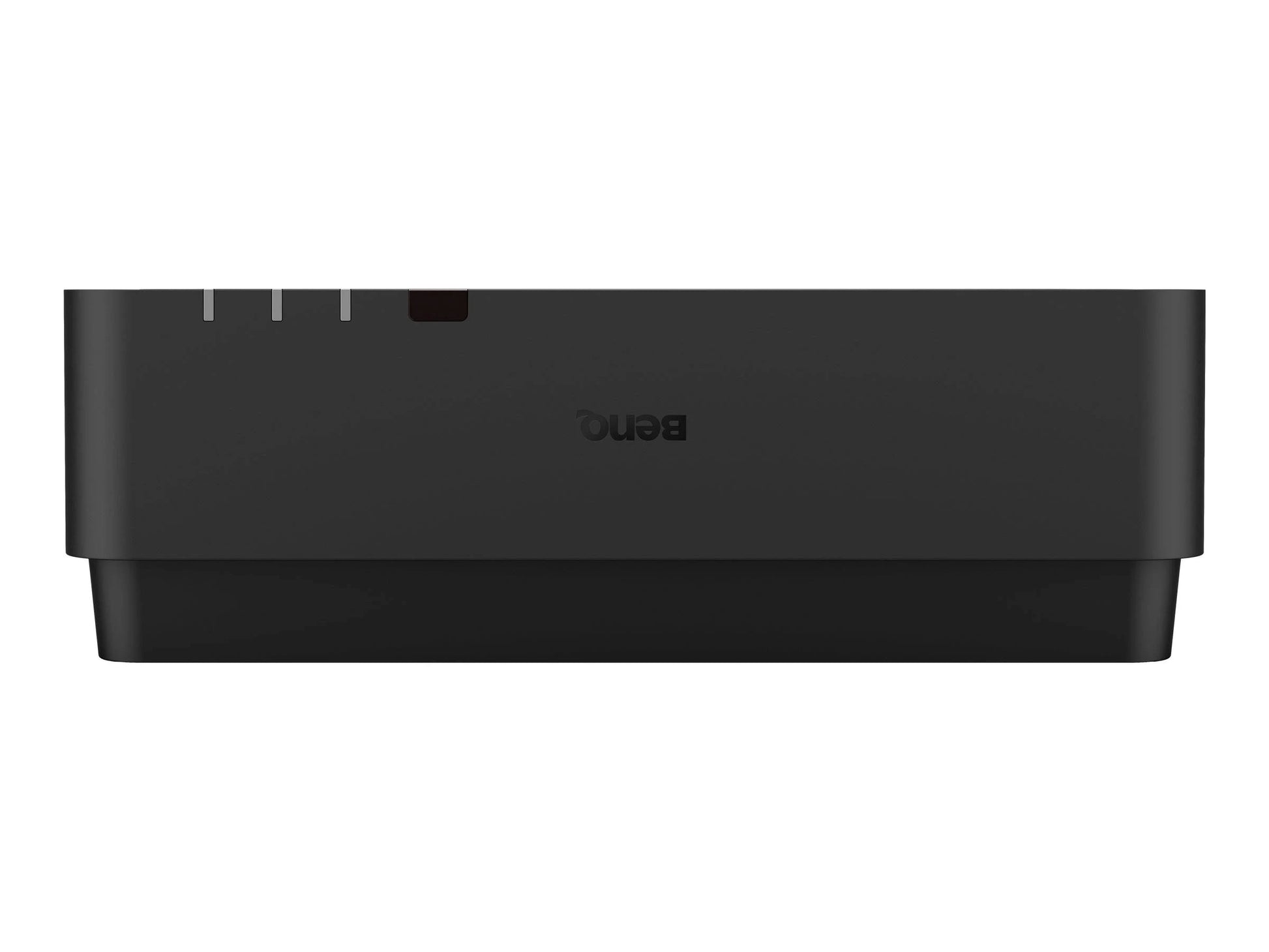

BenQ LU960UST WUXGA 5200lm Ultra Short Throw Laser Projector

BenQ LU960UST WUXGA 5200lm Ultra Short Throw Laser Projector

SKU:LU960UST

Regular price $5,999.00
Regular price $6,799.00 Sale price $5,999.00
ON SALE! Sold out
Inc. GST

Found a better deal? Request a Price Match Here!

View full details

BenQ LU960UST Laser High Brightness Ultra short Throw Projector

The BenQ LU960UST projector introduces a powerful laser to the ultra short throw projector market, fulfilling a long-awaited need. Featuring 5200 ANSI lumens, the LU960UST can project on a large scale or in well-lit environments without compromising image quality. This model is designed for longevity, offering 24/7 operation and a sealed light engine with an IP5X rating to prevent dust buildup. Its full brightness is rated for up to 20,000 hours of operation, meaning it could last for over 7 years with daily use of 7 hours. Additionally, an economic mode running at 70% brightness can extend its lifespan to an impressive 70,000 hours.


Key Features & Specifications

  • WUXGA 1920 x 1200 16:10
  • 5200 ANSI Lumens
  • 3,000,000:1 Contrast
  • 12.0kg Weight
  • 37 / 35db(eco) Fan Noise
  • 3 Year Warranty
  • 3 Years/10,000hrs Laser Warranty
  • Est. Laser Life up to 60,000hrs
  • 2x HDMI Connection
  • 1x HDMI Out
  • Vertical Keystone Correction
  • Horizontal Keystone Correction
  • Powerful 10W Speaker
  • 3D Capable(3D glasses required)
  • HDBaseT Compatible

Throw Distance Chart
(Throw Ratio: 0.25:1)

Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
110" (16:10) 2370x1480mm Approx. 0.59m
120" (16:10) 2585x1615mm Approx. 0.64m
130" (16:10) 2800x1750mm Approx. 0.70m
140" (16:10) 3015x1885mm Approx. 0.75m
150" (16:10) 3230x2020mm Approx. 0.80m

LU960UST 5200lms WUXGA Installation Projector

  • Reproduce True-to-life Images for Totally Immersive Experiences (T/R 0.25)
  • Flexible Installation: Support wide corner fit adjustment with 0.25 T/R ultra short throw
  • Amazing Colour Accuracy: sRGB Mode for 92% Rec 709 colour accuracy
  • Fast Mode: Latency<17ms (@WUXGA/60Hz) response enables realistic simulation and gaming
  • White Balance Adjustment in Factory: White balance calibration for seamless blending
  • Maintenance-Free Laser: Dustproof sealed laser engine with 20,000 hours of life at full power

Creating Lasting Lessons with Stunning Picture Quality

Revolutionary Laser Technology

Extending its full line of revolutionary BlueCore laser projectors, the world’s No.1 DLP brand BenQ presents LU960UST, especially designed for ultra short throw fixed lens installation and reserves installation flexibility to merge into limited space.

BenQ LU960UST laser light source
BenQ LU960UST Superior Brightness

Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,200 lumens.

BenQ LU960UST Superior Performance

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

BenQ LU960UST Superior Durability

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.

Excellent Installation Flexibility

Ultra Short Throw Design for Unobstructed Viewing Without Space Constraints

Producing larger-than-life images in tight spaces with a 0.25 ultra short throw ratio, LU960UST eliminates distracting shadows and glare for viewers to move freely in front of the screen while enjoying immersive viewing experiences in places with space limitation or retail application with a lot traffic.

Ultra Short Throw Design

Native Resolution Switch and Digital Lens Shift

LU960UST is built with the native resolution switch function so users can change the native resolution from WUXGA into 1080P. When the native resolution is set at 1080P, the vertical lens shift function will be enabled for users to perfectly align images in any challenging venue such as when lights or vents that are located at the ceiling mounting site. Lens shift can move projected images up and down by 5% of screen height.

Digital Lens Shift

Digital Shrink and Shift without Distortion

Digital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.

Digital Shrink

360° and Portrait Projection Accommodate Different Spaces

BlueCore laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.

Portrait Projection

Ensure Consistent Brightness Blending with Custom Light Mode

Custom Light Mode modulates light power output from 40% to 100% under a scale of 80 steps, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.

Consistent Brightness

Wired Remote Control

Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.

Wired Remote Control

Remote Control Projector ID Setting for Independent Control

Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.

Remote Control Projector ID

3D Sync In /3D Sync out

Connect up to 3 projectors and project 3D content together by a single PC.

3D Sync In /3D Sync out

HDBaseT for Uncompressed Transmission Up to 100m and Control

Groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.

HDBaseT

Superior Image Quality

Lag-Busting Response with Fast Mode

Based on expertise gained from experience with near-zero latency displays used in gaming, LU960UST employs Fast mode functions to provide latency as low as 16.67ms. LU960UST can serve the fast-moving dynamic or interactive scenes such as in immersive cycling simulation and amusement park theaters very well.

Fast Mode

WUXGA Resolution for Enhanced Detail and Expanded Content

With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU960UST BlueCore laser projector offers greater details and stunning image clarity when projecting high resolution images.

Enhanced Detail

Dual Colour Wheels Produce 92% Rec.709 Color Coverage for Optimal Color Performance

LU960UST’s powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled colour performance that achieves a 92% Rec.709 colour coverage. By increasing color ratios and the purity of RGBY color, LU960UST dramatically enhances colour saturation to ensure superior presentation quality.

Dual Colour Wheels

High Brightness Vivid Clarity in Bright Ambient Environments

LU960UST’s 5200lm high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality.

High Brightness Vivid Clarity

Laser-Powered Ultra-High Contrast

LU960UST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU960UST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

Ultra-High Contrast

HDMI 2.0 for Supreme Image Quality

LU960UST come with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.

HDMI 2.0

Supreme Image Quality

Gamma Selection

Select Gamma for your preference and optimizing image quality between input source and picture brightness. Besides, LU960UST also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.

Gamma Selection

Enduring Reliability

24/7 Operation

BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Dimming Mode.

24/7 Operation

Superior Dustproofing for Severe Conditions with IP5X Certification

BenQ BlueCore laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.

Superior Dustproofing

Highly Integrated Network Control and Management System Compatibility

Centralised Control with BenQ Software

BenQ centralised control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/ technicians via a local network. The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.

BenQ Software

Crestron AMX

Network / Web Control

BenQ BlueCore laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.

What's in the Box

  • BenQ LU960UST Projector
  • Remote Control
  • Power Cord

What you may need

  • HDMI Cable
  • Projector Screen
  • Projector Mount
Specifications
Optical
Throw Ratio 0.25
Keystone Correction Vertical: ± 30 degrees‎ , Horizontal: ± 30 degrees‎
Projection Size 100”~150”
Projection Offset 122%

Display
Projection System DLP Single 0.48" WUXGA
DMD type DC3 DMD Chip
Resolution 1920x1200 pixels
Brightness 5200 ANSI Lumens
Contrast Ratio* 3,000,000:1
Display Color 1.07 Billion Colors
Aspect Ratio Native 16:10 (6 aspect ratio selectable)
Light Source Laser diodes
Light Source Life* 20,000/38,000/70,000 hours(Normal/Eco/Dimming)

Audio
Built-in Speaker 10W

Special Feature
Security Security Bar,Kensington anti-theft lock slot
Feature Rec.709 92%
Blank to True Black
4K Compatible
DICOM Mode
360 Degree and Portrait Projection,Corner fit
Custom Lightsource Mode (light power adjustment)
Dust Proof Engine
24/7 Hours Operating
FW upgrade by LAN
Digital Lens Shift
Blanking
Dynamic Dimming
Native Resolution Switch
Fast mode
Corner fit/ 2D keystone/ Digital shrink and shfit

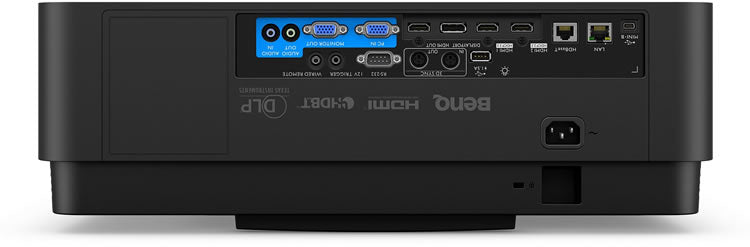

Connectivity
HDMI HDMI (HDCP 2.2) x2; HDMI out x1
PC (D-sub 15pin) x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
RS232 In (D-sub 9pin, male) x1
USB TypeA-2 (5V,1.5A) x1
USB Type mini B x1 (FW download/ service)
LAN Port(RJ45 for Network ) x1

Compatibility
Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)
Horizontal Frequency 15~102KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

Power
Power Consumption (Max/Normal/Eco) 500W/450W/339W
Standby Power Consumption Normal < 0.5Watts. Network < 2W.
Power Supply 100 ~ 240V AC

Dimension and Weight
Product Dimensions (WxHxD) 480 x157.4 x 473 mm
Product Weight 12 kg

Operation Condition
Noise Level(Normal/Eco) 37/35dBA
Operating Temperature 0 ~ 40°C

Accessories
Accessories (Standard) Installation Guide
Safety Guide
Remote Control (RCA024)
AA Batteryx2
Power Cord
Warranty card (by Region)

OSD/Launcher
On Screen Display /Launcher Language Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)‎
