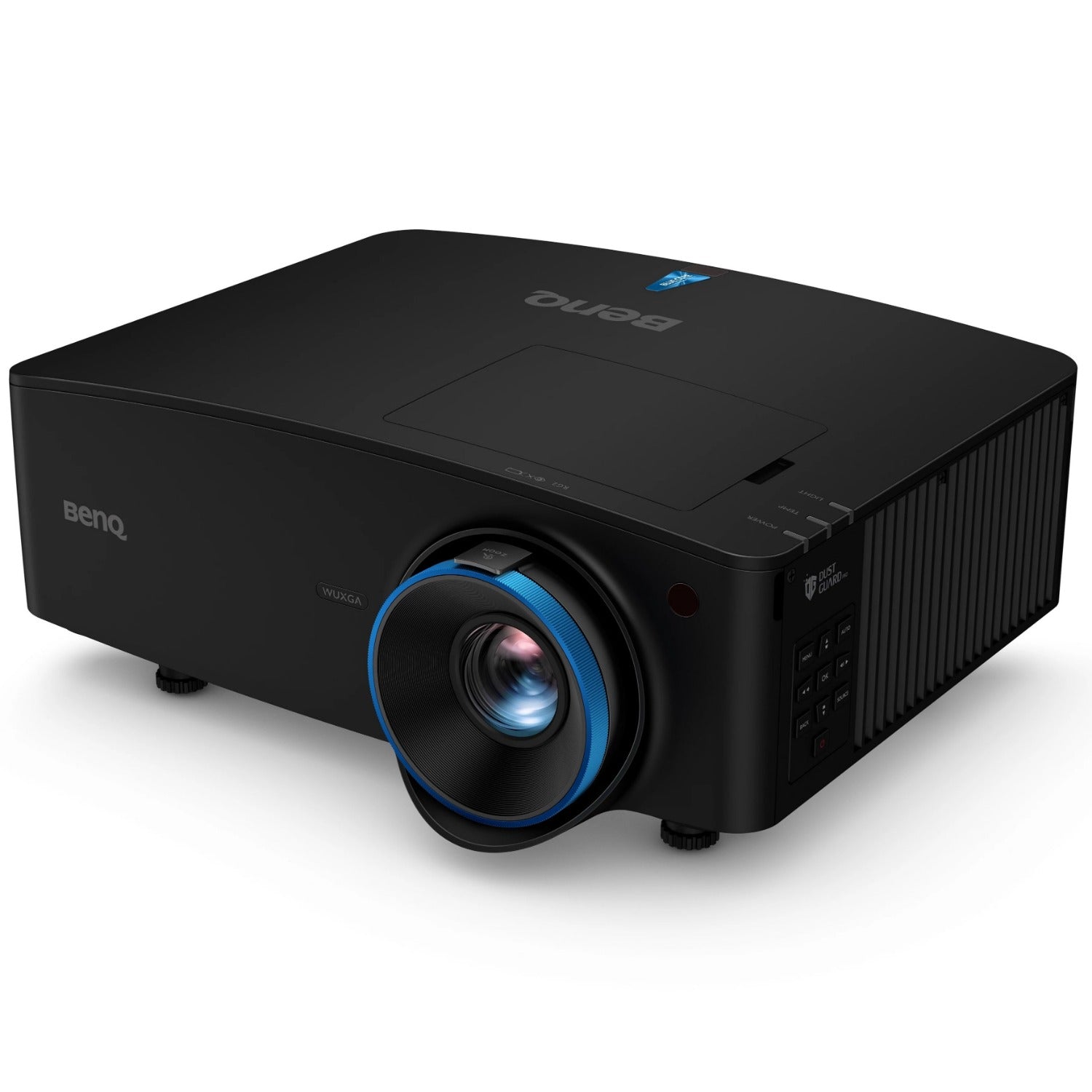

BenQ LU935ST Laser WUXGA Short Throw High Brightness Projector
The BenQ LU935ST WUXGA Short Throw Laser Projector boasts a compact design and high power output, making it easy to use and long-lasting. Its 0.81-0.89 throw ratio allows for large screen projection from a short distance, perfect for small spaces and avoiding glare in presentations. With a massive 20,000-hour laser life, there is no need for costly lamp replacements or technician visits, making it ideal for hard-to-reach installations. The projector's impressive 5500lm brightness ensures clear visibility even in well-lit environments.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 5500 ANSI Lumens
- 3,000,000:1 Contrast
- 7kg Weight
- 40 / 33db(eco) Fan Noise
- 3 Year Warranty
- 3 Year / 10,000hrs Laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Connection
- DisplayPort Connection
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-/+60%)
- Horizontal Lens Shift (+/- 23%)
- 360 degree tilt Horizontal & Vert.
- HDBaseT Compatible
- Powerful 10W Speaker
- 360° Installation
Throw Distance Chart
(Throw Ratio: 0.81-0.89:1)
Image Size | Installation Distance |
---|---|
94" (16:10) 2025x1265mm | From 1.64m to 1.80m |
110" (16:10) 2370x1480mm | From 1.92m to 2.10m |
120" (16:10) 2585x1615mm | From 2.10m to 2.30m |
130" (16:10) 2800x1750mm | From 2.27m to 2.49m |
140" (16:10) 3015x1885mm | From 2.45m to 2.68m |
150" (16:10) 3230x2020mm | From 2.62m to 2.87m |
LU935ST Laser Projector with 5500 Lumens & Short Throw Lens
Reproduce True-to-life Images for Totally Immersive Experiences
- HASSLE-FREE INSTALLATION - With V/ H lens shift, 2D keystone and corner fit
- AMAZING COLOR ACCURACY - 92% Rec 709 color accuracy to see every detail
- FAST <17ms response enables realistic simulation and gaming
- 5500 ANSI LUMENS FOR Big screens - Will effortlessly fill large screens up to 20 feet wide
- MAINTENANCE FREE DESIGN - Sealed IP5X laser engine means no dirty projector filters and 20,000 hour laser life
Revolutionary Laser Technology
The world’s No. 1 DLP brand BenQ introduces its full line of innovative corporate laser projectors with LU935ST, unleashing the WUXGA resolution for professional presentation in corporate settings.
Superior Brightness
Precision-Aligned High-Output Laser Source
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy.
Superior Performance
Secondary Yellow-Infused Color Wheel
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability
Hermetically Sealed DLP Chip
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.
Easy Installation
Short Throw Lens
Ideal for golf/ flight simulation and retail applications, the LU935ST is equipped with a short-throw lens that will fill up a 12 foot wide screen from less than 10 feet away. This enables you to place the projector so that you can stand closer to the screen without casting a shadow.
Digital Shrink and Shift without Distortion
LU935ST’s digital image shrinking and shift lets installers shrink the image to 75% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
360 Degree Installation for Portrait or Custom screens
The BenQ LU953ST can be mounted in any position, including sideways for a portrait image, or vertically for floor simulators without compromising performance or reliability. This is ideal for flight simulators or other specialty environments with unconventional screen locations.
Big Zoom and Lens Shift for Flexible Installation
The LU935ST features both a zoom function and vertical/horizontal lens shift to enable you to mount the projector in a protected area, while still enabling you to have a fully aligned image on your screen. You can move the image up and down up to 60% of the screen height – and adjust the horizontal position by 23% for an off-axis mounting location. The zoom lens can enlarge or reduce the image to enable you to move your mounting position as much as a foot on a fourteen foot wide screen.
White Balance Adjustment
BenQ exclusive white balance adjustments can reduce white balance variables between images projected from different projectors to such a low level that the most people cannot see any difference. This allows for seamless and accurate picture quality without disruptive discrepancies.
Projector Blending Tools
If your environment requires multiple projectors to be blended together, the BenQ LU935ST enables you to adjust the white points on each projector, as well as the light output to ensure an immersive smooth blended image with multiple projectors
Cinematic Grade 92% Rec.709 Colour Coverage for Optimal Color Performance
LU935ST’s powerful laser projection utilizes a dual colour wheel system to produce unparalleled color performance that achieves a 92% Rec.709 colour coverage. By increasing color ratios and the purity of RGBY colour, LU935ST dramatically enhances color saturation to ensure superior presentation quality.
High Brightness Vivid Clarity in Bright Ambient Environments
LU935ST’s 5500lms high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality.
Laser-Powered Ultra-High Contrast
LU935ST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU935ST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.
20,000 Hour Long-Lasting Performance
BenQ LU935ST laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple projections without concern for adjacent projectors generating different levels of brightness after a period of operation.
DLP Technology for Lasting Vibrant Colour
BenQ LU935ST laser projector is based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 20,000 hours without degradation, ensuring true-to-life colours and pristinely legible text over countless uses. With filter-free DLP technology, LU935ST reduces total cost of ownership and no time-consuming filter maintenance to worry about.
IP5X DustGuard™ Pro for Superior Dustproofing Sealed Engine
BenQ LU935ST laser projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime. The design has passed the dust chamber test standard JIS Class IP5X for superb dust protection.
Anti-Dust Accumulation Sensor to Resist Dust Buildup
Incorporating a color wheel sensor with an ingenious anti-dust buildup features, BenQ LU935ST prolongs optimal performance by repelling dust that can accumulate on traditional sensor to block the IR signal and cause flickering, abnormal colors, or even shutdown.
HDMI 2.0 for Supreme Image Quality
LU935ST come with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.
HDBaseT for Uncompressed Transmission Up to 100m and Control
LU935ST is equipped with groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
Integration with Home Automation Control System
LU935ST can be connected to the home automation control system, allowing you to manage and control your projector through your smartphone, tablet or personal computer.
Wired Remote Control
Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.
Remote Control Projector ID Setting for Independent Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.
3D Sync In /3D Sync out
Connect up to 3 projectors and project 3D content together by a single PC.
RS-232 In and Out
Control at same time by RS-232 in and out connected together to make multi-screen projections.
Superb Image Quality
Lag-Busting Response with Fast Mode
Based on expertise gained from experience with near-zero latency displays used in gaming, LU935ST employs a Fast Mode to provide latency as low as 16.67ms so that audience benefit from responsive and realistic interactive scene when having fun.
WUXGA Resolution for Enhanced Detail and Expanded Content
With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU935ST laser projector offers greater details and stunning image clarity when projecting high resolution images.
Highly Integrated Network Control and Management System Compatibility
Centralized Control with BenQ Software
BenQ centralized control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/ technicians via a local network. The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.
Network/ Web Control
BenQ laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.
What's in the Box
- BenQ LU935ST Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- Wireless Dongle
- HDBaseT Transmitter
- Protective Case
Projection System | |
Projection System | DLP |
DMD size | 0.48'' ECD |
Display | |
Brightness (ANSI lumens) | 5500 |
Native Resolution | WUXGA (1920x1200) |
Native Aspect Ratio | 16:10 |
Contrast Ratio (FOFO) | 3,000,000:1 |
Display Color | 30-bit (1.07 billion colors) |
Light Source | Laser |
Light Source Life | 20000 hrs |
Optical | |
Throw Ratio | 0.81 ~ 0.89 |
Zoom Ratio | 1.1x |
Lens | F/# = 1.83 ~ 1.86,f = 8.6 ~ 9.4 mm |
Projection Offset (Full-Height) | 0% |
Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
Lens Shift Vertical | Vertical: -60%~ +60% Horiztonal : -23%~ +23% |
Compatibility | |
Input Lag | 16 ms (4K@60Hz) *downscalaing to 1080p |
Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
Horizontal Frequency | 15K~102KHz |
Vertical Scan Rate | 23~120Hz |

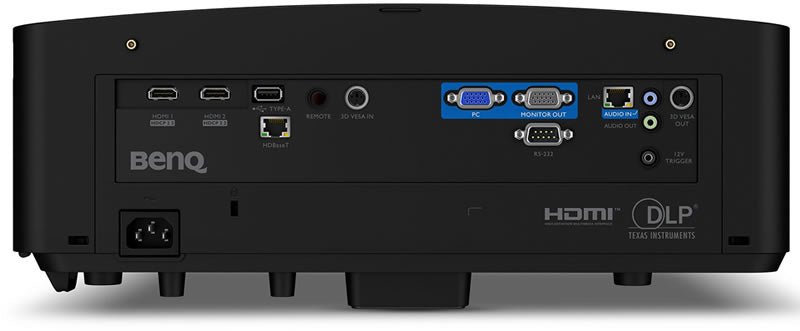

I/O Interface | |
PC in (D-sub 15pin) | (x1),PC in-1 |
Monitor out (D-sub 15pin) | (x1) |
HDMI in | (x2),HDMI-1 (2.0a/HDCP2.2),HDMI-2 (2.0a/HDCP2.2) |
LAN (RJ45) | (x1) |
HDBaseT (RJ45) | (x1),Control/Video/Audio |
3D Sync in | (x1) |
3D Sync out | (x1) |
USB Type A | (x1),USB Type A-1 (2.0/Power Supply1.5A) |
RS232 in (DB-9pin) | (x1) |
Wired Remote in (3.5mm Mini Jack) | (x1) |
DC 12V Trigger (3.5mm Jack) | (x1) |
Audio | |
Speaker | (x2),10W |
Audio in (3.5mm Mini Jack) | (x1) |
Audio out (3.5mm Mini Jack) | (x1) |
Environment | |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption (110V) | 440W |
Stand-by Power Consumption | <0.5W |
Network Stand-by Power Consumption | <2W |
Operating Temperature | 0~40℃ |
Dimension & Weight | |
Dimensions (WxHxD) (mm) | 416x166 x 351 mm |
Net Weight (kg) | 7 |
